I'm pulling my hair out. I have a Pioneer head unit and want to use all factory amps and speakers. I have an extra amp/sub connected to the amp rack with a Scosche RCA converter.
I bought three different Metra harnesses. The one that finally fits has three connectors and is the 70-5701 kit.

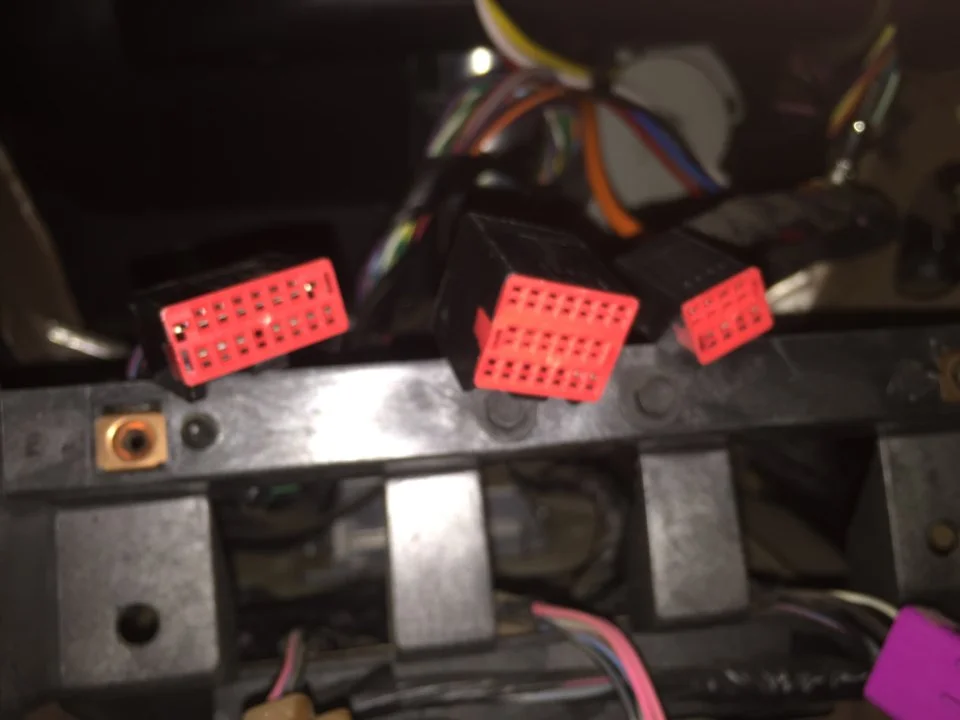

I matched color to color on the main, rectangle harness. The large square connector only had mute and power antenna so I color matched the mute to the Pioneer harness. The smaller square connector has amp ground, amp turn on, and RF speaker + and -. I connected amp connections but RF speaker connections don't go anywhere. There is already a RF speaker wire on the main harness.
I have sound and can move the fade from F to B and R to L and it moves properly. The bottom door speakers have no sound. If I splice both RF speakers wires to each other I get strong bass but lose fading and I get a muffled beep through the system when pushing buttons on the radio. If I disconnect the small square harness RF speaker wires and touch them with my fingers I get thumping through the sub and back speakers.
Is there a diagram that shows the pin outs for the car harness or anyone know the way to hook these up?
I bought three different Metra harnesses. The one that finally fits has three connectors and is the 70-5701 kit.
I matched color to color on the main, rectangle harness. The large square connector only had mute and power antenna so I color matched the mute to the Pioneer harness. The smaller square connector has amp ground, amp turn on, and RF speaker + and -. I connected amp connections but RF speaker connections don't go anywhere. There is already a RF speaker wire on the main harness.
I have sound and can move the fade from F to B and R to L and it moves properly. The bottom door speakers have no sound. If I splice both RF speakers wires to each other I get strong bass but lose fading and I get a muffled beep through the system when pushing buttons on the radio. If I disconnect the small square harness RF speaker wires and touch them with my fingers I get thumping through the sub and back speakers.
Is there a diagram that shows the pin outs for the car harness or anyone know the way to hook these up?
