Need Driver Door Wiring Schematics

MichaelJP

New Member
Aug 4, 2014
2
0
1
my power window wouldn't go up or down anymore so i changed the motor and it seemed to do the trick, only problem now is that the switch on my door won't do anything. so what i'm assuming it must be some sort of short circuit. any help would be kindly appreciated

  • Sponsors (?)

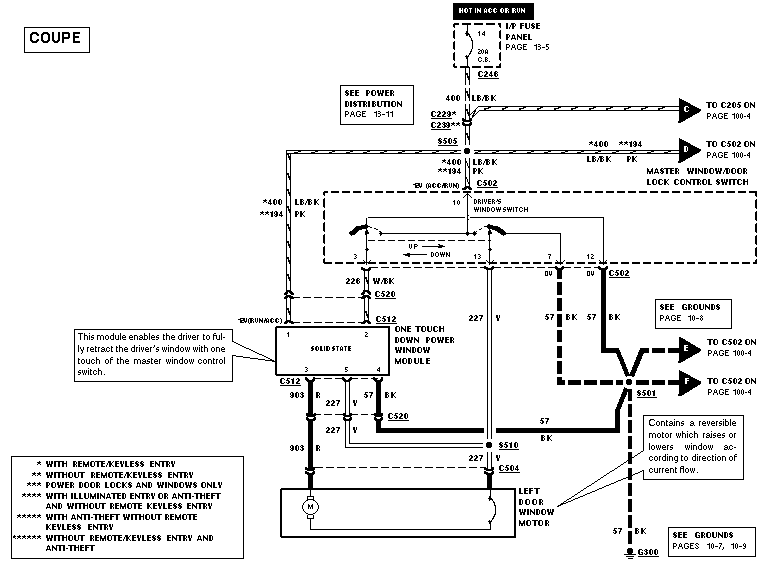

Here is a coupe:



Here is a convertible:

mustang87-92%20PowerWindowWiring convertable.gif
