Table of Contents

If you have an idea or want to add something please PM me.

Page 1
1. Heads-Flow Rates, Block Guide, Volume Control / Head / Intake / Cam Install.

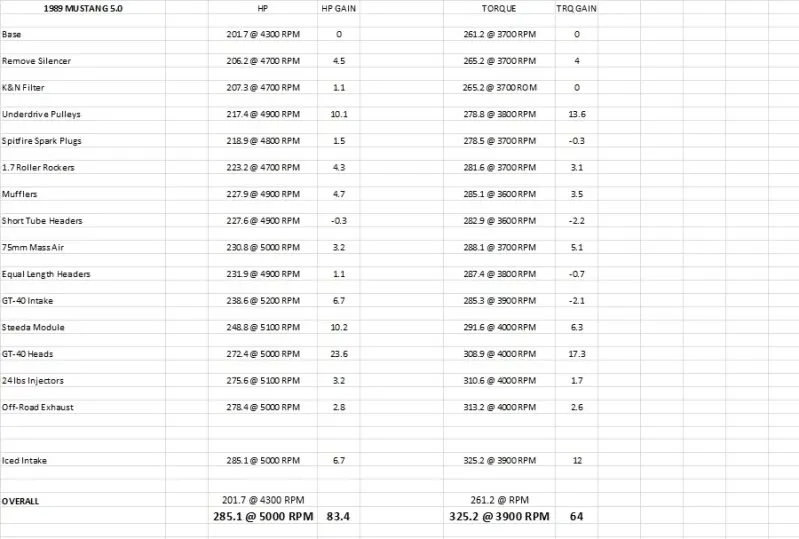

2. Intakes-Flow Rates & Dyno Session After Each Part.
3. Cams-Top 10 off the shelf cam specs & Cam How To's & Info.
4. Mufflers-Horsepower and decibel shootout & Shorty Header Install Pics.
5. Mass Air Meters-Flow Rates.
6. Throttle Body Flow Rate & Fuel Injector HP Rating With Color Codes.
7. Stangnet User Combo's-Which combo will work best for you?
8. Edelbrock Intake Install-How To with pics.

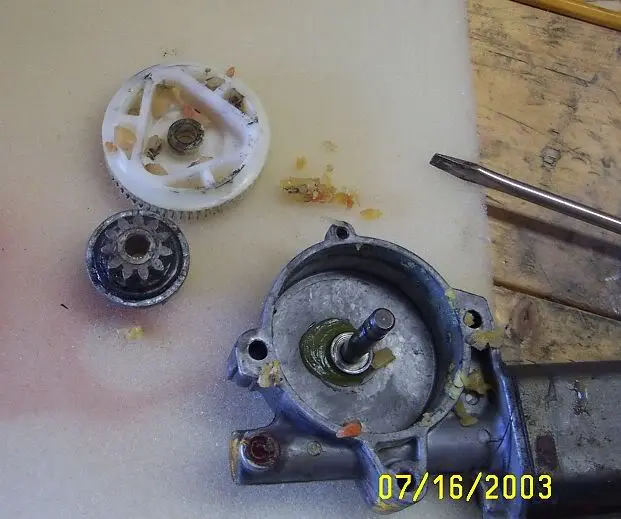

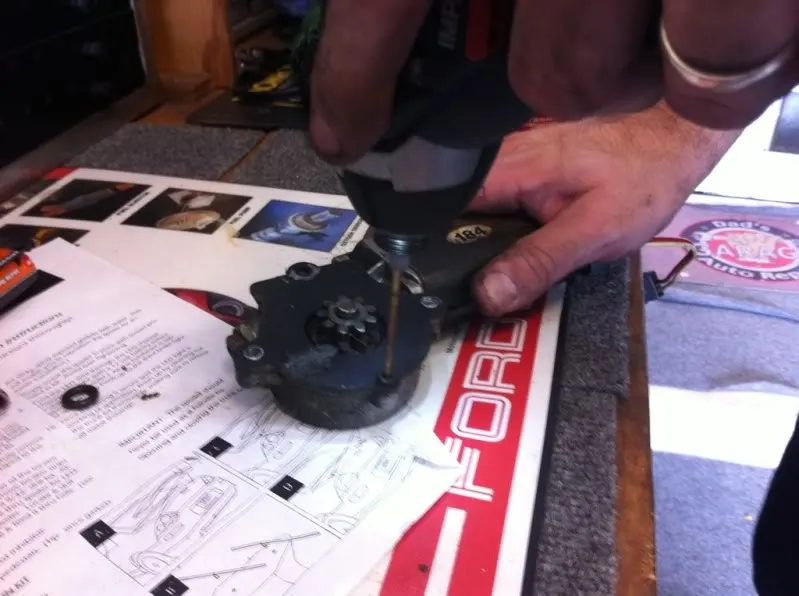

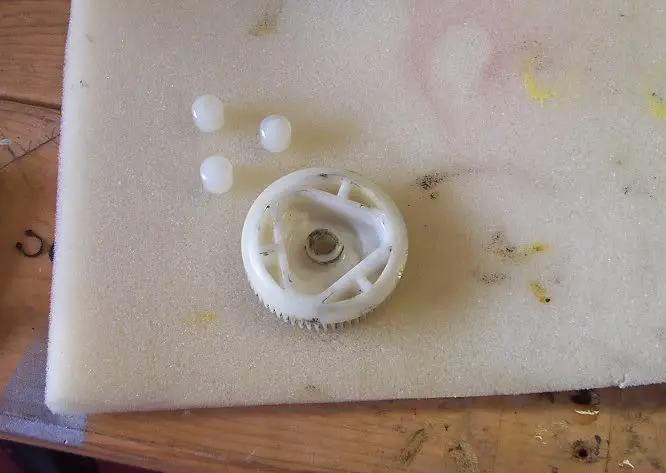

9. Window Lift Bushing Install-How To with pics.
10. Misc How To's-Links to many tech articles.
11. Rocker Arm-Installation Instructions.
12. Cooling Section-Fan Switch How To and many diagrams (ccrm, etc.) (Pictures Not Fixed, PM Me if you have this).
13. Production Numbers-By year and color codes & 1994-95 Stock Specs.

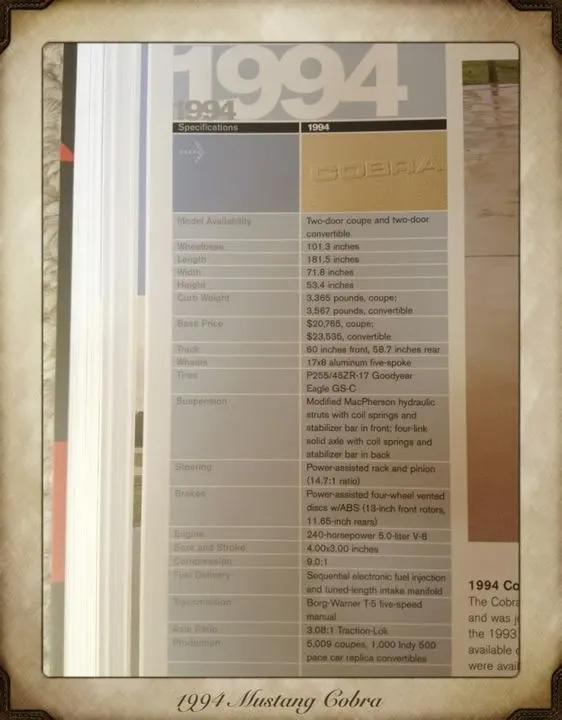

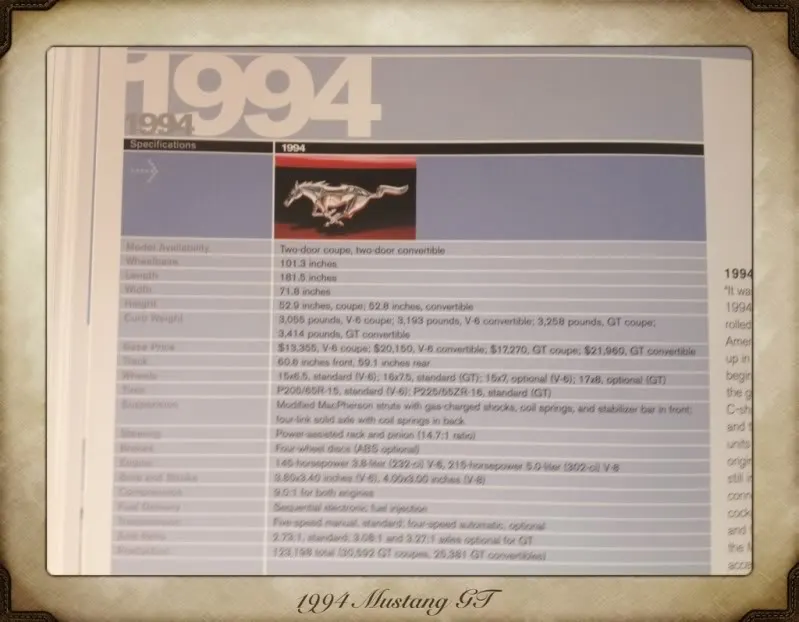

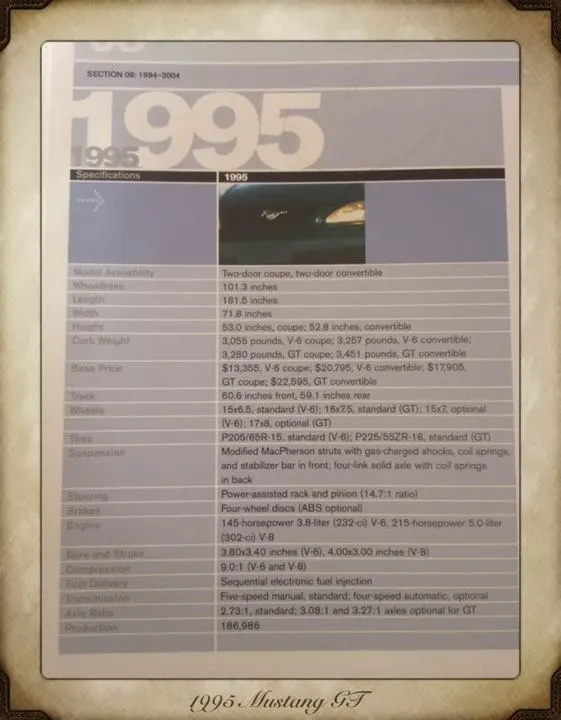

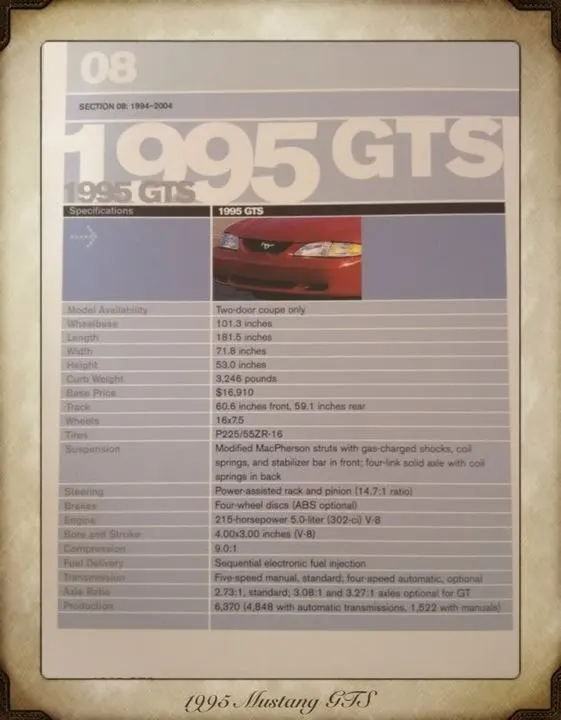

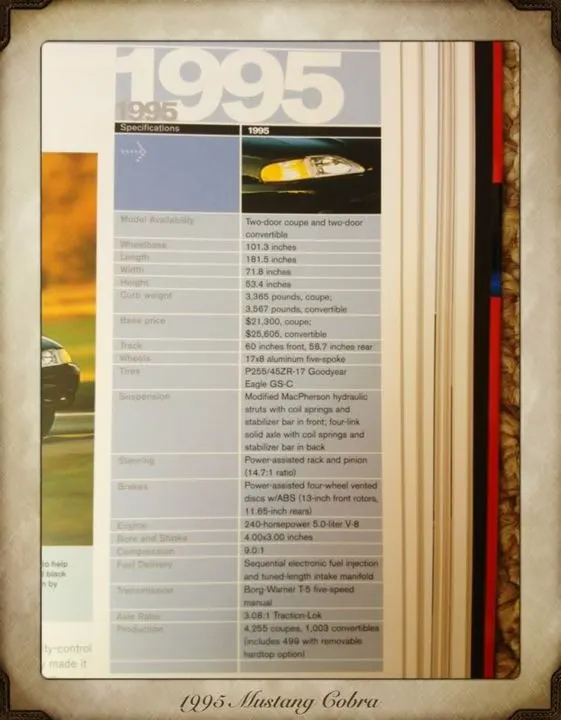

14. Cobra Specs-All about the 94-95 Cobra & GTS Stock Specs.
15. Wheels-Pictures of each type of wheel. Table 1 Table 2.
16. How To-Switching over from a SN95 throttle body to a FOX (86-93) (Pictures Not Fixed, PM Me if you have these).
17. Air Bag Light / Diagonstics and Air Bag Codes.
18. Bolt Torque Guide For All Bolts.
19. Spark Plug Reading & Motorcraft Part Number Guide.
20. Sensors-Cleaning MAF, Adjusting TPS / IAC, Idle Settings, etc.

Page 2
21. How To's Index Links for Years 86-95 (former sticky).
22. 1995 Cobra R Specs.
23. Instrument Cluster Gear Replacement by Jinx.
24. Common Question Threads w/ Links, Compiled by NikwoaC.
25. List of Stangnet Sponsors and Shops.
26. Stangnet User's 1/4 Mile Times -GT / GTS / Cobra. List compiled 10 years ago. ADDED 8-21-12.

  • Sponsors (?)


1. HEADS-Flow Rates For Just About All Stock & Aftermarket Heads.

How much flow do you want? Which head is best?

From Stock to Aftermarket.
http://www.carbdford.com/tech/flowdata.htm

Head Rates / HP / Torque-Stock E7's vs. AFR 165's vs. GT40X vs. Windsor vs. Brodix vs. Edelbrock Perf.
http://www.veryuseful.com/mustang/tech/engine/images/6HeadShootout.gif

Cylinder Head Test-Volume Control from January 2011 MM&FF Magazine.
http://www.musclemustangfastfords.com/tech/mmfp_1101_cylinder_head_comparison_test/viewall.html

AFR Heads vs. TFS Heads-Flow Rates, Lift, Valves, CC, all information available.
http://www.stangnet.com/mustang-forums/threads/afr-and-trickflow-head-information.716191/

Head, Cam & Intake Swap with Instructions and Pictures.
http://www.allfordmustangs.com//techarticles/headcamintakeswap.pdf

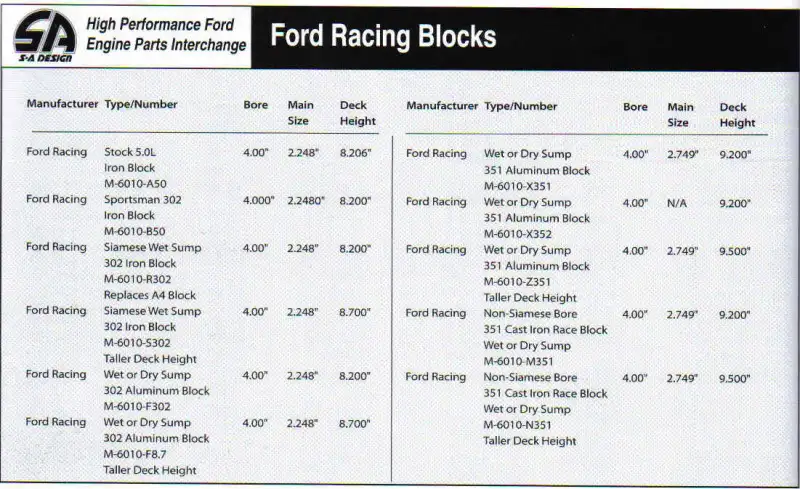

Block Guide (Added 12-21-11)


Attachments

  • FordRacingBlocks.jpg
    117.5 KB · Views: 1,740

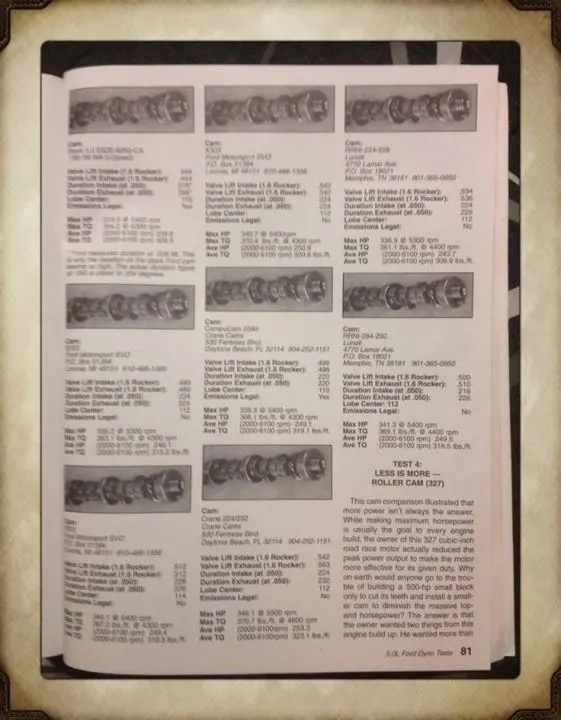

3. POPULAR (OFF THE SHELF) CAMSHAFT SPECS:

1.Stock 5.0 E8ZE-6250-CA, Valve Lift Intake w/1.6 rockers-.444,
Valve Lift Exhaust w/1.6 rockers-.444, Duration Intake (at .050)-204, Duration Exhaust (at .050)-204, Lobe Center-116, Emissions Legal-Yes

2.X303, Valve Lift Intake w/1.6 rockers-.542, Valve Lift Exhaust
w/1.6 rockers-.542, Duration Intake (at .050)-224, Duration Exhaust (at .050)-224, Lobe Center-112, Emissions Legal-No

3.Lunati 50017, Valve Lift Intake w/1.6 rockers-.500, Valve Lift Exhaust w/1.6 rockers-.510, Duration Intake (at .050)-218, Duration Exhaust (at .050)-226, Lobe Center-112, Emissions Legal-No

4.B303, Valve Lift Intake w/1.6 rockers-.480, Valve Lift Exhaust w/1.6 rockers-.480, Duration Intake (at .050)-224, Duration Exhaust (at .050)-224, Lobe Center-112, Emission Legal-No

5.Crane 2040, Valve Lift Intake w/1.6 rockers-.498, Valve Lift Exhaust w/1.6 rockers-.498, Duration Intake (at .050)-220, Duration Exhaust (at .050)-220, Lobe Center-110, Emissions Legal-Yes

6.Crane 2030, Valve Lift Intake w/1.6 rockers-.533, Valve Lift Exhaust w/1.6 rockers-.544, Duration Intake (at .050)-216, Duration Exhaust (at .050)-220, Lobe Center-112, Emission Legal-Yes

7.Crower 15511, Valve Lift Intake w/1.6 rockers-.468, Valve Lift Exhaust w/1.6 rockers-.486, Duration Intake (at .050)-218, Duration Exhaust (at .050)-224, Lobe Center-114, Emission Legal-Yes

8.Crane 2031, Valve Lift Intake w/1.7 rockers-.513, Valve Lift Exhaust w/1.7 rockers-.529, Duration Intake (at .050)-214, Duration Exhaust (at .050)-220, Lobe Center-112, Emissions Legal-Yes

9.Steeda #19, Valve Lift Intake w/1.6 rockers-.480, Valve Lift Exhaust w/1.6 rockers-.480, Duration Intake (at .050)-220, Duration Exhaust (at .050) w/1.6 rockers-226, Lobe Center-115, Emission Legal-Yes

10.E303, Valve Lift Intake w/1.6 rockers-.498, Valve Lift Exhaust w/1.6 rockers-.498, Duration Intake (at .050)-220, Duration Exhaust (at .050) w/1.6 rockers-220, Lobe Center-110, Emissions Legal-Yes



Lots of CAM information here-Understanding Lift, Duration, Intake / Exhaust Closing, etc.

http://www.tildentechnologies.com/Cams/CamPerformance.html


Attachments

  • 07f89d4a.jpg
    60.2 KB · Views: 2,739
4. MUFFLER SHOOTOUT:

Results based on 5.0 Mustang Magazine December 2002 issue (page 55). Test car is a ’90 Coupe with 370 HP and 11 second potential. A number of 66 pulls were made to compile this information. Where does your muffler stack up?

The results in HP order:

1.Flowtech Warlock (open) 374.2 hp/ 333.1 tq
2.Bassani Real Street 373.7 hp/ 333.8 tq
3.Hooker Maxflow 373.5 hp/ 333 tq
4.Borla XS 373.3 hp/ 332.6 tq
5.Magnaflow 372.8 / 332.5 tq
6.MAC 372.3 hp / 331.5 tq
7.Flowtech Afterburner 372.3 hp/ 330.1 tq
8.Hooker Aerochamber 372.1 hp/ 330.4 tq
9.Bassani 372 hp/ 333.5 tq
10.Spintech 371.6 hp/ 332.2 tq
11.Edelbrock Performer RPM 370.9 hp / 331.3 tq
12.Borla XR1 370 hp/ 334 tq
13.Flowtech Terminator 369.5 hp / 331.3 tq
14.Dynomax Ultra Flo 369.4 / 333.2 tq
15.Flowmaster 369.4 hp / 331.8 tq
16.Flowtech Warlock 366.3 hp / 325.3 tq
17.No muffs 365.2 hp / 330.1 tq

Sound Off in Quietest to Loudest (Decibels):

1.Borla XS, 80db at idle, 90db at 2,000 rpm, 110db at WOT.
2.Hooker Maxflow, 80db at idle, 90db at 2,000 rpm, 120db at WOT.
3.Magnaflow, 82db at idle, 91 at 2,000 rpm, 114db at WOT.
4.Flowmaster, 82db at idle, 93 at 2,000 rpm, 115db at WOT.
5.Flowtech Warlock, 83db at idle, 92 at 2,000 rpm, 112db at WOT.
6.Dynomax UltraFlo, 83db at idle, 94 at 2,000 rpm, 113db at WOT.
7.Borla XR1, 83db at idle, 96db at 2,000 rpm, 118db at WOT.
8.Bassani Street, 83db at idle, 96db at 2,000 rpm, 120db at WOT.
9.Edelbrock RPM, 84db at idle, 93db at 2,000 rpm, 118db at WOT.
10.Bassani Real Street, 84db at idle, 96db at 2,000 rpm, MAX. (120+db).
11.Flowtech Afterburner, 86db at idle, 94db at 2,000 rpm, 115db at WOT.
12.Flowtech Terminator, 86db at idle, 94db at 2,000 rpm, 119db at WOT.
13.Hooker Aerochamber, 87db at idle, 94db at 2,000 rpm, 114db at WOT.
14.SpinTech, 87db at idle, 97db at 2,000 rpm, 116db at WOT.
15.MAC, 87db at idle, 98db at 2,000 rpm, 119db at WOT.
16.No Muffler, 91db at idle, 103db at 2,000 rpm, MAX. (120+db).

Shorty Header Installation on 1995 5.0L How To with Pictures.
http://www.stangnet.com/tech/shorties/shortyheader.html

5. MAF AIR FLOW DATA (In CFM):

1.Stock 5.0L 58MM (89-93 Mustangs), 606 CFM
2.Stock 5.0L 70MM (94-95 GT/Cobra Mustangs), 815 CFM
3.Pro-M Bullet (75MM), 964 CFM
4.Ford 80MM (Lightnings), 1017 CFM
5.C&L 73MM, 1171 CFM
6.Modified 80MM (Flow Bar Removed), 1368 CFM
7.C&L 80MM, 1415 CFM
8.Pro-M 77MM (Shorty/Supercharged Version), 1543 CFM
9.Pro-M 77MM (Standard Version), 1562 CFM
10.Pro-M 83MM, 1598 CFM
11.Pro-M 80MM, 1612 CFM

ABACO SERIES- Tested 20.4" With 10" Air
12. DBX-85, 1052 CFM
13. DBX-97, 1252 CFM
14. DBX-97b, 1323 CFM

6. THROTTLE BODY AIR FLOW DATA (In CFM):

1.Ford Stock 5.0L 60MM, 526 CFM
2.Accufab 65MM, 616 CFM
3.BBK 70MM, 726 CFM
4.Accufab 75MM, 845 CFM
5.Accufab 90MM, 1225 CFM

FRPP FUEL INJECTOR RATE by LBS. / HP RATING & COLOR

Injector Lb/Hr Max V8 HP HP supported by 1 injector Ford Color*
14 Lb/Hr 228 28.56 Gray
19 Lb/Hr 310 38.76 Orange
24 Lb/Hr 391 48.96 Lt Blue
30 Lb/Hr 490 61.19 Red
36 Lb/Hr 587 73.44 Dk Blue
42 Lb/Hr 685 85.68 Lt Green
60 Lb/Hr 800 100
*Colors are only constant for Ford Racing Performance Parts brand name injectors.

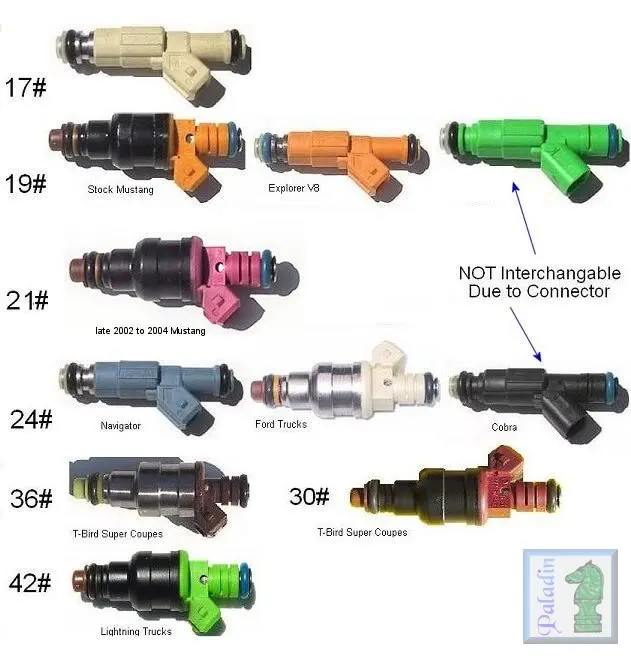

FORD INJECTORS BY VEHICLE.


Attachments

  • Ford_Injector_Guide.jpg
    62.9 KB · Views: 1,290
7. STANGNET USER COMBO’S:
Which 94-95 Combo will work best for you? We have put together a few Stangnet user’s rides who have stout combo’s. We tried to represent each Manufacture (AFR, Edelbrock, TFS, etc.). It is broken out into N/A and Blower.

AFR 165 HEADS / FTI CUSTOM GRIND CAM / EDELBROCK INTAKE
Paul Riva (Killercanary)
- 1995 Vert-12.03 at 112.5 MPH, 304 HP / 331 TQ, 1.64 Sixty Foot, 3,670 Race Weight

Stock short Block, AFR 165/60cc pedestal mount heads (box stock), Edelbrock Performer Intake (casting flash removed), Flow Tech Induction custom cam, 1.6 FMS rockers, 24lb FMS injectors, 190lph Walbro fuel pump, Kirban adjustable FPR, 75mm Pro-M/Granatelli MAF, 65mm FMS throttle body, FMS SS shorty headers, Bassani offroad X pipe, SS 2.5" flow tubes, Dynomax Welded Race Magnum mufflers, Stock tail pipes, ASP aluminum underdrive pulleys, Homemade CAI, EEC Tuner Stock 62K mile bottom end, DG ultrathin head gaskets, Global west subframe connectors, Global West LCA's, Hooker 4 point car bar, PA Racing K member and A arms, Strange coil-overs, struts, and shocks, TKO tranny with 6 tooth inner/19 tooth outer speedo gears, Steeda Tri-Ax shifter, FMS aluminum DS, 4.10 FMS gears, 245-50-16 Nitto 555R street driven drag radials, 26X10.5X16 ET streets.

HOLLEY HEADS / FRPP E303 CAM / EDELBROCK INTAKE
Robbie Carter (2L8ULUZ2)
-1994 GT-12.85 at 106.80 MPH, 307 HP / 328 TQ, 8.06 at 85.3 in the 1/8 mile, 7.56 at 95.86 in the 1/8 with 150 shot.

Holley Systemax Heads part# 300-551-1, Edelbrock Performer RPM Intake, FMS E-303 Camshaft, Crane "cobra" 1.7 roller rockers, BBK/Edelbrock 70mm TB, C&L 76mm MAF, FMS 24# Injectors , Aeromotive Adj, Regulator, March Underdrives, Hooker Supercomp Equal Length headers, BBK Off road H-pipe, Dynomax Ultra Flo welded cat back, JMS Chip , KYB AGX Shocks and Struts, MT 26x10.5 ET Drag Tires, NOS 05115 Nitrous Kit (150hp).

GT40X HEADS / B CAM / TYPHOON INTAKE
Jesse kuhlman (yellow1995Cobra)
-1995 Mustang GT-12.734 at 107.09 MPH, 1.705 60 ft.

GT40X Heads, B Cam, 1.72 rockers, Typhoon Manifold, 70mm Throttle Body, Pulleys, Stock Mass Air, Homeade CAI, BBK Unequal Shortie Headers, Offroad X-pipe, Magnaflow Catback, MSD 6AL, 24# Injectors, FMS 9mm wires, Auburn pro diff, 31 Spline axles, 3.90 gears, Cobra Computer, twEECer, Short belt (no ac/smog), D&D lower control arms, 50/50 Lakewood Drag Shocks, Nitto DR's.

GT40 HEADS / COBRA CAM / COBRA INTAKE
Robert Shuble (gmkillr)
-1994 Cobra-12.97 at 106.15 MPH, 1.72 Sixty Foot.

Stock GT40 (Iron) Cobra Heads, Stock Cobra Cam, Stock Cam, Stock 1.7 Rockers, Homemade CAI, Pro-M Bullet 75MM MAF, BBK 65mm t.b., BBK 1 5/8 shorty headers, MAC Prochamber, Summit Turbo Catback, Smog & Sgr Delete, 4.10 Gears, 255lph Fuel Pump, EEC-IV Extender, MAC Underdrive Pulleys, Aluminum Driveshaft, MM Caster Camber Plates, MM Full Llength Subframe Connectors, Lakewood 90/10 Struts, Lakewood 50/50 Shocks, Granatelli Front & Rear Coilovers, Pro3i Lower Control Arms w/ Spherical End.

GT40P HEADS / FRPP E303 CAM/ COBRA INTAKE
Tony Goon (Fiveotony)
-1995 GT-12.94 at 105.48 MPH, 1.64 Sixty Foot, 300 HP, 3280 Race Weight

FRPP GT40P Heads (Milled .020), FRPP E303 Cam (4 degrees retard), FRPP Timing Chain set and gears, FRPP “P” Headers, FRPP Cobra Intake, PPI 70 MM Throttle Body, 4.30 gears, FRPP 31 Spline Traction LOK Differential, 31 Spline Moser Axles, FRPP Aluminum Driveshaft, Asp underdrive pulleys, Unlimited Performance Power Pipe w/Big Mouth Filter, Pro-M 87 MM Bullet MAF, FRPP 30lb Injectors, Walboro 190 LPH, Kirban Adj. Fuel Pressure Regulator, Dynomax Bullet Mufflers w/ Turndowns, Off Road H pipe, Subframe Connectors, Steeda Heavy Duty Upper Control Arms w/ Poly Urethane Bushings, FRPP Heavy Duty Clutch with Unlimited Performance Firewall Adjuster and Aluminum Quadrant, MSD 6AL, MSD Blaster Coil And 2 Step, Taylor 8MM Wires, 34 degrees of total timing, Pro 5.0 shifter w/ Steeda Tri-Ax handle, Steeda Shift knob, 1/2 inch Phenolic Intake Spacer, Dyna Mod Ignition Module, Superchips Chip, Holeshot Rims w/ 8.5 inch Slicks, ET Fronts, Best Autometer Phantom Gauges, Sport Comp Tach, With Sport Comp Fuel Pressure Gauge (outside of the car).

GT40X HEADS / CROWER 15511 / EDELBROCK RPM INTAKE
Brad (green94droptop)
-Mustang Vert, 13.05 at 105.67 MPH

GT40X (Stage III Ported, Ferra 1.94/1.60 Valve, Milled to 62CC) Edelbrock Performer RPM Intake, Cobra 1.7 Pedestal Roller Rockers, Crower 15511 camshaft (278*/282*, 218*/224* @.050, .498"/.529" lift, 114* LSA), FRPP 65mm TB, Pro-M 75mm MAF, MAC Fenderwell Cold Air, FRPP 24lb injectors, Walbro GSS340-high pressure 255lph Fuel Pump, 18* of timing, Generation 1 (plug and play) Performance Improvement Harness from Pro-M w/ A9L computer, MAC 1 5/8" Industrial Plated Unequal Headers, MAC 2.5" Off Road H-Pipe, 2 Chamber Flowmasters, Stock T-5 w/ Pro 5.0 Shifter, FRPP King Cobra Clutch, FRPP 3.73 Gears, FRPP C Springs, Tokico Premiums Shocks/Struts, J&M C/C Plates, Steeda Subframe Connectors w/ Crossbrace, Granetelli Motorsports Double Adjustable Upper CA's, Granetelli Motorsports Weight Jacker/Adjustable Lower CA's, 275/40/17" Nitto Drag Radials Running 20psi At Track And 26 On Street On Stock 8" Tri Bar Rims.

EDELBROCK HEADS / FRPP E303 CAM / EDELBROCK INTAKE
Steve DeGrave (SmokingGT50)
-95 Mustang GT Opal Frost-307 HP / 316 TQ

Edelbrock Performer RPM Heads, Edelbrock RPM Intake, FRPP E303 Cam, BBK 70MM Throttle Body, C&L 73mm MAF, Bassani Full Length Headers, Bassani Off Road X-pipe, 3.73 Gears, Flowmaster Cat Back, FRPP 24# Injectors, AODE car Converted To Tremec 3550, FRPP Aluminum Driveshaft, Mac White Face Gauges, Bullit Shift Knob And Console Bezel, Cobra RR hood, Y2K Cobra R wheels w/ 275/35/18's. NOS Big Shot kit. TwEECer RT <-- Best money I have spent.

TFS HEADS / CRANE 2031 / TFS INTAKE CAM
Chris Holleman (venomsvt)
-95 Mustang Cobra, Black-315 HP / 343 TQ

306 CI, Forged Pistons, TFS TW Heads, TFS TrackHeat Intake, Crane 2031 Cam, FMS 65mm TB, Pro-M 75mm MAF, MAC CAI, BBK LT Headers, BBK Shorty H, 2 Chamber Flowmaster Catback, 255LPH FP, Kirban AFPR, BBK Underdrives, Autologic Chip By LaRocca's Performance, Steeda Tri-ax, SPEC Stage 2 Clutch, Steeda 3 PC Clutch Kit, FMS Alum D/S, FMS 3.73, SVO Girdle, Maximum Motorsports: C/C plates, LCA'S, Alum Rack Bushings, Subframe Connectors, Panhard Bar, Tokico Illumina 5-Way, H&R springs, Powerslot Rotors, SS Braided Lines, Flaming River Steering Shaft.

BLOWER COMBO’S

AFR 185 HEADS / FRPP E303 CAM / TFS INTAKE / VORTECH BLOWER
Troy Chapman (Redsnk95)
-95 Mustang, 11.42 at 123 MPH

302 B50 block, Vortech V-1 T-trim, TFS R intake, 70mm BBK TB, 80mm Pro-M Meter, AFM Super Bypass Power Pipe, Vortech Mondo Bypass, AFR 185 64cc Pedestial Mount, 1.7 Crane Roller Rockers, FRPP E303 camshaft (~.528" lift w/ 1.7 rr's), Sieman Deka 55lb Low Impedence Injectors, Custom Fuel System, 3.55 Gears, T-56 Tranny, PMS.

TFS HEADS / CROWER CAM / EDELBROCK INTAKE / PROCHARGER
Kevin Prusinski (Ponyboy19)
-1995 MUSTANG GT, 460 HP / 453 TQ.
.
ATI procharger P1-SC Non Intercooled Supercharger 14# boost, Custom bent blower Tube, Trick Flow Heads (Box stock), Crower 15510 cam (LC 114 duration 212/212 lift .531/.531 @ .050), Edelbrock Performer Intake (box stock), Edelbrock 65MM Throttle Body, Double roller Timing Chain, FMS 1.6 Roller Rockers, 3/8 Phenolic Intake Spacer, 3.5" Pro-M Univer Mass Air Meter, Romac Alluminum 50oz balancer, 42lb Motorsport Injectors, Walbro GSS340 255lph, Vortech T-Rex Inline Auxillary Fuel Pump, Kirban Billet Fuel Pressure Regulator, 10.8-11.0:1 air fuel ratio, 17 degrees total timing, MSD 6AL Ignition, MSD Coil, Acell 300+ Cap/Rotor, Homemade Powerpipe, Saleen Equal Length 1 5/8 headers, MAC 2 1/2" Off Road H-Pipe, 2 1/2" Flowmaster 2 chambers With Dumps, Custom Chip And Dyno Tune.

EDELBROCK HEADS / STOCK CAM / COBRA INTAKE / VORTECH
Ed (Zerort)
-Mustang GT, 11.61 at 122 MPH
:
Stock short block, Stock pistons-cam-lifters-waterpump-oil pump, etc., Stock T-5 Tranny, Edelbrock Heads (1.90 x 1.60) w/light Cleanup Work, 1.7 Cobra Rockers, Cobra intake w/ported Lower, Stock MAF, Stock fuel rails, Stock Balancer, 65 MM Throttle Body, FRPP 36 lb Injectors, S-Trim Vortech w/ Alternative Auto intake system, 2.95 Blower Pulley, Tuned w/Autologic Software, 3.73 rear gears, MAC long tube headers, MAC O/R H-pipe, DynoMax Super Turbo Mufflers, Flowmaster Tailpipes.


AODE BLOWER COMBO

STOCK HEADS / STOCK CAM / STOCK INTAKE / NOVI 2000
Stu Collins (sdc13)
-1995 Mustang GT Vert, 307 HP / 345 TQ

Stock Heads, Stock Cam, Stock Intake, Stock Rockers, Stock Fuel System, Novi 2000 Pullied For 9#’s, MAC 1 5/8 Headers, Summit 2.5" Off Road H-Pipe, Flowmaster 2.5", 3.73, B&M Ripper, Paxton FMU, Custom Dyno Tune & Autologic Chip by Swanson's Performance, Saleen springs, KYB Shocks, Steeda Subs.

STOCK HEADS / STOCK CAM / STOCK INTAKE / VORTECH
Mike (OinkAodeOink)
-1994 GT Vert, 316 HP / 307 TQ, 3570 lbs. W/Driver, 13.31 at 108 MPH.

Stock Heads, Stock Cam, Stock Intake, Stock Fuel system, FMS 65MM TB, Pro-M 75 MM MAF, FMS 373 gears, B&M Shift Improver Kit, BBK Adjustable Fuel Pressure Regulator, BBK Shorty Headers, BBK Off Road X-Pipe, Flowmasters 2 chamber Dumped, Vortech S-trim, AFM Powerpipe, ASP 7" Crank Pulley, 3.3" Blower Pulley, 12:1 FMU, BFG DR's 235X60X15, BBK 1.5 Inch Specific Rate Lowering Springs, Otherwise All Stock Suspension.

STOCK HEADS / STOCK CAM / TYPHOON INTAKE / VORTECH
Robert Colosimo (RC)
-1994 GT, 386 HP / 392 TQ

Polished Vortech SQ Trim, Chrome Power Pipe, Polished Power+Plus Intake, Polished BBK 70mm TB w/Polished Edelbrock Elbow, Pro-M 77mm MAM w/UPR Big Mouth Filter, 30# FMS Injectors, BBK Electric 255lph In Tank Pump, MSD 155lph In Line Pump, MSDD6BTM, MSD Coil Blaster, FMS 9mm Wires, FMS Ceramic Headers, Magnaflow X-Pipe, Flowmasters, 3.73's, Steeda Springs, Steeda C/C Plates, FMS Aluminum Driveshaft, Fluidyne Aluminum Radiator, 180* T-Stat, PA Shift Performance Kit, PI Stallion 2800 Stall Torque Converter, B&M SuperCooler.

8. Edelbrock Intake Install

Here is the instructions with the correct pictures. Working with Hillie16 to get pictures to show up in this thread.

http://pomoforacing.com/tech/IntakeInstall.pdf

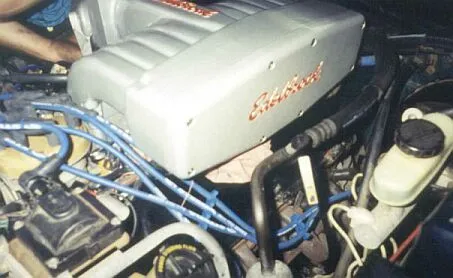

94-95 Edelbrock Performer 5.0 Upper and Lower Intake Manifold Install
By Hillie16

Getting started

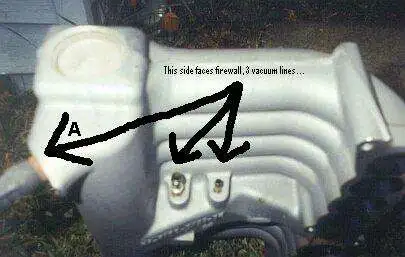

Changing the intake manifold on a 5.0 appears to be a daunting task, and I approached it with some trepidation, but this install ends up being fairly easy. As long as you are careful, and clearly mark, record, or can easily remember where each electrical connection, vacuum line, nut and bolt goes as you remove them, it should be very easy to do. Nothing relocates very far from the original position on the stock intake. It must be noted though, that the Edelbrock manifolds have holes that are not occupied by anything on the stock intake, and must filled with plugs. The lower manifold has 3 (Fig 1),



the upper manifold also has 3 (Fig 2).

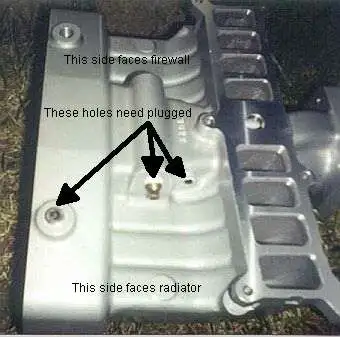

All the proper plugs were not included with my kit. Also the vacuum fittings included with the manifold were not the correct size. This may have been just an oversight with mine only, I wouldn't expect that as a usual practice from Edelbrock. Also make sure you have a new thermostat gasket, and unless it was already done recently, I would suggest picking up a 180 degree thermostat. I also replaced the plugs, wires, and cap & rotor. Removing the distibutor is not necessary, but I highly recommend it, as the lower manifold will be MUCH easier to remove and install. You'll also need a torque wrench to torque the lower manifold bolts to the proper specs. You'll need a good assortment of sockets, extensions, hex wrenches, and open end wrenches to reach all the bolts as well. Have plenty of antifreeze on hand, and after the install is complete, an oil change is recommended. Also a bottle of pipe dope is recommended. Also the stock strut tower brace WILL NOT clear this intake. I bought the Steeda chrome-oly brace available from www.partshopper.com as a replacement...most aftermarket strut tower braces will clear the aftermarket intakes.

Removal

First, disconnect your negative battery terminal. Then drain the coolant system. The engine MUST BE COOL when you do this. I parked mine overnight,and drained it in the morning. Remove the radiator cap. Then, open the plug on the radiator, on the bottom on the passenger side. There are also to hex drain plugs in the block. The passenger side plug is easiest to get to, it's right below the #1 spark plug. I could only get one out, the other started to strip out. I would highly advise removing one of the plugs in the block, as I had NO coolant left in the manifolds when I removed them, thus none to clean out of the valley. Make sure screw the plug back in. Remove the strut tower brace. Next disconnect the accelerator cables (Fig 3A) and remove the accelerator cable bracket (Fig 3C). Remove the bolts attaching the EGR to the intake (Fig 3B).

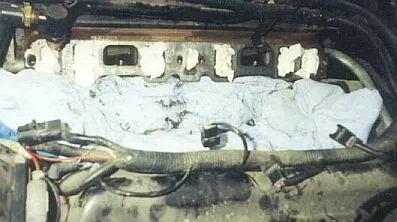

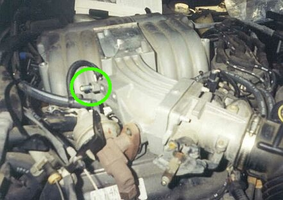

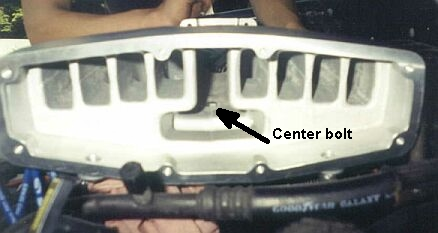

Next go disconnect all vacuum lines and electrical connections. There are 3 vacuum lines that connect to the upper manifold, two of which are on the underside of the runners, they may be easier to remove after unbolting the upper intake. (Fig 4) There is a fitting on the upper manifold that will be save to be placed on the Edelbrock upper. (Fig 4A).

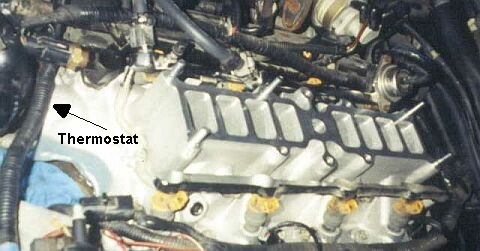

If you look at front of the fuel rail on the passenger side, you'll see a black cap. pull the cap off to reveal a schrader valve. Have a big rag or towel handy, and use this valve to relieve the pressure in the fuel system. Now you should be ready to remove the upper intake. Remove the bolts attaching the throttle body to the intake. There are two bolts under the "5.0 HO" plate on top of the stock intake. Remove the plate, then remove all the bolts on the upper intake. Carefully remove the upper intake. Using a rag or towel, (an old T-shirt works good) cover the ports in the lower manifold, so no debris, nuts or bolts can find their way in there(Fig 5).

Now you are ready to remove the fuel rails and injectors. You DO NOT need to disconnect the fuel lines! First unplug the electrical connecters to each fuel injector (Fig 5)



Remove the 2 bolts on each side holding the fuel rails onto the lower manifold. Now carefully lift on the fuel rails. You can either lift the rails and the injectors out as an assembly, or detach the rails from the injectors, and remove each injector seperately. Lift the fuel rails over to the passenger side out of the way of the lower manifold.

If you do not want to remove the distributor, it is not completely necessary but I HIGHLY recommend it, as the lower manifold will be VERY difficult to remove, and even more difficult to install the new lower. It is also very easy to remove the distributor. Using masking tape, mark each spark plug wire according to it's correct cylinder (Fig 6).



Note the raised numeral "1" on the distributor cap. This indicates the plug wires which goes to the #1 cylinder and can also serve as a marker in relation to the cap clamps to replace the cap in the correct position. Remove the cap, and mark the position of the rotor inside the cap, and the base of the distributor in relation to the block. Remove the distributor hold down clamp. Now CAREFULLY lift the distributor out of the engine, being careful not to turn the shaft. DO NOT TURN THE ENGINE WHILE THE DISTRIBUTOR IS OUT OR THE REFERENCE POINTS WILL BE USELESS!

For the next step, you need to disconnect all the coolant hoses, including removing the fitting behind the thermostat housing. Now remove the thermostat housing. Remove the PCV valve from the rear of the lower manifold. Now remove all the bolts for the lower intake manifold 1/4 turn at a time til you can remove them by hand. Make sure there is nothing else connected to the lower manifold. Now lift the lower manifold out of place. Using paper towels or rags, stuff the intake ports so that no debris from the gaskets will fall into the intake ports on the heads(Fig 7).



Be very careful doing this, you don't want to lose the towels in the ports...it will be a lot of work to get them out. Clean the mating surfaces, as clean as possible so that you will get a good seal. Clean any debris left over out of the valley.

Installation

Before putting the Edelbrock lower in, make sure the proper plugs are in place as described at the beggining of the article. Remove the coolant temperature sensor from the stock lower and put it in the new piece. Remove the rubber seal for the PCV valve from the stock lower and put it in place in the Edelbrock lower. Also make sure the PCV baffle is placed in the bottom of the lower manifold using the pins provided.

Now make sure you clean the gasket surfaces very good, I used a soft bristle nylon brush attachment for the drill to do it, I also layed a towel in the valley to avoid any pieces of leftover gasket in the valley. Lift the rubber endcaps on the front and back of the block and throw those things in the garbage along with the cork end gaskets included with the gasket set. USE FEL-PRO GASKETS for the best seal but either way the end pieces included are worthless.. Also use the black RTV sealant. My method was to put a thin layer of the sealant on the mating surface of the head, using my finger to smear it around. I made it a bit thicker around the coolant ports. Then lay the gasket down. Run a thick bead on the front and back mating areas on the block, making a THICK blob of sealant where the head and block meet at the corners. Also make a thin layer on the mating surfaces of the lower manifold.

Now you will need help, someone else to hold everything out of the way to lower the manifold into place. you want this to be as close to perfectly in place as possible to keep the gaskets in place. Now put the bolts in, torque them down in the correct order (Fig 8).

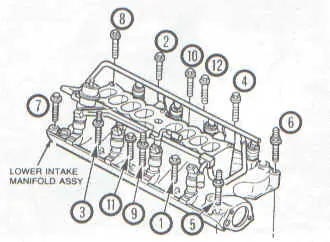

The specs call for 15-18 ft-lbs of torque. I started at 10 ft-lbs, and worked up in 2 lb increments, til I got to 18 making sure to do so in the correct order. Now cover the ports in the new lower with a rag, and let the lower manifold sealant cure overnight, 24 hours. Check each of the bolts again for proper torque.

Now screw the the coolant fitting in behind the area where the thermostat housing goes (Fig 9).



MAKE SURE this fitting is going in straight. I crossthreaded this hole and it took three days to find the correct tap to fix this problem (which is 1/2 inch pipe thread BTW)

Using a very thin coat of KY Jelly, lubricate the O-rings on each injector. The easiest way I found to install the fuel injectors is to install each injector one at a time and then place the rails onto the injectors. make sure everything snaps into place. Plug each electrical injector connection back into place. Screw each provided stud into it's proper place in the lower manifold (Fig 10).



Place the PCV valve into it's hole. Reattach the thermostat housing, using a new gasket and preferably a new thermostat. Reconnect all the coolant lines.

Now, using the marks you made when you removed it, drop the distributor back into place, making sure your lines line up perfectly. If you don't line them up, the timing will be off. Bolt it back down using the original clamp. Refer to the wiring diagram

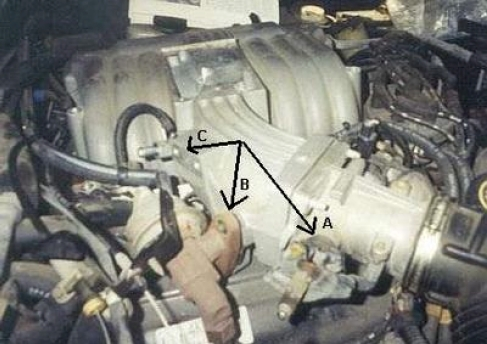

Make sure that you have the correct fittings in place in the upper intake. Place the upper to lower gasket in place, dry, not with sealant. This gasket stays dry. Once again, you
will need some help, have someone hold up the upper intake, as you attach the vacuum lines to the correct fittings. Gently lower the upper manifold into place. Thread all the nuts onto the studs and tighten them snugly, but be careful not to overtighten them. You'll need an open end wrench to tighten the bolt in the center of the manifold, this is time consuming, but make sure the bolt is tightened well (Fig 11).

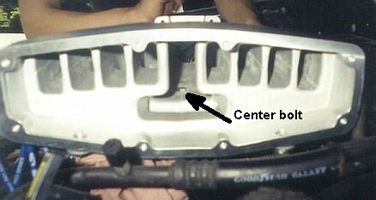

Now attach the plenum cover. Again leave the gasket dry, this gasket also does not use sealant. Again, snug these hex head bolts tightly, but do not overtighten them (Fig 12).

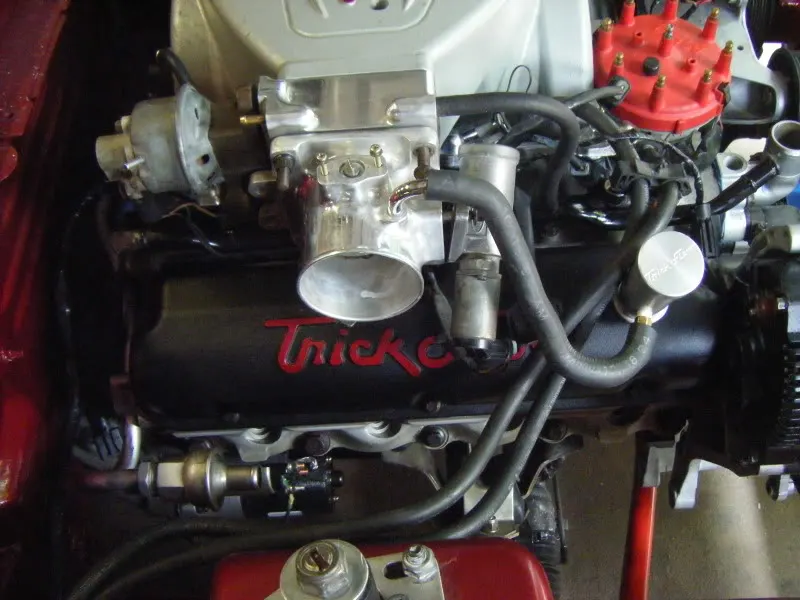

Before bolting on the throttle body adapter you need to drill out the lower right corner bolt hole to 11/32, this bolt will thread into the adapter itself from the back of the intake flange (Fig 13).



Bolt the EGR to the adapter, and the adapter onto the upper intake, this gasket is also dry as is the EGR gasket. There is a fitting left on the stock upper intake that needs to be screwed on the throttle body adapter (Fig 14).

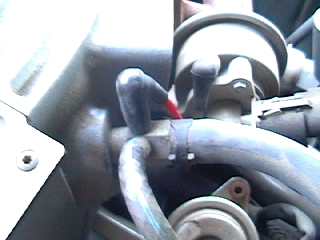

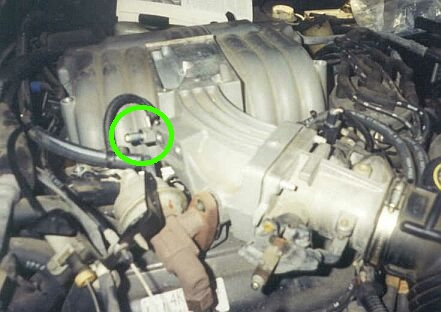

Reattach the vacuum lines to this fitting, the photo shows this fitting while still on the stock intake, but it reconnects the same (Fig 15).



One line needs extended, but the adapter kit includes the extension. Bolt the accelerator cable bracket onto the adapter. Again, use a dry gasket, and bolt the throttle body onto the adapter. Connect the accelerator cables to the brackets. Make sure all electrical connections to throttle body etc. are reconnected. Bolt the new strut tower brace (if you have one) in place. Refill your coolant system. Change the oil. Now let the engine run and check for leaks. Check the back of the intake for oil leaks as this is the usual spot. Now just keep an eye on it for the next few weeks for leaks.

Have any questions? [email protected] or GeorgeFarcus on AIM.





Attachments

  • 2.jpg
    30.8 KB · Views: 11,086
  • 1.jpg
    119.6 KB · Views: 21,846
  • 1.jpg
    119.6 KB · Views: 1,430
  • 4.jpg
    26.3 KB · Views: 7,204
  • 5.jpg
    24.3 KB · Views: 1,944
  • 6.jpg
    30.4 KB · Views: 3,172
  • 7.jpg
    21.8 KB · Views: 929
  • 9.jpg
    58.9 KB · Views: 1,119
  • 8.jpg
    12.3 KB · Views: 3,056
  • 10.jpg
    82.4 KB · Views: 2,991
  • 11.jpg
    56.1 KB · Views: 2,211
  • 13.jpg
    51.5 KB · Views: 1,438
  • 12.jpg
    28.3 KB · Views: 1,360
  • 14.jpg
    87.3 KB · Views: 7,584
  • 15.jpg
    61.2 KB · Views: 2,115
  • Like
Reactions: 1 user
9. Window lift bushing install.
By: VibrantRedGT (Joe)

That window not going all the way up or making clicking noises? It's not the motor but the plastic bushings inside the motor. Here is a step by step to help fix the problem.

1. Pop off the plastic cover. Start from the top with your fingers and pull up. Remove the two gold phillips screws holding the switches.

2. Remove the phillips screws.

3. Pull the tab before the speaker out with some pliers.

4. Remove the four phillips speaker screws. You won't have to disconnect the speaker. The speaker magnet will catch on some metal.

5. Disconnect the window motor connector. Now work the window motor side through the speaker hole.

6. There are three 8MM bolts holding the window motor in place. Before removing them put a screw driver in the window tract. Some say the window will fall it you don't. Mine did not but do it for safety precautions. Now put your arm through the speaker hole and use your other hand to remove the bolts. The window lift will fall right out now.

7. Bring it to a work bench. I had to drill the rivet off to get to the gear.


8. Remove the cover with a screw driver and remove the gear assembly. WARNING-Once you pull the Steel gear from the plastic gear it will be really difficult to put back. It's the point of no return. As you can see below the plastic tabs are OK on this one.

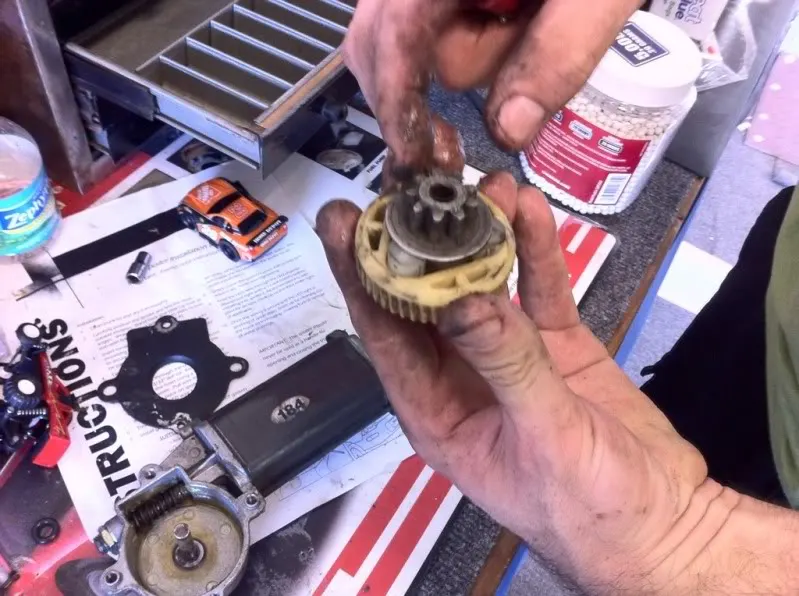

9. Pictured below is when the stock plastic tabs are completely chewed up. Clean all the bushing material up.



10. Remove the gear ring. This will be a pain. I used to small nails. Stick in the holes and pull out. You will figure you own way when you get there.

11. At this point you can just purchase an entire gear kit from Cardone (check your local Auto Parts Store). Part number is 42-91 and costs around $20 (easier way). There is no assembly required with this route. Also some auto parts stores sell just the bushings in the HELP section. Or you can go to the dealer and get plastic bushings like I'm installing here below for $13.



12. Have patience when putting the new plastic bushings in. You have to get the steel gear in place while the plastic bushing are in that triangle. It will take some time if this is your first rodeo.

13. Reverse the process:
Put the window lift assembly back in the window lift motor, use new screws for the cover (I drilled out the rivets then used new 6MM screws on the cover), clean your hands, reinstall the window lift motor inside the speaker grill, when you get the window lift in place now hand tighten the 3-8MM bolts, now snug them down with your ratchet. Test the motor before reinstalling the door panel. If it passes then go ahead and put on the door panel.

*NOTE-If the other door has the same issue make the choice now that you'll either buy an entire window lift motor or do the bushing change like you just performed.


Attachments

  • fc32dc69.jpg
    65.9 KB · Views: 929
  • 593622WindowMotor5.jpg
    42.3 KB · Views: 1,116
  • 593619WindowMotor4.jpg
    51 KB · Views: 955
  • a81e5576.jpg
    97.4 KB · Views: 895
10. Other Misc. Tech Links

8.8 GEAR INSTALL
by Chris Neighbors

http://www.corral.net/tech/drivetrain/gears.html

SHORTY HEADER INSTALL
By Scott Halihan

http://www.stangnet.com/tech/shorties/shortyheader.html

MACH 460 SPEAKER RECOVERING
By Sean Foushee

http://www.stangnet.com/tech/mach460/mach460.html

RADIATOR INSTALL
by Scott Halihan

http://www.stangnet.com/tech/radiatorinstall.html

MAC WHITE FACE GAUGE INSTALL
by Scotty Manby

http://www.stangnet.com/reviews/macgauge.html

FUEL INJECTOR INSTALL/UPGRADE
by Scott Halihan

http://www.stangnet.com/tech/injectors/

SPRING INSTALL
by Scott Manby

http://www.stangnet.com/tech/spring.html

THERMOSTAT REPLACEMENT
by Fiveofanatic

http://www.stangnet.com/tech/thermostat.html

11. Stud Mount Rocker Arm Adjustment Instructions
1. Remove the valve covers, and pick a cylinder you are going to set the pre-load on. Only do one cylinder at a time.

2. Rotate the engine in its normal direction of rotation (clockwise) and watch the exhaust valve on that particular cylinder. When the exhaust valve begins to open, stop and adjust that cylinder's intake rocker arm.

3. To adjust, back off the intake rocker arm adjusting nut and remove any tension from the push rod. Wait a minute or two for that hydraulic lifter to return to a neutral position. The spring inside the lifter will move the push rod seat up against the retaining lock, if you give it time to do so.

4. Twist the intake push rod with your fingers while tightening down the rocker arm. When you feel a slight resistance to the turning of the push rod, you are at "Zero Lash". Turn the adjusting nut down one half to three-quarters of a turn from that point for street applications. Use 1/8 to 1/4 turn for race applications. Lock the adjuster into position. The intake is now adjusted properly.

5. Continue to turn the engine, watching that same intake valve/rocker you just set. It will go to full open and then begin to close. When it is almost closed, stop and adjust the exhaust rocker arm on that particular cylinder. Loosen the exhaust rocker arm and follow the same procedure described before in steps 3 and 4 to adjust this rocker arm.

6. Both valves on this cylinder are now adjusted, and you can move on to your next cylinder and follow the same procedure again.

There may be some initial valvetrain noise when the engine is first fired up but once oil pressure has stabilized and the engine heats up, it should quiet right down to a normal level.

Remember that some racier camshafts will have a mechanical sound to them and will not be a silent as factory units.

More Rocker Instructions by Crane Cams
http://cranecams.com/?show=techarticle&id=2

12. COOLING (EDIT- 12-21-11, Pictures Not Fixed Yet)
Have cooling issues? The stock EEC turns the high speed fan on at 208 Degrees. The stock radiator is less than 3/4 inches thick. These two issues cause the 94-95's to run hot. Ford did this for emissions purposes. This however is bad for performance.

To correct this you must get a hold of your cooling fan. Either have it turned on when the key is on OR have a switch to turn it on.

Here is the keys to lower temps:
180 Thermostat
Fluidyne or equivalent Radiator
70% Water / 30% Coolant
Fan on HIGH

Fan Switch
by Troy Chapman (Rednsk95)



CCRM Diagram


Cooling Fan Diagram


Low Speed Fan Diagram

13. PRODUCTION NUMBERS AND COLOR CODES

'94 BY COLOR:
Laser Red (E9)-22,345
Black (UA)-19,849
Deep Forest Green(NA)-18,869
Crystal White (ZR)-18,760
Rio Red (E8)-13,793
Teal (RD)-11,948
Bright Blue (KF)-6,191
Opal Frost (WJ)-4,048
Canary Yellow (BZ)-4,038
Vibrant Red (ES)-2,453
Iris Metallic (GC)-1,304

TOTAL-123,198

'95 BY COLOR:
Laser Red (E9)-29,450
Deep Forest Green (NA)-27,792
Black (UA)-27,112
Crystal White (ZR)-26,899
Rio Red (E8)-22,533
Teal (RD)-9,845
Bright Blue (KF)-7,819
Opal Frost (WJ)-5,881
Canary Yellow (BZ)-3,497
Sapphire Blue (JA)-2,584
Vibrant Red (ES)-1,625

TOTAL-165,037

GTS Production Numbers

w/T5:4,848
w/AODE: 1,522

By Color
Canary Yellow-344
Vibrant Red-25
Rio Red-777
Laser Red-1,123
Sapphire Blue-96
Bright Blue-197
Deep Forest Green-1,002
Teal-217
Opal Frost-312
Black-1,430
Crystal White-847

TOTAL-6,370

Stock Specs for 1994 GT Model:


Stock Specs for 1995 GT Model:


Stock Specs for 1995 GTS Model:


Attachments

  • 6f8c6ad9.jpg
    60.7 KB · Views: 1,086
  • 1f168ecf.jpg
    49.5 KB · Views: 1,894
  • dacac976.jpg
    46.4 KB · Views: 900
14. Cobra Specs
Here is a list of items that are unique to the 94-95 Cobra vs the GT of the same years.

Engine / Tranny

The Cobra engine is rated at 240bhp from the factory campared to the GT's 215bhp and was only available with a 5 speed and 3.08 rear end gears.

Cast Iron GT40 heads
Cast Aluminum Cobra Intake Manifold w/ "Cobra" on Upper
Crane 1.7 Rocker Arms
FRPP 24lb Fuel Injectors
Cobra Specific ECU (computer)
Sticker on Valve Cover
Engine Oil Cooler
Front Mounted Power Steering Fluid Cooler
Lightened Flywheel
Phosphate Coated Transmission Gears
Overdriven (smaller than GT) Waterpump Pulley
Cobra specific camshaft:
A. Cam specs: Duration: 227°/Intake & 270°/Exhaust
B. Lift: .485/.485 Intake/Exhaust
C. Lobe separation: 118.5°

Suspension/Brakes

13" Front Brakes
11.65" Rear Brakes
Front Calipers w/ "Cobra" Stamp
Cobra specific Brake Booster
Cobra Specific Rear Sway Bar
Cobra Specific Shocks/Struts/Springs
K-Member that is slightly stiffer than the GT's
No Strut Tower Brace

Interior

Steering Wheel Center / Airbag Cover Embossed w/ "Cobra"
White Faced Gauges
160mph Speedometer
Floor Mats Embroider w/ "Cobra"

Exterior

Cobra Specific 17" wheels
Cobra Specific Rear Spoiler with Integrated 3rd Brake Light
Cobra Specific Front Bumper Cover
SVT Emblem on Decklid (95-up, not on 94)
Cobra Emblems on Front Fenders (no 5.0L emblems)
"Crystal" (clear) headlights)
Round Cobra Specific Foglights

Other info:

The 94-95 Cobra (and GT) came with a 60mm throttlebody, not the 65mm alot of people believe it to have. The 93 cobras came with a 65mm.
Although the 94-95 Cobra came with 24lb injectors it still uses the same MAF (mass airflow meter 70MM) as the GT. The Cobra specific computer compensates for the 24lb injectors.

Many people say the Cobra came with underdriven pulleys it only has a Cobra specific underdriven waterpump pulley (slightly smaller than GT). Even if they are slightly underdriven they are nowhere near the same as real aftermarket underdrive pulleys.

94-95 Cobra trivia information (posted on the SCOA bulletin board posted by "Dano" from the SVT cobra recognition guide)

1. '94 was the first year of the front facing Cobra snakes!
2. These two years were the only ones to have the "Crab Claw" spoiler, with built-in LED brake light! (The GT's stop lamp was mounted on the rear decklid)
3. Only three colors were offered:
a. Rio Red Tinted Clearcoat
b. Crystal White
c. Black Clearcoat
4. The '94 Indianapolis 500's official pace cars were GT's converted to Cobra specifications. They were five converts, with a four-speed AOD automatic trans! The actual "Pace Car" was driven by Parnelli Jones. 1,000 of these replicas were built, for sale to the public! If you have a '94 convert, it's an Indy 500 replica, with all the special badges & markings, and it's red!
5. The easiest way to tell a '94 from a '95:
a. The '95 has an SVT badge on the trunk lid.
b. The '95 has a vertical flair attached to the front of the rocker panel extension.
6. ALL '94 Cobra converts were Rio Red Indy Pace Car replicas.
7. ALL '95 converts were black.
8. The '94 convert tops were saddle color, and the '95 convert tops were black. No other color combinations were available!
9. '94 and '95's converts came with saddle interior.


Stock Specs 1994 Mustang Cobra:


Stock Specs 1995 Mustang Cobra:


Attachments

  • c0cf776c.jpg
    48.6 KB · Views: 1,025
  • 8d44e29b.jpg
    53.5 KB · Views: 620
  • Like
Reactions: 1 user
15. Member Wheels

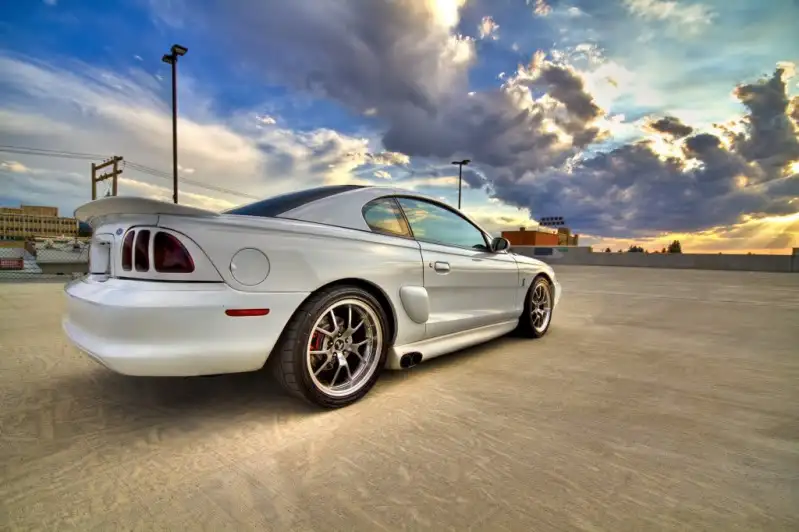

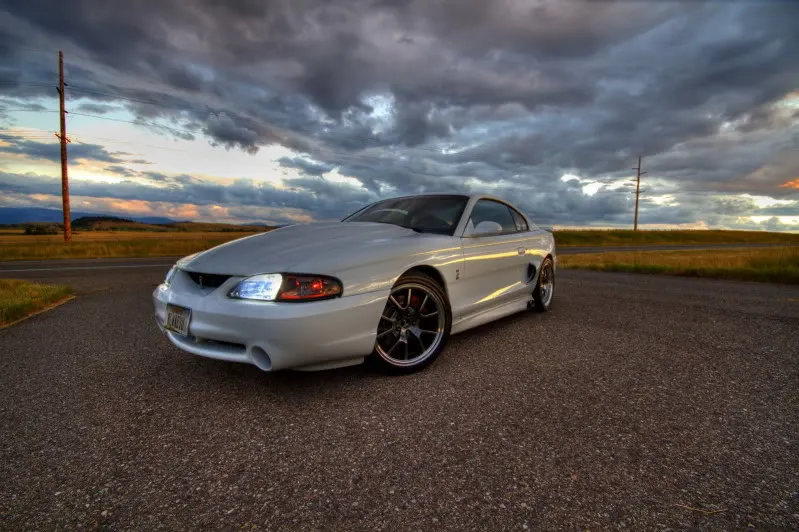

TurboGT
FR500 Rims Staggered
18x9 and 18x10 Hypercoated FR500's from AM with 265/35/18 and 315/30/18 Falken Azenis RT615's





Attachments

  • sideshodhrt.jpg
    76 KB · Views: 1,382
  • f135eb6f.jpg
    93.5 KB · Views: 1,379
  • Like
Reactions: 1 user

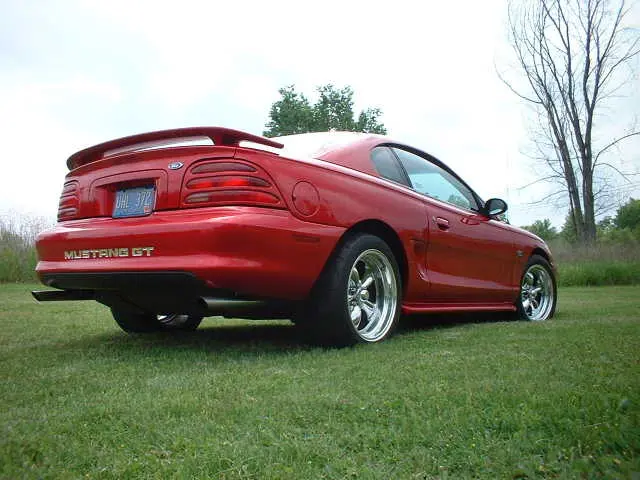

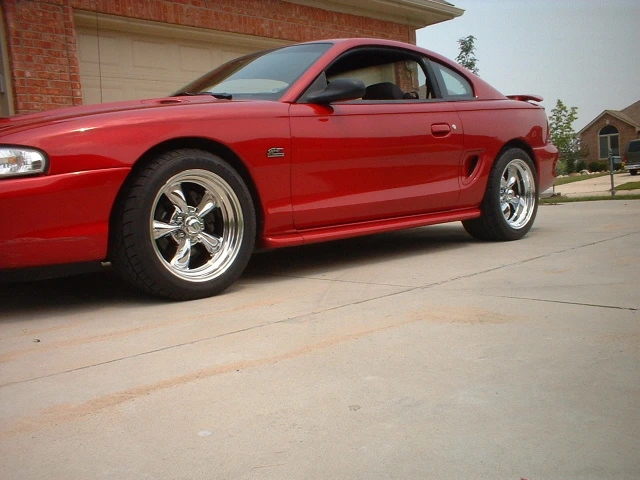

jtkz13

American Racing Torq-Thrust II's - Chrome (not standard polished aluminum)
17x9.5 front with 275/40 Nitto 555's
17x11 rear with 315/35 Nitto 555R's (drag radials)









Killer95Stang
17" x 9" F / 17" x 10.5" R, made by Wheelreplicas.com, Kumho 255/45/17 front, 295/35/17's rear








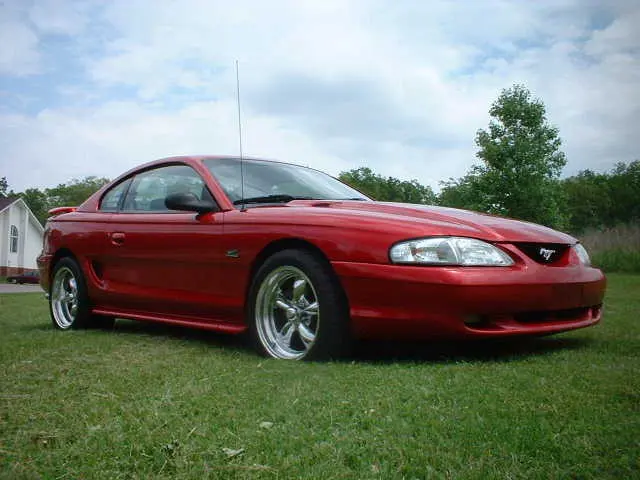

huskerpower02

Authentic Saleen Wheels off a S-281.
245/35/18 in front
275/35/18 in back
Pirelli all the way around




Attachments

  • rims1.jpg
    116.7 KB · Views: 876
  • DSCF0004.JPG
    43.2 KB · Views: 896
  • DSCF0009.JPG
    38.2 KB · Views: 908
16. Converting to a FOX style throttle body & Removing Smog Equipment (EDIT 12-21-11, Pictures Not Fixed Yet)
by GTJake

How To Convert To a Fox Style Throttle Body & Removing Smog Equipment

Removing your smog equipment on 94-95's.
http://www.allfordmustangs.com//techarticles/Smog2.pdf

First you need to gather the swap parts. The easiest way is to find someone that is parting out an 87-93 Fox body or just go to the junkyard. You can also find a lot of these parts on Ford Cown Vics, Lincoln Mark VIII’s and 5.0 Cougars and T-Birds.

Here’s the parts you need

• Fox throttle Body
• Fox EGR delete plate or EGR spacer
-EGR delete plate (http://uprproducts.com/shopping/shopexd.asp?id=383)
• Fox Throttle Cable Bracket
• Fox Throttle Cable
• Fox TPS connector
-Get both ends of the TPS connector if you want to be able to unclip the TPS easily.
• Fox IAC

Here’s a pic of all the parts needed. Thanks for all the pics RIO5.0 (Andy)!



*Most of these procedures are described in good detail in a Haynes manual, but I’ll do my best.*


First thing you need to do is take out the stock throttle cable. Get under the dash and look up at the top of the gas pedal and you’ll see that the throttle cable is just pinched into place into the fork on top of the gas pedal. Just take a screw driver and pop that out.

Then look at the firewall where the throttle cable goes in and you’ll see two bolts. Remove those and undo the throttle connections at the SN-95 throttle body. Remove the throttle cable.

Install the fox throttle cable the same way you removed the SN-95 throttle cable. Where it bolts to the firewall you will only be able to use one bolt hole, unless you drill another. I’m using one and there are no problems with it.

Remove the SN-95 throttle body from the upper intake and disconnect the stock TPS and IAC sensors. Remove the elbow adapter.

This is a picture of the throttle cable bracket bolted to an EGR delete spacer.


You can get four studs from the hardware store and screw them into the upper intake. The studs use will vary in length depending on if you’re using an EGR spacer or just the delete plate. They should be ¼”x18thdx. Here’s a pic.


Here you can see how everything hooks up. The throttle cable connects to the throttle body by popping onto the ball on the bottom.


In this pic you can see the TPS sensor. The bottom connector is the part that gets wired to your existing TPS wires.

What you want to do is cut the stock TPS connector off exposing three wires. There should be a gray wire with a red stripe, a gray wire with a white stripe and a brown wire with a white stripe. The fox TPS connector (the bottom connector in the picture) will have three wires also. A green, orange, and black wire. Here’s is how you want to wire them together:

Green wire – Gray w/white stripe
Black wire – Gray w/red stripe
Orange wire – Brown w/white stripe

Use some wire connectors to splice them together and cover them in electrical tape.


Now you’ll want to go ahead a bolt up the IAC sensor which is in this pic. Make sure you use a gasket between it and the throttle body, the stock gasket works fine.


Bolt it up in that same orientation as shown in the pic to the throttle body otherwise it won’t idle. You can use you stock plug from the SN-95, no wires need to be spliced to connect this sensor.

Now put the EGR spacer or EGR delete plate with the throttle cable bracket connected to it on the upper intake. See pic.


Now put the throttle body on. Make sure you’re using gaskets between the upper/EGR spacer/and Throttle body.

Now connect the TPS sensor that you have. It should bolt to the top of the throttle body and have a little connector at the end that will plug into the other connector that you already wired into your existing TPS wires. Here’s a pic of how it should be set up.


Now before you bolt the TPS sensor down to the throttle body you are going to have to check TPS voltage. You can do this with a voltmeter that you can pick up at any auto parts store. A digital one makes it easier. Turn the key on, but don’t have the engine running. Connect the black voltmeter wire to the black wire on the TPS and the red voltmeter wire to the green wire on the TPS. Move the TPS until you get a reading around .985-.989. The TPS moves a little bit on top of the throttle body when it's not fully tightened down. Once you reach your desired TPS voltage (i.e .987) then you tighten the screws down and it locks the TPS in place settting the voltage.
This is just a suggested voltage. There are many opinions on this and you can research for yourself what would be the voltage you would like to use.

Once you get the proper voltage, tighten the TPS down.

Connect the two TPS plugs. Connect the IAC plugs. Bolt the throttle body down. Connect your fox throttle body style intake tract. Make sure you have the IAT sensor in and the MAF plugged in.

Here's what it should look like when your all done.




17. Air Bag Light / Diagnostics and Air Bag Codes

http://www.veryuseful.com/mustang/tech/airBag/airBag95.html


Attachments

  • DSCF7051.jpg
    85.2 KB · Views: 959
18. Bolt and Torque Guide.

Ford Engine Bolt Torque Chart

Bolt Torque Spec Chart for Ford Engines

These specs are for stock-type bolts with light engine oil applied to the threads and the underside of the bolt head. Moly and other lubes offer reduced friction and increased bolt tension, which will affect the torque figure. If you use after-market performance bolts like ARP’s, you should follow the recommended torque specifications.

260, 289, 302 Torque Spec.
Fastener Type
Torque Spec
Main cap bolts
60-70 ft-lbs
Outer main cap bolts
35-40 ft-lbs.
Connecting rod bolts
(40-45 ft-lbs. for 289 HP & Boss 302)
Cylinder head bolts
65-72 ft-lbs.
Rocker arms
17-23 ft-lbs.
Intake manifold bolts
23-25 ft-lbs
Oil pump bolt
23-28 ft-lbs.
Cam bolts
40-45 ft-lbs.
Cam thrust plate bolts
8-10 ft-lbs.
Harmonic damper bolts
70-90 ft-lbs.
Flywheel / flex-plate bolts
75-85 ft-lbs.
Pressure plate bolts
35 ft-lbs.
Front cover bolts
12-15 ft-lbs.
351W Torque Spec.
Fastener Type
Torque Spec
Main cap bolts
95-105 ft-lbs
Connecting rod bolts
40-45 ft-lbs.
Cylinder head bolts
90-100 ft-lbs.
Rocker arms
17-23 ft-lbs.
Intake manifold bolts
23-25 ft-lbs.
Oil pump bolts
23-28 ft-lbs.
Cam bolts
40-45 ft-lbs.
Cam thrust plate bolts
8-10 ft-lbs.
Harmonic damper bolt
70-90 ft-lbs.
Flywheel / flex-plate bolts
75-85 ft-lbs.
Pressure plate bolts
35 ft-lbs.
Front cover bolts
12-15 ft-lbs.
351C, 351M Torque Spec.
Fastener Type
Torque Spec
Main cap bolts
95-105 ft-lbs.
Connecting rod bolts
40-45 ft-lbs. (45-50 ft-lbs. For Boss 351C)
Cylinder head bolts
105 ft-lbs. (125 ft-lbs. For Boss 351C)
Rocker arms (non-adjustable)
Rocker arms (non-adjustable)
5/16in. intake manifold bolts
21-25 ft-lbs.
3/8in. intake manifold bolts
28-23 ft-lbs
Oil pump bolt
25 ft-lbs.
Cam bolts
40-45 ft-lbs.
Cam thrust plate bolts
9-12 ft-lbs.
Harmonic damper bolt
70-90 ft-lbs.
Flywheel / flex-plate bolts
75-85 ft-lbs.
Pressure plate bolts
35 ft-lbs.
Front cover bolts
12-18 ft-lbs.

Torque Specs for 94-98 Diagram
http://www.allfordmustangs.com//Detailed/649.shtml

Status
Not open for further replies.
