left turn signal

  • Thread starter Thread starter Marks89GT
  • Start date Start date Jul 16, 2011

Marks89GT

Member
May 8, 2011
128
2
19
Dudley MA
Jul 16, 2011
#1
  • Jul 16, 2011
  • #1
when i bought my 89 all the electricals worked. now my left tun signal doesnt work. the right one does though. now i realized when i took my door panels off that if the passenger switch is disconnected the window wont go down even if you use the passenger switch from the drivers side. so i guess some of these electronics are running with one another. is there anything i may have disconnected that could be causing it not to work. any help would be great. if i use the hazards only the right one works. idk if that helps.


jrichker

StangNet's favorite TOOL
In Remembrance. Thank you for your contributions
Mar 10, 2000
27,512
2,813
234
Dublin GA
Jul 17, 2011
#2
  • Jul 17, 2011
  • #2
Have you checked both front and rear LH side turn indcator bulbs to make sure they are good? Are the bulb sockets clean and not corroded?

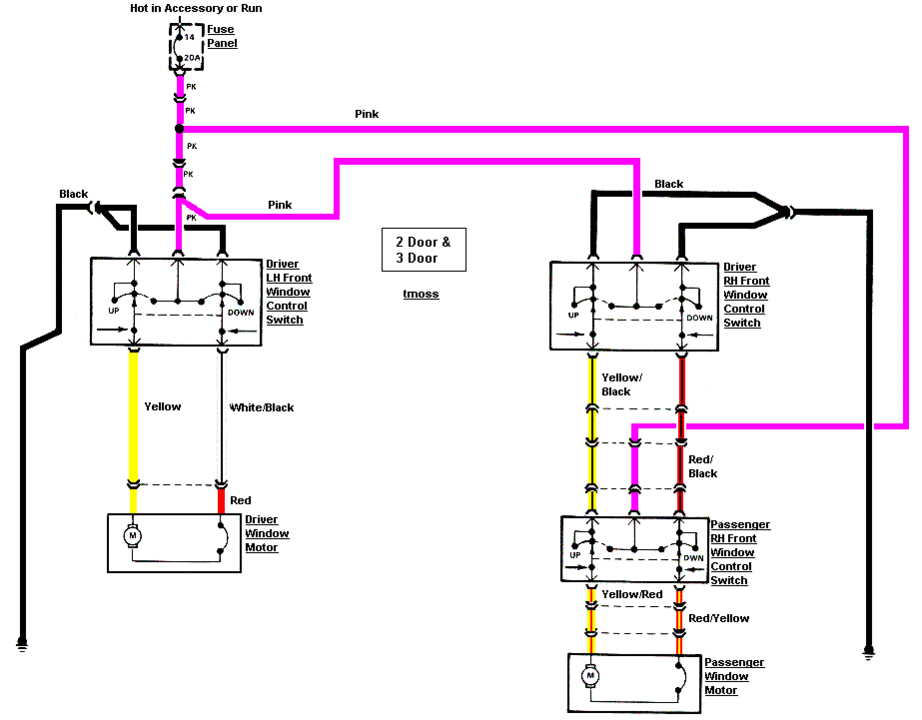

The electic windows are on a separate circuit from the turn indicators. So if the turn signals have problems, it will not affect the electric windows.

Diagram courtesy of Tmoss & Stang&2birds



See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring Mustang FAQ - Wiring & Engine Info Everyone should bookmark this site.

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pinout
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif


Attachments

  • mustang87-92%20PowerWindowWiring.gif
    52.2 KB · Views: 241
