Paint and Body Need a couple dimensions if possible.....

Wayne Waldrep

Before I post a pic, do you have one of yours?
15 Year Member
Apr 14, 2003
1,270
692
143
Cuba, AL

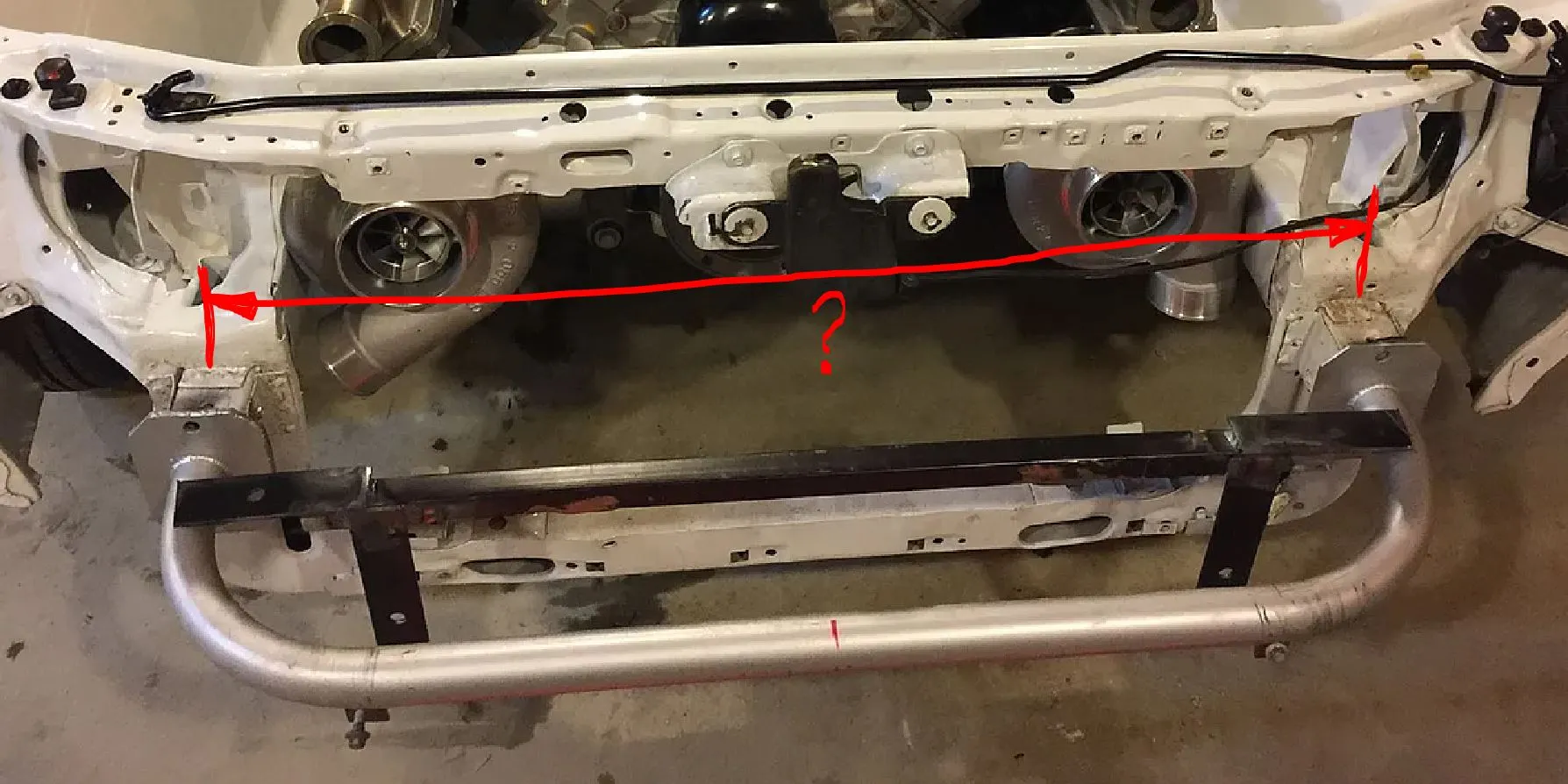

Does anyone have a fox with the front and rear bumper covers removed? I need the dimension shown for the front and rear if possible. Making a drawing and don't have access at the moment to a car. And a plus if you happen to have one......rough height to the ground/floor from the centerline of the same mounting plates front and rear. I know this last one will vary greatly but for the purposes of this drawing, it will be close enough.
Thanks!

  • Sponsors (?)


AeroCoupe

Founding Member
Oct 28, 2001
540
230
73
Jenks, OK
If the bumper support attachment points are inline with the front subframes then this thread may be of some help:


You might be able to get a body shop to look in their books and they will probably have the dimensions and tolerances for both ends.


BlakeusMaximus

Still got to try a little lube on my speedo head
5 Year Member
Jul 12, 2017
2,317
1,344
173
I think the frame dimensions are in the stickys. I had given them to a member a while back and saw them in the stickys tab a while back. They are out of my Chief Measuring system. Check in there Wayne.

Edit" Yep they are in there.

  • Like
Reactions: 1 user

BlakeusMaximus

Still got to try a little lube on my speedo head
5 Year Member
Jul 12, 2017
2,317
1,344
173
I would assume that they are. Those dimensions are for the SN95. My measuring system doesnt have the 79-93's though. They didnt change the structure much when the 94's came out as far as I know.
