No spark, No fuel!

Sounds like the infamous PIP. If it's a reman distributor, they may not have replaced the PIP in it, if it tested ok on a workbench. The lack of spark and fuel typically confirms this, so if it's a reman unit with a warranty, swap it out for a new one, or a known working distributor from a friend's car if possible.

And welcome to :SNSign:

You need headstuds.

Cranks OK, but No Start Checklist for Fuel Injected Mustangs

Revised 26-Aug-2007 to add missing secondary ground on back of the engine.

All text applies to all models unless stated otherwise.

Note: 94-95 specific changes are in red

1.) Remove push on connector from starter solenoid and turn ignition switch on. Place car in neutral or Park and set the parking brake. Remove the coil wire from distributor & and hold it 3/8” away from the engine block. Jumper the screw to the big bolt on the starter solenoid that has the battery wire connected to it. You should get a nice fat blue spark.
Most of the items are electrical in nature, so a test light, or even better, a voltmeter, is helpful to be sure they have power to them.
No spark, possible failed items in order of their probability:
A.) MSD or Crane ignition box if so equipped
B.) Coil
C.) TFI module
D.) PIP sensor in distributor. The PIP sensor supplies the timing pulse to trigger the TFI and injectors. See paragraph 5A - a noid light will tell if the pip is working by flashing when the engine is cranking.
E.) No ECC or computer power - ECC or computer relay failure
86-93 models only: ECC relay next to computer - look for 12 volts at the fuel injector red wires
94-95 models only: EEC or PCM power relay in the constant control relay module. Look for 12 volts at the fuel injector red wires.
F.) No ECC or computer power - fuse or fuse link failure
86-93 models only: Fuse links in wiring harness - look for 12 volts at the fuel injector red wires. All the fuse links live in a bundle up near the starter solenoid.
94-95 models only: 20 amp EEC fuse in the engine compartment fuse box. Look for 12 volts at the fuel injector red wires.
G.) Ignition switch - look for 12 volts at the ignition coil red/lt green wire. No 12 volts, blown fuse link or faulty ignition switch. Remove the plastic from around the ignition switch and look for 12 volts on the red/green wire with the switch in the Run position. No 12 volts and the ignition switch is faulty. If 12 volts is present in the Run position, then the fuse link is blown.
94-95 models only: Check inside fuse panel for fuse #18 blown – 20 amp fuse
H.) Bad or missing secondary power ground. It is located between the back of the intake manifold and the driver's side firewall. It supplies ground for the alternator, A/C compressor clutch and other electrical accessories such as the gauges.
J.) Computer
I.) Engine fires briefly, but dies immediately when the key is released to the Run position. Crank the engine & when it fires off, pull the small push on connector (red wire) off the starter relay (Looks like it is stuck on a screw). Hold the switch in the crank position: if it continues to run there is a problem with either the ignition switch or TFI module. Check for 12 volts at the red/green wire on the coil with the switch in the Run position. Good 12 volts, then replace the TFI. No 12 volts, replace the ignition switch.

See the following links for wiring diagrams...

http://www.autozone.com/servlet/UiB..._us/0900823d/80/16/71/3c/0900823d8016713c.jsp for 79-88 model cars
Computer/fuel pump/ignition wiring diagram, 86 model http://www.autozone.com/images/cds/gif/large/0900823d80167158.gif
Computer/fuel pump/ignition wiring diagram, 87 model http://www.autozone.com/images/cds/gif/large/0900823d8016715e.gif
Computer/fuel pump/ignition wiring diagram, 88 model http://www.autozone.com/images/cds/gif/large/0900823d80167162.gif

http://www.autozone.com/servlet/UiB..._us/0900823d/80/19/59/5a/0900823d8019595a.jsp for 89-93 model cars
Computer/fuel pump/ignition wiring diagram, 89-90 cars http://www.autozone.com/images/cds/gif/large/0900823d8019595f.gif
Computer/fuel pump/ignition wiring diagram, 91-93 cars
http://www.autozone.com/images/cds/gif/large/0900823d80195960.gif

http://www.autozone.com/servlet/UiBroker?ForwardPage=/az/cds/en_us/0900823d/80/1d/db/3c/0900823d801ddb3c.jsp for 94-98 model cars

2.) Spark at coil wire, pull #1 plug wire off at the spark plug and check to see spark. No spark, possible failed items in order of their probability:
A.) Moisture inside distributor – remove cap, dry off & spray with WD40
B.) Distributor cap
C.) Rotor
D.) Spark Plug wires
E.) Coil weak or intermittent - you should see 3/8" fat blue spark with a good coil

3.) Spark at spark plug, but no start.
Next, get a can of starting fluid (ether) from your local auto parts store: costs a $1.30 or so. Then pull the air duct off at the throttle body elbow, open the throttle, and spray the ether in it. Reconnect the air duct and try to start the car. Do not try to start the car without reconnecting the air duct.

Two reasons:
1.) If it backfires, the chance for a serious fire is increased.
2.) On Mass Air cars, the computer needs to measure the MAF flow once the engine starts.
If it starts then, you have a fuel management issue. Continue the checklist with emphasis of fuel related items that follow. If it doesn’t, then it is a computer or timing issue: see Step 4.

Clue – listen for the fuel pump to prime when you first turn the ignition switch on. It should run for 5-20 seconds and shut off. To trick the fuel pump into running, find the EEC test connector and jump the connector in the Upper RH corner to ground. The EEC connector is near the wiper motor and LH hood hinge.


If the relay & inertia switch are OK, you will have power to the pump. Check fuel pressure – remove the cap from the schrader valve behind the alternator and depress the core. Fuel should squirt out, catch it in a rag. Beware of fire hazard when you do this. In a pinch, you can use a tire pressure gauge to measure the fuel pressure. It may not be completely accurate, but you will have some clue as to how much pressure you have. If you have any doubts about having sufficient fuel flow/pressure, rent a fuel pressure test gauge from the auto parts store. That will tell you for sure if you have adequate fuel pressure.


4.) No fuel pressure, possible failed items in order of their probability:
A.) Tripped inertia switch – Coupe & hatch cars hide it under the plastic trim covering the driver's side taillight. Use the voltmeter or test light to make sure you have power to both sides of the switch
B.) Fuel pump power relay – located under the driver’s seat in most stangs built before 92. On 92 and later model cars it is located below the Mass Air Flow meter. Look for 12 volts at the Pink/Black wire on the fuel pump relay.
C.) Clogged fuel filter
D.) Failed fuel pump
E.) 86-90 models only: Blown fuse link in wiring harness. Look for 12 volts at the Orange/Lt Blue wire on the fuel pump relay.
91-93 models only Blown fuse link in wiring harness. Look for 12 volts at the Pink/Black wire on the fuel pump relay.
The fuse links for all model years 86-93 live in the wiring harness near the starter solenoid.
94-95 models only: 20 amp fuel pump fuse in the engine compartment fuse box. Look for 12 volts at the Dark green/yellow wire on the constant control relay module.
F.) Engine seem to load up on fuel and may have black smoke at the tailpipe. Fuel pressure regulator failed. Remove the vacuum line from the regulator and inspect for fuel escaping while the pump is running. If fuel is coming out the vacuum port, the regulator has failed. Check the regulator vacuum line for fuel too. Disconnect it from the engine and blow air though it. If you find gas, the regulator has failed.

5.) Fuel pressure OK, the injectors are not firing.
A.) A noid light available from any auto parts store, is one way to test the injector wiring.
The noid light plugs into the fuel injector harness in place of any easily accessible injector. Plug it in and it will flash if the injector is firing.
B.) I like to use an old injector with compressed air applied to the injector where the fuel rail would normally connect. I hook the whole thing up, apply compressed air to the injector and stick it in a paper cup of soapy water. When the engine cranks with the ignition switch on, if the injector fires, it makes bubbles. Cheap if you have the stuff laying around, and works good too.
D.) Pull an injector wire connector off and look for 12 volts on the red wire when the ignition switch is on.
E.) No power, then look for problems with the 10 pin connecter (salt & pepper shakers at the rear of the upper manifold).
F.) No power and the 10 pin connections are good: look for broken wiring between the orange/black wire on the ECC relay and the red wire for the 10 pin connectors.
G.) TPS voltage exceeds 3.7 volts with the throttle closed. This will shut off the injectors, since the computer uses this strategy to clear a flooded engine. Use a DVM, a pair of safety pins, and probe the black/white and green wires to measure the TPS voltage.
On a 94-95 Mustang, probe the black/white and grey/white wires to measure the TPS voltage.
It should be .5-.99 volts with the key on, engine not running. Note that if the black/white wire (signal ground) has a bad connection, you will get some strange readings. Make a second measurement using the battery post as the ground to eliminate any ground problems. If the readings are different by more than 5%, you may have a high resistance condition in the black/white signal ground circuit.

6.) Spark & fuel pressure OK.
A.) Failed IAB (no airflow to start engine). Press the throttle ¼ way down and try to start the car.
B.) Failed computer (not very likely)
C.) Engine ignition or cam timing off: only likely if the engine has been worked on recently).
D.) Firing order off: HO & 351 use a different firing order from the non HO engines.
HO & 351W 1-3-7-2-6-5-4-8
Non HO 1-5-4-2-6-3-7-8
E.) No start when hot - Press the throttle to the floor & try starting it if you get this far. If it starts, replace the ECT.
F. ) Engine that has had the heads off or valves adjusted. Do a compression test to make sure the valves are not adjusted too tight. You should have a minimum of 90 PSI on a cold engine.

Maybe a flex-fan and a line-loc would solve your problems...

Archer Mike said:

Wow thanks jricker! i was hoping you would reply!
I will try the home work this weekend
I have one of those remote starts and I did try to start the car with a light tester connected to the #5 injector( closes to the starter relay) and had no light at all while trying to crank the motor.
I pulled off the coil wire that connects to the dist. and had no spark there either while trying to start.
I will trace the wires for the eec.

is it the eec or ecc that is located close to the computer?

i believe the only thing that I could find was actually located wedged behind the "blower motor" for the air just dangling around. I couldn't get it out in the open to see the colors of the wires that connect to it.

thanks for taking the time!
mike

Click to expand...

The EEC is the Electronic Engine Control or computer. There is also an EEC relay, which is the computer power relay.

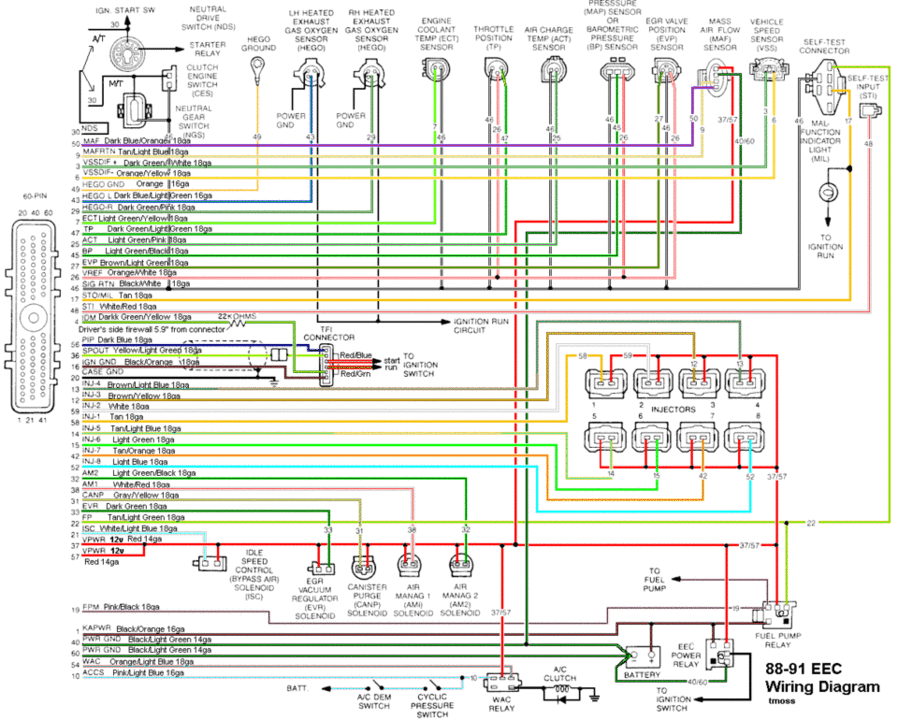

A diagram to show all the components may help...

Diagram courtesy of Tmoss & Stang&2birds


See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pinout
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

Archer Mike said:

cheap bird; you really think I ought to look for those things?
The guy who had the car before me did have the heads off it. I think if I remember correctly was because they were leaking? I begin to wonder if they were blown. everything else on the car seems to go wrong when I try to fix anything!

Click to expand...

I think the problem is the guy who had the car before.

That, or your goofy friend who's been working on this problem with you...

What year and trim are your car?

Proper diagnostics will save you a lot of money.

Did you run Jrichker's checklist? It will end up saving you time in the end and keep money in your pocket.

Cranking relay is an original term.

Good luck.

Hey! Nobody's flaming me. SN must have 'matured'.
I can't believe nobody bit on the headstuds comment. Oh well...

Archer, your car doesn't have a ccrm. Or the other bit. Whoever told you that has been workin' on too many 4.6's.

At this juncture I'm thinkin' wiring.

Jrich and Hissin, this thing has been intermittant and spontaneous. When it does fire and run, it does fine. When it quits it's like a lightswitch. Not like the FP is losing it, more like no ign/inj. IIRC, we've also had spark and no injectors from time to time. No gas smell when cranking either.

Edit: It's a '92 GT, pretty much stock except fot the headers and msd coil/dizzy.

I'm leaning toward a break in the vpwr line to the inj's.


Mike, this is the course of action I'd pursue.

D.) Pull an injector wire connector off and look for 12 volts on the red wire when the ignition switch is on.
E.) If no power, then look for problems with the 10 pin connecter (salt & pepper shakers at the rear of the upper manifold).
F.) If no power and the 10 pin connections are good: look for broken wiring between the orange/black wire on the ECC relay and the red wire for the 10 pin connectors.

See if you can get a continuity reading from the EEC relay to an injector line. Should be pretty low, as in almost nothing.

cheapbird said:

Hey! Nobody's flaming me. SN must have 'matured'.
I can't believe nobody bit on the headstuds comment. Oh well...

Archer, your car doesn't have a ccrm. Or the other bit. Whoever told you that has been workin' on too many 4.6's.

At this juncture I'm thinkin' wiring.

Jrich and Hissin, this thing has been intermittant and spontaneous. When it does fire and run, it does fine. When it quits it's like a lightswitch. Not like the FP is losing it, more like no ign/inj. IIRC, we've also had spark and no injectors from time to time. No gas smell when cranking either.

Edit: It's a '92 GT, pretty much stock except fot the headers and msd coil/dizzy.

I'm leaning toward a break in the vpwr line to the inj's.


Mike, this is the course of action I'd pursue.

D.) Pull an injector wire connector off and look for 12 volts on the red wire when the ignition switch is on.
E.) If no power, then look for problems with the 10 pin connecter (salt & pepper shakers at the rear of the upper manifold).
F.) If no power and the 10 pin connections are good: look for broken wiring between the orange/black wire on the ECC relay and the red wire for the 10 pin connectors.

See if you can get a continuity reading from the EEC relay to an injector line. Should be pretty low, as in almost nothing.

Click to expand...

All of that is in the "Cranks OK, but No Start Checklist for Fuel Injected Mustangs".
Archer Mike just needs to start at the top of the checklist when it happens and work his way through it.

Back to your problem:

Archer Mike said:

"the motor will turn over but I am not getting spark nor signal at
the injectors. every now and then it will start and run for about 15 -20 min. and shut
down without a shutter, like a light switch it just stops running."

Click to expand...

That is not a camshaft out of time, or an engine out of time. It is an electrical problem.
Concentrate on the things that make spark happen.

In spite of the fact you have replaced the distributor, look at the PIP sensor.
A reman distributor could still have a bad PIP sensor.

When you crank the engine using a remote starter, that does not energize the computer
or ignition circuits. The ignition switch must be in the Run position to power the ignition and computer.
