Engine Problems in AL

Shelby Co 5.0

New Member
Sep 13, 2022
5
0
1
Hi all! I’ve been doing a lot of searching and was sent here by Jrichker. I have an 89 lx 5.0 5 speed. Only mod is flowmaster cat back. I have been chasing and banging my head for a year now. Car runs bad a lot but every once in a while runs ok. Always takes a lot of turning over to get it to start. Once I turn it over enough to get it somewhat warm it’ll die. It’ll keep dying until I give it some gas and feather it a lot. When it gets really warm it will run decent… until I changed the distributor after getting a code for PIP. It ran about the same after the new distributor then wouldn’t fire after a while. I found that manipulating the distributor and tapping on the tfi or moving wires seemed to work.. so I replaced it under warranty. Fast forward to yesterday. Now it misses a lot and won’t run good at all. I’ve also changed plugs, wires, 2 computers, act and ect, maf, fuel pump, fuel filter, tps, and maybe some other stuff I can’t remember. I’m really getting to the point of giving up but I don’t want to. Any help would be greatly appreciated.:fuss::thinking:


Kid wita 5oh

Founding Member
Nov 5, 2000
1,159
38
68
Go through this procedure step by step


On a side note, I just went through 4 aftermarket distributors before I got a good one....


jrichker

StangNet's favorite TOOL
In Remembrance. Thank you for your contributions
Mar 10, 2000
27,513
2,853
234
Ok I forgot to mention I have 30 psi of fuel pressure with the vacuum on and 41 with it off. I am getting computer codes 14,18,95,96. Forgot to add this in my original message

Since you have replaced some parts, clear the codes and drive the car before dumping them again.

How to clear codes.
Clearing the codes by pressing a button on the scan tool or disconnecting the test jumper used to start the code dump does not erase the “learned settings”. All it does is erase the stored codes in memory, which is what you want to do at this time.

You must clear the codes anytime you replace any sensor. The following tells you how and is different from the method above
Clear the computer codes by disconnecting the battery negative terminal and turn the headlights on. Turn the headlights off and reconnect the all sensors including the MAF and anything else you may have disconnected. Then reconnect the battery negative cable. This clears all spurious codes may have been generated while troubleshooting problems. It also clears the adaptive settings that the computer "learns" as it operates. Clearing the codes does not fix the code problems, it just gives you a clean slate to start recording what the computer sees happening.

Run the car for at least 30 minutes of driving and dump the codes again to assure that you have fixed the code problem or sensor problem. This is necessary for the computer to relearn the adaptive settings that the computer uses for proper operation. The engine may run rough at first, but should smooth out as it runs for the 15-20 minute learning period.


Code 14 - Ignition pickup (PIP) was erratic – the Hall Effect sensor in the distributor is failing. Bad sensor, bad wiring, dirty contacts. Factory tach will sometimes read erratically.

Revised 8-Apr-2017 to correct SPOUT problem symptoms wording

PIP Sensor functionality, testing and replacement:
The PIP is a Hall Effect magnetic sensor that triggers the TFI and injectors. There is a shutter wheel alternately covers and uncovers a fixed magnet as it rotates. The change in the magnetic field triggers the sensor. A failing PIP sensor will often set code 14 in the computer. They are often heat sensitive, increasing the failure rate as the temperature increases.

Some simple checks to do before replacing the PIP sensor or distributor:
You will need a Multimeter or DVM with good batteries: test or replace them before you get started. You may also need some extra 16-18 gauge wire to extend the length of the meter’s test leads.
Visual check first: look for chaffed or damaged wiring and loose connector pins in the TFI harness connector.
Check the IDM wiring – dark green/yellow wire from the TFI module to pin 4 on the computer. There is a 22K Ohm resistor in the wiring between the TFI and the computer. Use an ohmmeter to measure the wire resistance from the TFI to the computer. You should see 22,000 ohms +/- 10%.
Check the PIP wiring - dark blue from the TFI module to pin 56 on the computer. Use an ohmmeter to measure the wire resistance from the TFI to the computer. You should see 0.2-1.5 ohms.
Check the SPOUT wiring – yellow/lt green from the TFI module to pin 36 on the computer. Use an ohmmeter to measure the wire resistance from the TFI to the computer. You should see 0.2-1.5 ohms.
Check the black/orange wire from the TFI module to pin 16 on the computer. Use an ohmmeter to measure the wire resistance from the TFI to the computer. You should see 0.2-1.5 ohms.
Check the red/green wire; it should have a steady 12-13 volts with the ignition switch on and the engine not running.
Check the red/blue wire; it should have a steady 12-13 volts with the ignition switch in Start and the engine not running. Watch out for the fan blades when you do this test, since the engine will be cranking.
If you do not find any chaffed or broken wires, high resistance connections or loose pins in the wiring harness, replace the PIP sensor or the distributor.

The PIP sensor is mounted in the bottom of the distributor under the shutter wheel. In stock Ford distributors, you have to press the gear off the distributor shaft to get access to it to replace it. Most guys just end up replacing the distributor with a reman unit for about $75 exchange

PIP problems & diagnostic info
Spark with the SPOUT out, but not with the SPOUT in suggests a PIP problem. The PIP signal level needs to be above 6.5 volts to trigger the computer to pulse the fuel injectors, but only needs to be 5.75 volts to trigger the TFI module. Hence with a weak PIP signal, and the SPOUT in, you could get spark but no injector pulse. You will need an oscilloscope or graphing DVM to measure the output voltage since it is not a straight DC voltage.

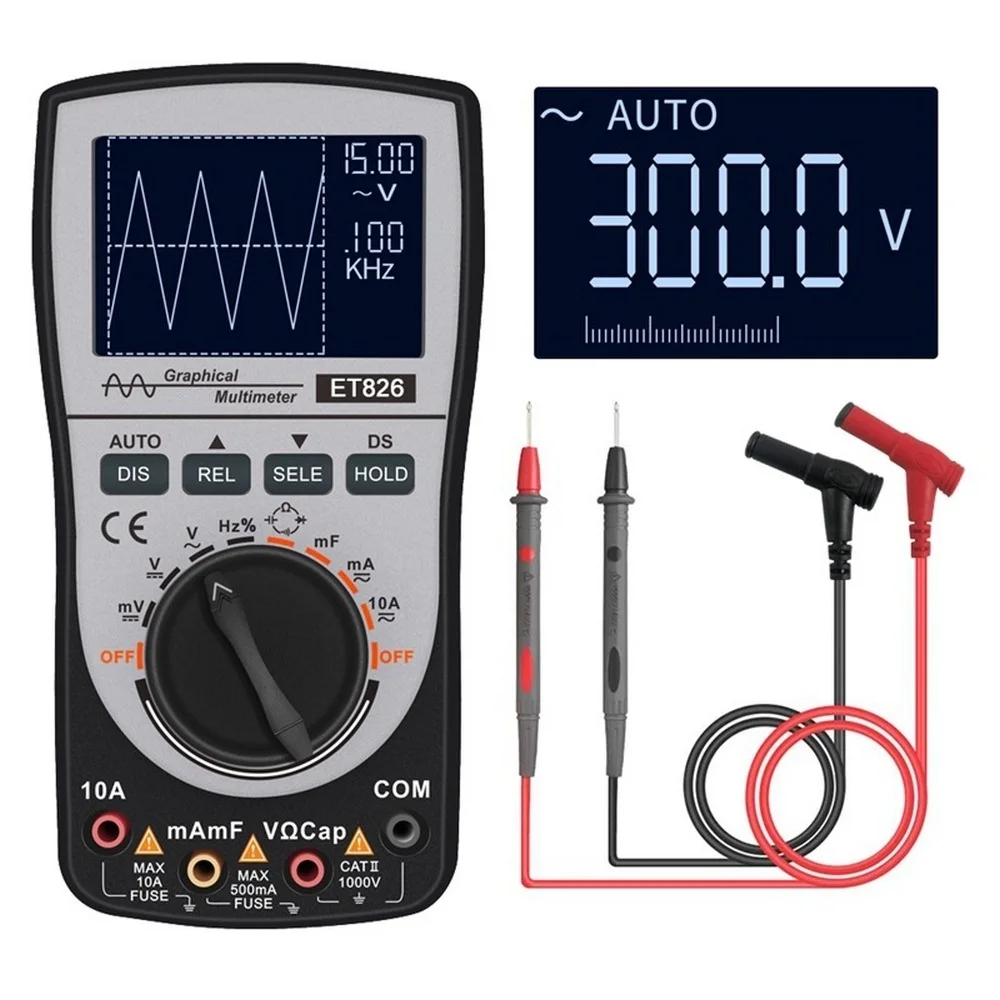

If you want to see what's happening in real time, see 2 in 1 Digital Oscilloscope MT8206 Multimeter with Analog Bar Graph ET826


Code 18 - SPOUT out or wiring fault - look for short to ground in SPOUT wiring going
back to the computer. Possible bad TFI or defective 22 K resistor in the IDM wiring

Revised 24 June 2019 to add comment about the need of thermal paste on TFI mounting surface.

Use a timing light to check the timing: remove the SPOUT and observe that the timing retards at least 4 degrees. Put the SPOUT back in place and observe that the spark advances at least 4 degrees.
This code can disable spark advance and reduce power and fuel economy.

Remove the passenger side kick panel and disconnect the computer connector.
It takes a 10 MM socket to remove the bolt that holds the connector in place..
Disconnect the TFI module connector from the TFI and the measure the resistance between the yellow/lt green wire and ground.
You should see greater than 100 K (100000) ohms.
Check the resistance from Pin 4 on the computer connector (dark green/yellow) and the dark green/yellow wire on the TFI connector. You should see 20-24 K Ohms (20,000-24,0000 ohms).

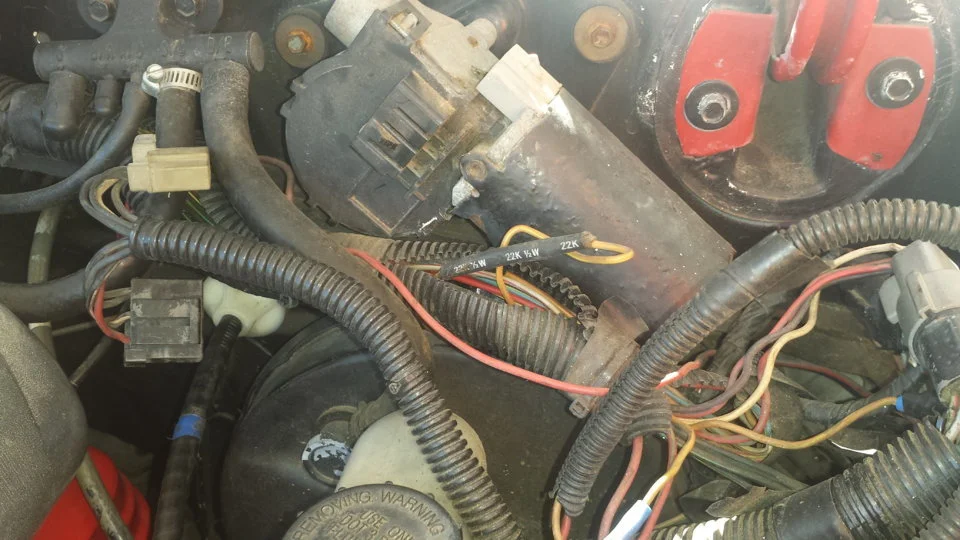

Resistor location: A big thanks to liljoe07 for this information:

Check over by the brake booster. It’s not in the harness on the TFI, it’s on the main part of the harness over by the plugs that connect to the dash harness. About 6" or so from that, going back toward the EEC.

If I remember right, the resistor is covered in a shrink tubing that is sealed to the wires. So, you won’t be able see any markings. The shrink tubing is labeled though. It's a 22 KΩ, 1/2 watt resistor.

Here is the location.

attachments\532446


Next measure the resistance between the yellow/lt green wire on the TFI module connector and Pin 36 on the computer connector. With the SPOUT plug in place, you should see less than 2 ohms.

The following is a view from the computer side of the computer connector.
eec-iv-computer-connector-for-5-0-mustang-gif.88243


This diagram is the wire side of the computer connector.
a9x-series-computer-connector-wire-side-view-gif.71316


Diagram courtesy of Tmoss & Stang&2birds



If you replace the or remove the TFI, clean the mounting surface off with alcohol and apply a fresh coat of thermal paste to the TFI mounting surface. Fail to do this and the TFI will quit working once the engine warms up.

Code 95 Key On, Engine not Running - the following test path is for 86-90 model Mustangs.

The 95 code is because at one time or another, the fuel pump relay hiccupped and didn't provide power the pump when the computer told it to run. Sometimes this is a one time thing, other times it is a no run or runs poorly condition.

fuel-pump-wiring-89-90-5-0-mustang-jpg.55493


Using the diagram, check the red/black wire from the fuel pump relay: you should see 12 volts or so. If not, check the inertia switch: on a hatch it is on the driver’s side by the taillight. Look for a black rubber plug that pops out: if you don't find it, then loosen up the plastic trim. Check for voltage on both sides of the switch. If there is voltage on both sides, then check the Pink/black wire on the fuel pump relay: it is the power feed to the fuel pump. No voltage there, check the Orange/Lt blue wire, it is the power feed to the fuel pump relay & has a fuse link in it. If there is good voltage there & at the Pink/black wire, swap the relay.

Some Mass Air conversions neglect to run the extra fuel pump wire, and they always have a 95 code. See http://www.stangnet.com/tech/maf/massairconversion.html for more information on the Mass Air wiring conversion.

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.

Ignition switch wiring

Fuel, alternator, A/C and ignition wiring

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs

Vacuum diagram 89-93 Mustangs

HVAC vacuum diagram

TFI module differences & pinout

Fuse box layout

Revised 11 Oct 2021 to add troubleshooting tip to distinguish a fuel pump relay problem from an ignition switch problem.

Code 96 for 86-90 model 5.0 Mustang – KOEO- Fuel pump monitor circuit shows no power - Fuel pump relay or battery power feed was open - Power / Fuel Pump Circuits. The fuel pump lost power at some time while the ignition switch was in the run position. The main power feed to the pump is what is losing power.

Look for a failing fuel pump relay, bad connections or broken wiring. The fuel pump relay is located under the passenger seat. On Mass Air Conversions, the signal lead that tells the computer that the fuel pump has power may not have been wired correctly.
See http://www.stangnet.com/tech/maf/massairconversion.html .

Look for power at the fuel pump - the fuel pump has a connector at the rear of the car with a pink/black wire and a black wire that goes to the fuel pump. The pink/black wire should be hot when the test connector is jumpered to the test position. To trick the fuel pump into running, find the ECC test connector and jump the connector in the lower RH corner to ground.

This code is often intermittent; the only clue is that the engine shuts off or stumbles while you are driving. This limits your ability to troubleshoot the problem when it happens, so you have to rely on the code dump to clue you in on what’s happening.
The radio, heater or A/C are not affected. If the radio, heater or A/C turn off at the same time, the engine stumbles, look for a failing ignition switch.

attachments\68357


86-90 Models:
Using the diagram, check the red/black wire from the fuel pump relay: you should see 12 volts or so. If not, check the inertia switch: on a hatch it is on the driver’s side by the taillight. Look for a black rubber plug that pops out: if you don't find it, then loosen up the plastic trim. Check for voltage on both sides of the switch. If there is voltage on both sides, then check the Pink/black wire on the fuel pump relay: it is the power feed to the fuel pump. Good voltage there, then the fuel pump body to tank wiring harness connector is the likely culprit since it is getting power. No voltage there, check the Orange/Lt blue wire, it is the power feed to the fuel pump relay & has a fuse link in it. Good voltage there & at the Pink/black wire, swap the relay.

Keep in mind that the relay wiring and socket can also cause intermittent problems. Clean the relay socket with non-flammable brake parts cleaner or electrical contact cleaner. If you find damaged wiring at the relay socket, replacement pigtail socket assemblies are available at the auto parts stores. Be sure to solder the wires and cover the solder joints with heat shrink tubing if you replace the relay socket.

attachments\55493



The code 96 may be intermittent. I have the same code and have replaced the relay, so I'm going to have to do some work to find a more complete troubleshooting process and a solid fix.

Last edited:

CAMTWO1070

Active Member
Dec 17, 2021
141
42
38
Heres what I would try....

Cleaning the dedicated ECU grounds that are behind the battery attached to the unibody would be my first choice and making sure the EEC relay ground is good too..........If the relay looks like its original or older than 10yrs old replace it with one thats diode protected....

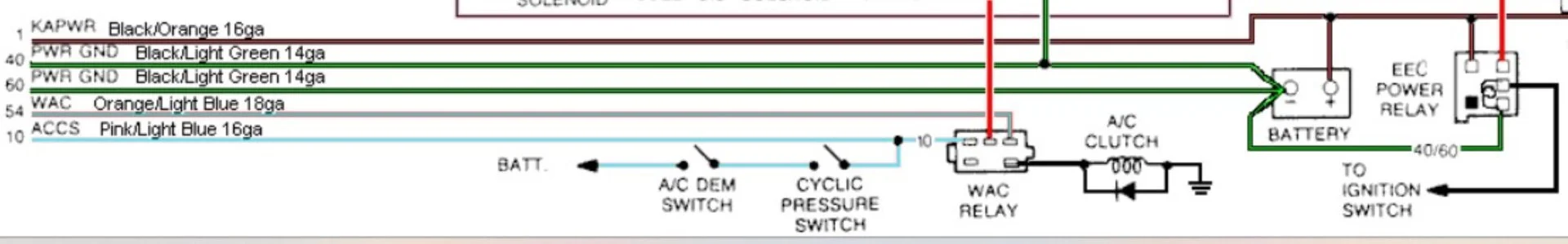

Screenshot 2022-10-25 190227.jpg

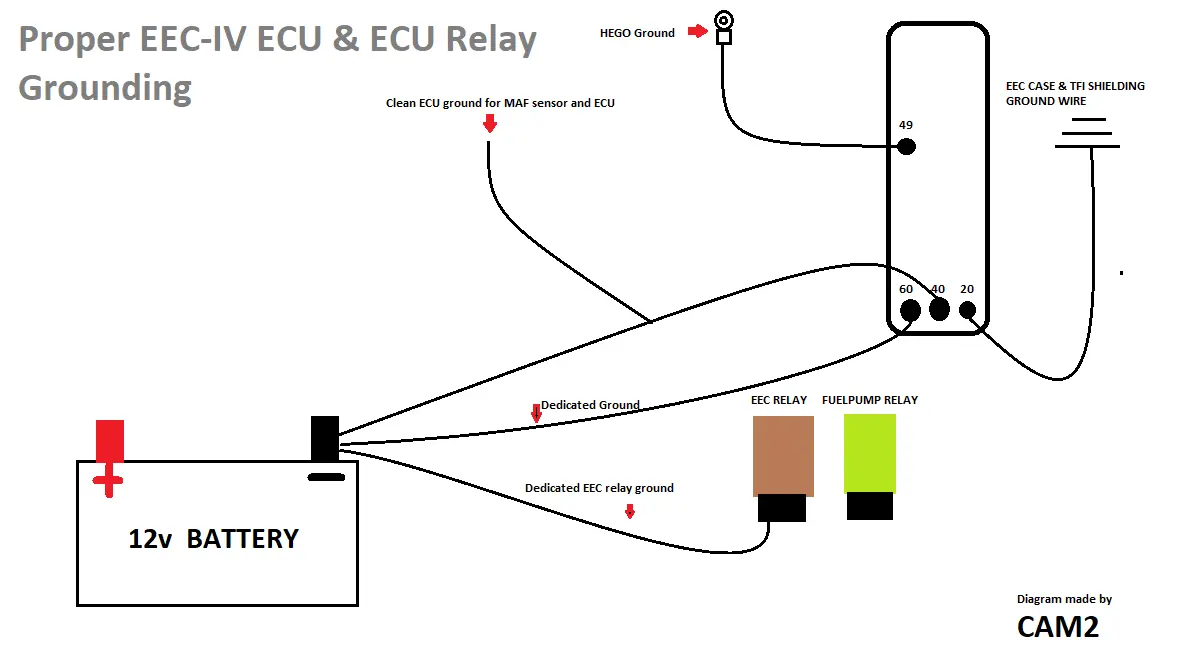

EEC IV Grounding method.png

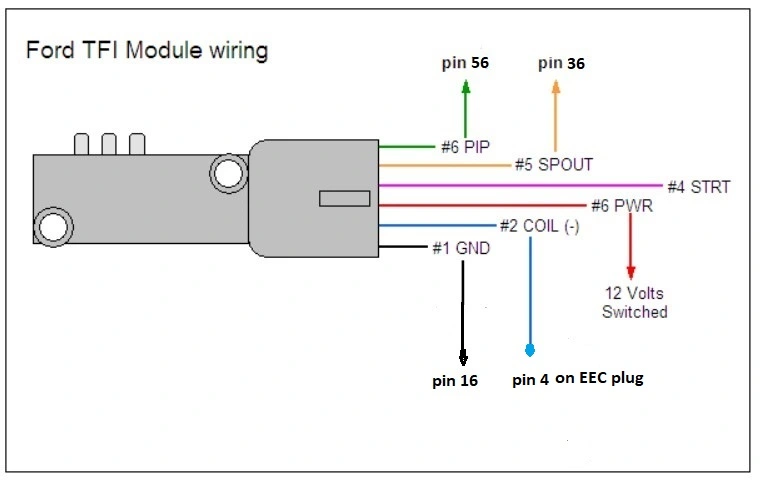

The other thing I would do is do a resistance check between pin 4 on the ECU plug and pin #2 in the TFI module plug...

Screenshot 2022-10-24 123201.jpg


When they fail they fail to " OPEN"...

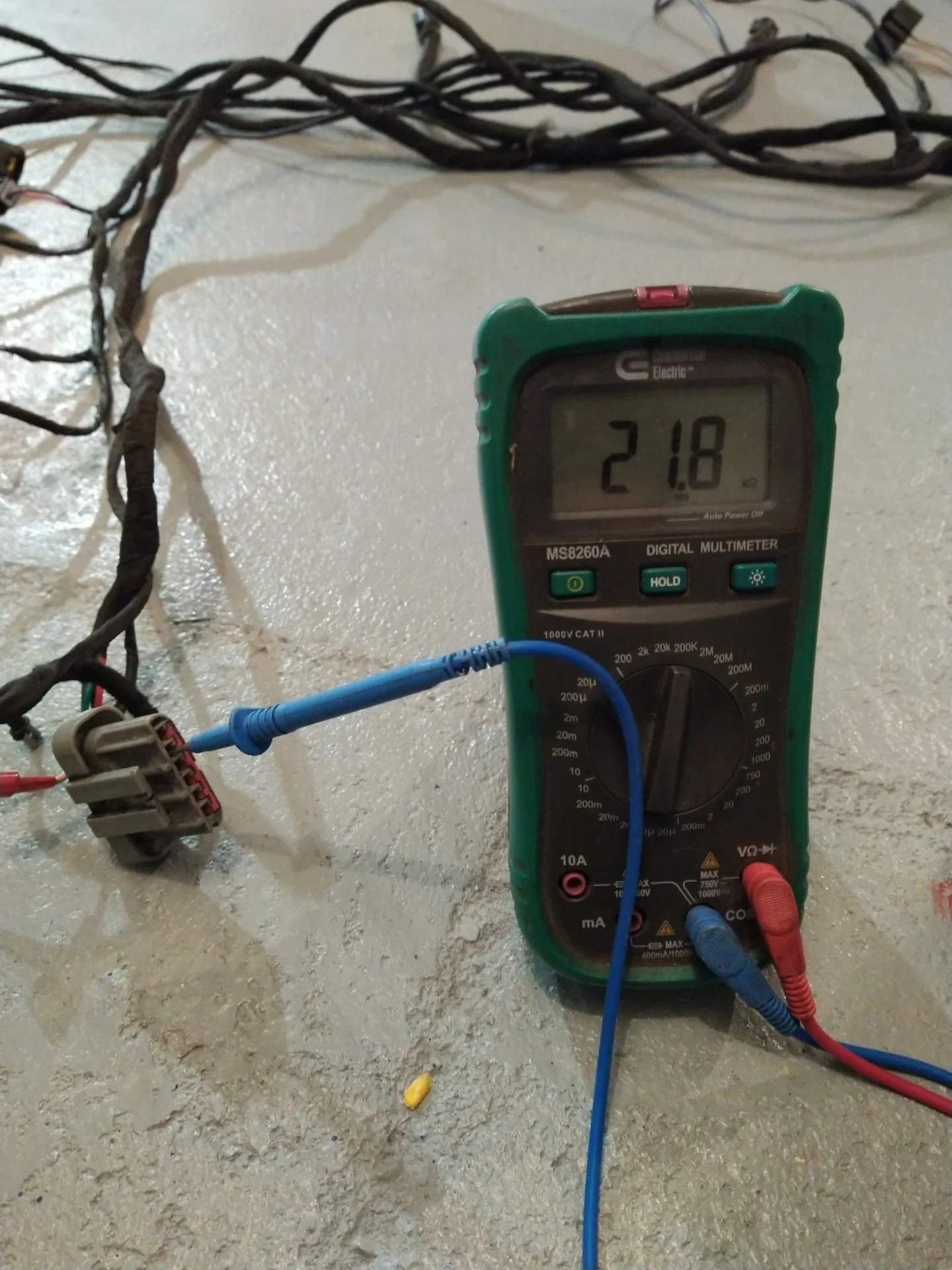

You need to see atleast 22kohms of resistance....If you see 0.00 replace the resistor or install one....




You can see the resistor on pin #4 IDM circuit in the schematic below...Its a 22kohm 1/2 watt metal film resistor. I use the 1% tolerance ones too as they keep the waiverance more accurate and less broad..

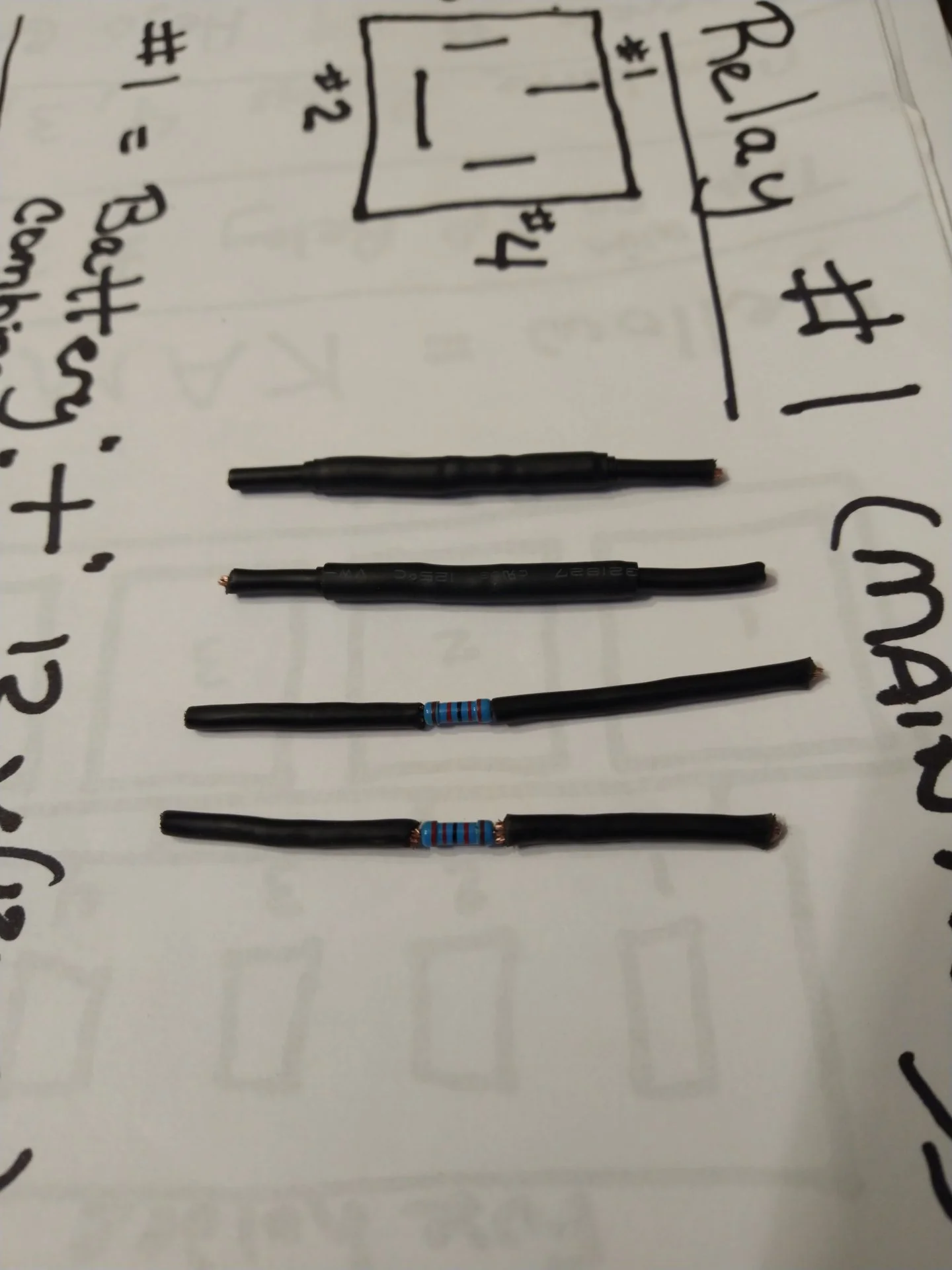

Heres what it looks like.............

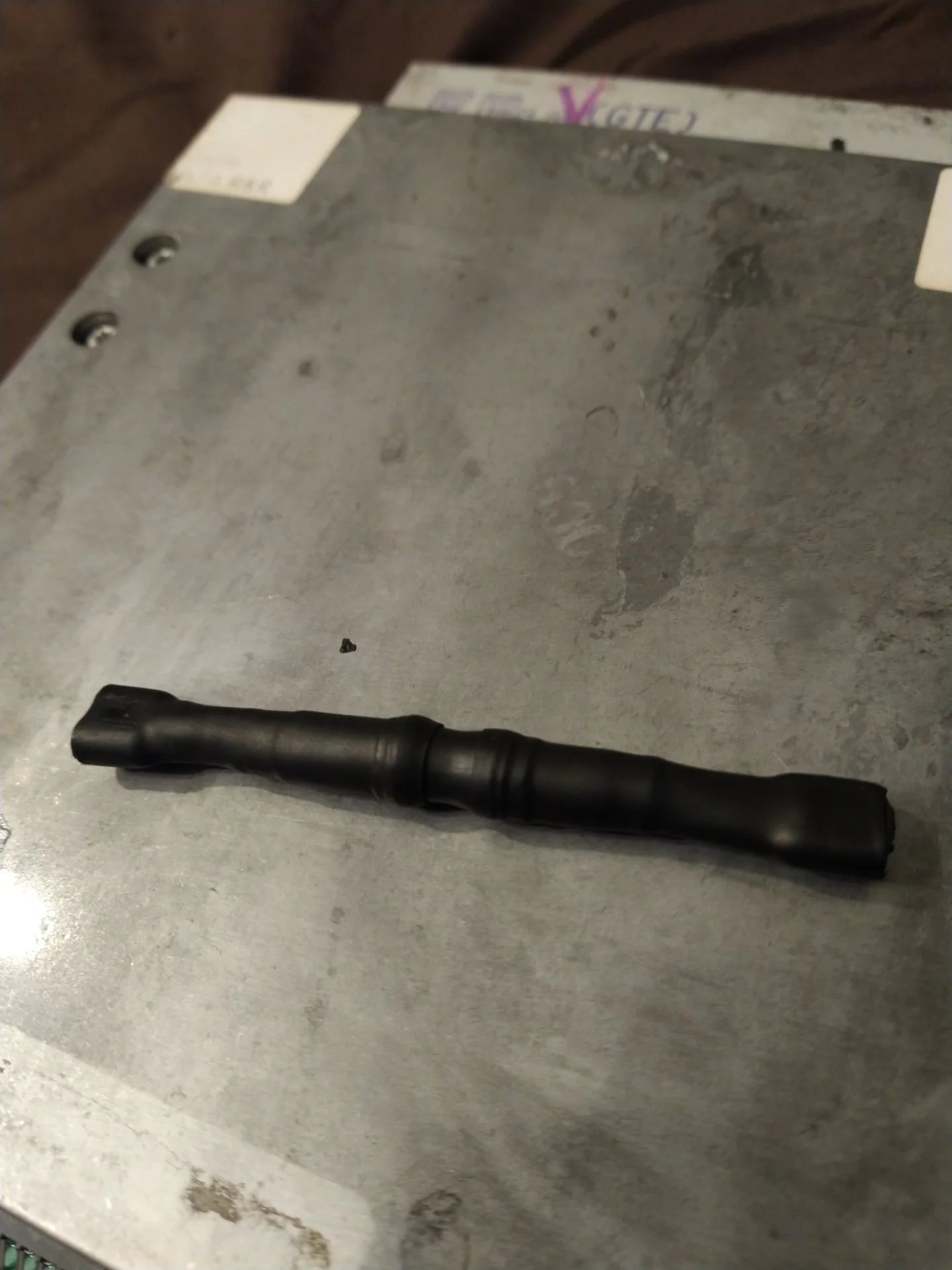

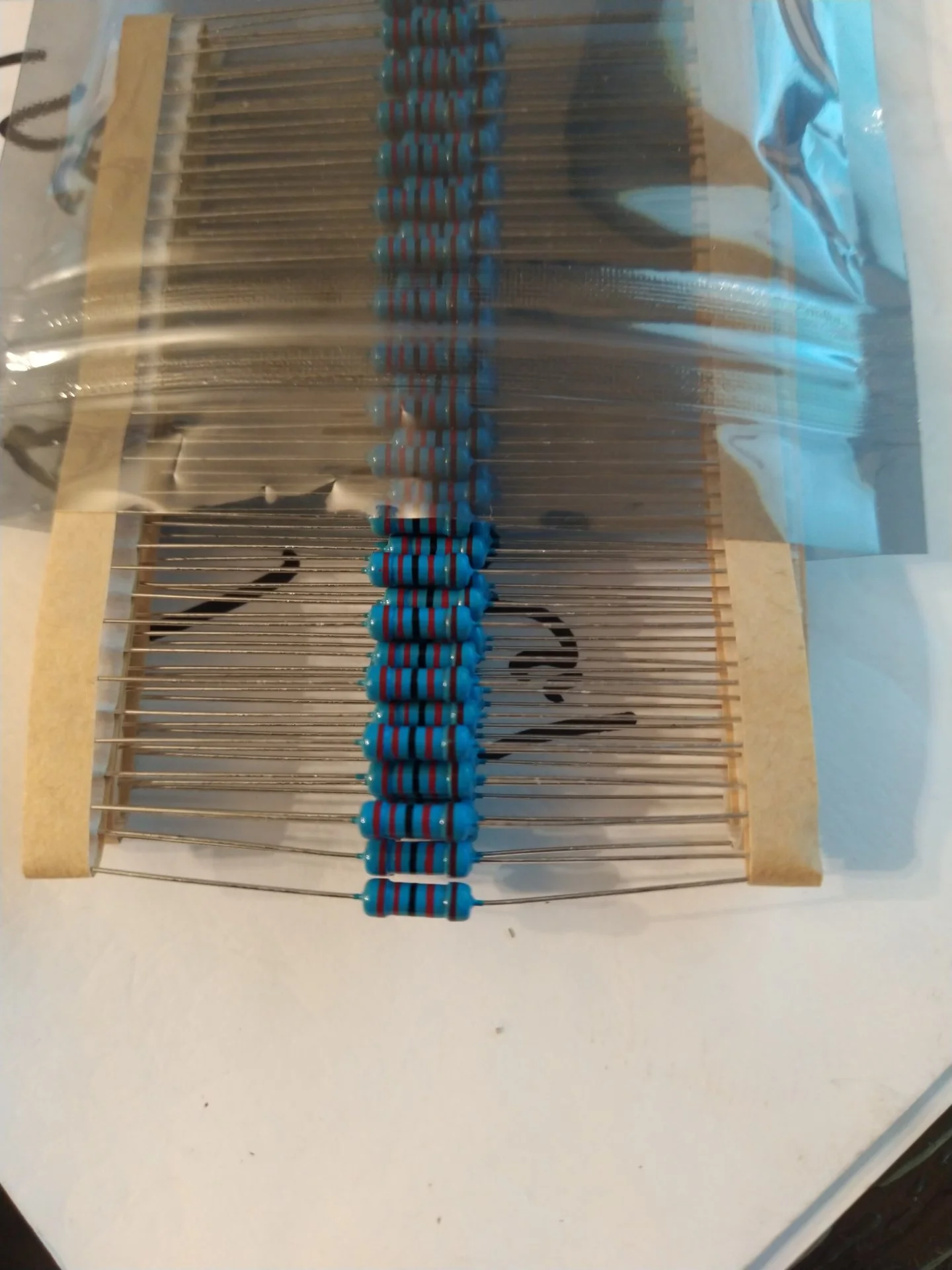

You can get 100pcs for $5.bux and encase it in silicone...........I encased mine in 5 layers of shrink tubing and made it easy to replace......

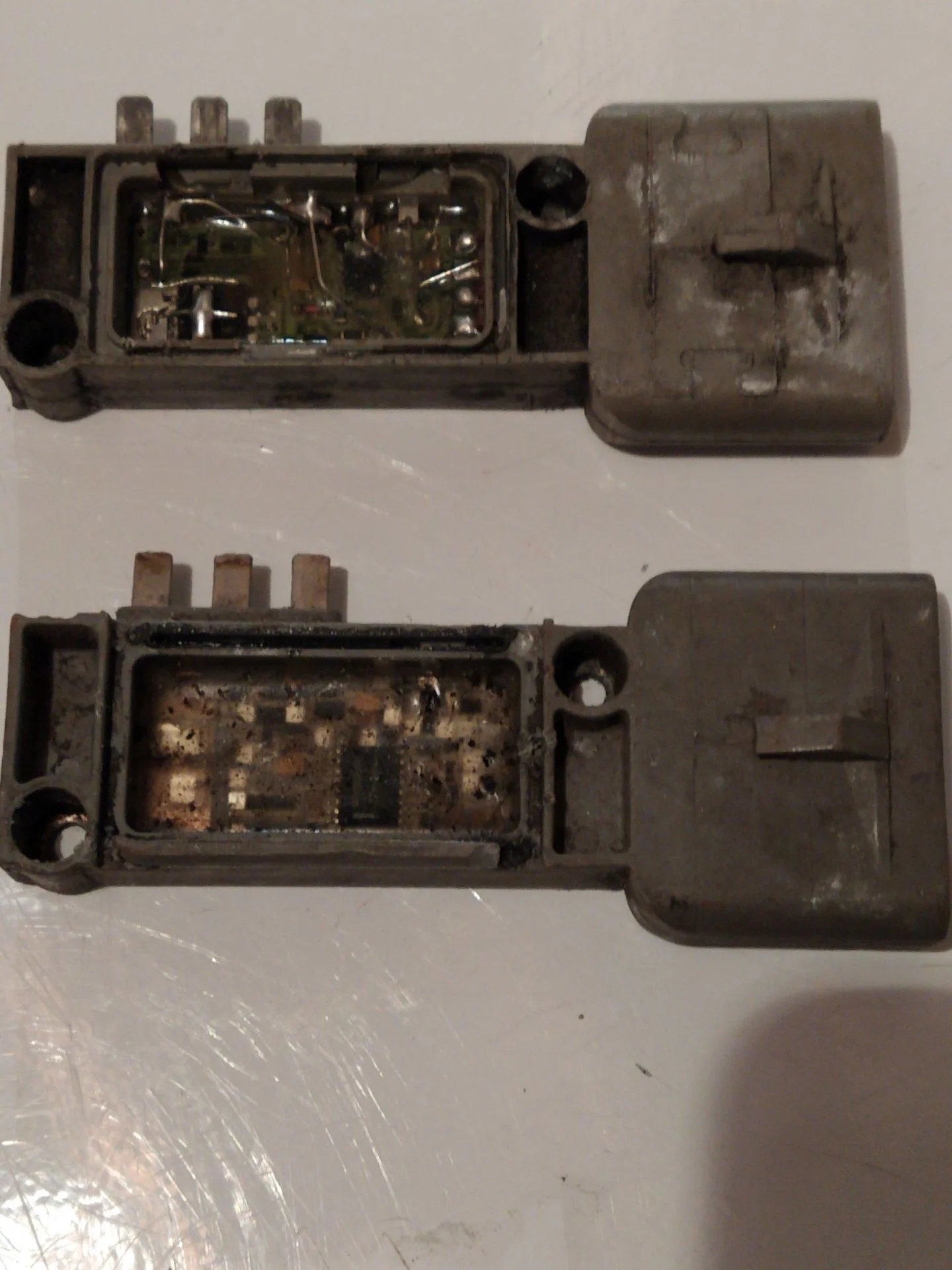

Also make sure you get a non ccd ignition module................It makes a big difference..........



Good Luck..

Last edited:

Shelby Co 5.0

New Member
Sep 13, 2022
5
0
1
Cam what would the resistor do to it? I’ll check the grounds. Jrichker life has been beating my ass so I haven’t been able to do all the metering you’ve asked for. I did remove the junk aftermarket distributor and put the stock back in and sent the computer to fox mustang resto and they checked it and it had to be rebuilt.


CAMTWO1070

Active Member
Dec 17, 2021
141
42
38
It makes the idle surge and also rev up to 2000 rpms and drop slowly......The resistor blocks all of the upper voltages that are harmful to the way the IDM circuit pulses the pulse from the Halls Effect sensor and computes the pulses from the VSS and controls the IAC....

Before I added the 22kohm resistor to my RF nitemare harness my vehicle used to run what I thought was good but after driving around for an hour my idle was at 1500rpm's and it sounded like I had a dull knock at my distributor gear when running or like I had cylinders crossfiring slightly........

Plus at start up when warm or hot it would rev to 2000 rpms then drop to only 1500 rpm's then when I went to drive it the rpms would stick at 1800-2000 rpms for 3-7 seconds when coming to a stop then drop down slowly...

Everytime I would stop like for gas at restart the idle would hit 1800-2000 rpms and hang there for 5-8 seconds then drop down slowly or sometimes wouldnt drop til I tapped the gaspedal..

It also made shifting my TKO600 a virtual nitemare.......One positive is it helped perfect my drag style starts......If you didnt do a drag style start and tried to rely on the high idle to feather-in the clutch it gets like a bucking bronco at times when the idle drops quick and unexpectedly...

The only things that remedied the situation was pulling the plug on the IAC and pulling the VSS plug too but then my idle got really low and sometimes coming to a stop my vehicle would stall...The other thing that caused the least problems was totally draining the ECU's memory every time I took it out..

I came to the conclusion the computer was getting aggravated by something...............LOL..When I conferred with the guy at ECU exchange via ebay message he confirmed that not having the 22k resistor installed in a manual stickshift mustang from 88-93 would highly aggravate the ECU , the coil and the TFI module...LOL

Now when my vehicle starts up cold at 45 degrees it revs to the 1600rpm's its programmed to on my QH chip and holds the idle for about 220 seconds like its programmed to then every 2-3 seconds after that the idle drops 50rpms at a time til it hits my set idle based on my camshaft recommendations of 1200rpm's like its programmed to...

When I drive the idle drops quick and my shifts have become even easier and quicker than ever with my TKO600 also with my IAC and VSS hooked up......

Oh and the dull knock/crossfire sound after an hour of cruising has gone away and I seemed to have gained extra miles to the gallon too but is too eaery to tell but right now it seems highly probable based on mileage to whats left in the tank.......,.................

Last edited:

Shelby Co 5.0

New Member
Sep 13, 2022
5
0
1
Ah ok. So since having the computer rebuilt and putting it in now the car will fire and run then dies about 2 seconds later. It does that about 4 times with me restarting it or I can feather the gas and get it warm and it’ll run. Then once it’s good and warm it’s good. It’s like it runs bad in open loop which is strange to me.
