Stupid oil leak please help

  • Thread starter Thread starter WrightDamienFox
  • Start date Start date Nov 24, 2018
W

WrightDamienFox

New Member
Oct 15, 2018
22
0
1
Minnesota
Nov 24, 2018
#1
  • Nov 24, 2018
  • #1

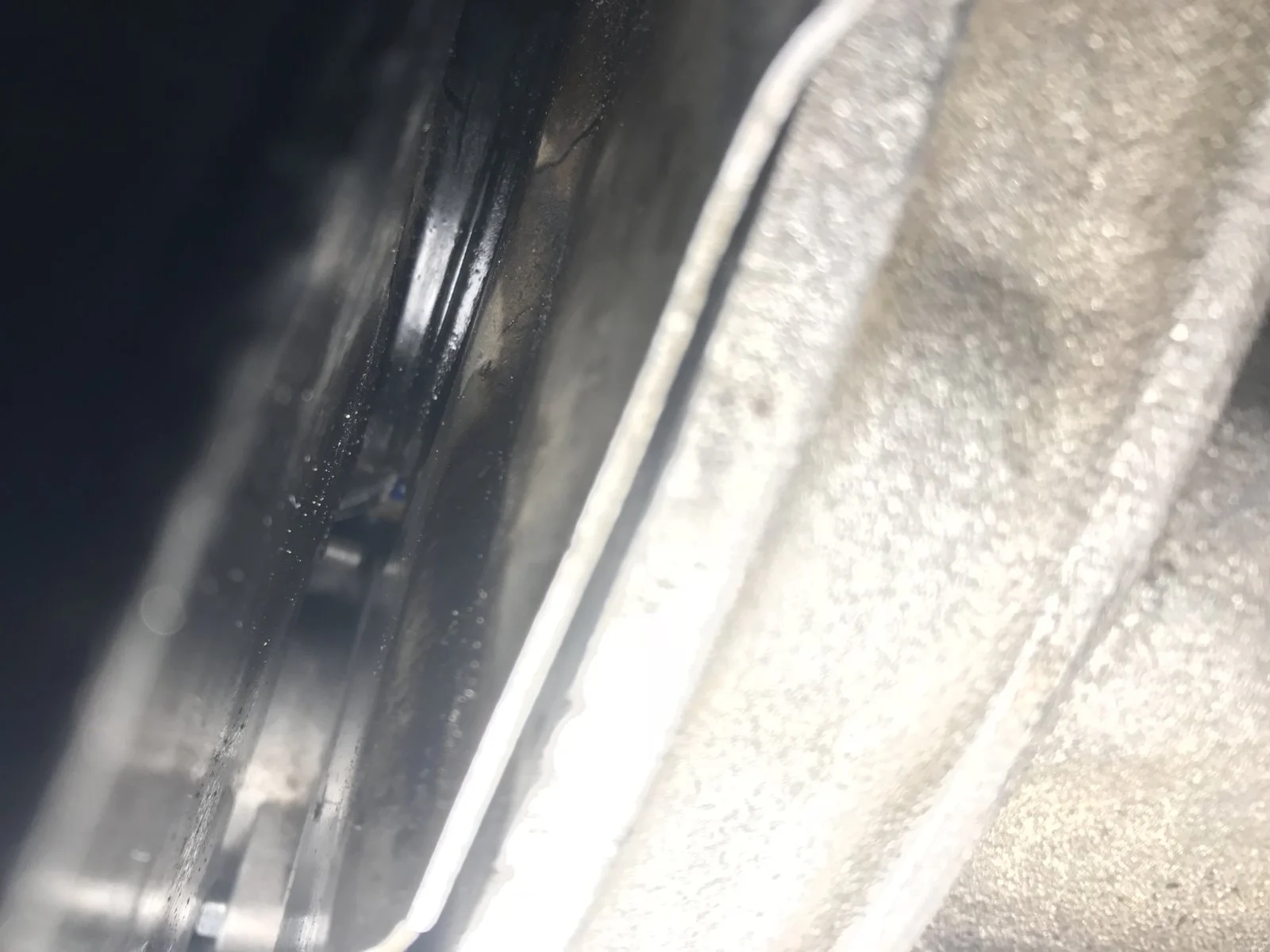

So whenever I start my car it’s fine till a little then the oil starts leaking when it’s at full temp. Looks like a oil pan gasket maybe I just replaced it and I’m getting frustrated. In the pictures it doesnt look that oily but it is. Anyone else had this problem?


Attachments

  • 1197DCFF-0351-4E5E-A4E8-B116D8F21F3C.webp
    268.9 KB · Views: 208
  • 36036E80-28FE-4082-A31F-640E866B29DE.webp
    57.2 KB · Views: 214
  • EB454A38-D394-469F-9390-CEDC03612177.webp
    91.7 KB · Views: 202

90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
6,945
5,816
213
Nov 24, 2018
#2
  • Nov 24, 2018
  • #2
Check the back of the intake up top... below where the pcv valve is. It'll be very hard to see back there without a scope or a bright light and mirror. The lower intake gasket may be leaking. Does it leak idling... or do you have to drive it for it to leak ?

Have you replaced the screen before the pcv valve ? That screen could be clogged causing pressure to build up in the crankcase.


General karthief

wonder how much it would cost to ship you a pair
5 Year Member
Aug 25, 2016
27,875
10,544
203
polk county florida
Nov 24, 2018
#3
  • Nov 24, 2018
  • #3
One piece oil pan gasket?

W

WrightDamienFox

New Member
Oct 15, 2018
22
0
1
Minnesota
Nov 24, 2018
#4
  • Nov 24, 2018
  • #4
General karthief said:
One piece oil pan gasket?
Click to expand...
Yes it’s the blue one with the the metal holes and stuff nicest one there

W

WrightDamienFox

New Member
Oct 15, 2018
22
0
1
Minnesota
Nov 24, 2018
#5
  • Nov 24, 2018
  • #5
90sickfox said:
Check the back of the intake up top... below where the pcv valve is. It'll be very hard to see back there without a scope or a bright light and mirror. The lower intake gasket may be leaking. Does it leak idling... or do you have to drive it for it to leak ?

Have you replaced the screen before the pcv valve ? That screen could be clogged causing pressure to build up in the crankcase.
Click to expand...
I have not replaced the screen and it drips a small amount when idling and leaves a nice little trail on the street


90sickfox

Wasn't a pretty sight...and I've got big hands
SN Certified Technician
Mar 2, 2015
6,945
5,816
213
Nov 24, 2018
#6
  • Nov 24, 2018
  • #6
That blue neoprene felpro oil pan gasket is the bees knees. I use them on all of my engines. I assume you did dab the corners of the gasket with silicone by the crank ends.

Usually, the rear main seal will only leak while driving. If the pcv is clogged it can cause all types of leaks. The lower intake valley strips have gotten me a few times. They don't tend to leak a trail of oil though.


Steel1

Mustang Master
Aug 18, 2017
1,419
639
143
Connecticut
Nov 25, 2018
#7
  • Nov 25, 2018
  • #7
You may want to run some dye in the oil to pinpoint the leak, a dye kit can be picked up pretty cheap.

W

WrightDamienFox

New Member
Oct 15, 2018
22
0
1
Minnesota
Nov 25, 2018
#8
  • Nov 25, 2018
  • #8
90sickfox said:
That blue neoprene felpro oil pan gasket is the bees knees. I use them on all of my engines. I assume you did dab the corners of the gasket with silicone by the crank ends.

Usually, the rear main seal will only leak while driving. If the pcv is clogged it can cause all types of leaks. The lower intake valley strips have gotten me a few times. They don't tend to leak a trail of oil though.
Click to expand...
Yeah I’m not super sure I just pulled the motor and don’t want to do it again for an oil pan gasket that’s brand new
