A/C PROBLEMS...

[fred ornelas]

MY 1993 5.0 LX IS BLOWING AIR OUT THE DEFROST VENTS ONLY! CAN ANYBODY GIVE ME DETAILS ON FINDING THE VACUUM HOSES THAT OPEN/SHUT THE VENTS/DEFROST......



[jrichker]

Please release the caps lock key on your keyboard. It makes your post annoying to read.


Diagram courtesy of Tmoss & Stang&2birds

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

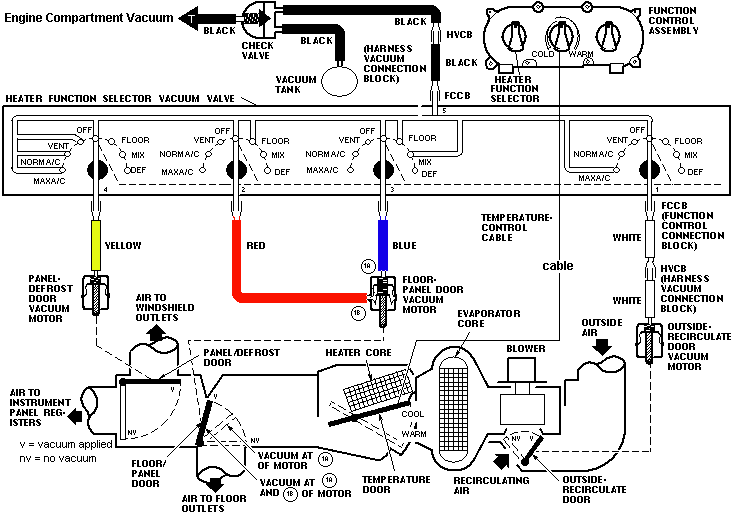

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif



[88mouse]

start out on the vac tree there is a vac line that runs over to where the heater core is. Then check the under the dash on the driver side there is a vac line that runs one of those vac. solenoids . the vac line may have come off of it. That is what happend on my car. There is one behind the glove box to. The one under the dash is hard to get to, and the line is just long enough to fit.



[fred ornelas]

thank you! THANK YOU! THANK YOU!
