Accessory Brakcet Pictures

[Noobz347]

Does anyone have a good set of pics for the Accessories and Brackets?

I'm putting an 89 back together... this thing has had numerous deletes mixed with some of the OEM brackets and I'm having difficulty figuring out how this portion goes back together.

Pics of an OEM setup should get me what I need to get it going again. That large alternator baracket is giving me fits and I don't have my car here to refer to.


Thanks in advance!



[rdharper02]

Be careful, a couple of these have the A/C deleted and most have the3 smog deleted or skipped. Let me know if it helps.

Login to a private Photobucket.com album



[4G-KDMP]

Be careful, a couple of these have the A/C deleted and most have the3 smog deleted or skipped. Let me know if it helps.

Login to a private Photobucket.com album

Private Album ...... All I need is your password.

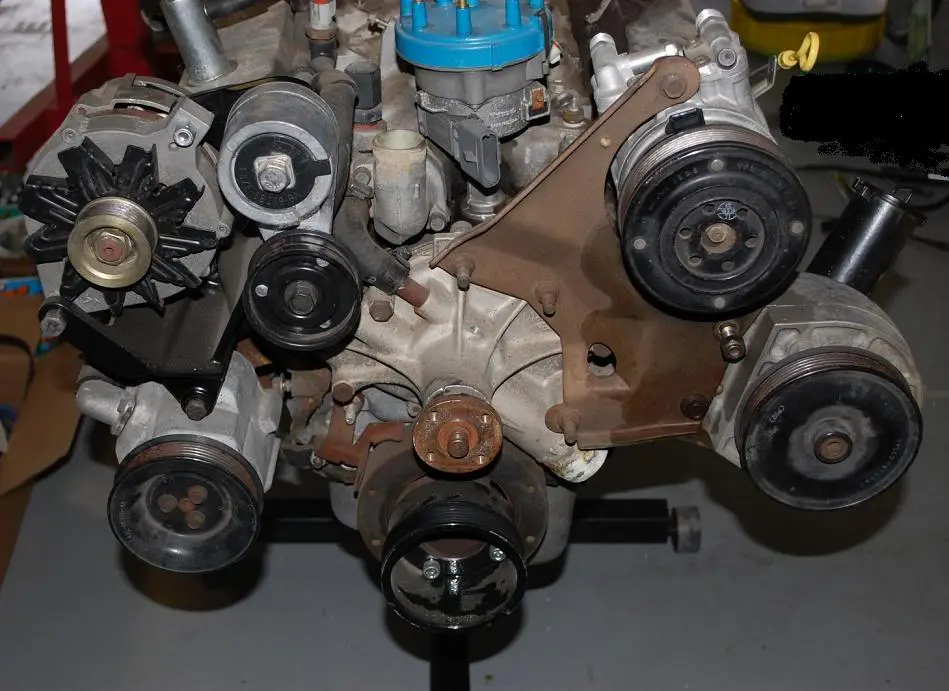

Does this help?



[rdharper02]

LOL.....lets try again

Pictures by rdharper02 - Photobucket



[4G-KDMP]

LOL.....lets try again

Pictures by rdharper02 - Photobucket

Much better........



[Noobz347]

Thanks all. I've got one bracket that 'IS' the alternator bracket but may be a bit different than the ones in the pictures. I'll have to snap a couple pics of it tomorrow. I can't find bosses in the block that appear to line up with it.

This car has manual steering, AC delete, smog delete, and the bracket that I'm talking about. It almost looks like it has spaces to mount two alternators. I would imagine that one of the spaced gaps is the for the alt and the other for the smog pump. Is there such a bracket? Does that bracket contain mount points for both the alt and smog pump?

I've been trying to match it up using the dirt patterns but so far am having no luck with this piece. I'm beginning to wonder if it's the right bracket for the car.

A long day of setbacks today. So much for slapping it all back together and getting it into the car. One of the water pump bolts was snapped off inside the block (previous owner). So I ended up pulling the dampner, timing cover, and oil pan, to get that damned thing removed.

ah well... tomorrow is another day. I have a feeling that I'm going to run out of vacation before I get this thing back into the car and running.



[Noobz347]

Oh... and 4G-KDMP... thanks for your reply in my intake bolt thread. I did end up finding all the bolts. When I bought this.... 'project', all the parts were scattered through several boxes and in and around the car. I spent the first say just trying to figure out what I have and don't. Still not sure I have everything but will have to wait and see.



[rdharper02]

I will check tomorrow, but if I remember correctly, the alt bracket has a mounting point on the bottom for the smog pump. No, I'm right. I used the greatest verification source.....ebay. Take a look at this one off the motor. Oh, then I double checked the photo 4G posted....lol

http://www.ebay.com/itm/Mustang-alt...Parts_Accessories&vxp=mtr&hash=item35b6af3feb
