Carter 0-1719 3939S 5 button top fuel pump

bnero42

Member
Jan 15, 2020
23
12
13
48
New Hampshire
Soooo - was doing some research on this fuel pump that came with the 74 302 block I have turned into a stroker - thread on the site-

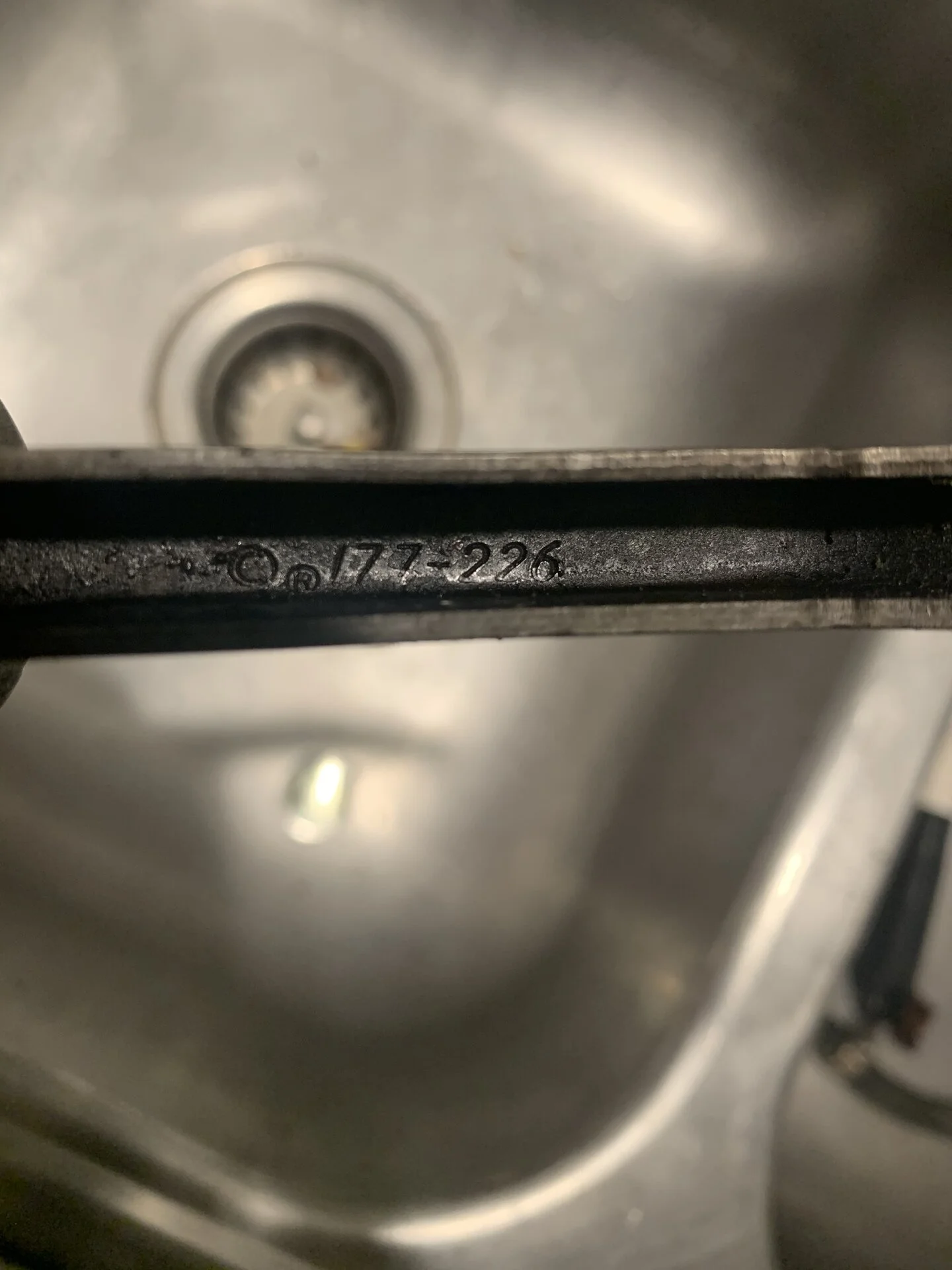

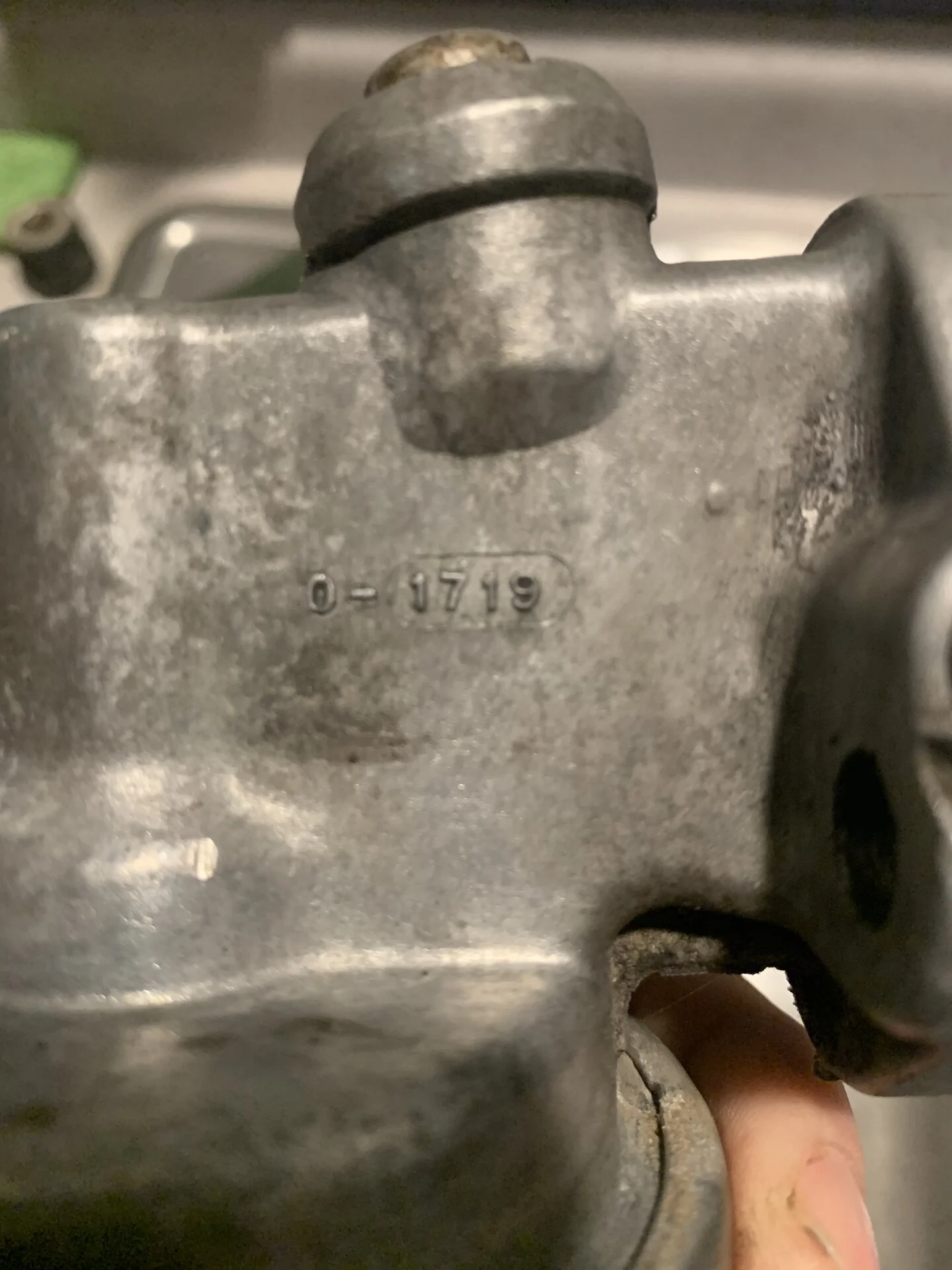

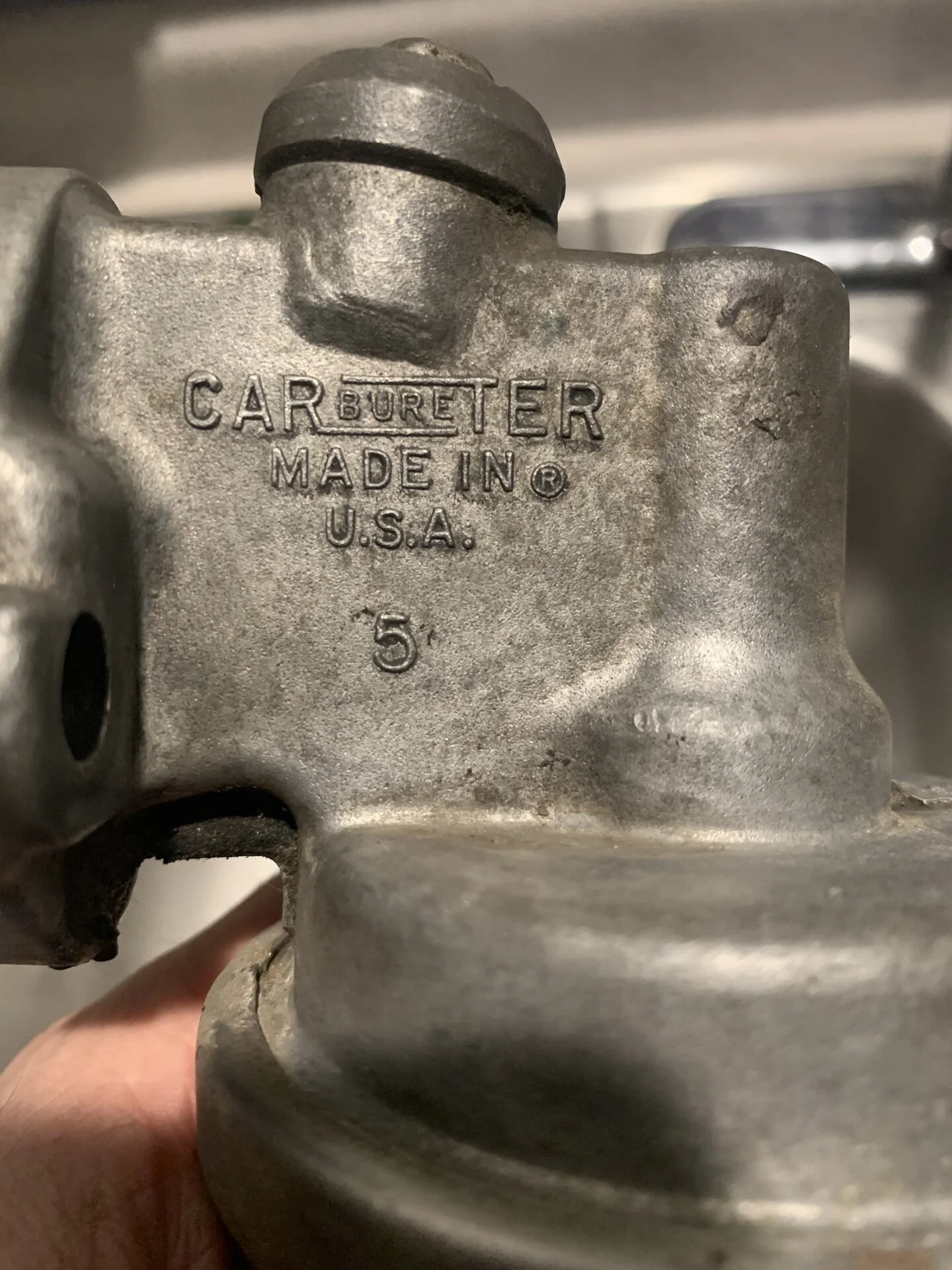

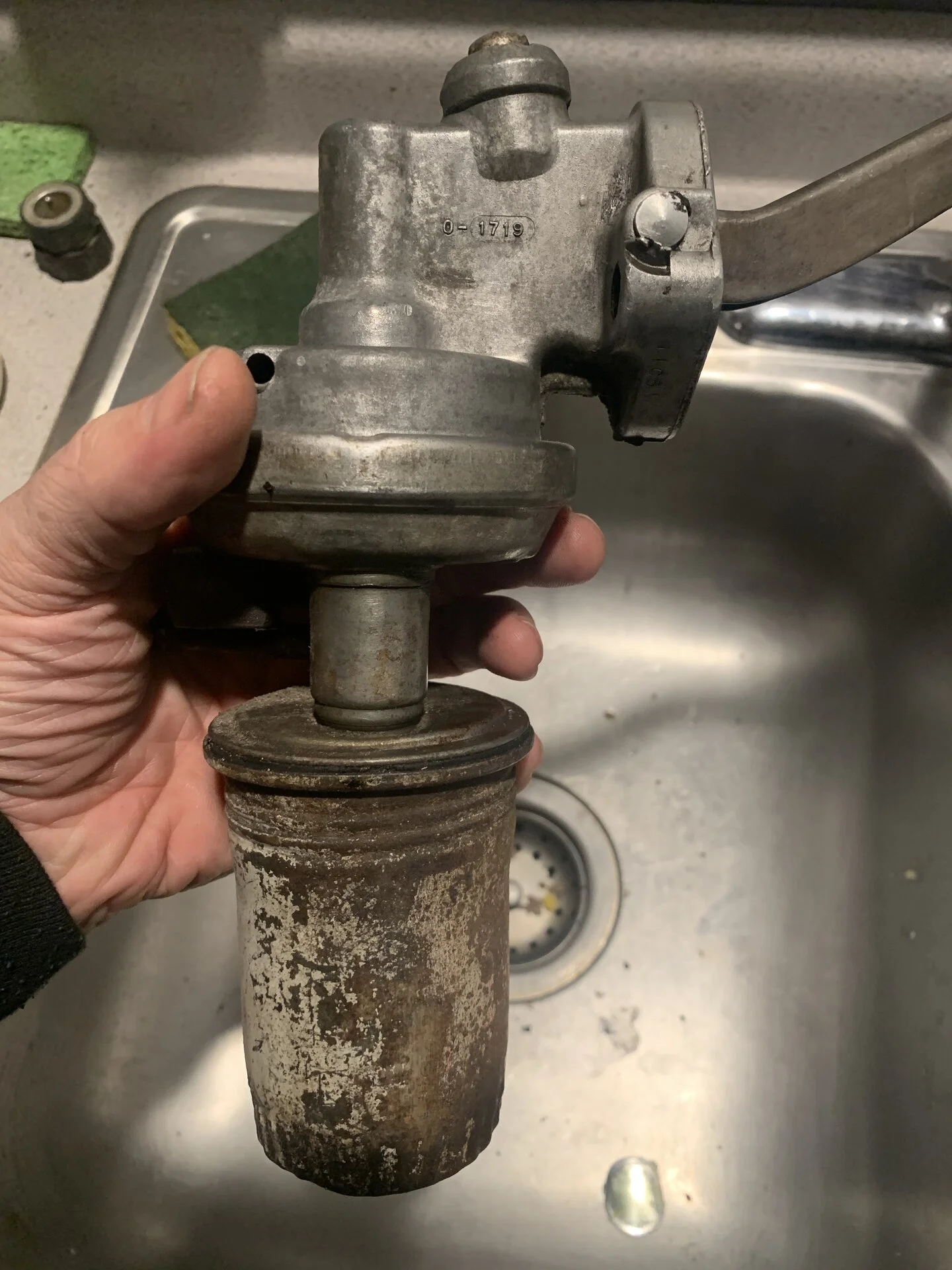

Saw somewhere that this pump is the HIPO original equipment on some of the Uber rare engines.... pics attached comments welcome - dont want to out this on the 347 if it is a rare part....


Attachments

  • 63EBF298-9382-43AE-AFC8-2A4D4277B027.jpeg
    404.8 KB · Views: 43
  • 9E06D49B-06AC-4EC3-846C-12E043E80A3F.jpeg
    264.7 KB · Views: 40
  • CE2EE4E7-6D1B-4789-98A6-0C521C3D8F0B.jpeg
    198 KB · Views: 38
  • 3081004C-387C-465D-A222-F6345279EF42.jpeg
    349 KB · Views: 45
  • Like
Reactions: 2Blue2
  • Sponsors(?)


Ashep2289

Member
Jan 19, 2021
4
2
13
51
Jacksonville florida
That was a cool find. Only made that pump one year as the prior hipo pumps were the bolt together Carter x pumps and all the hipo pumps after don’t have the integrated filter. It’s actually the same pump as the regular 289 they just changed the part number and added a second spring to the Actuator arm for the higher RPM. I can tell this one is authentic without even seeing the part number due to the date code 11C5A March 11, 1965. Ford made these pumps in batches and most of them found have that date.. that will be an awesome addition to a numbers matching car .. they are hard to find and it’s really cool you took the time to research it before throwing it in the circle file. Thanks

  • Like
Reactions: 2Blue2

bnero42

Member
Jan 15, 2020
23
12
13
48
New Hampshire
That was a cool find. Only made that pump one year as the prior hipo pumps were the bolt together Carter x pumps and all the hipo pumps after don’t have the integrated filter. It’s actually the same pump as the regular 289 they just changed the part number and added a second spring to the Actuator arm for the higher RPM. I can tell this one is authentic without even seeing the part number due to the date code 11C5A March 11, 1965. Ford made these pumps in batches and most of them found have that date.. that will be an awesome addition to a numbers matching car .. they are hard to find and it’s really cool you took the time to research it before throwing it in the circle file. Thanks
Ashep - I am very glad I did the internet search and saw a blurb somewhere that it could be a find..... Thanks to you - that little fuel pump transaction financed my entire modern fuel system - Holley Sniper EFI with EFI gas tank and -6AN fuel lines fittings and hose ends for the 347 I built. I can't wait to get down to Fla and visit that Numbers Matching car!!! (2k for a very rare #'d part) As my dad used to say about his 47 Chevy Woody - they just don't make the parts anymore son...
