Door not lining up with rocker.

billison

I like tinted tail

15 Year Member

Feb 27, 2006

2,607

1,094

184

stl

Jan 13, 2019

#1

• Jan 13, 2019

• #1

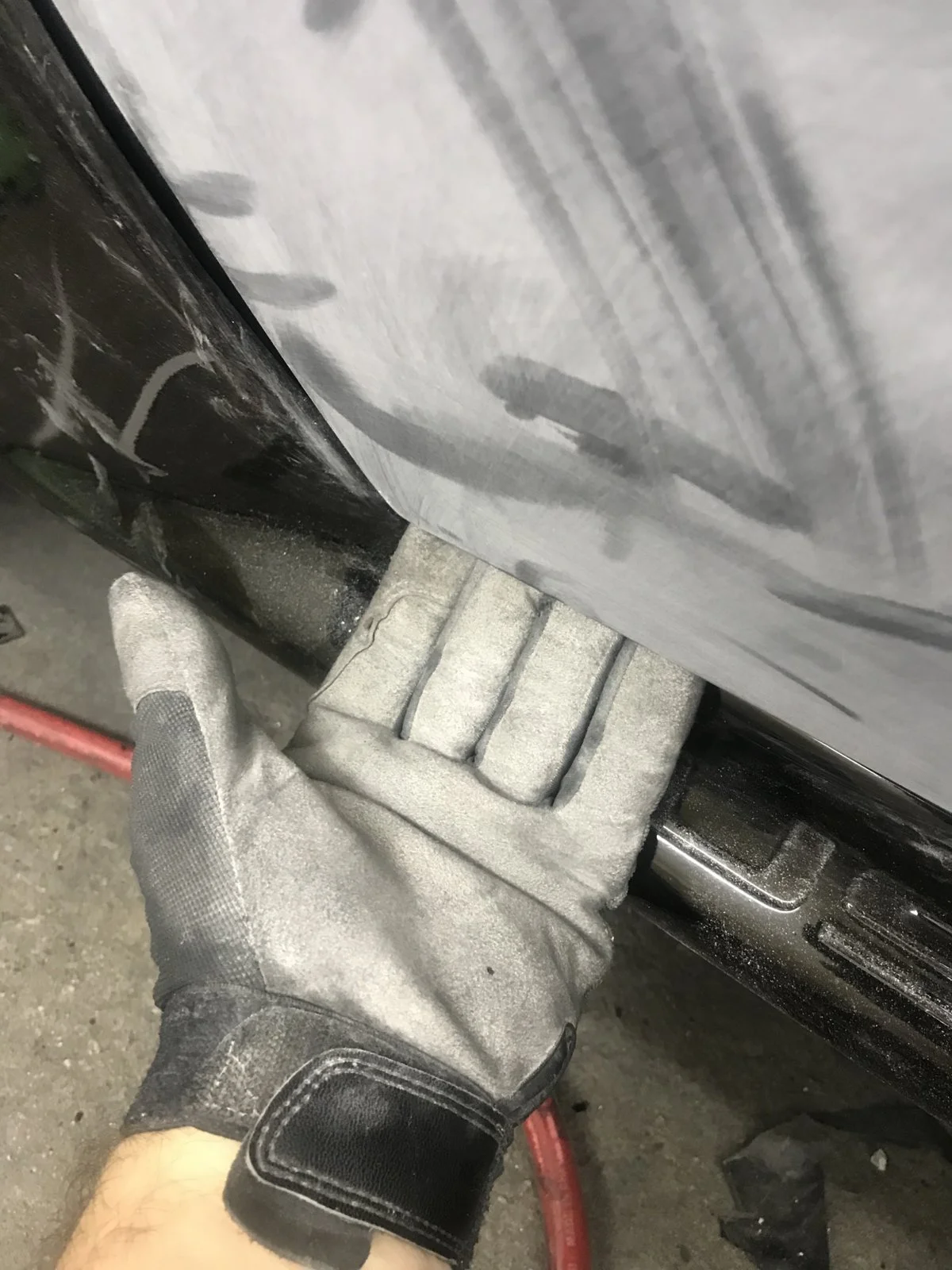

Ok. Short version. The lower front of both my doors sticks out past my rocker. Both doors were off, replaced, and put back on.

No rust, new bushings , new pins, everything lines up everywhere else. What am I missing?

Pic below, pardon the dust, been sanding in it.



Attachments

• E32AF771-5033-4D76-8361-F8618C07FBA0.webp

  175.9 KB · Views: 189
• 677899F7-F200-4665-A216-DC54F7300FDA.webp

  151.3 KB · Views: 230
• 7118B69E-EC99-45FC-9C3B-5B3E5C2938CE.webp

  117.6 KB · Views: 249

RaggedGT

Been here over a DECADE and still no CT

Mod Dude

Jul 20, 2014

4,737

3,186

203

Taylorsville ky

Jan 13, 2019

#2

• Jan 13, 2019

• #2

I had to push mine back in with the 2x4 and a Mallot on my old Capri



CarMichael Angelo

my rearend will smell so minty fresh,

15 Year Member

Nov 29, 1999

10,641

8,909

234

Birmingham, al

Jan 14, 2019

#3

• Jan 14, 2019

• #3

billison said:

Ok. Short version. The lower front of both my doors sticks out past my rocker. Both doors were off, replaced, and put back on.

No rust, new bushings , new pins, everything lines up everywhere else. What am I missing?

Pic below, pardon the dust, been sanding in it.

Click to expand...

Guess that depends on whether or not you have two piece hinges. The hinge on my car is bolted on at both the door itself, and the header. If yours are like that, then the bolts can be loosened, and the whole door can be twisted to allow the bottom to come inward.



billison

I like tinted tail

15 Year Member

Feb 27, 2006

2,607

1,094

184

stl

Jan 14, 2019

#4

• Jan 14, 2019

• #4

The part on the door is welded into place from the factory.



billison

I like tinted tail

15 Year Member

Feb 27, 2006

2,607

1,094

184

stl

Jan 15, 2019

#5

• Jan 15, 2019

• #5

I’m gonna pop the wheel off and loosen one of the doors this weekend. I’m wondering if maybe it’s just sitting goofy.



5.0 Nostalgia

10 Year Member

Feb 28, 2003

904

5

39

CT

Jan 15, 2019

#6

• Jan 15, 2019

• #6

I've seen similar. Did you do any of the following:

1. Change the weather stripping? The new weather stripping that LMR sells is firmer when new than the original and made my door stick out.
2. Did the position of the door change when you replaced the pins? The door hinges bolt to a plate that hangs on hooks just above the computer and allows the installer to adjust the position of the door.
3. Did you loosen the hinge bolts? Once you loosen them see above.
4. Is it the original door?

I would suggest removing the door and starting from the beginning aligning the door. I had similar issues on my '89 hatch. The door and body work are original but a leak developed that caused water to leak in under the carpet and rust the floor. I tried aligning the door myself with a friend and we got it very close. I ended up taking it to a body shop and they only got it slightly better than us. Sometimes it just the nature of a car that was built in 4 days!



billison

I like tinted tail

15 Year Member

Feb 27, 2006

2,607

1,094

184

stl

Jan 15, 2019

#7

• Jan 15, 2019

• #7

Replacement doors with everything new. I’ll mess with it here soon.



General karthief

wonder how much it would cost to ship you a pair

5 Year Member

Aug 25, 2016

27,874

10,543

203

polk county florida

Jan 15, 2019

#8

• Jan 15, 2019

• #8

New replacement or used replacement



billison

I like tinted tail

15 Year Member

Feb 27, 2006

2,607

1,094

184

stl

Jan 15, 2019

#9

• Jan 15, 2019

• #9

Both used, each from a different car.



General karthief

wonder how much it would cost to ship you a pair

5 Year Member

Aug 25, 2016

27,874

10,543

203

polk county florida

Jan 15, 2019

#10

• Jan 15, 2019

• #10

Does the top of the door fit good?



billison

I like tinted tail

15 Year Member

Feb 27, 2006

2,607

1,094

184

stl

Jan 15, 2019

#11

• Jan 15, 2019

• #11

Yeah, it’s pretty Well lined up mines the pictured area, and just slightly on the top of the area by the quarter , that started once I installed the weather stripping



General karthief

wonder how much it would cost to ship you a pair

5 Year Member

Aug 25, 2016

27,874

10,543

203

polk county florida

Jan 15, 2019

#12

• Jan 15, 2019

• #12

If you still have your old door compare lower hinge placement, see it the hinge on the replacement is further away from the outside skin.



billison

I like tinted tail

15 Year Member

Feb 27, 2006

2,607

1,094

184

stl

Jan 16, 2019

#13

• Jan 16, 2019

• #13

Good idea



General karthief

wonder how much it would cost to ship you a pair

5 Year Member

Aug 25, 2016

27,874

10,543

203

polk county florida

Jan 16, 2019

#14

• Jan 16, 2019

• #14

Really? Hummm, it's a good day then.
