I Want To Plan To Make My Own Exhaust

[one_bad_5.0]

Does anyone have a picture of the bottom of their car that shows the whole exhaust? If someone does and can post it I would really appreciate it.



[Dino Dino Bambino]

No photos but I did make drawings of my stock exhaust and my existing modified version:

The full story is on http://www.angelfire.com/my/fan/Mustang1995GT/Exhaust.html



[one_bad_5.0]

I was going to ask where the wheels are located on the picture but then I realized that the drawings showed axle humps. lol I quite stupid.



[1slow95]

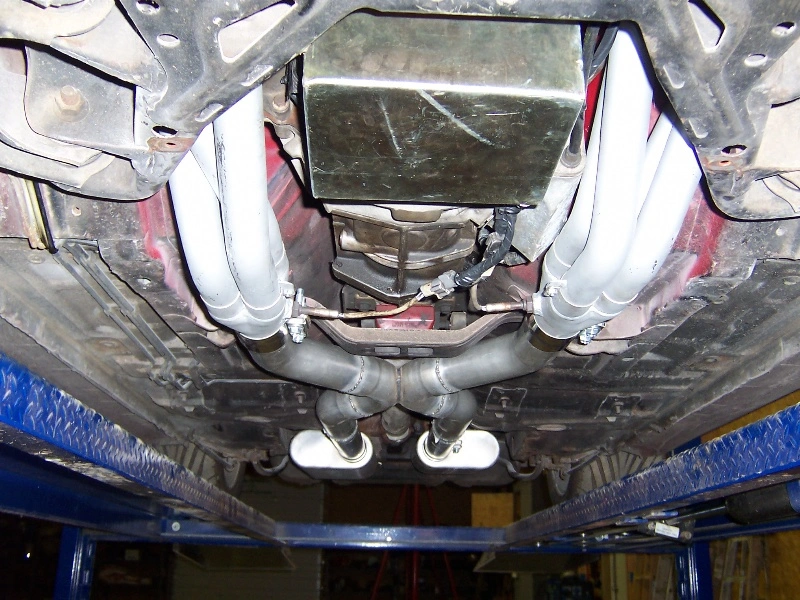

I've got this pic from I first installed my exhaust. I'll probably be changing it soon, the LT's have ground clearance problems.



[one_bad_5.0]

thanks a lot. Has any one done a side exhaust picture with out svo skirts?
