Need to find source for these parts (bolts and lower intake)

  • Thread starter Thread starter Mcmahst
  • Start date Start date Mar 3, 2025

Mcmahst

5 Year Member
Jan 19, 2021
686
270
83
Laguna Woods CA, fort Mohave AZ
Mar 3, 2025
#1
  • Mar 3, 2025
  • #1


Anyone have a source for these 4 lower intake bolts (I broke one removing the manifold)? There the ones on the 4 corners. I haven’t been able to source an OEM replacement. Thank you.


LILCBRA

I wish I didn't have all of these balls in the air
Mod Dude
Dec 6, 2005
6,402
5,385
194
Corn County USA
Mar 3, 2025
#2
  • Mar 3, 2025
  • #2
I'm not 100% sure on the size, but here's a site that offers something similar at least.

B-12622 Studs - Hex Flange — AMK Products, Inc.

** Made In USA ** 5/16-18 X 2.25 & .69 GRADE 5 HEX FLANGE STUD PHOS. 1 pk
www.amkproducts.com


General karthief

wonder how much it would cost to ship you a pair
20+ Year Stangneter
Aug 25, 2016
27,949
10,587
203
polk county florida
Mar 3, 2025
#3
  • Mar 3, 2025
  • #3
You only need one or looking to replace them?


85GTStangGuy

5 Year Member
May 19, 2021
1,002
625
133
Jax, Florida
Mar 3, 2025
#4
  • Mar 3, 2025
  • #4
4?
The replacement kits only have 1 stud... the rest are bolts.

https://lmr.com/item/HDW-9424AK/mustang-stock-style-lower-intake-manifold-bolts-79-95-5-0


General karthief

wonder how much it would cost to ship you a pair
20+ Year Stangneter
Aug 25, 2016
27,949
10,587
203
polk county florida
Mar 3, 2025
#5
  • Mar 3, 2025
  • #5
Buy 4 kits.....
But seriously, I went with the ARP bolt kit, the only studded bolts mine had (that I remember) was for the heater tube

Reactions: Shakerhood

Mcmahst

5 Year Member
Jan 19, 2021
686
270
83
Laguna Woods CA, fort Mohave AZ
Mar 3, 2025
#6
  • Mar 3, 2025
  • #6
I want to buy 4. I have 5; one for the heater tube, two up front to support accessory drives, and two in the rear that I’m using to support wiring and vacuum tubes routed in the rear. I broke the one in the rear, and the other one is eaten-up by the cooling system. The two up Front didn’t cleanup well, so I want to replace those 4 corners.

On a different note, I was just cleaning up the lower intake so I can prime and paint it, and I discovered that the right rear corner water outlet that had a plug in. It has eaten through the side of the intake and there is a hole there now. So I’m also in the market for a lower intake if anyone happens to have one. I’ve updated the thread title to add the lower intake need. Thanks again.


AeroCoupe

lube between the nut and the face. I know my lubes
Founding Member
Oct 28, 2001
5,920
4,041
183
Claremore, OK
Mar 3, 2025
#7
  • Mar 3, 2025
  • #7
Should be able to get the studs from an auto parts store.

The threads that go into the heads are 5/16-18 and the stud need to be 2-1/2” long. Typically the threads and nuts on to top are 5/16-24 or at least the ones on my cars are.

Search the following:

Double End Stud 5/16-18 X 5/16-24 X 2-1/2”

They are typically called out as an “automotive stud” or “manifold stud”.


LILCBRA

I wish I didn't have all of these balls in the air
Mod Dude
Dec 6, 2005
6,402
5,385
194
Corn County USA
Mar 3, 2025
#8
  • Mar 3, 2025
  • #8
I did a little searching, that site has been the only one I've been able to find so far. I found that they offer that style in both black oxide and yellow zinc. Pricing is the same.






I didn't follow the links above, but it looks like they may offer different specialty fasteners if you need them.

Hell, I may buy some myself! I could use something like these for the coolant tube I installed in the Cobra, maybe have a couple more on the opposite side of the engine to be able to secure wiring, then my GT may need replacements when I work on that.... The wheels are turning!


Mcmahst

5 Year Member
Jan 19, 2021
686
270
83
Laguna Woods CA, fort Mohave AZ
Mar 3, 2025
#9
  • Mar 3, 2025
  • #9
Thank you, exactly what I couldn’t find. Anyone have a lower intake in your way


LILCBRA

I wish I didn't have all of these balls in the air
Mod Dude
Dec 6, 2005
6,402
5,385
194
Corn County USA
Mar 3, 2025
#10
  • Mar 3, 2025
  • #10
Mcmahst said:
Thank you, exactly what I couldn’t find. Anyone have a lower intake in your way
Click to expand...

Not yet - But I figure you don't want to wait on me.


Mcmahst

5 Year Member
Jan 19, 2021
686
270
83
Laguna Woods CA, fort Mohave AZ
Mar 3, 2025
#11
  • Mar 3, 2025
  • #11
I got luck and found someone local who had two to choose from. Thanks again for the help.


Mcmahst

5 Year Member
Jan 19, 2021
686
270
83
Laguna Woods CA, fort Mohave AZ
Mar 5, 2025
#12
  • Mar 5, 2025
  • #12
Yea, these studs have the same thread top and bottom. I think I’ll try and find just studs. Thanks.

Reactions: General karthief

Mcmahst

5 Year Member
Jan 19, 2021
686
270
83
Laguna Woods CA, fort Mohave AZ
Mar 6, 2025
#13
  • Mar 6, 2025
  • #13
I think I’ll go with these:


Reactions: LILCBRA

Mcmahst

5 Year Member
Jan 19, 2021
686
270
83
Laguna Woods CA, fort Mohave AZ
Mar 31, 2025
#14
  • Mar 31, 2025
  • #14

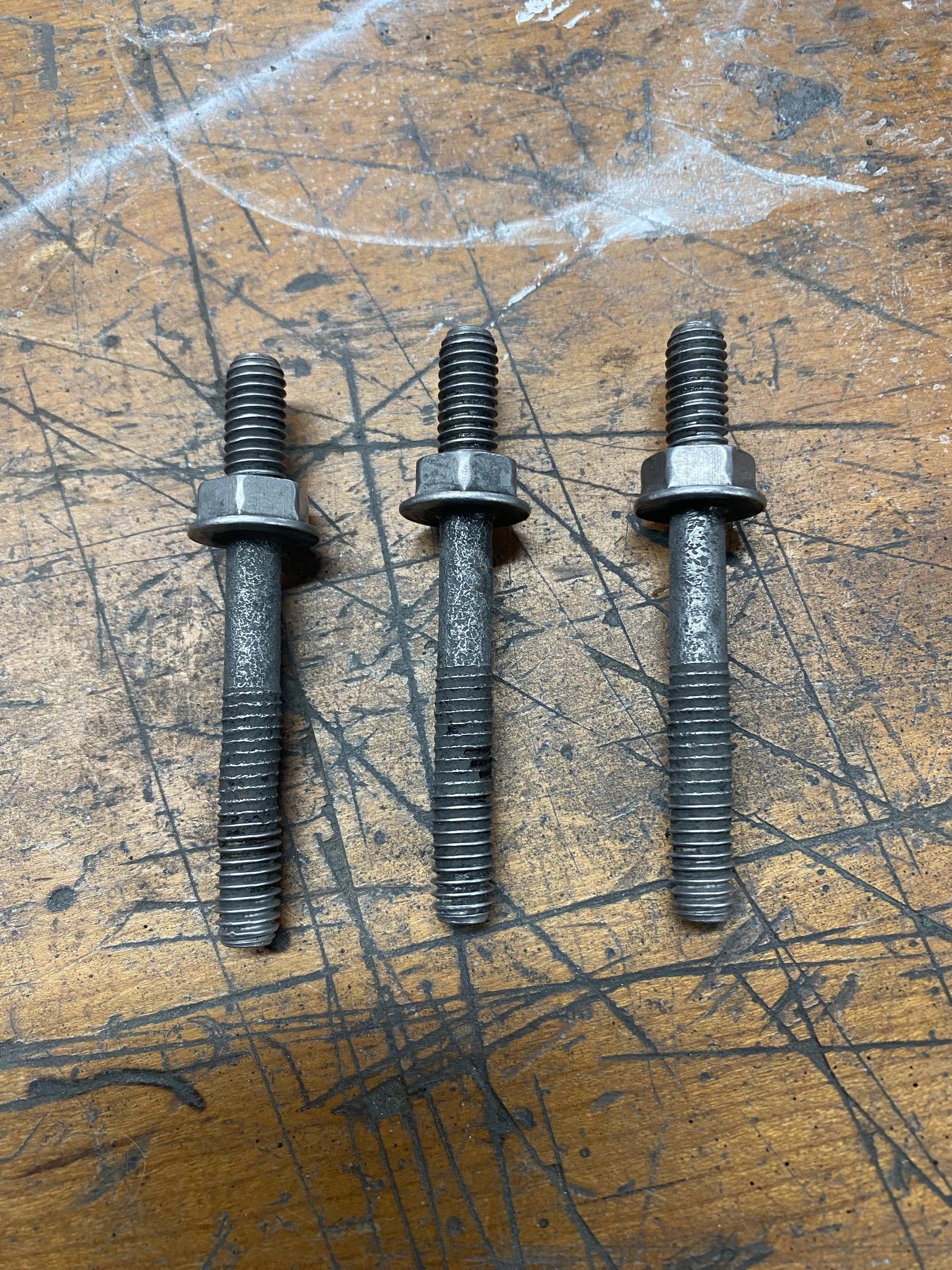

Well, those O’Riley parts didn’t work. So, I acquired this stainless steel all thread and made my parts from that. I’m sure it will last longer than the plain carbon steel bolts that were there for almost 40 years.


Noobz347

Stangnet Facilities Maint Tech... Er... Janitor
Admin Dude
Jan 4, 1985
43,145
21,317
234
Box behind Walmart
Mar 31, 2025
#15
  • Mar 31, 2025
  • #15

Amazon.com: ARP 354-2103 Intake Stud Kit for Small Block Ford : Automotive

Buy ARP 354-2103 Intake Stud Kit for Small Block Ford: Main Bolts & Studs - Amazon.com ✓ FREE DELIVERY possible on eligible purchases
www.amazon.com


limp

wrap a little cheese around it and its a done
5 Year Member
Oct 4, 2020
5,469
2,903
173
Florida
Mar 31, 2025
#16
  • Mar 31, 2025
  • #16
Noobz347 said:

Amazon.com: ARP 354-2103 Intake Stud Kit for Small Block Ford : Automotive

Buy ARP 354-2103 Intake Stud Kit for Small Block Ford: Main Bolts & Studs - Amazon.com ✓ FREE DELIVERY possible on eligible purchases
www.amazon.com
Click to expand...
Here us a close up of those..... I gotta be nutz spending that for a few bolts..... LOL
Retorque them after breakin/warm up... Mine felt like they were barely snug after my first start..

Reactions: General karthief
