sbelt diagram?

[4.6boy]

did ford not put a sbelt diagram on the 02 mustang gt



[Mustang5L5]

nope.

I remember when i was replacing my belt, i took the belt off first. Then as i was about to put the new one on, i thought to myself 'Where the hell is the belt diagram??"

I had to go online and look



[98COBRA281]

my 98 never had one.......



[bdcardinal]

didnt have one that i can remember. whenever i took a belt off, i would make my own little diagram before i took the belt off.



[AdRock]

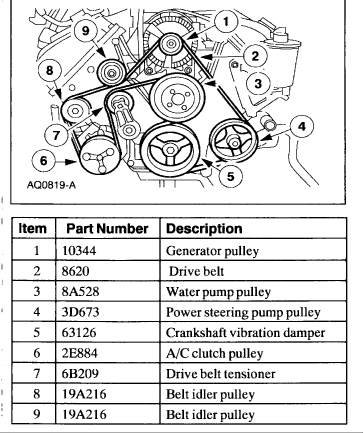

Here's the diagram I pulled from ALLDATA.



[mransr]

didnt have one that i can remember. whenever i took a belt off, i would make my own little diagram before i took the belt off.

or take a picture with your cell phone



[flstang65]

you can tell where the belt is supposed to go. flat smooth pulleys get the flat smooth side of the belt and the ribbed pulleys get the ribbed part of the belt. bt a cell phone pic or pen and paper couldnt hurt
