Steering rack sleeve

ebone84 · Jun 25, 2021

Have anyone installed a steering rack sleeve...... my bolt is fused in mine ..... so I might have to cut it out......thanks

Mustang5L5 · Jun 25, 2021

They come out pretty easily…assuming they aren’t rusted in place. Mine came out easy.

HemiRick · Jun 25, 2021

yea when I put in the poly rack bushings.....generally no big deal, unless rusted.

ebone84 · Jun 25, 2021

Just to be clear this is the bushing that attaches to the K member that the steering rack rides on seems to be Pressed in...... My bolt seems to be fused to it..... i’ll try the heat tonight if not I have to cut it loose .... I do have a new bushing

Mustang5L5 · Jun 25, 2021

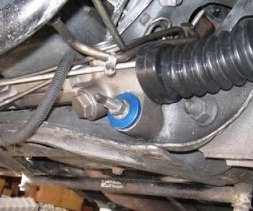

The metal sleeve slips into the k member. The bolts slip into that sleeve. The steering rack bushings slip over that sleeve

Mustang5L5 · Jun 25, 2021

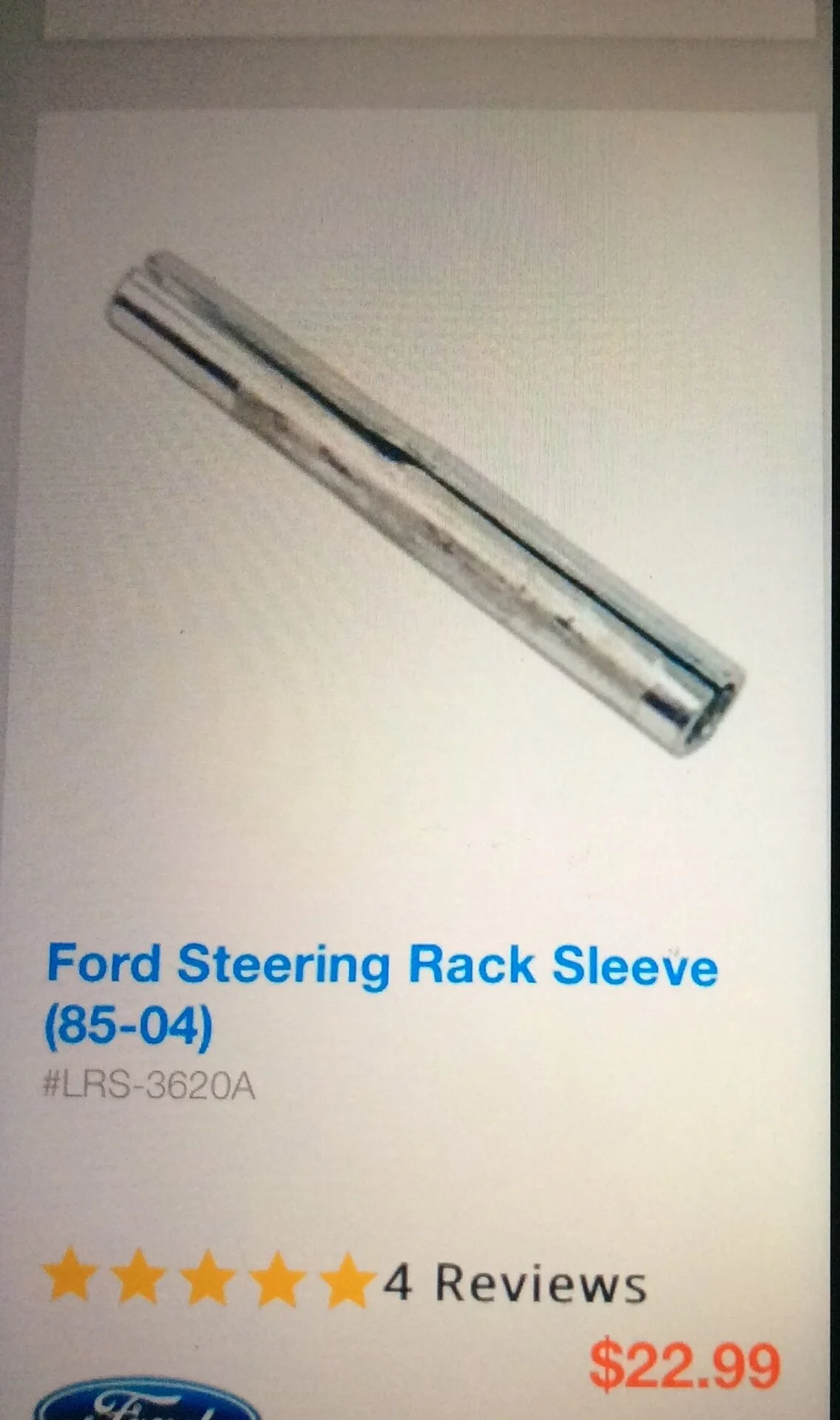

Btw those sleeves are still available new from Ford

1994-2004 Ford Mustang Gear Assembly Mount Bracket E5DZ-3K620-A | TascaParts.com

1994-2004 Ford Mustang part # E5DZ-3K620-A - Gear Assembly Mount Bracket

www.tascaparts.com

91TwighlightGT · Jun 25, 2021

If your car has ever had a wheel impact, there is the possibility that they are bent. I had to beat mine out of the K-Member on my '93 which had apparently gone down in a ditch at some point. The sleeve and rack bolt were both bent.

ebone84 · Jun 25, 2021

My bolt is frozen in the sleeve it’s hell getting the steering rack on when you can’t push the bolt in an extra inch..... I have a new steering rack to put in I’m gonna take out the bushings and see if I can get it over the bolt hopefully I won’t have to cut it out ......or left the engine up oil pan in the way.........I’ll figure it out .......I’m getting tired of this car

Wayne Waldrep · Jun 25, 2021

I don't see how cutting would help. I would think having it full length would help with leverage. Mine are like others mention above. You should be able to take a correctly sized punch and tap them out. If course it's easy to say that without seeing but those of us that have removed them know how they sit in there. It's kinda like a roll pin fit.

ebone84 · Jun 26, 2021

You guys are right on point the bolt is seized in the bushing and it sticks out so far that I’m having problems getting the rack on without damaging the lines (front oil pan in the way) that’s why I say I may have to cut out the bolt / bushing and press the new bushing back in...... but I’ll be Gucci if I can free this bolt......

ebone84 · Jul 1, 2021

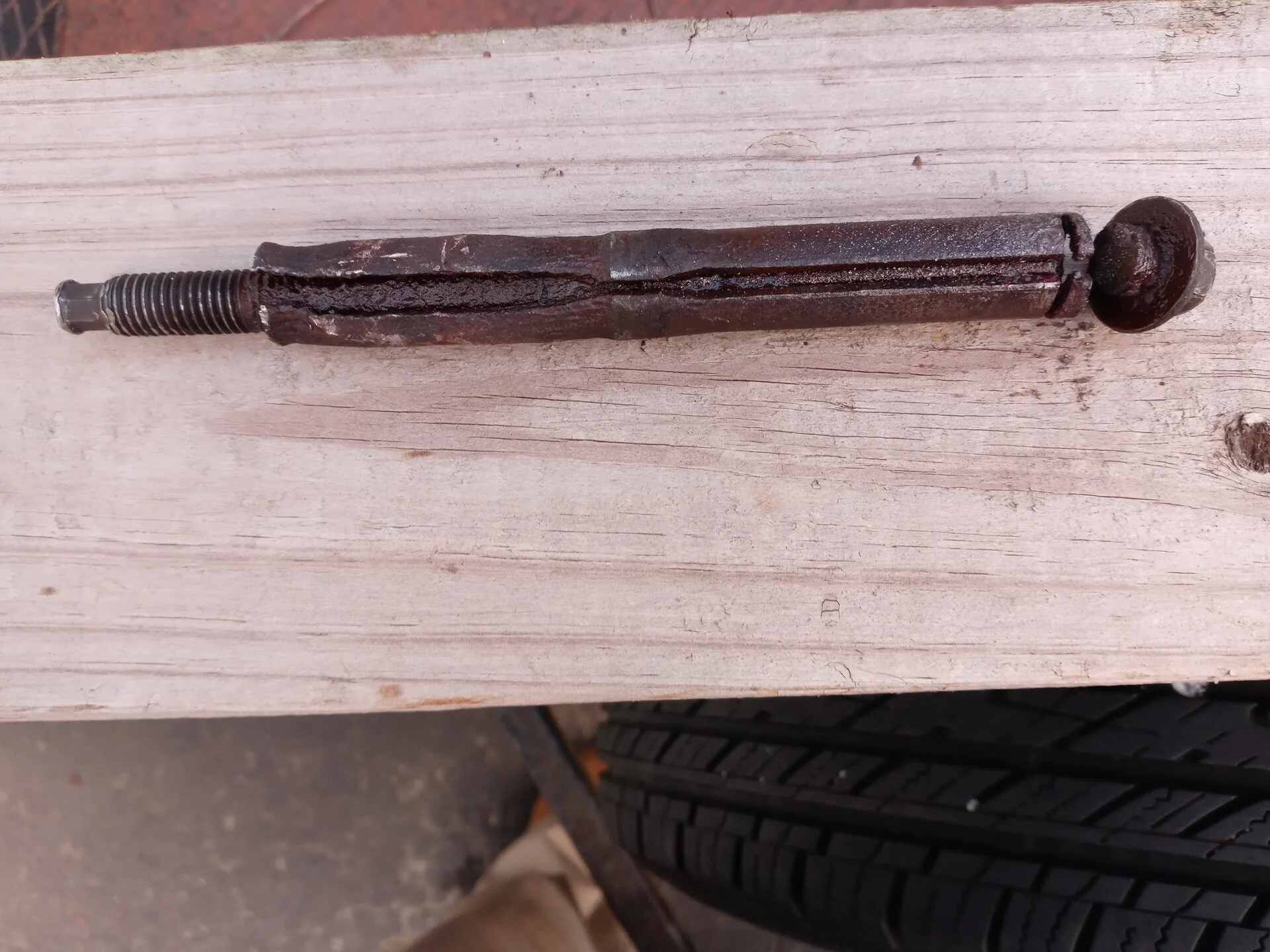

Got my Sawall cut off the bolt and wiggled the bushing out..... rack and pinion is in just got to flush the system.... and install new lines and filter........ blot was seized in the sleeve .....
