Paint and Body 1989 Mustang Underhood Measurements

[Hoytster]

Does anybody have, or have access to, the underhood measurements for a 1989? I have the measurements for the 90+ chassis but can't seem to find anything for the pre-90.

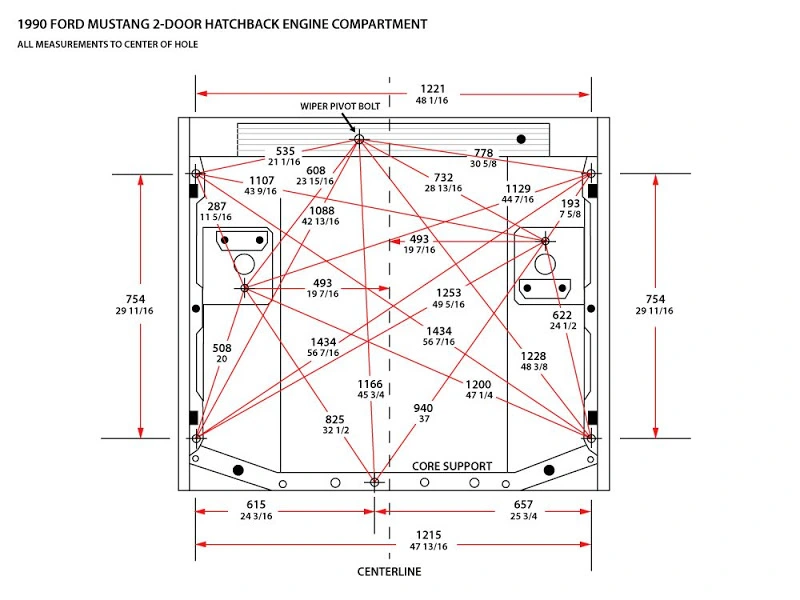

Here's what I have for the 90+, looking for the pre-90.



[Mustang5L5]

Unfortunately the graphic I have is the same



[Hoytster]

Unfortunately the graphic I have is the same

I'm usually really good at googling stuff. I can't find anything on the older chassis measurements..



[Mustang5L5]

I wish I knew what that one came from. It's published somewhere



[Hoytster]

I had found this, which is what I assume you would have to buy to be able to get these in an body alignment/repair shop.
https://www.mitchell.com/products-s...uide-books/collision-guide-vehicle-dimensions

I'm hoping someone that has access to these can get me a copy. Worse comes to worse, I'll ask the company if I can just buy the info I want, as long as it's reasonable.



[4G-KDMP]

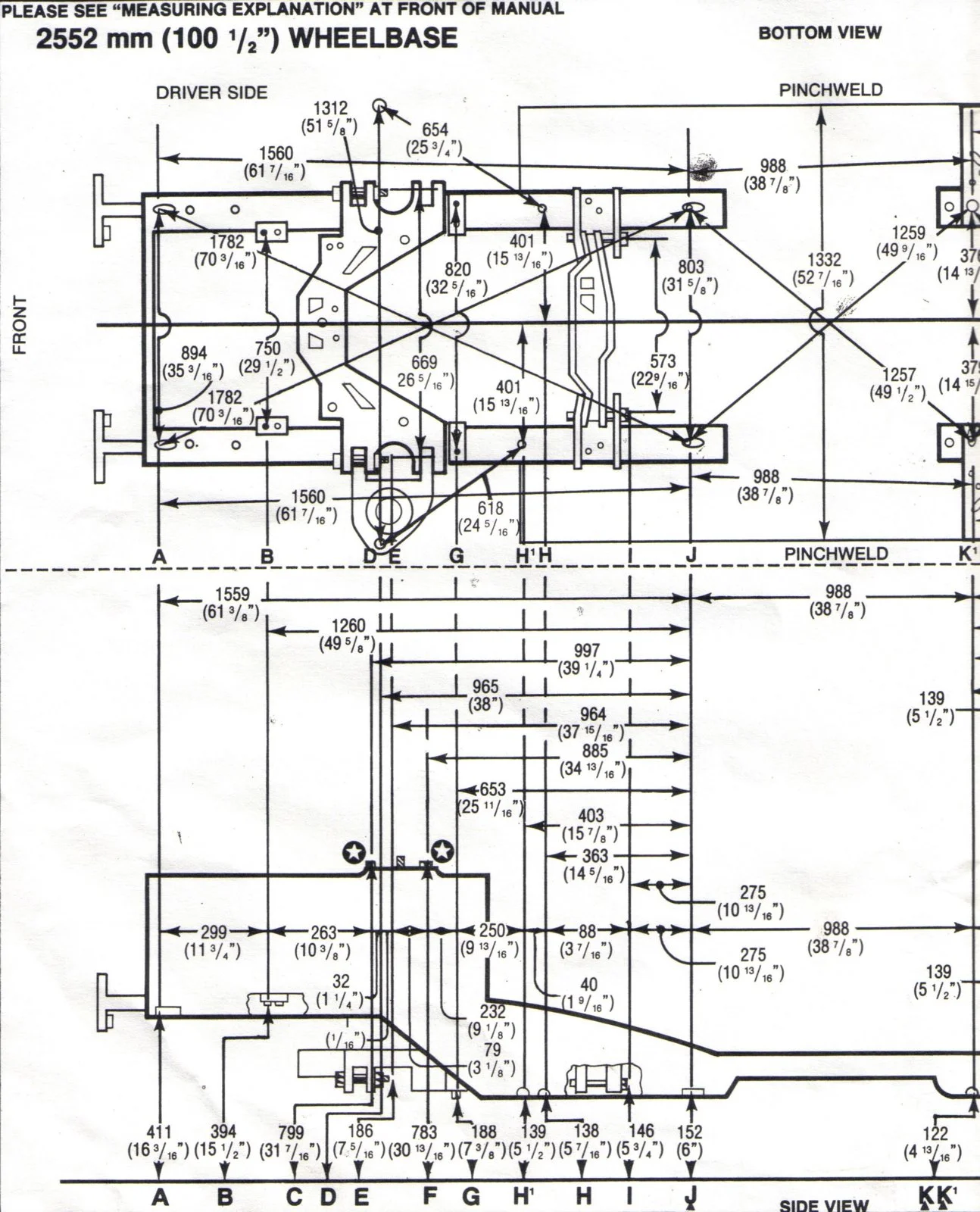

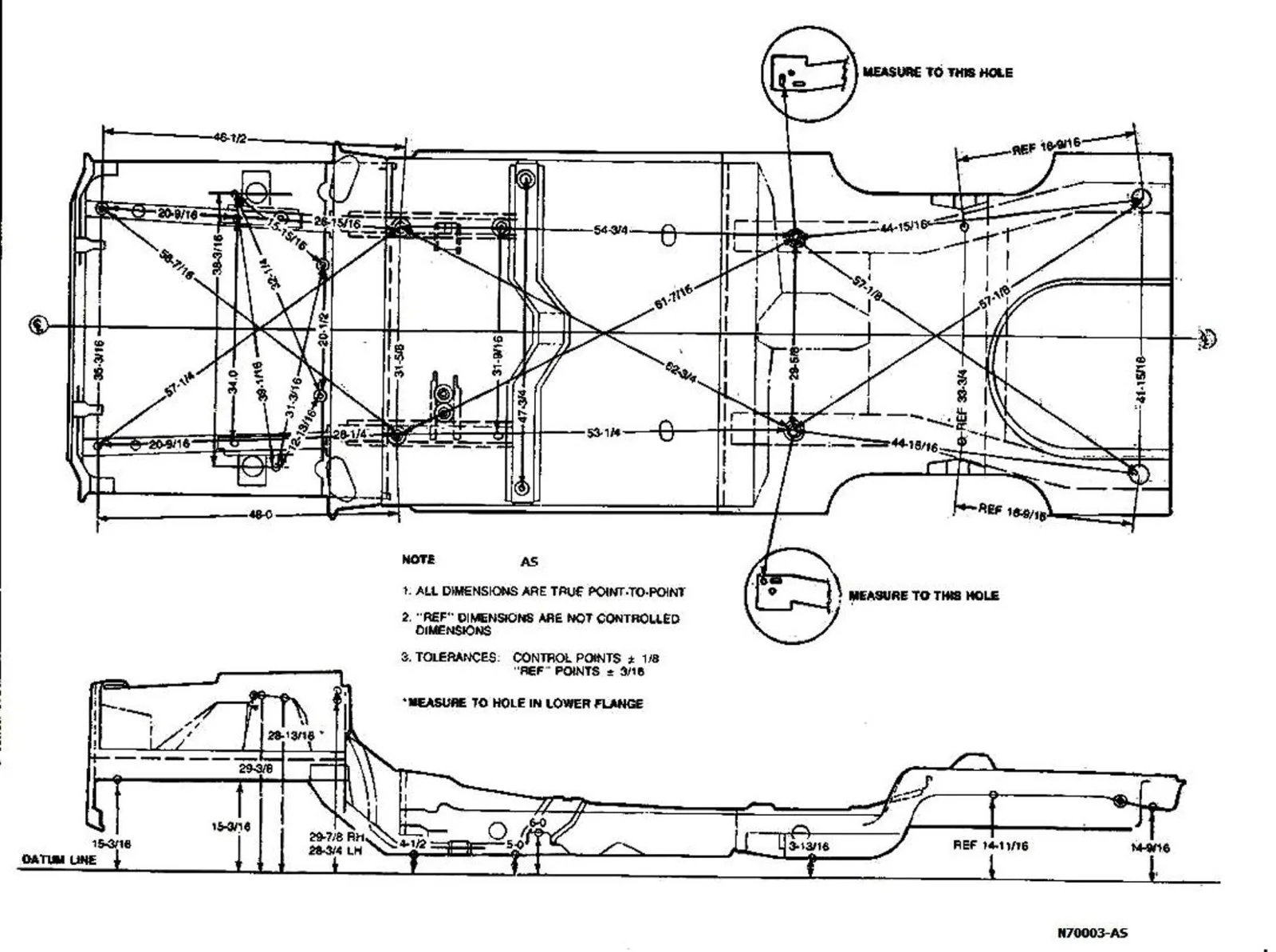

This might help, they're from the 89 Mustang shop manual?



[Hoytster]

This might help, they're from the 89 Mustang shop manual?

Appreciate those man, I can use those for some other measurements I want to take. I'm still hoping to find a set that details the underhood measurements, especially relating to the strut towers.
