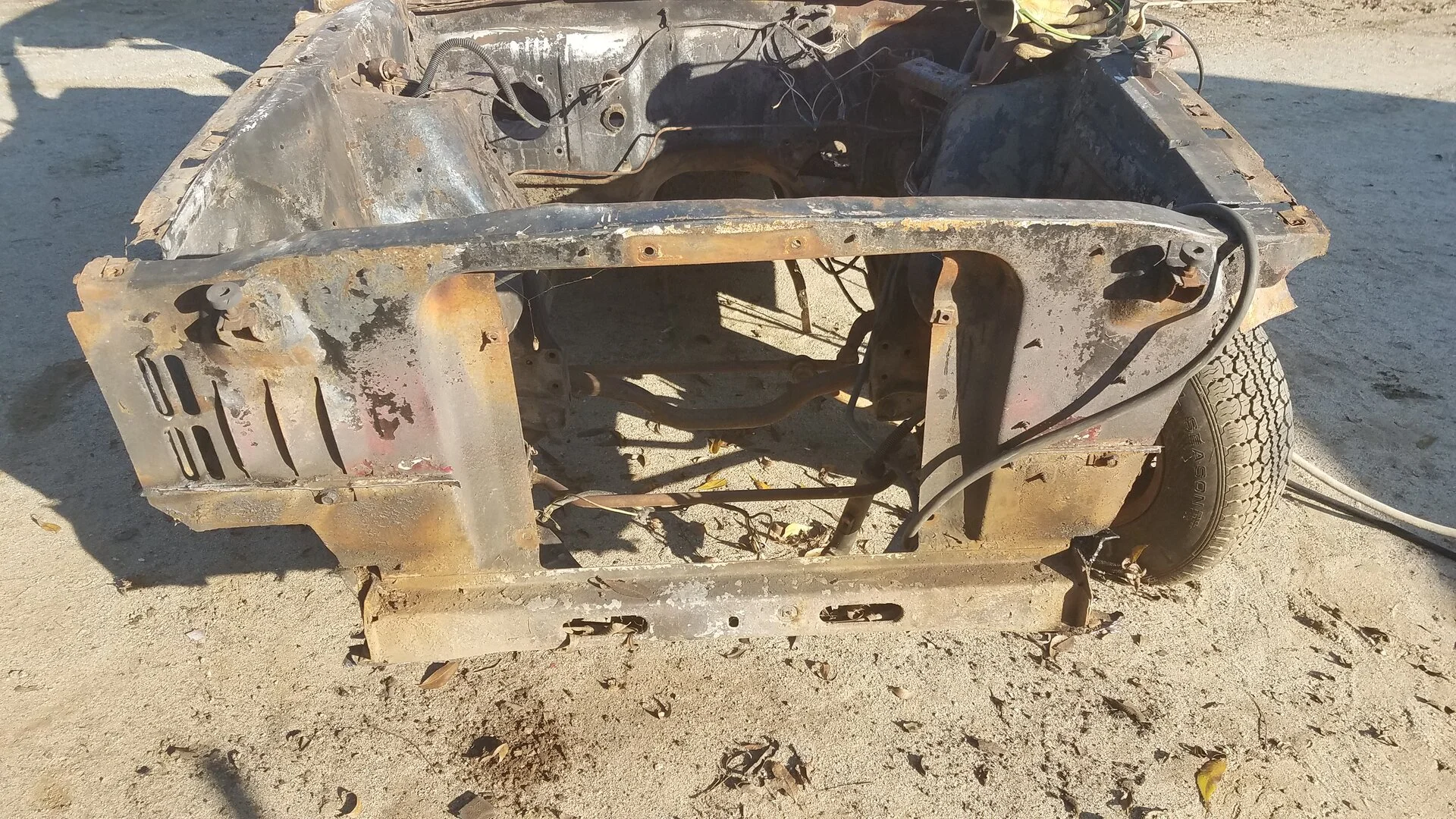

I just finished cutting the radiator support out of the old rotten 64 1/2.

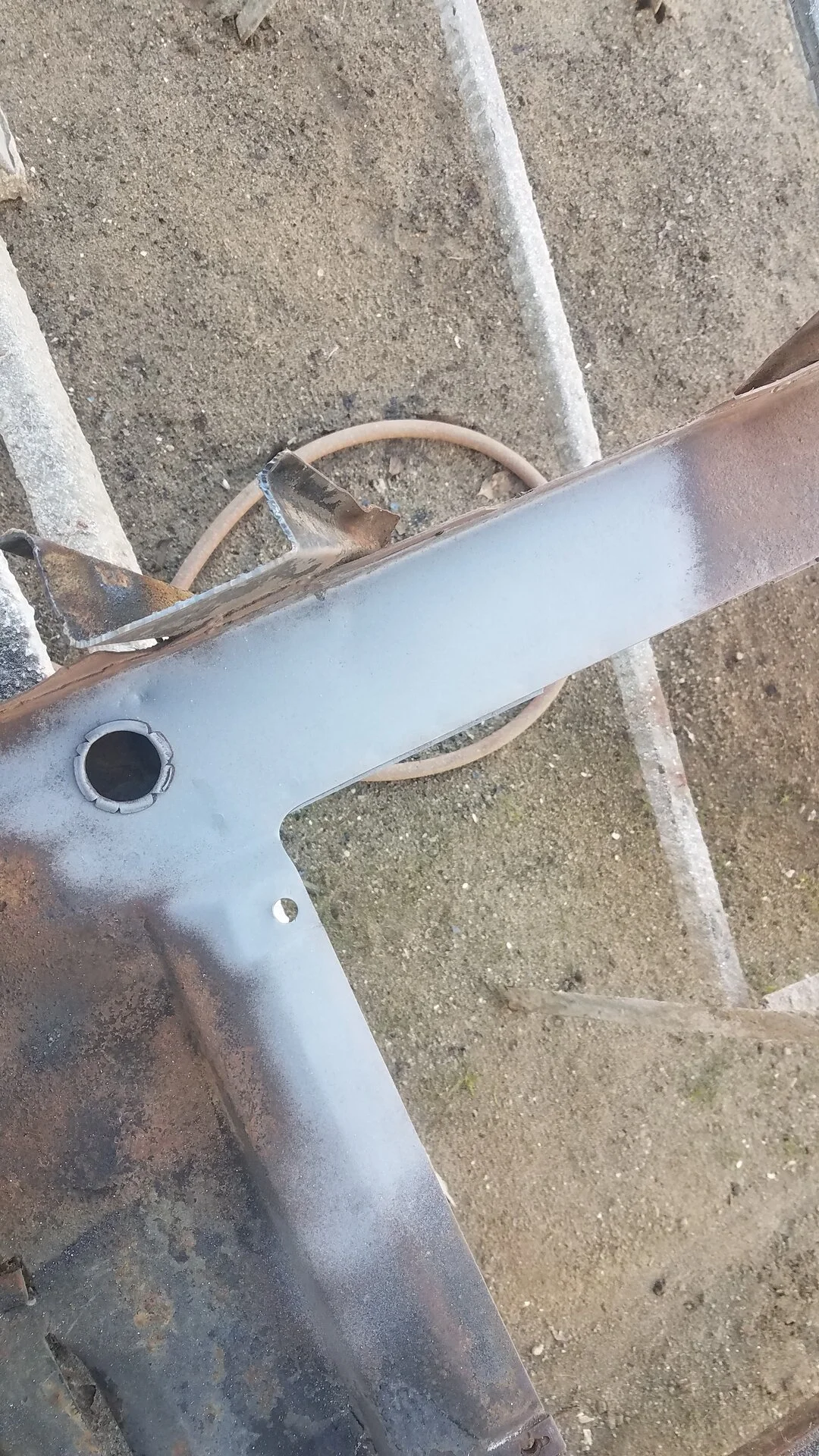

It is in very good shape ! I blasted a small spot just see what it looked like under all that crud .

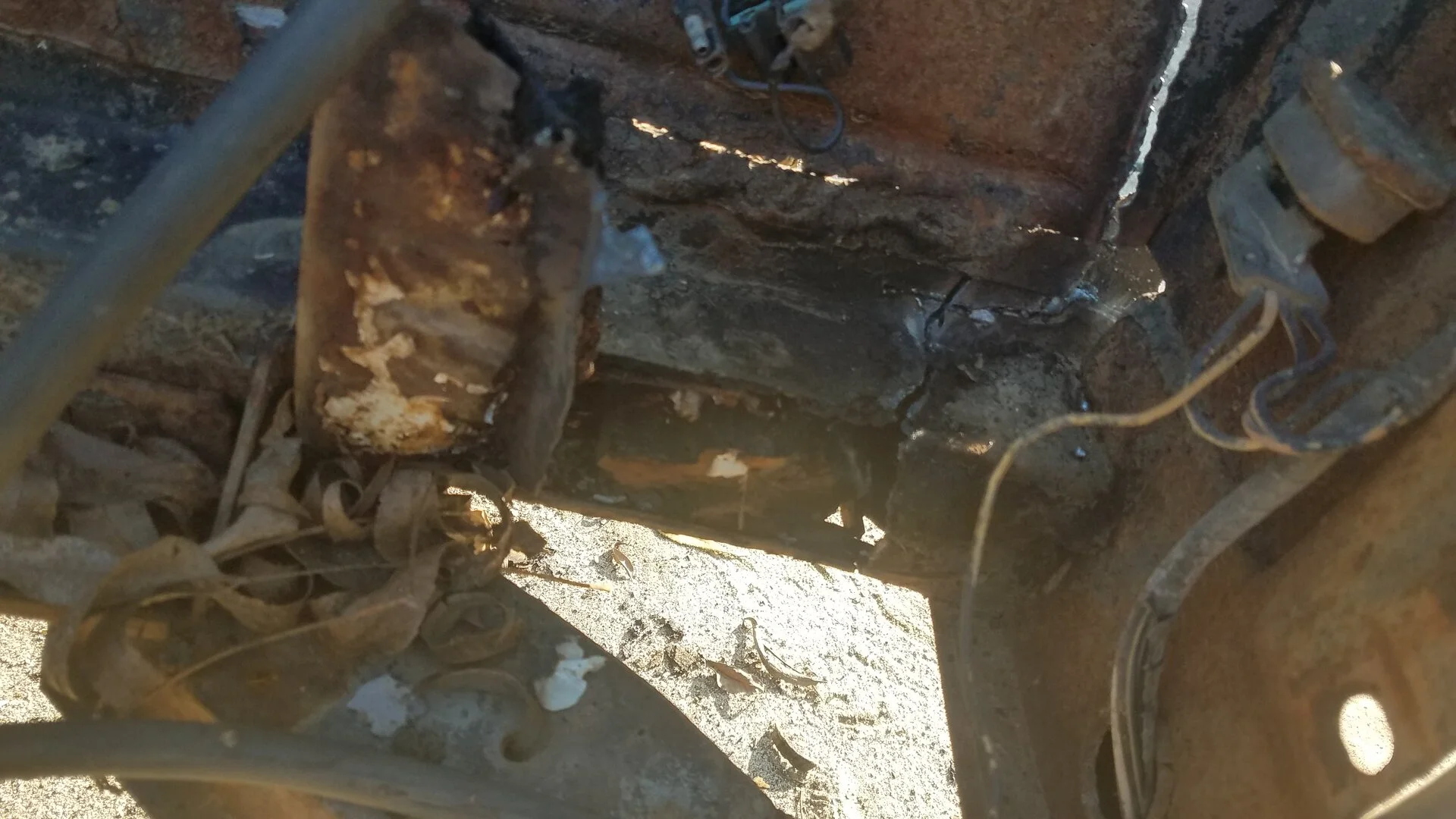

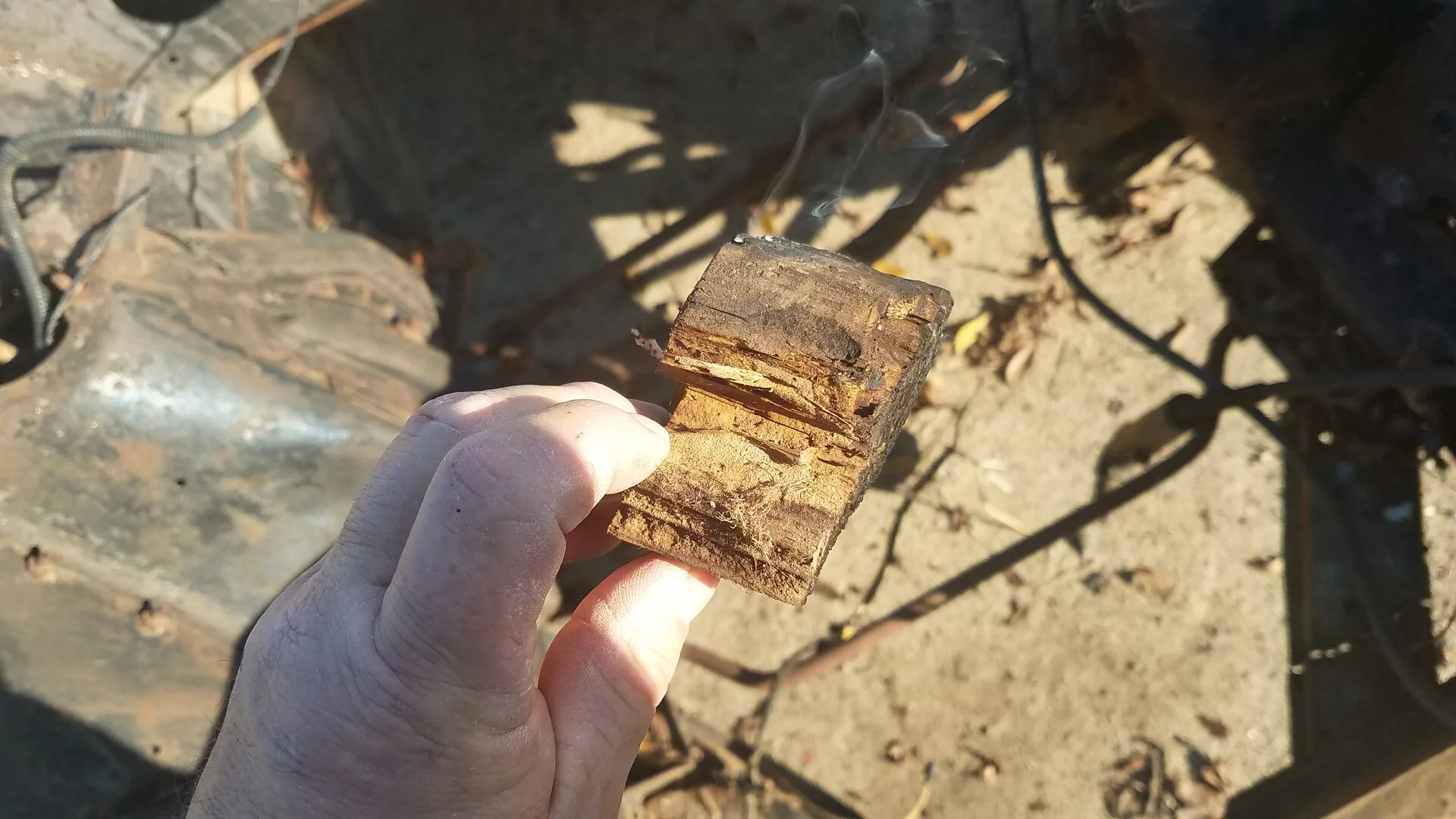

now the funny part ,as nice and rot free as the radiator support is the frame rails were dust in the wind ,complete see through . Not a problem for some one though ,they simply stuffed it with wood and folded a thin sheet of aluminum over the missing parts and covered it in tar ....problem solved ,well ,except for the wood ,the bugs ate it . hahaha!

  • Like
Reactions: 1 user
  • Sponsors (?)


02 281 GT

Agreed...My wife has great Boobs
10 Year Member
Feb 3, 2009
3,082
2,050
194
Cabot, AR

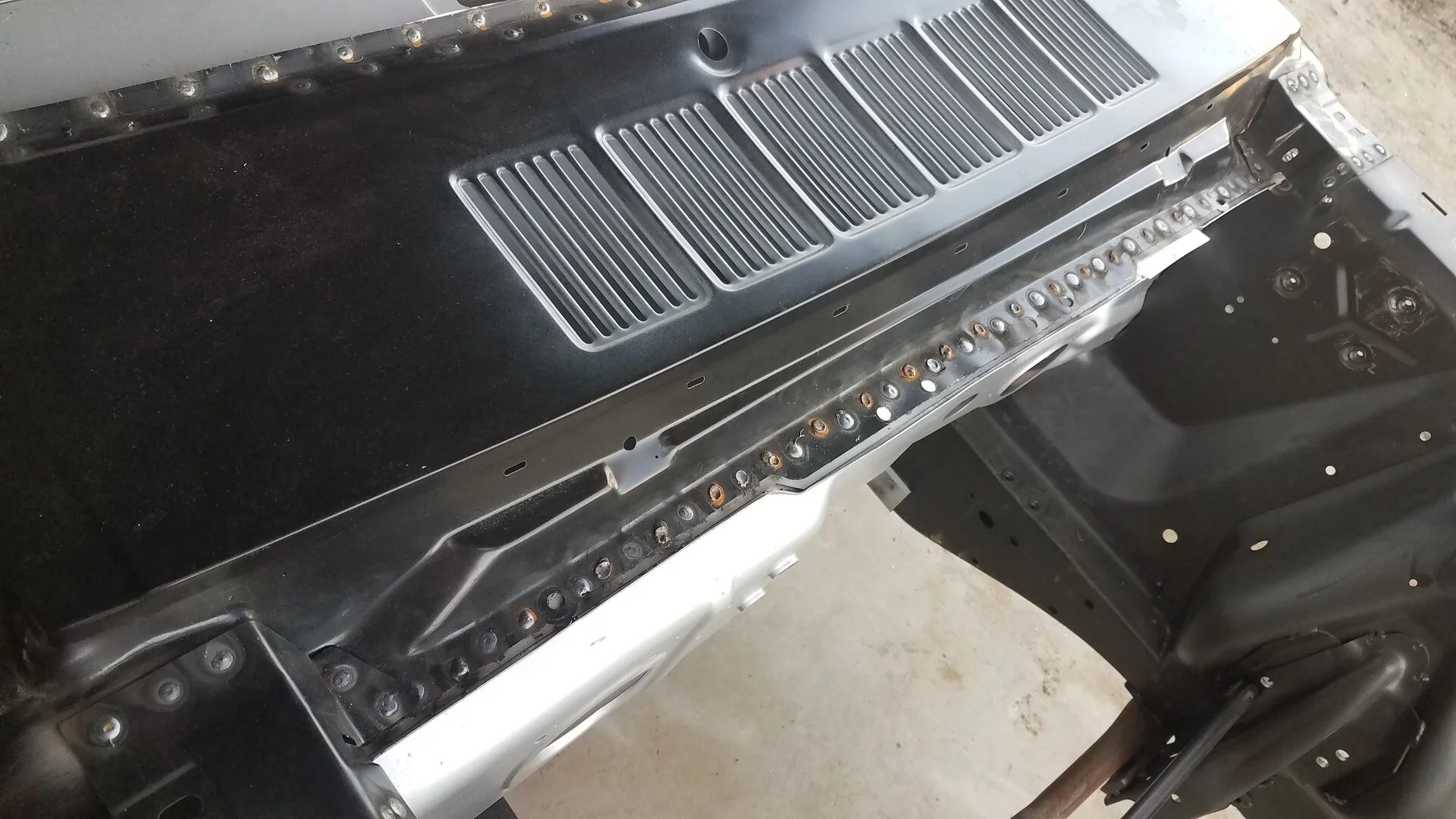

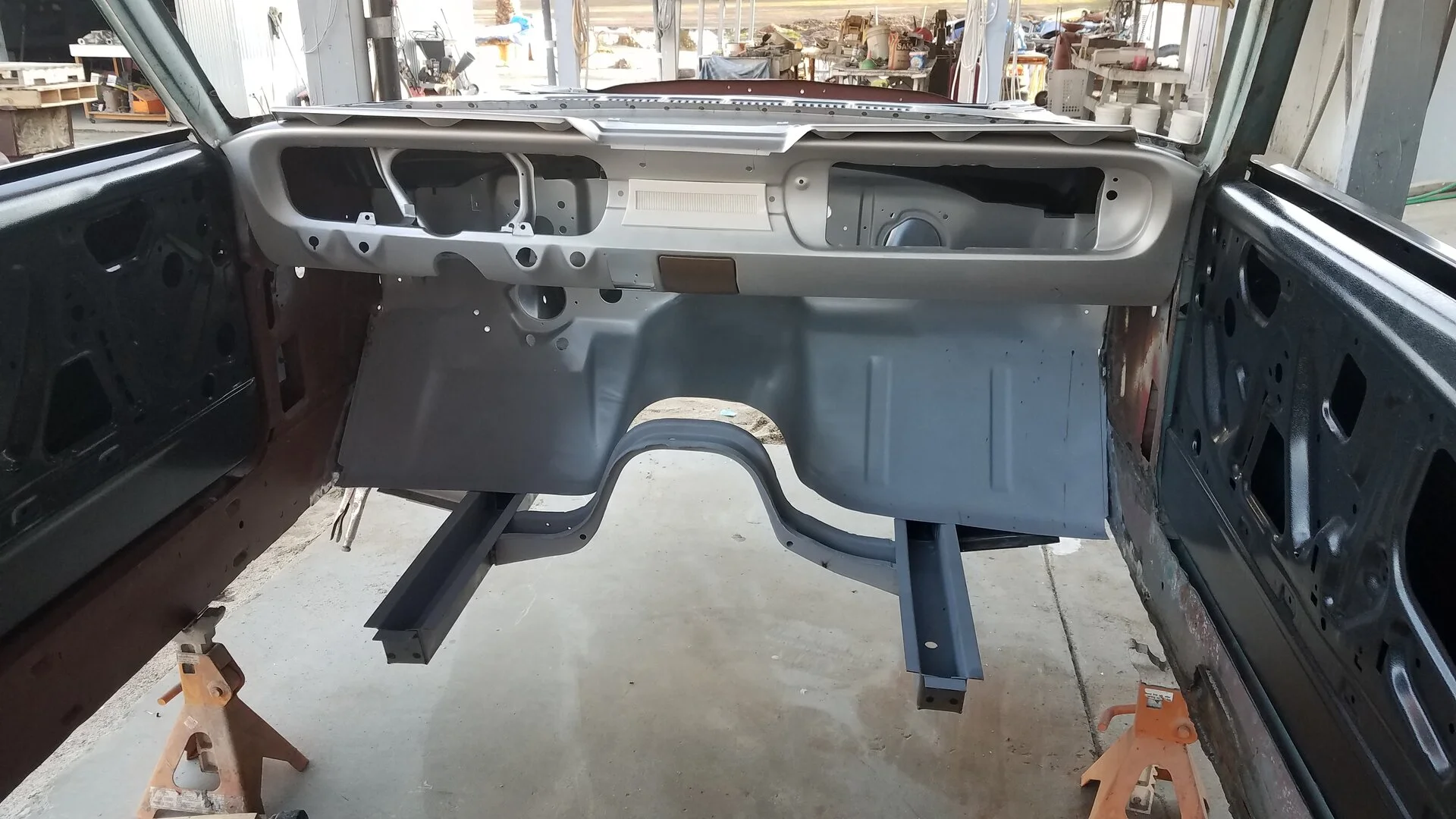

A long hard day drilling plug weld holes and the cowl is in . Welded great until i got to the front lip and pop and spatter started acting up ,made some ugly looking welds but it welded. The welds will be ground down any way and holes will be drilled between them to weld the cowl to the fire wall . Now all i need is the radiator support and the tranny tunnel brace and i can put in the front clip . I tried an original windshield and it fits perfectly .
I wonder what the deal is with that welder. Those welds looks like you ran out of gas and kept welding.


horse sence

15 Year Member
Nov 29, 1999
10,509
5,762
233
Wile Coyote's stunt double

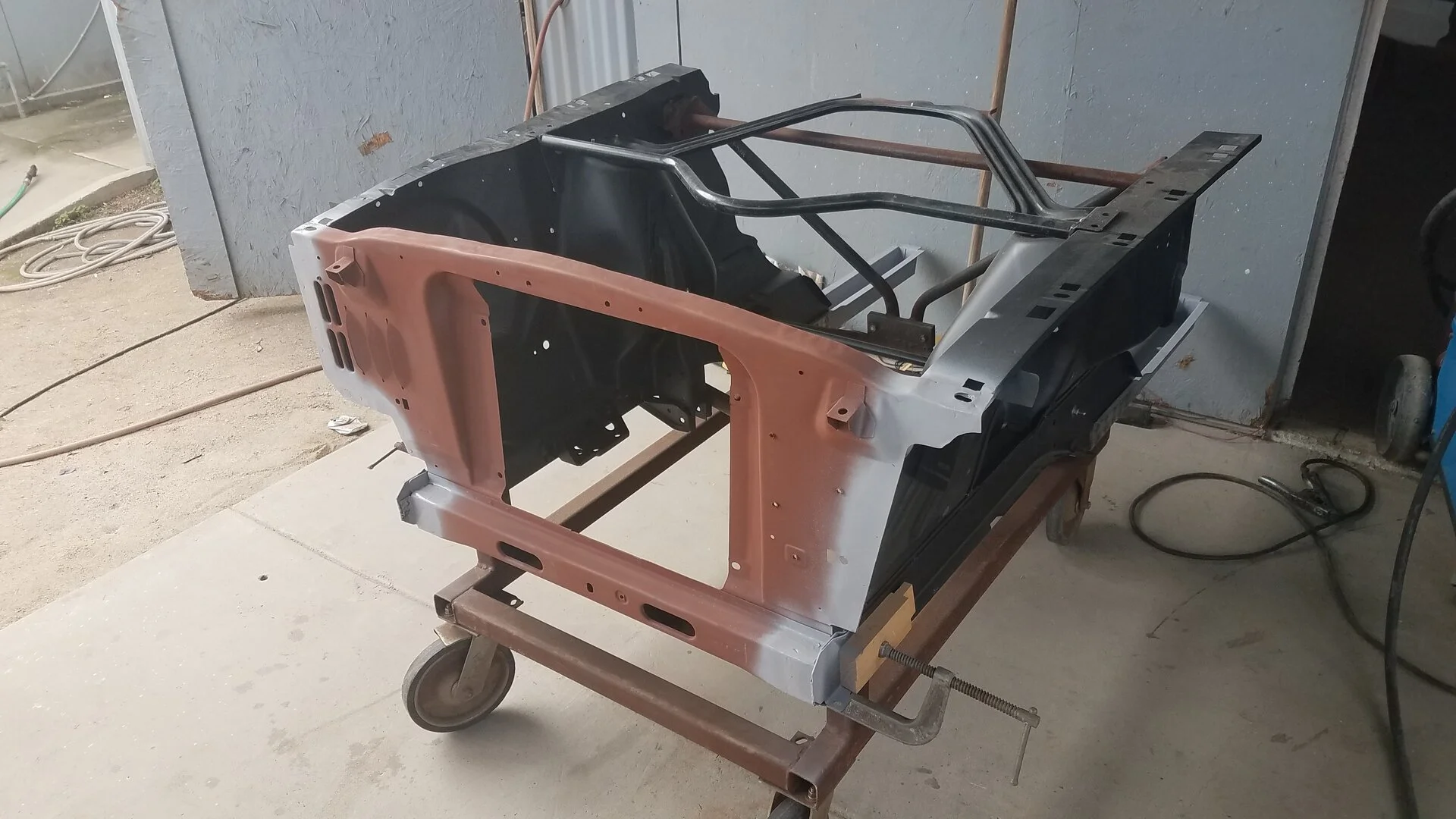

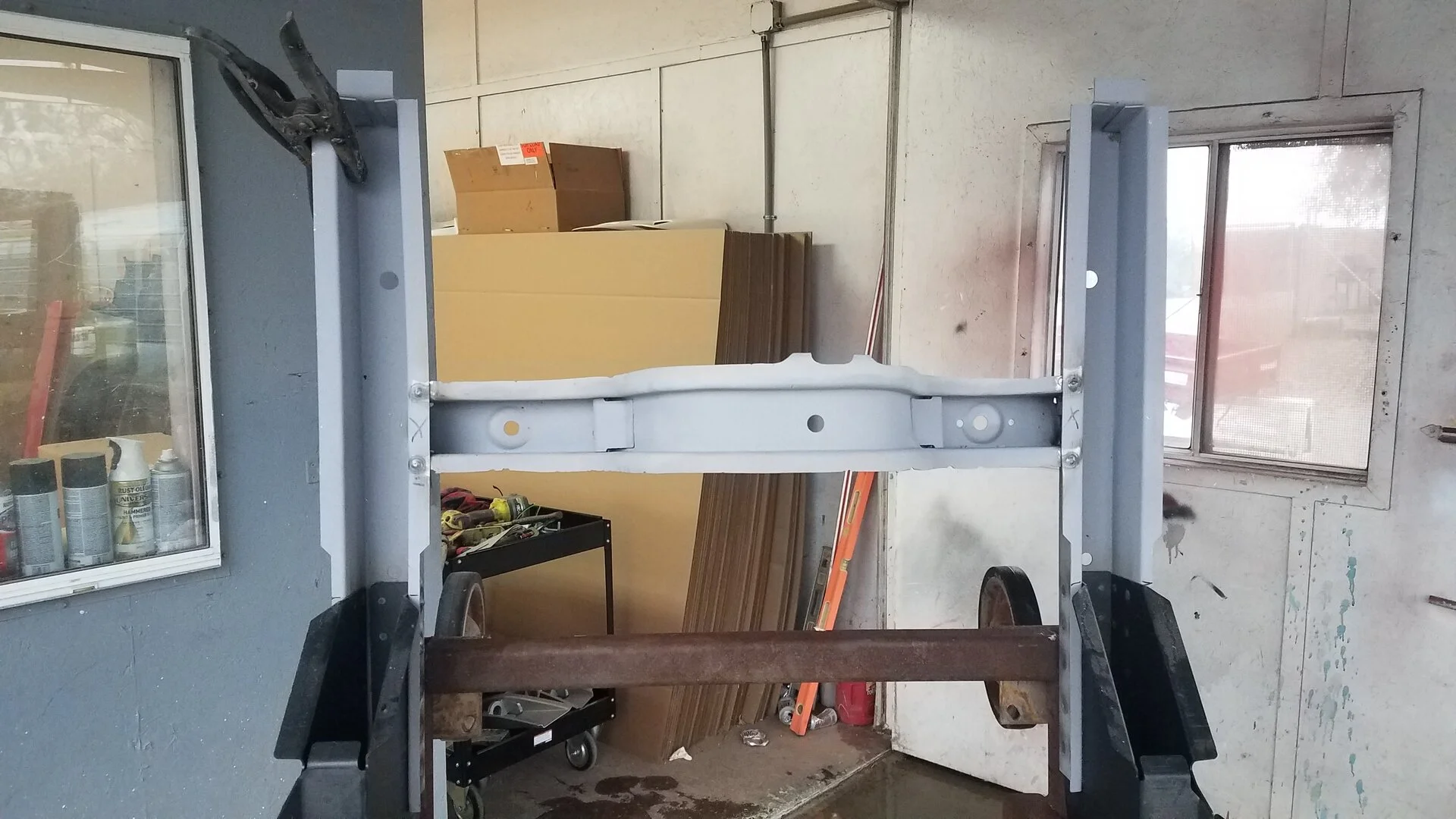

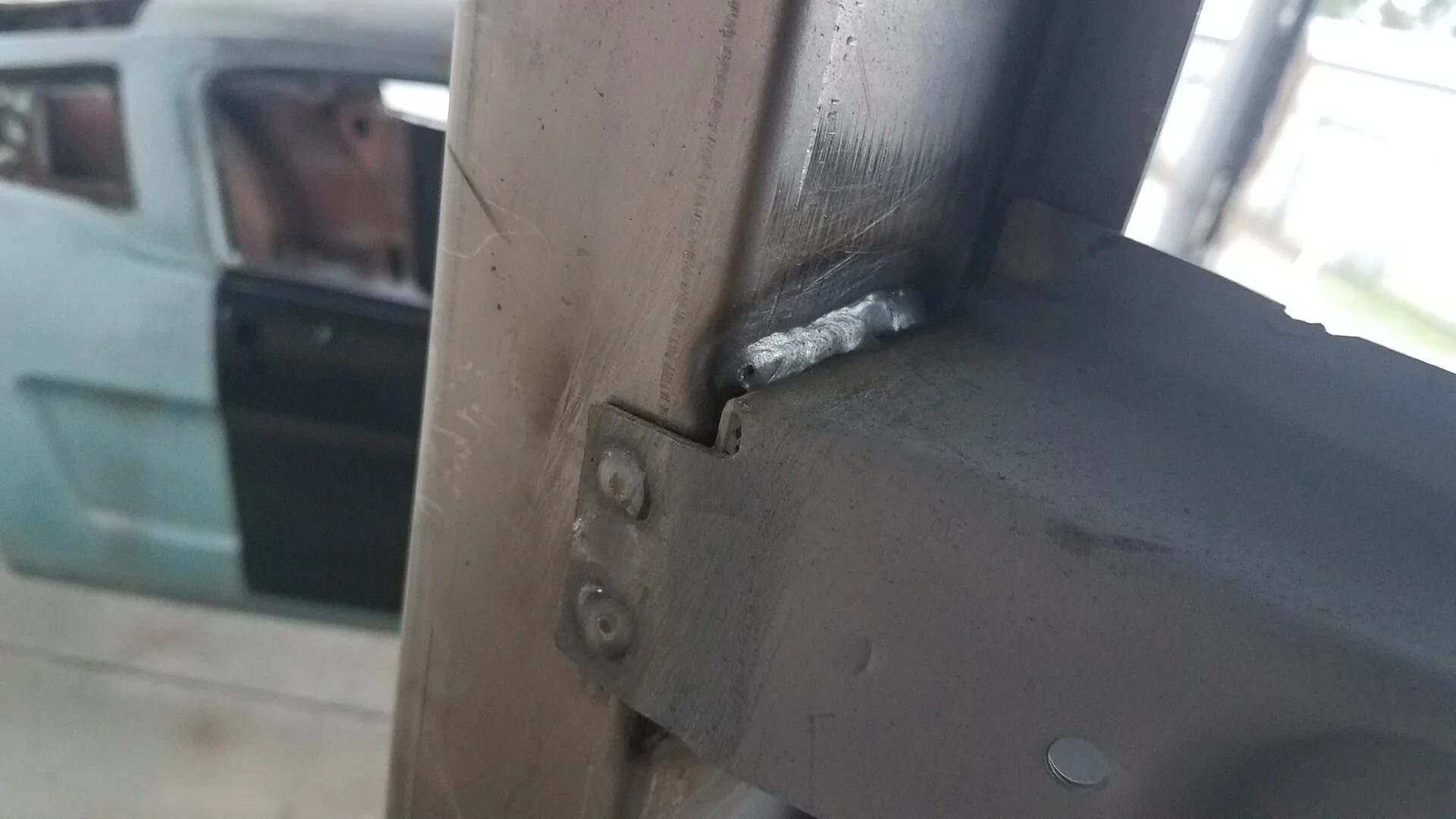

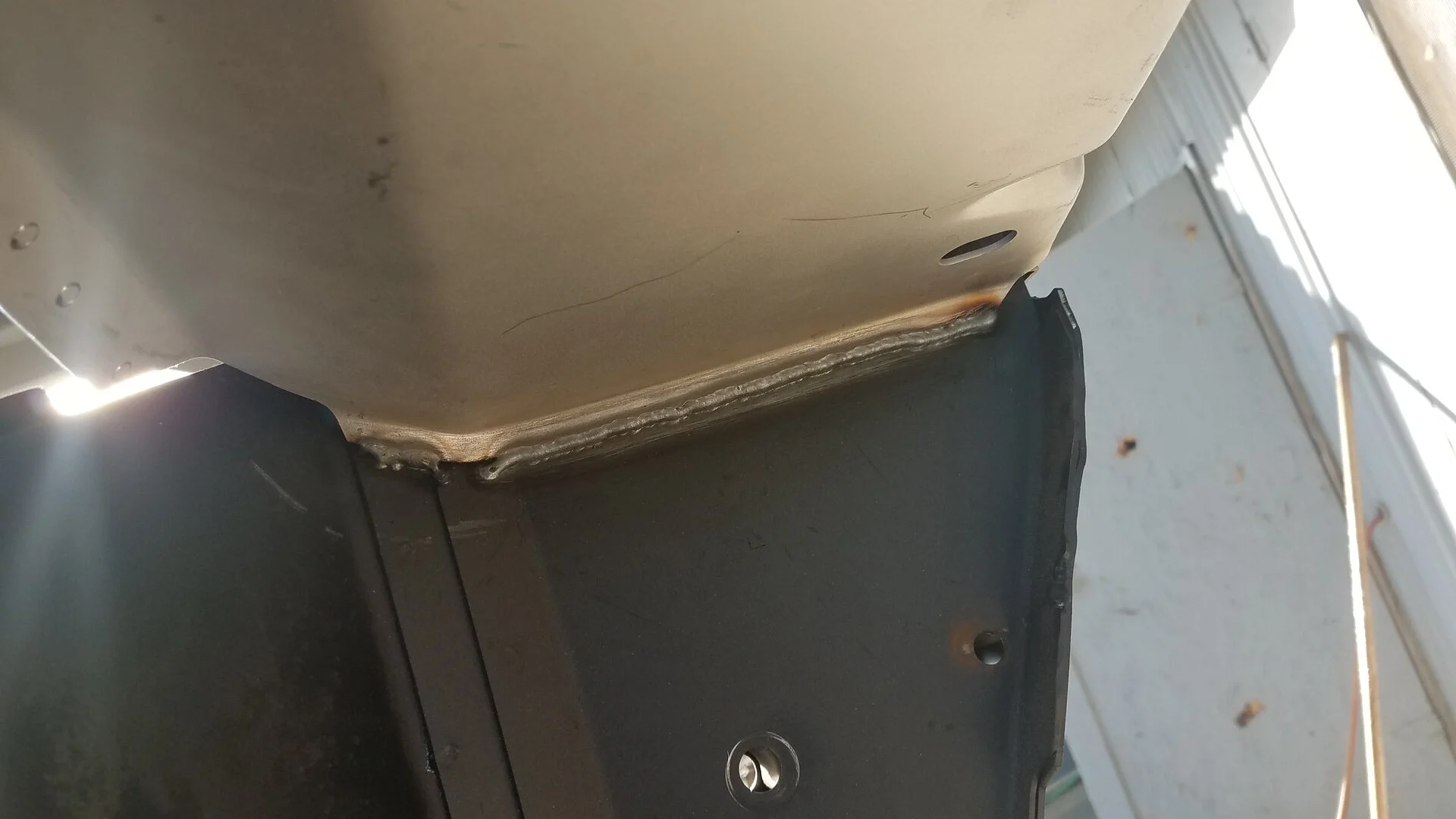

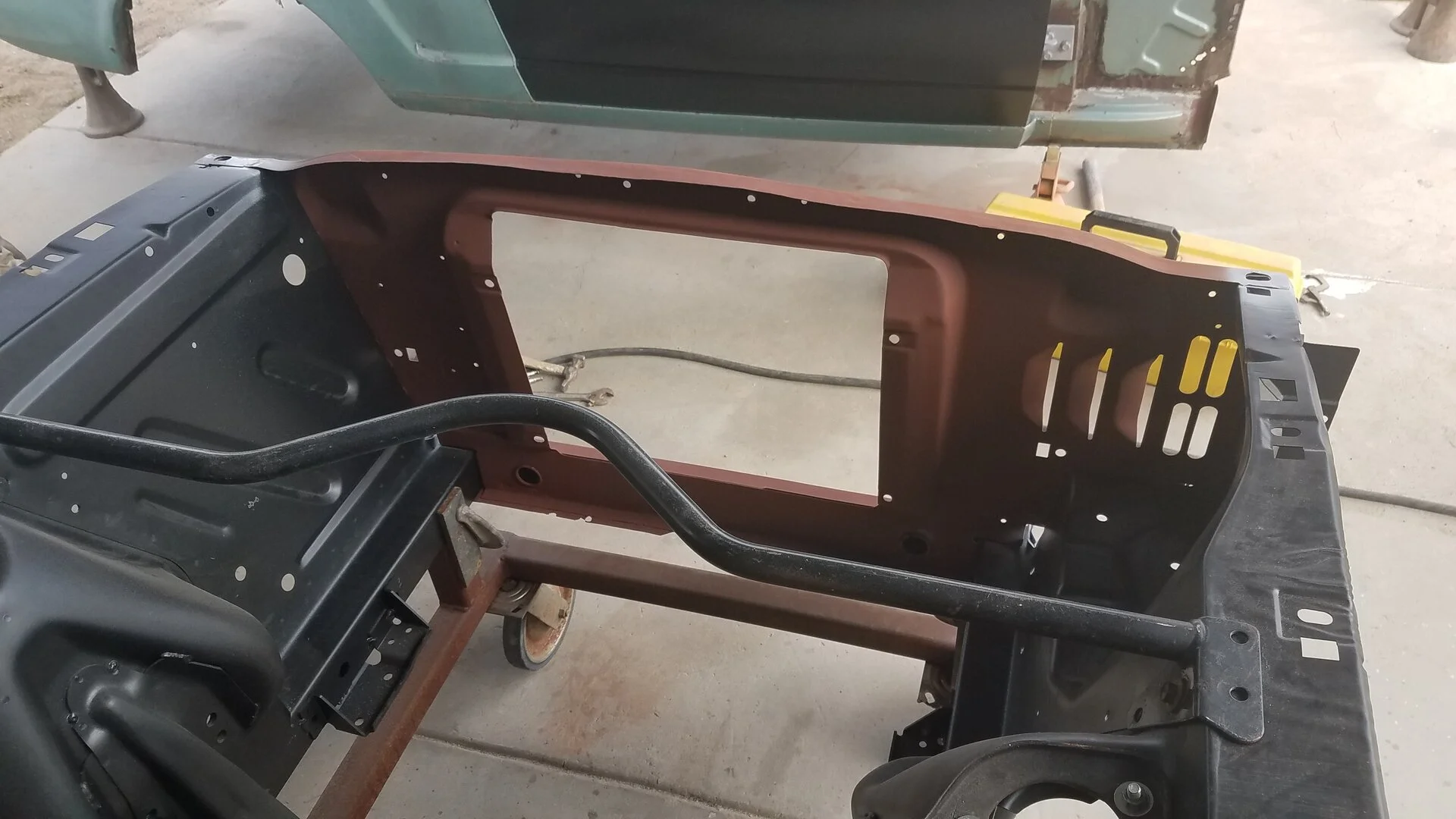

Well ,there is something up with this welder again ! The radiator support went in nice but the welds looked like crap ,they welded with nice penetration on the back but look like crap on the front ! The arc was orange ,it seems to be getting plenty of gas , i even cranked it up a bit ,Good thing for disk grinders . I just need the tranny tunnel brace and weld on the front radious brackets and it done

  • Like
Reactions: 1 user

horse sence

15 Year Member
Nov 29, 1999
10,509
5,762
233
Wile Coyote's stunt double

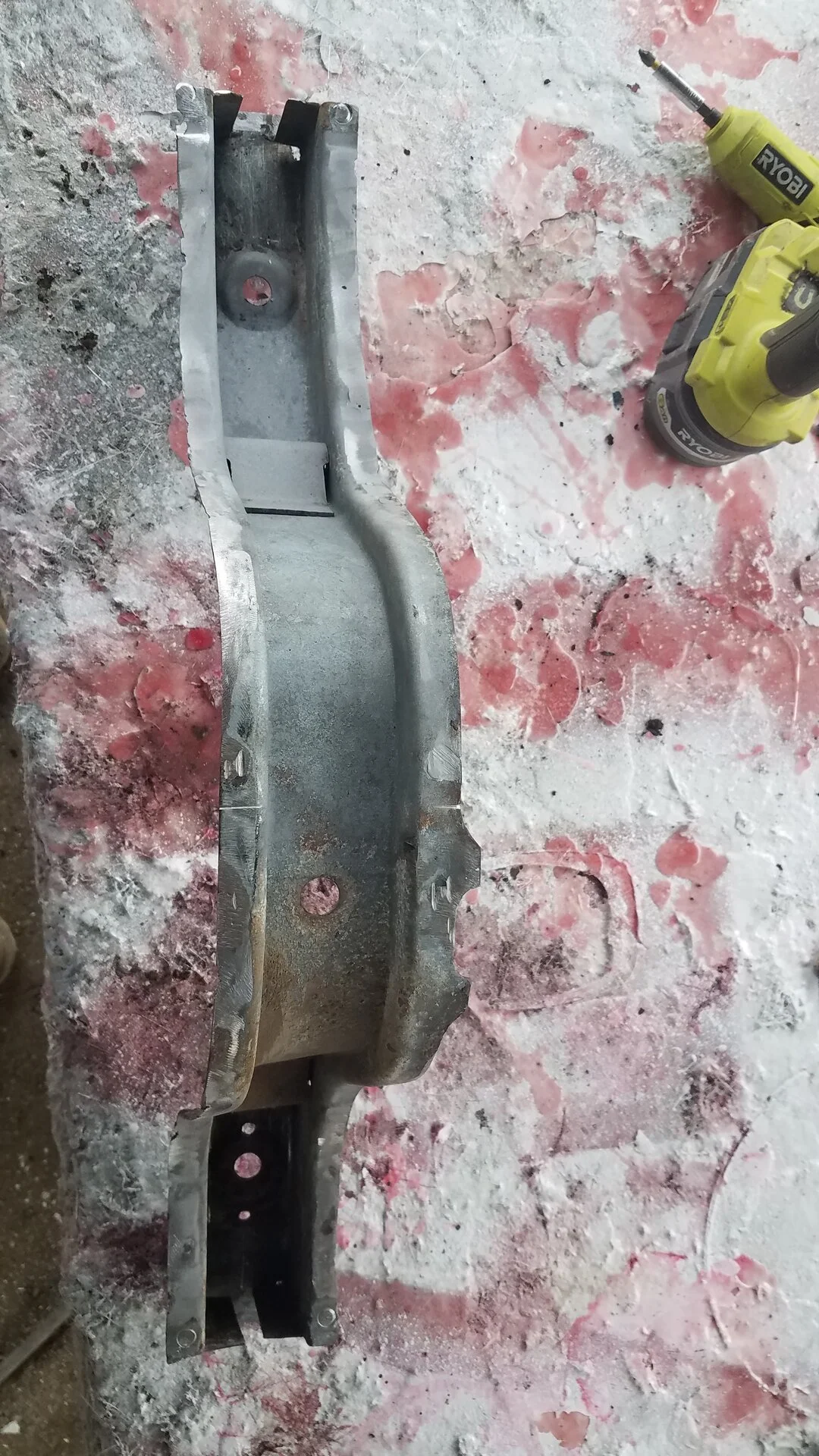

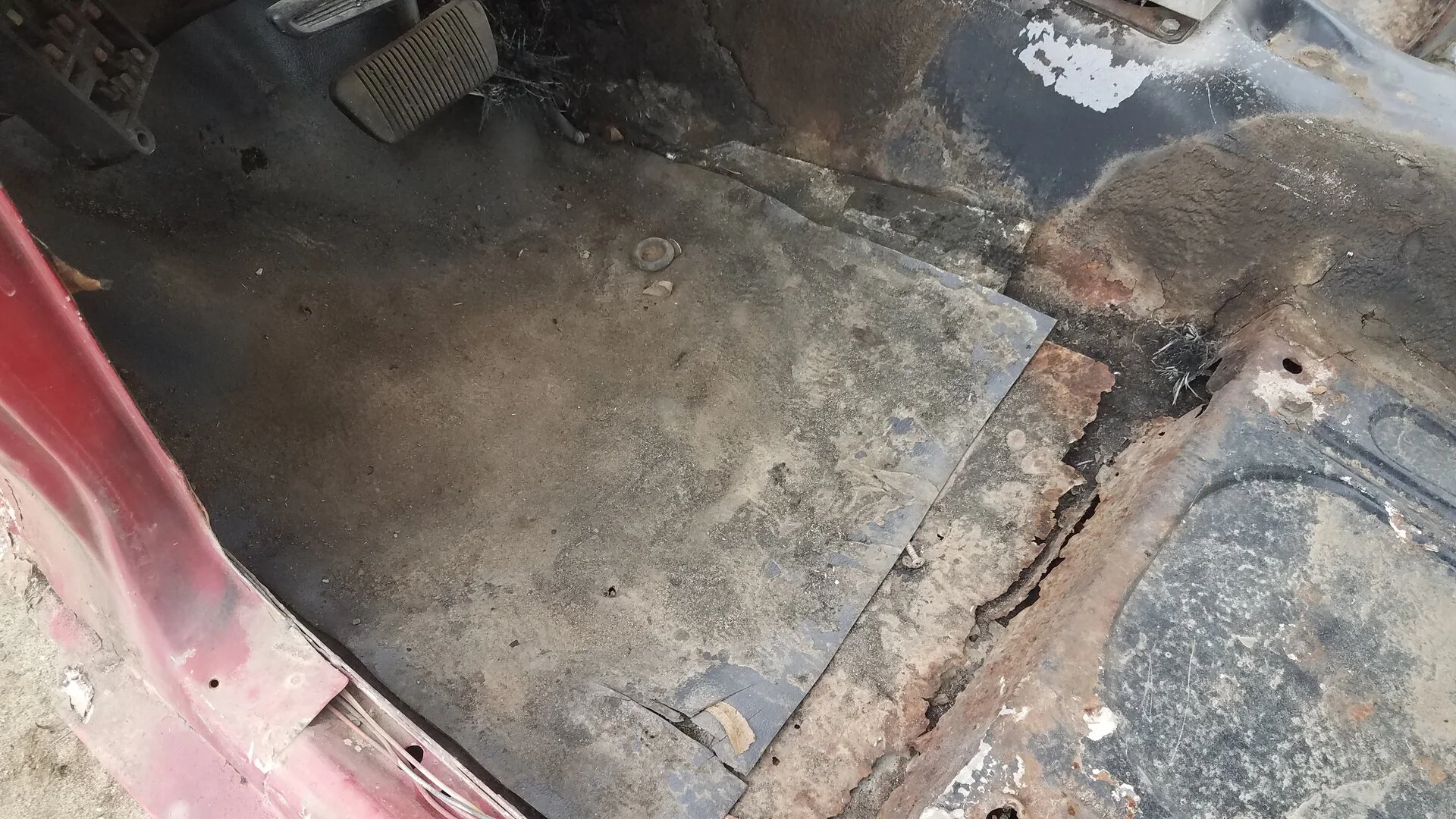

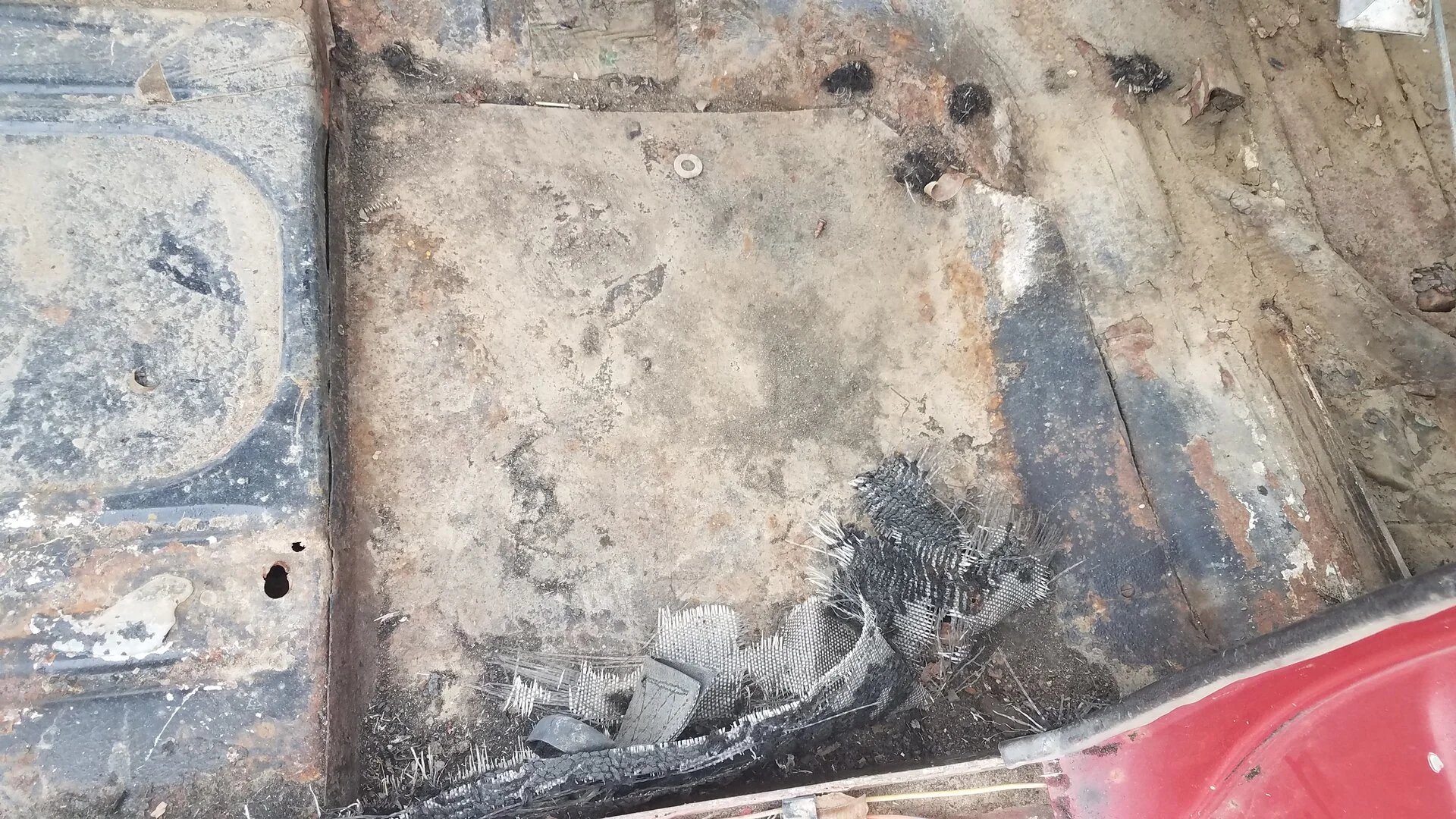

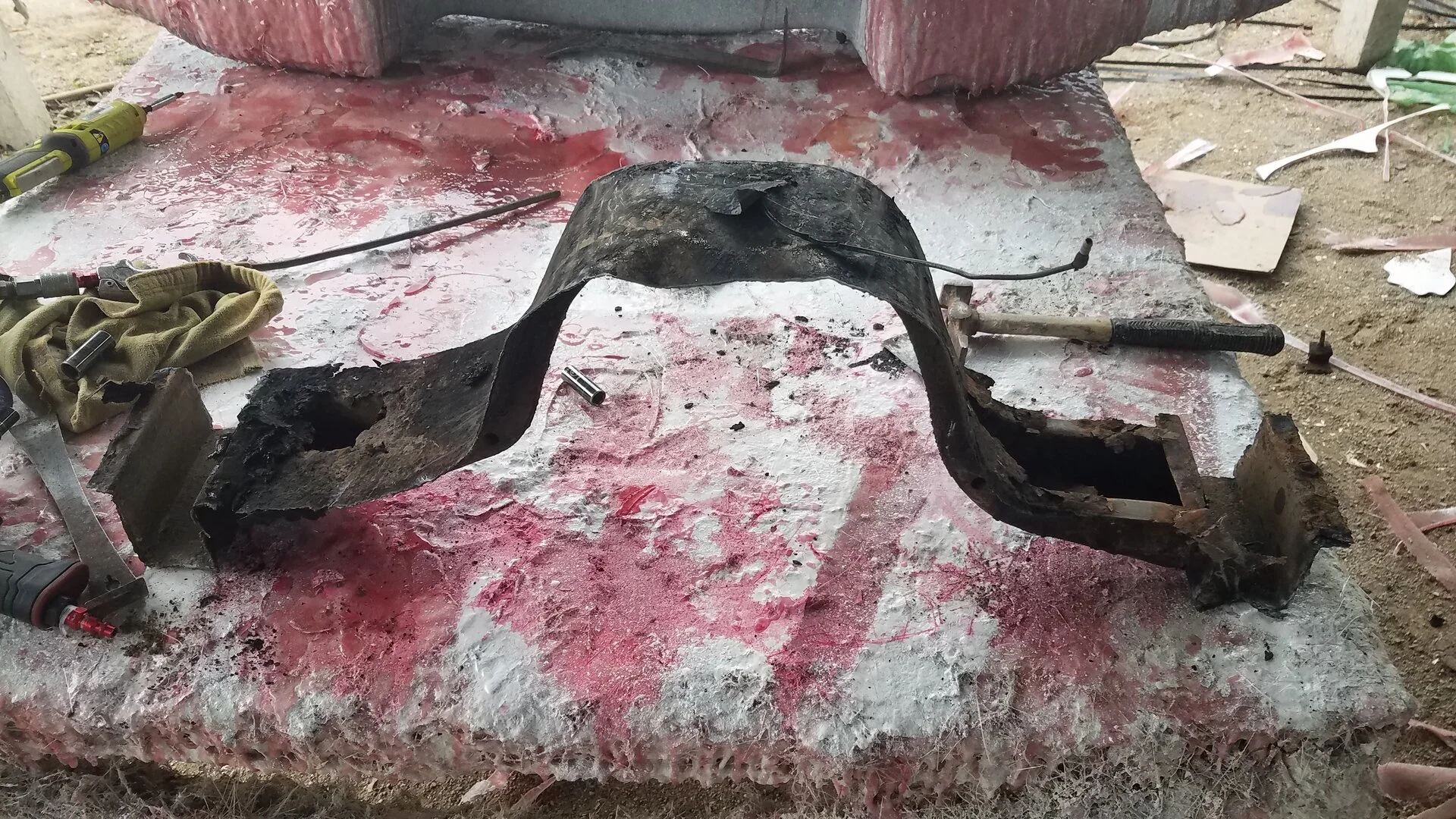

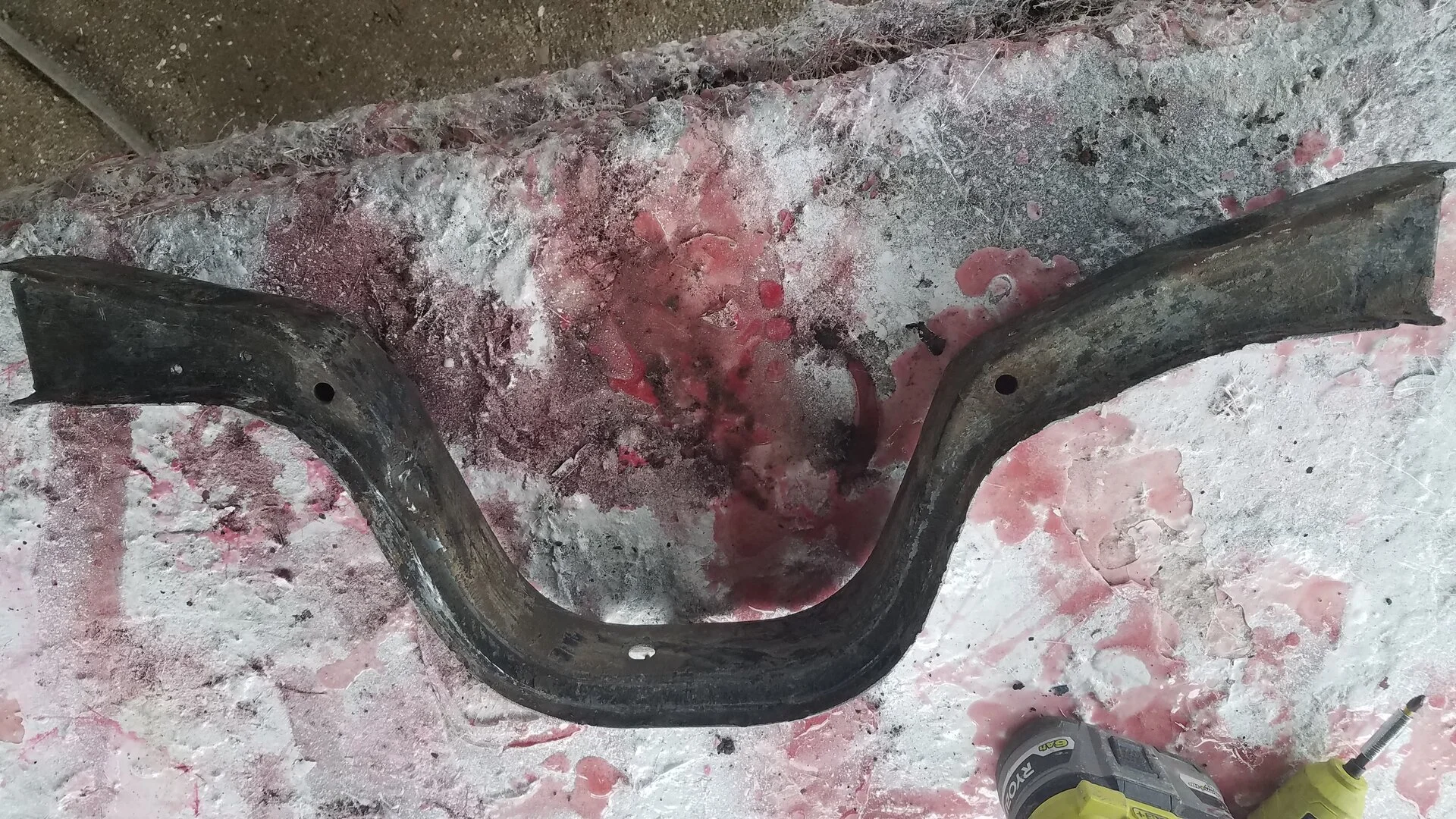

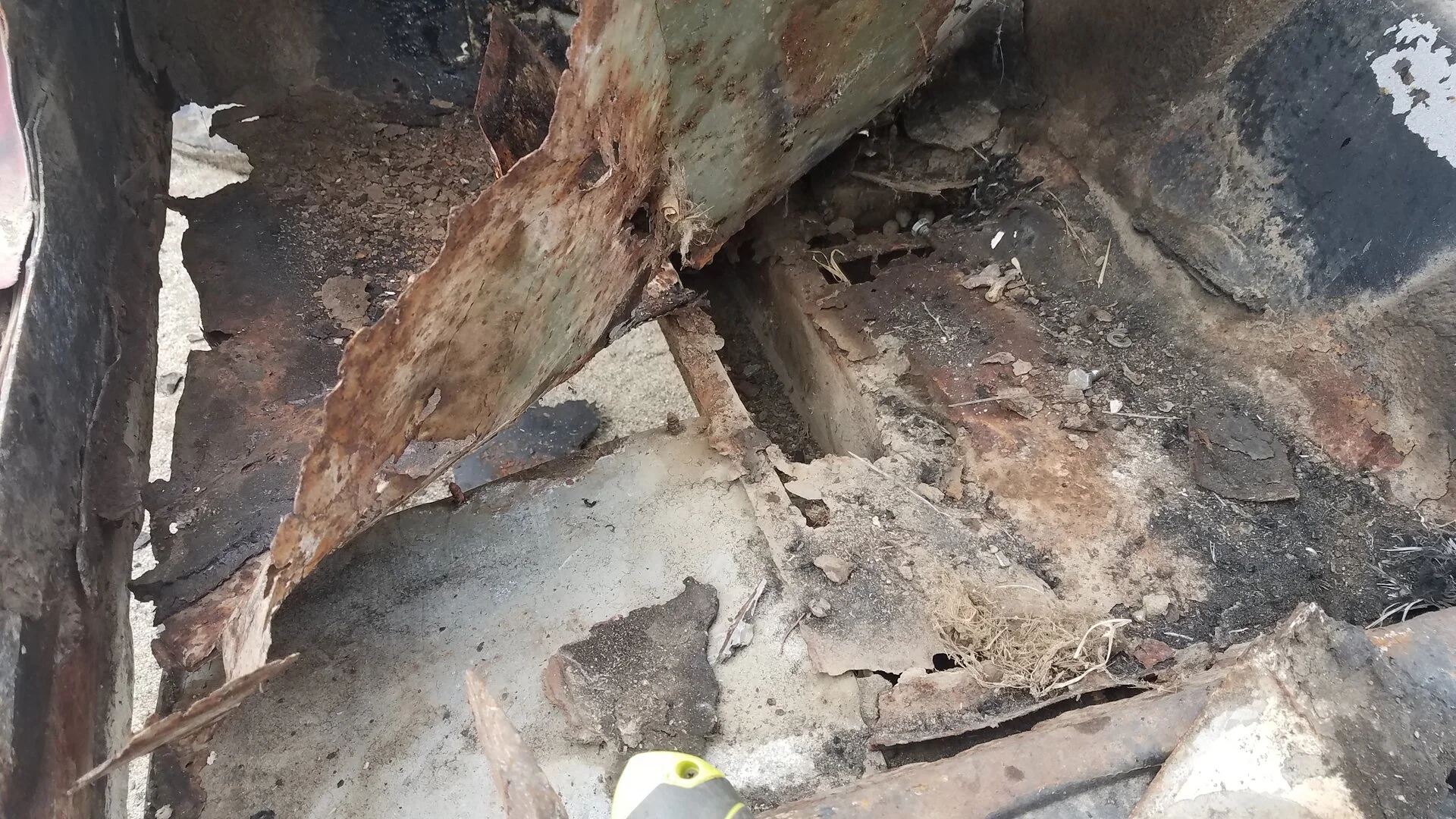

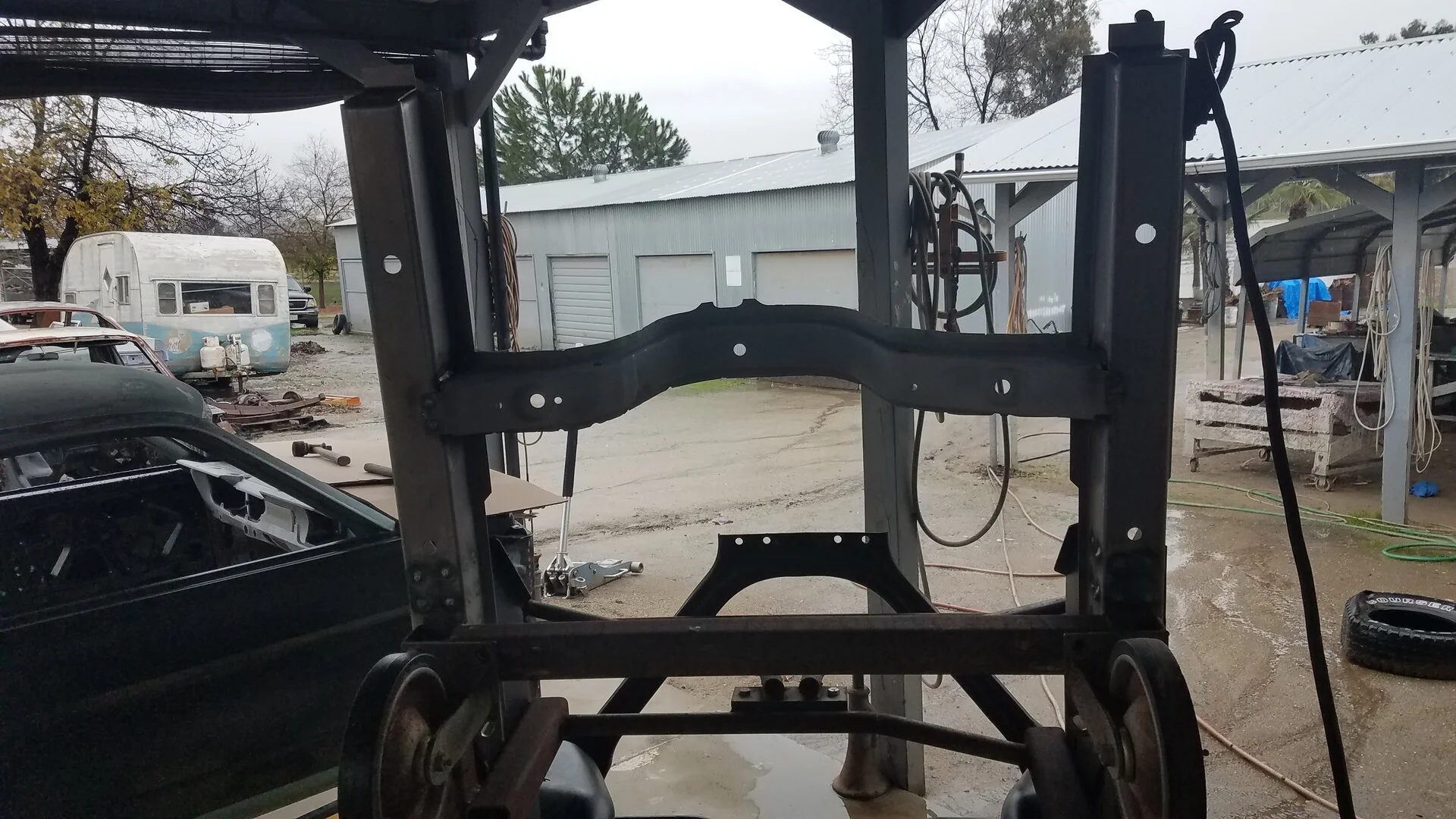

Wow ,was that a job ! The tranny tunnel brace is out of the old rotten 64 1/2 . It is in very good shape for as badly rotted everything else is . The floor had several layers from ply wood to thin aluminum to fiberglass and even some kind of rubber sheeting glued over the top ,the thing was just waiting to kill who ever did all this ! Now to trim it out ,sand blast it and epoxy prime it .


horse sence

15 Year Member
Nov 29, 1999
10,509
5,762
233
Wile Coyote's stunt double

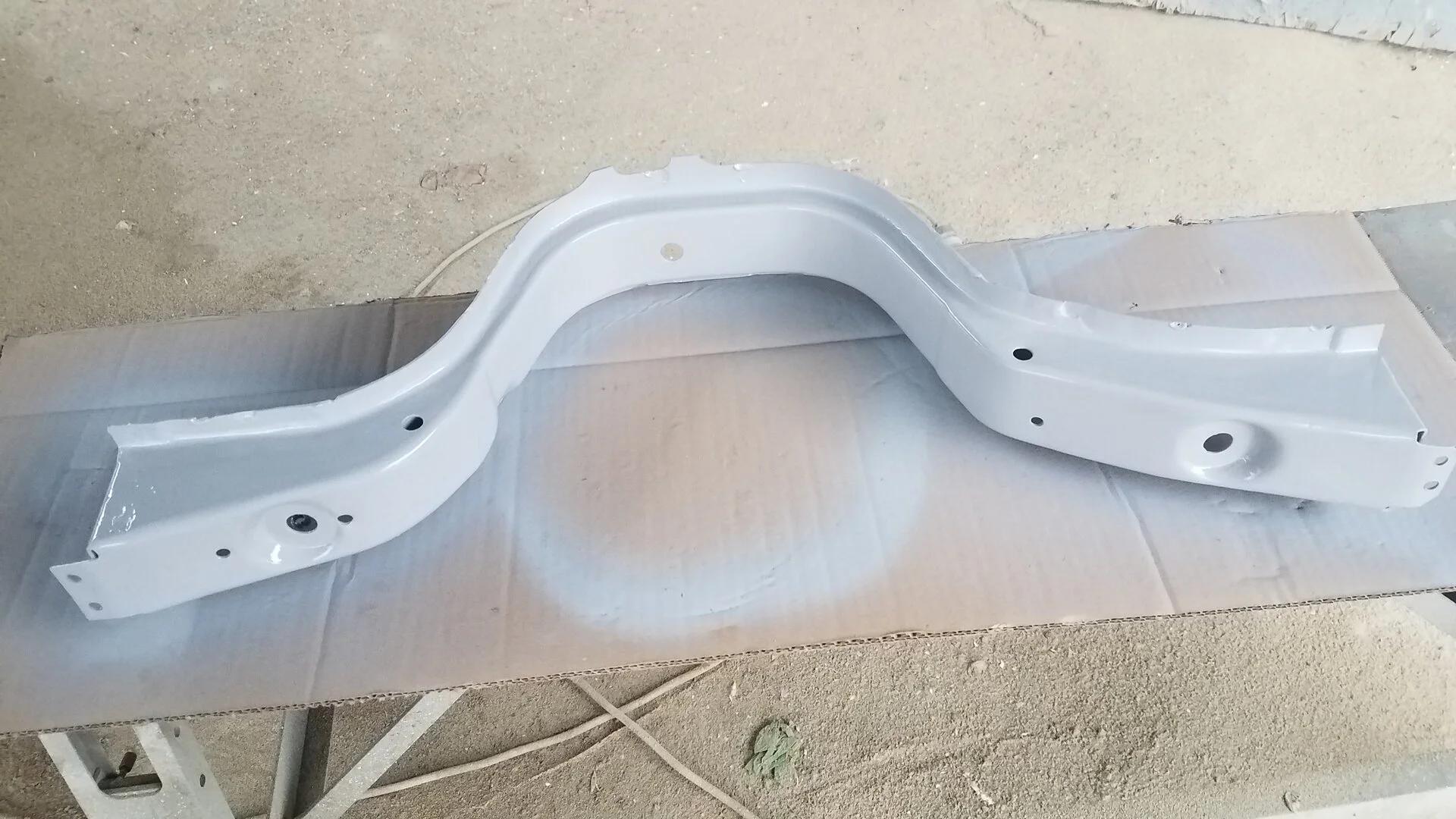

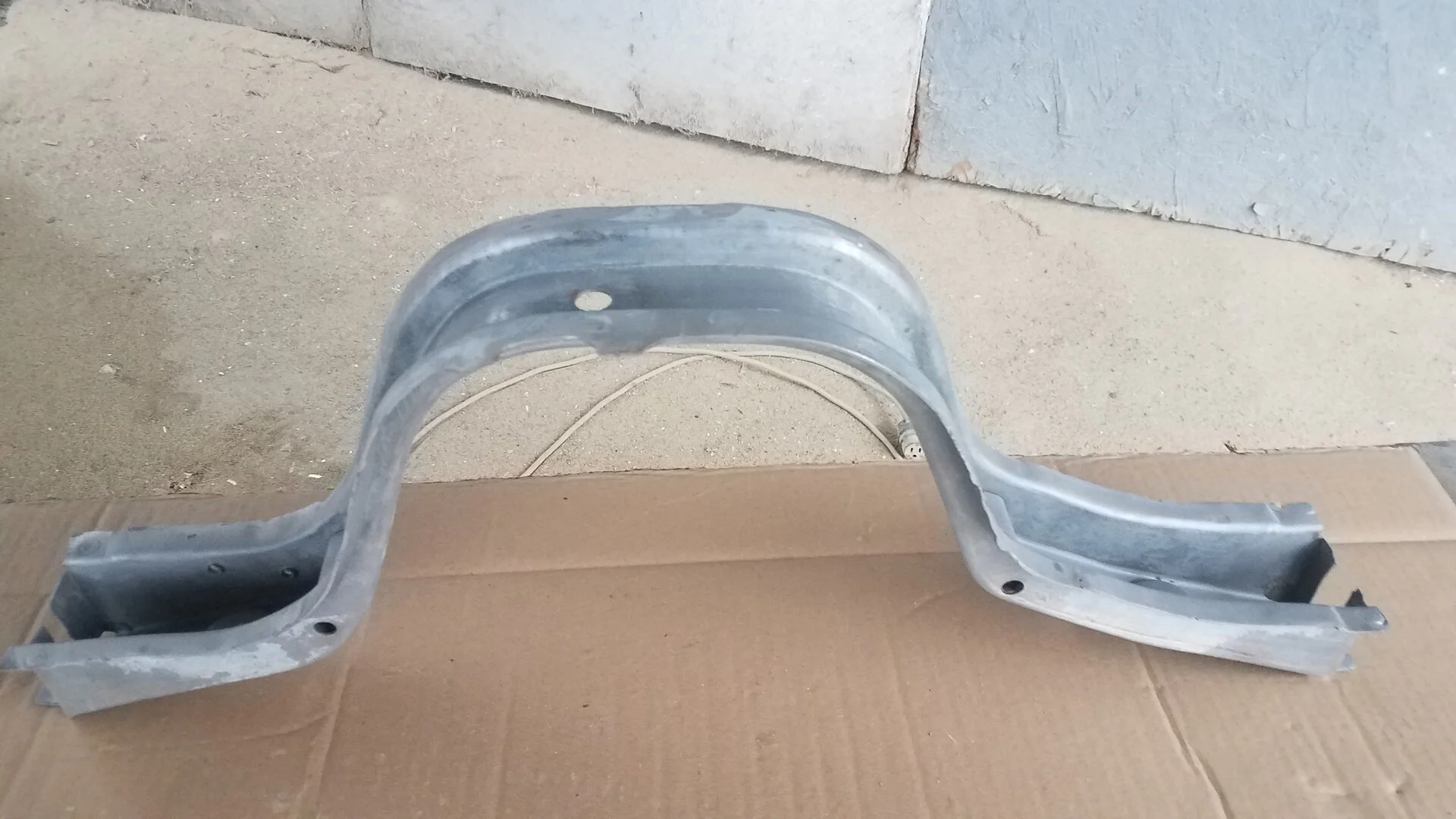

Oh yeah ! It will clean up good as new ! It was coated in under coat and oily dirt. I have to pick up a couple of bags of sand ,probably tomorrow because it is raining today . I tried it between the floor supports and its a nice snug fit ,i just have to remember the high side goes forward .

  • Like
Reactions: 1 user

horse sence

15 Year Member
Nov 29, 1999
10,509
5,762
233
Wile Coyote's stunt double

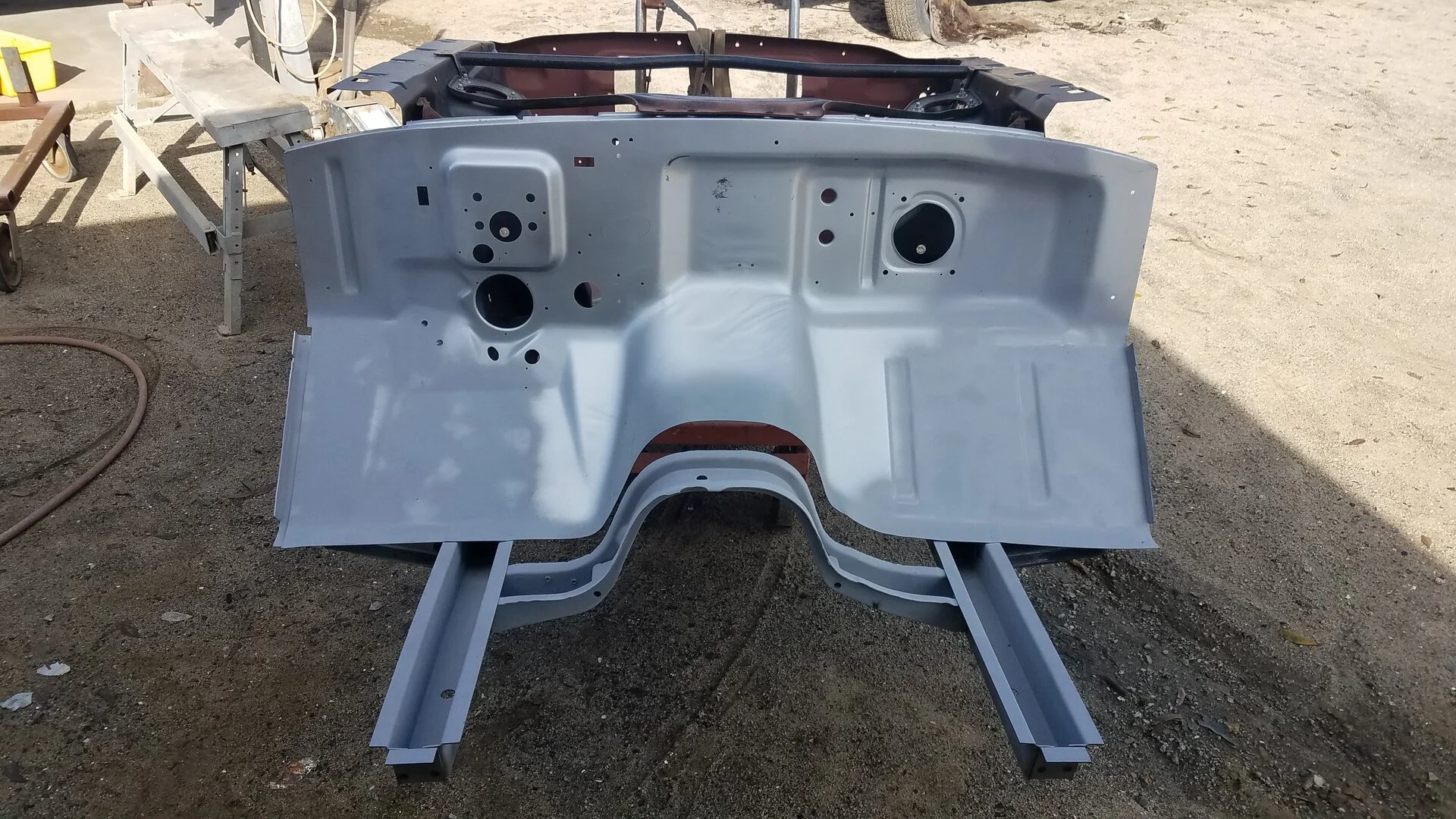

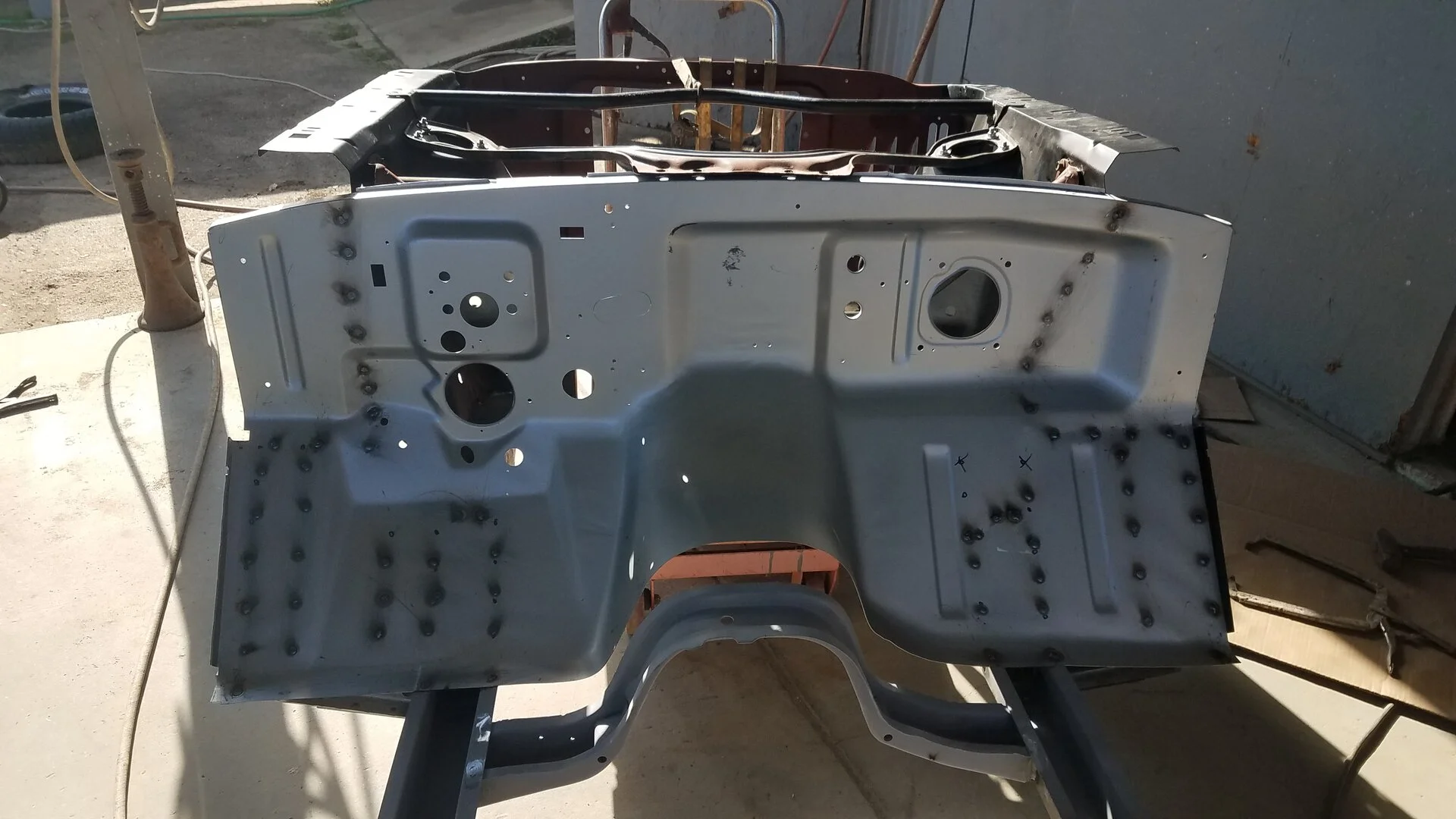

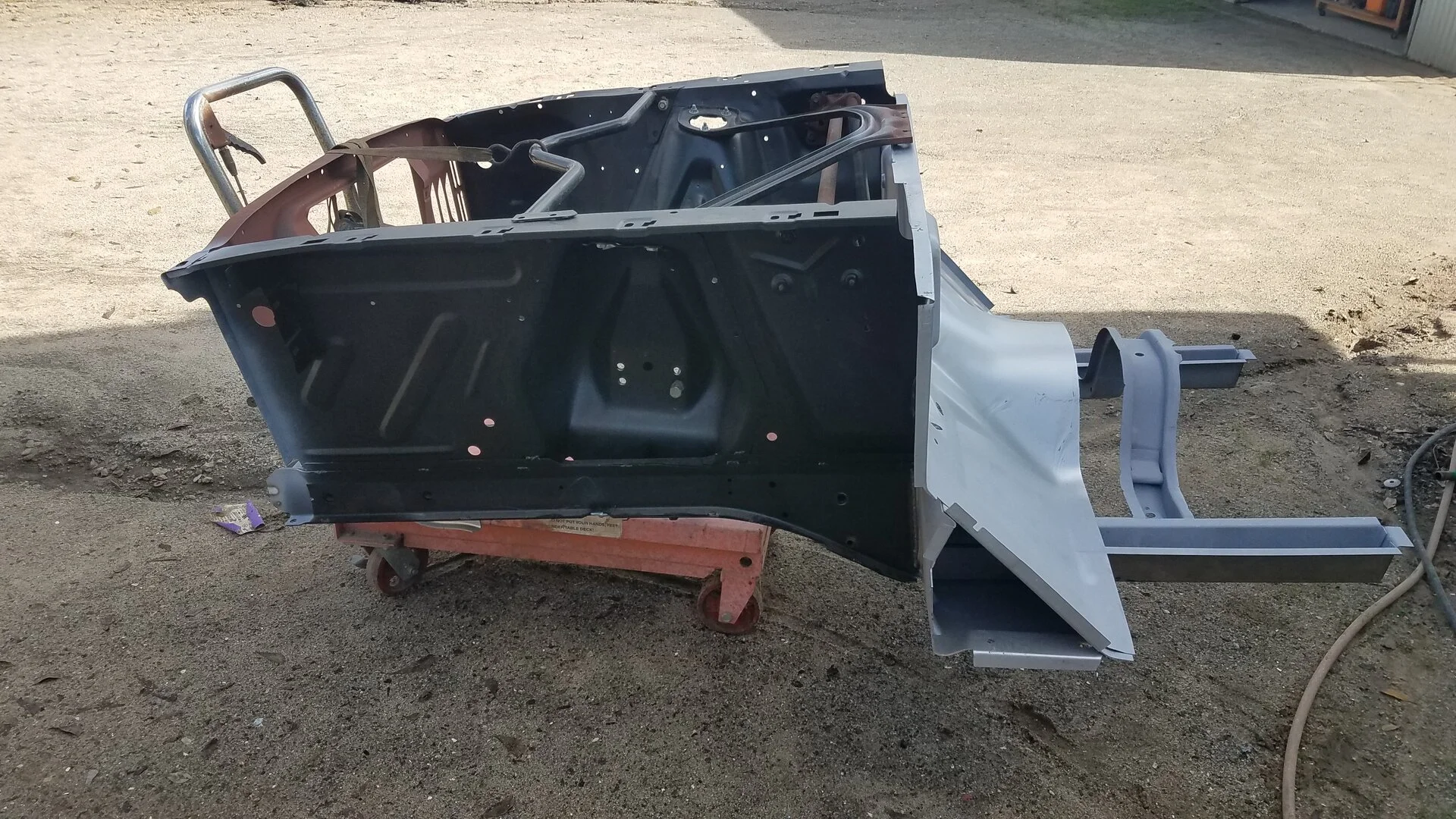

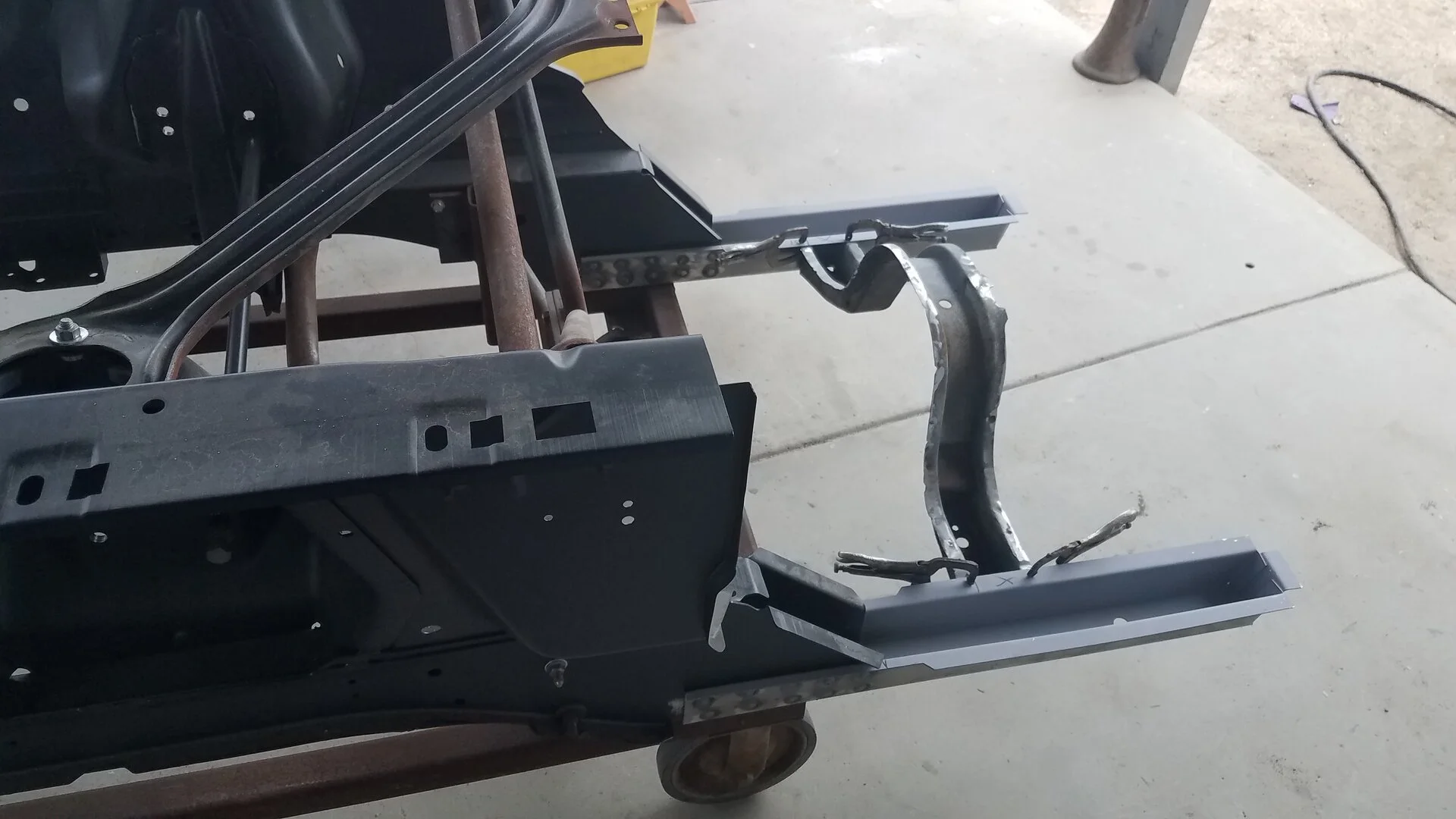

The fire wall is welded to the front clip ,didnt weld bad but could have been better looking .
It ground and a little primer over the bare metal so it doesnt rust up .

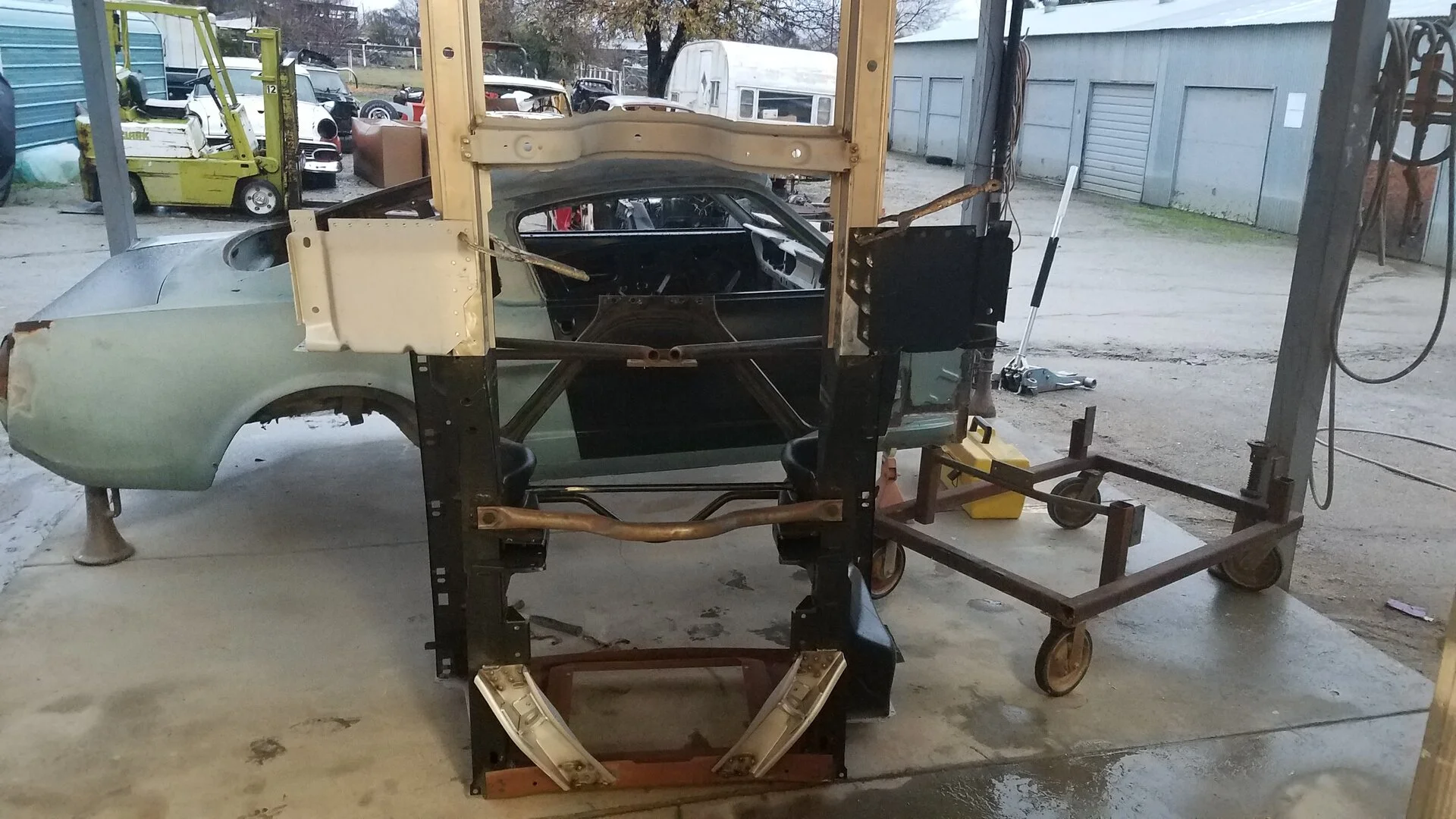

Now for the trick ,tab A into slot B ! I will be doing this all by my self so it should be lots of fun!

  • Like
Reactions: 1 users

horse sence

15 Year Member
Nov 29, 1999
10,509
5,762
233
Wile Coyote's stunt double
You have now entered the cussing zone ! Those faint of heart or with sensative hearing should run now!

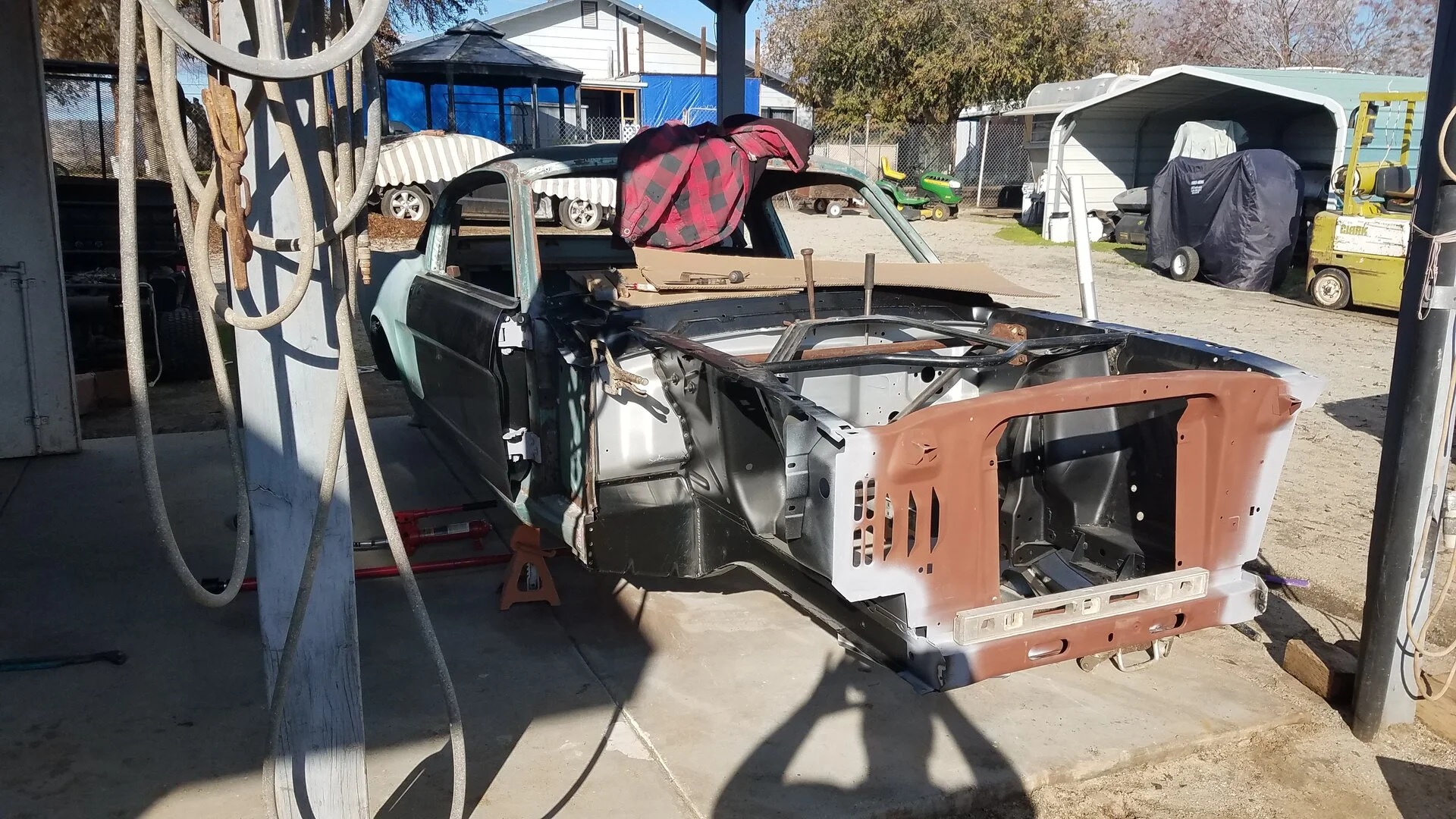

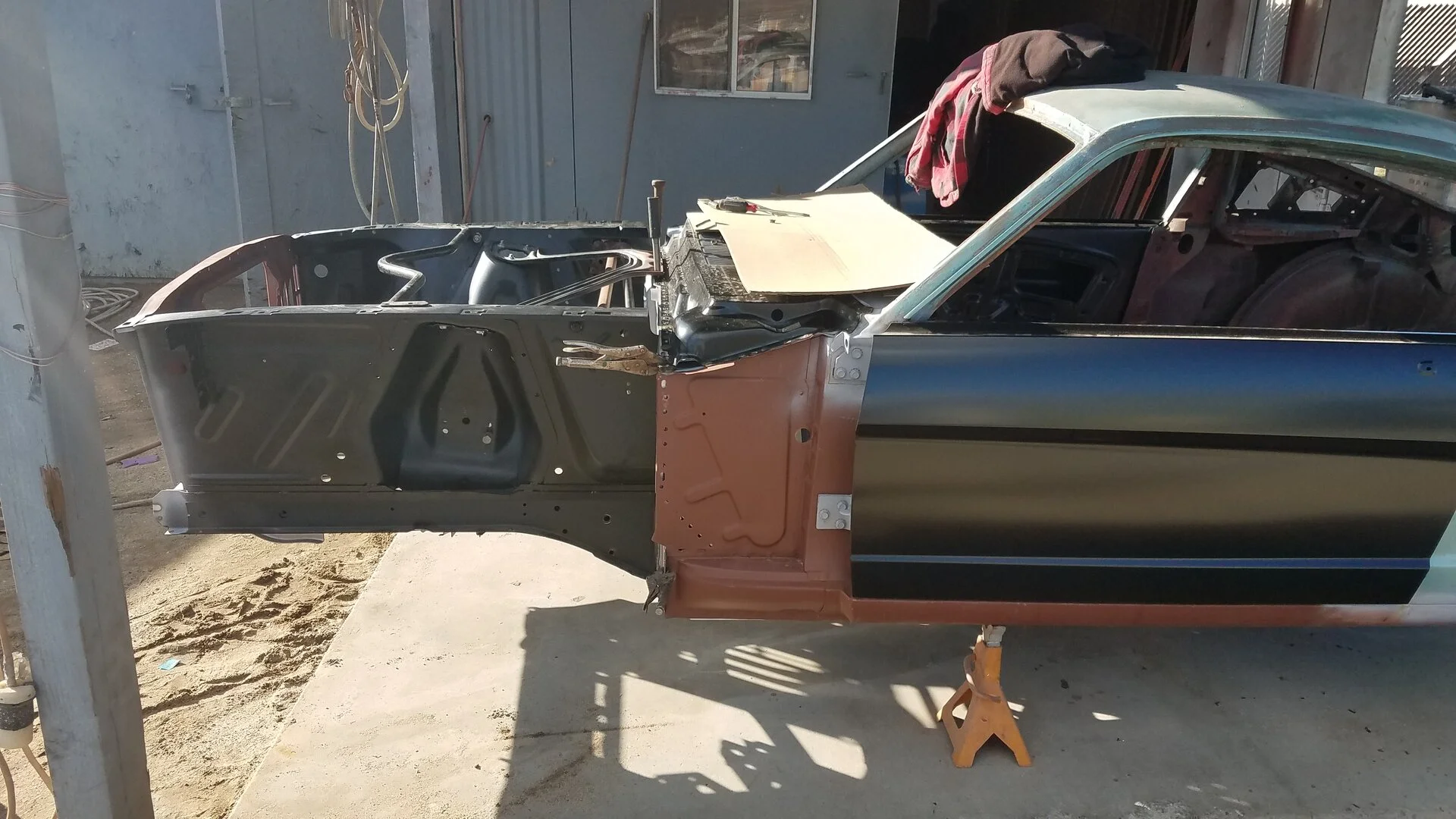

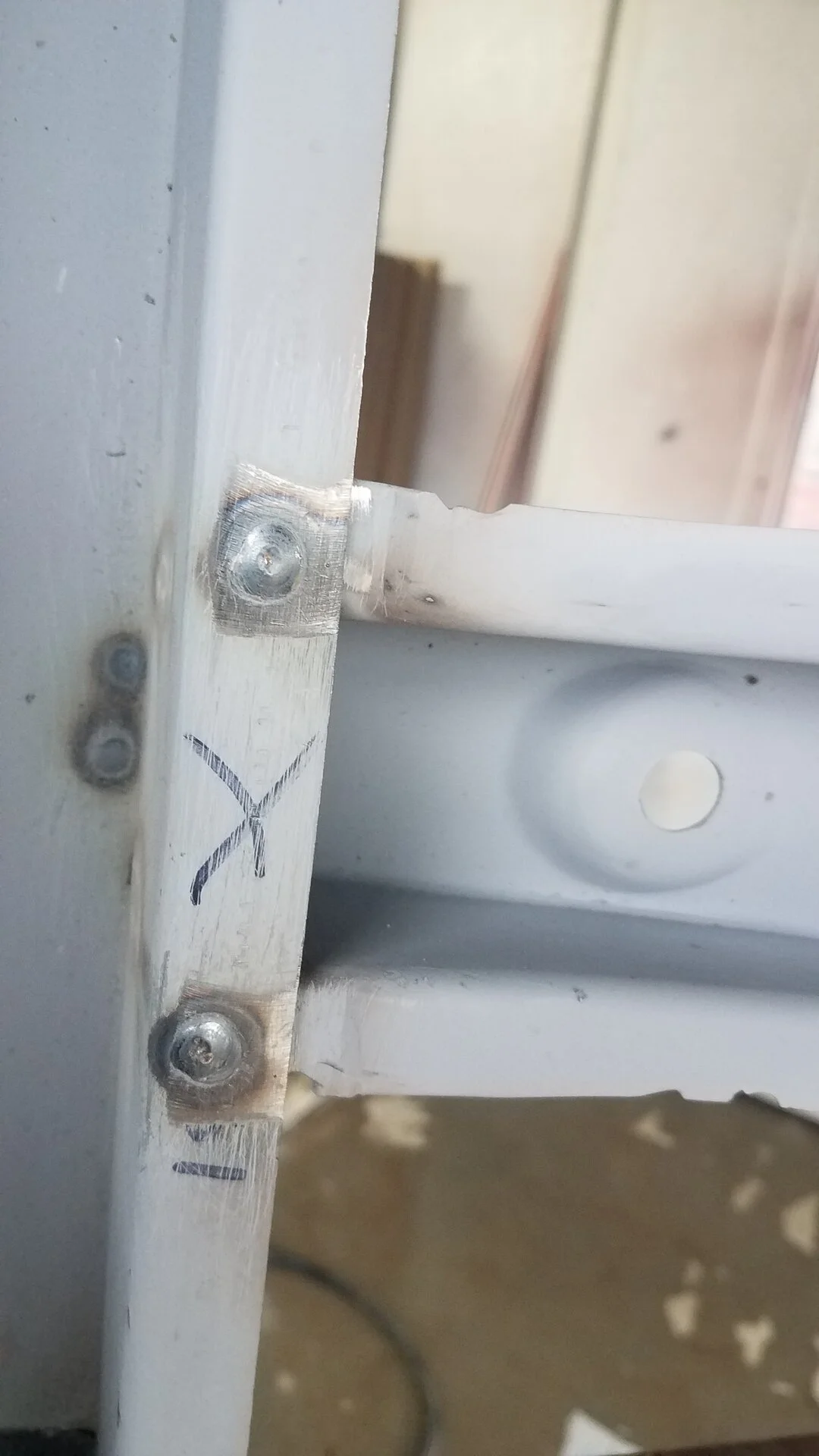

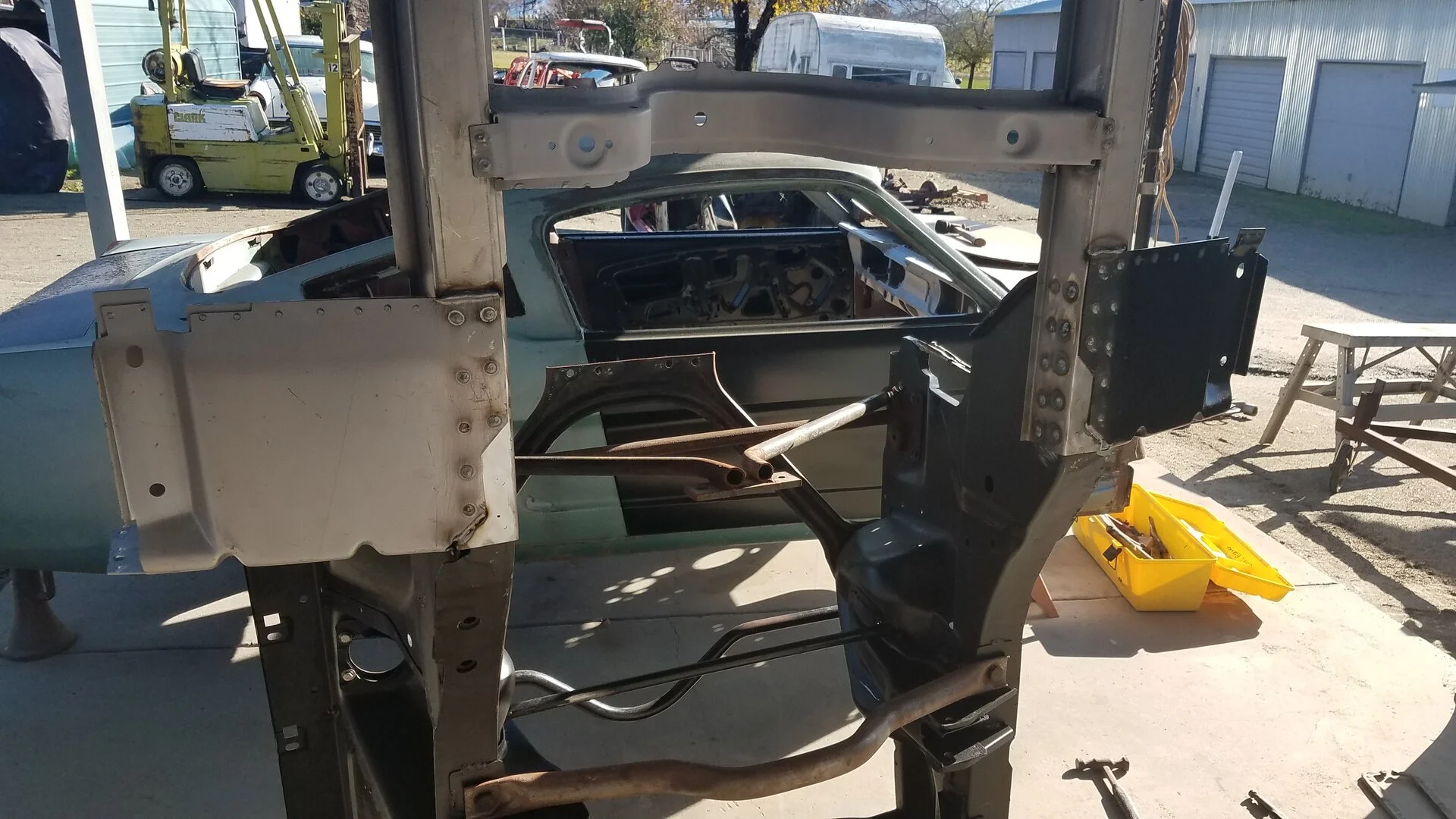

After about an hour of dragging jacking up and spreading the rails just enough to squeeze the clip in ,it is almost in place . I have to get it to go up 1/4 inch on passenger side with out knocking it of the stands ,i am surprised how well it is aligning all by my self .

  • Like
Reactions: 1 user

horse sence

15 Year Member
Nov 29, 1999
10,509
5,762
233
Wile Coyote's stunt double

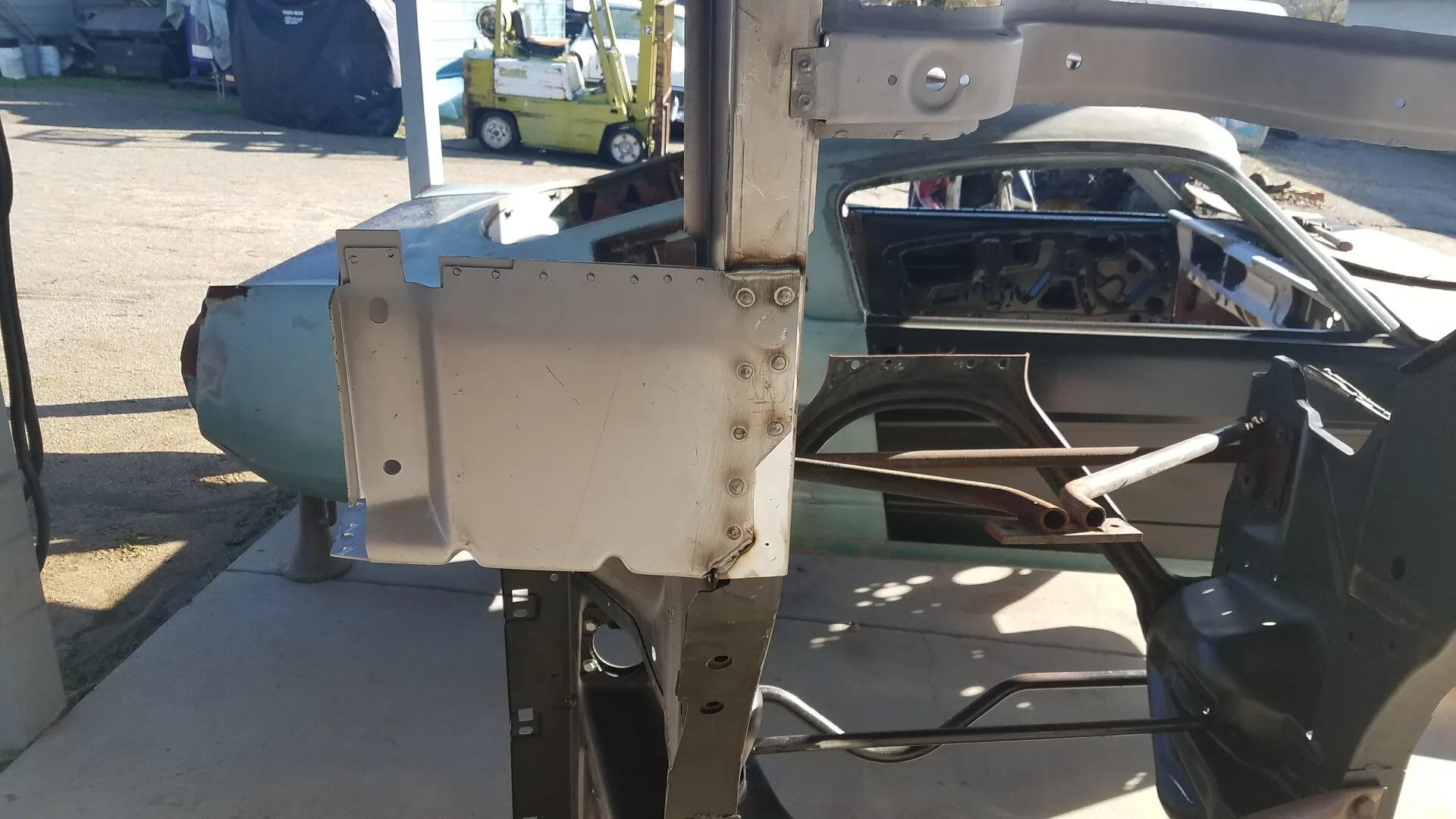

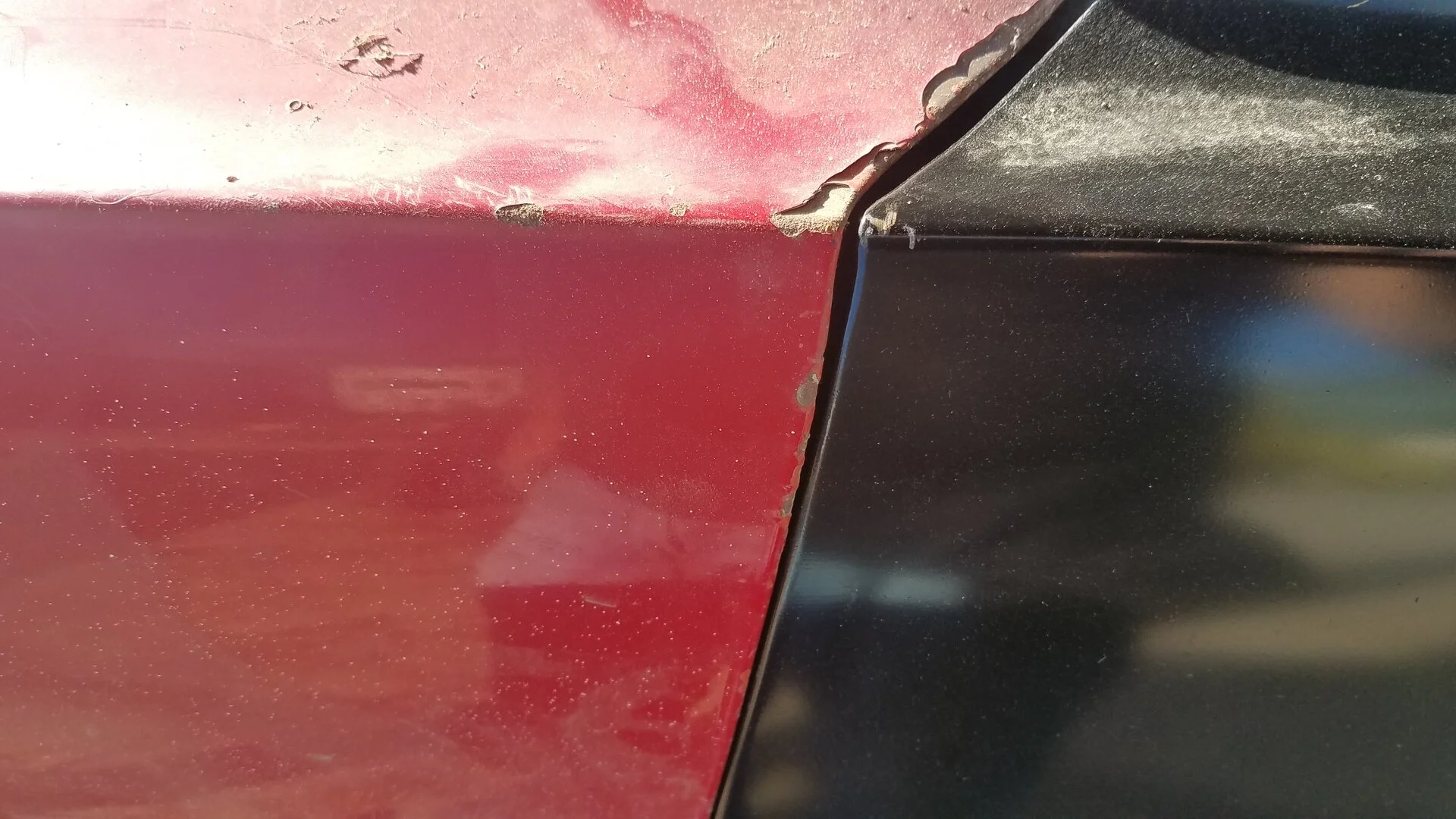

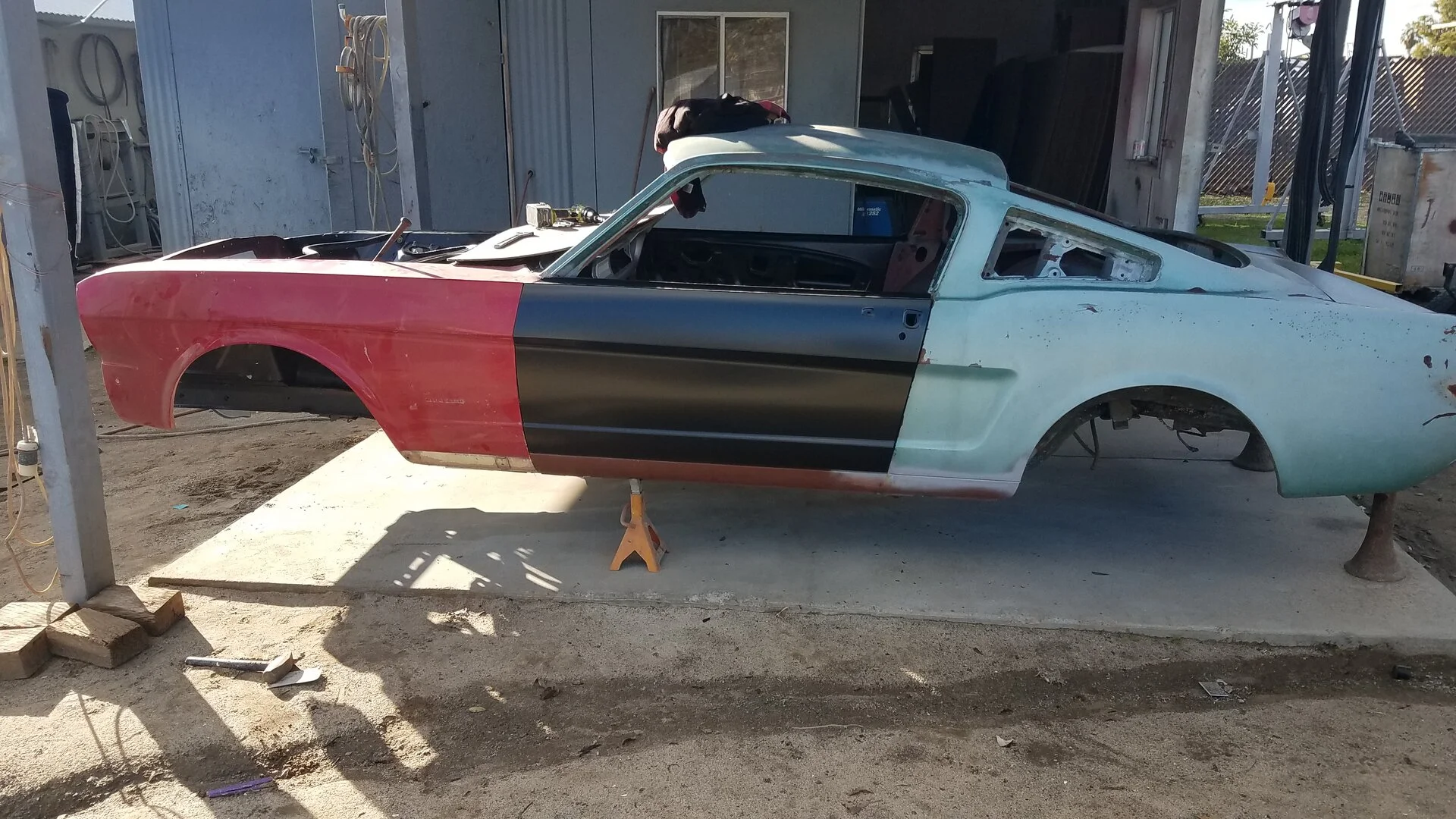

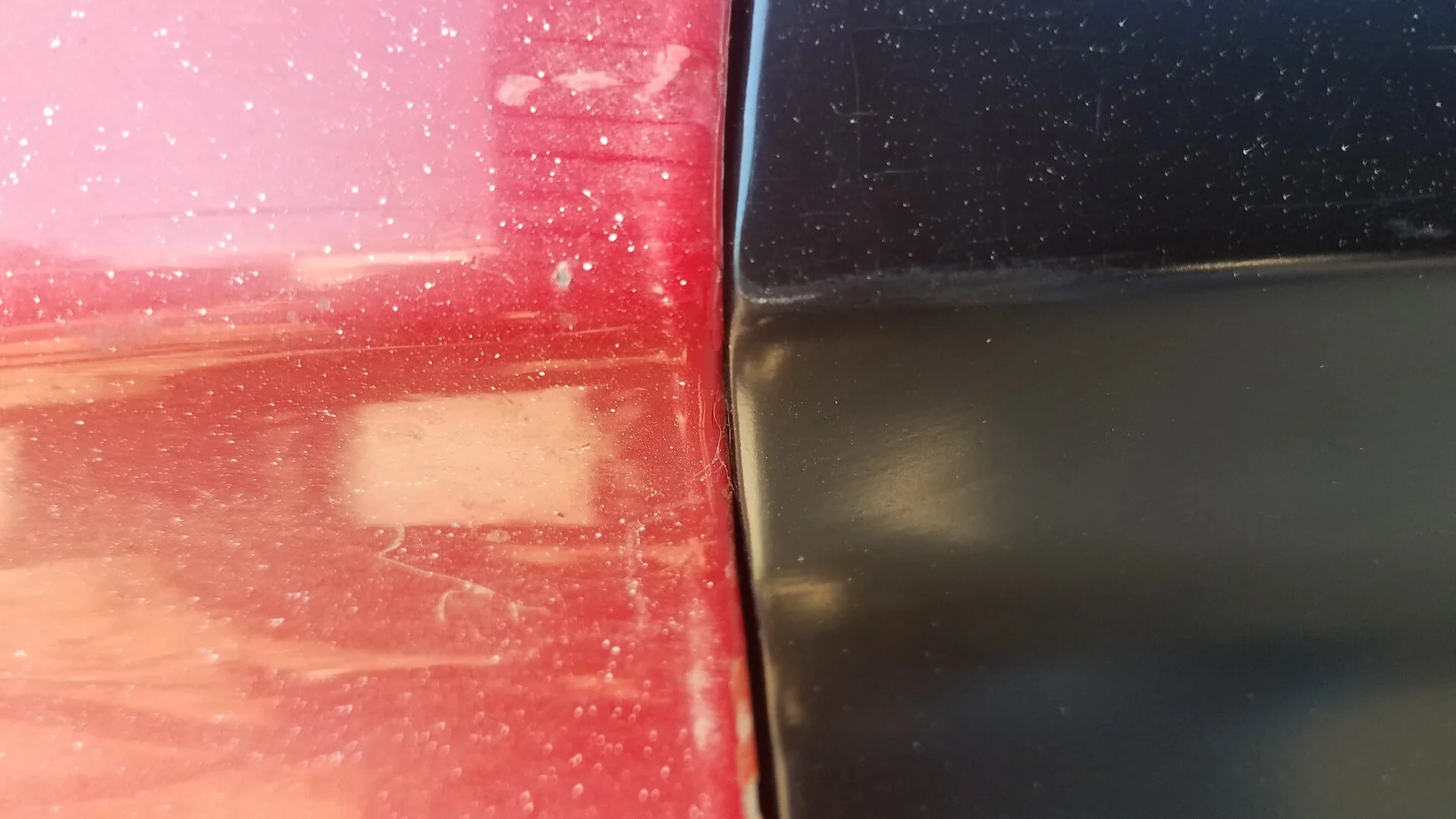

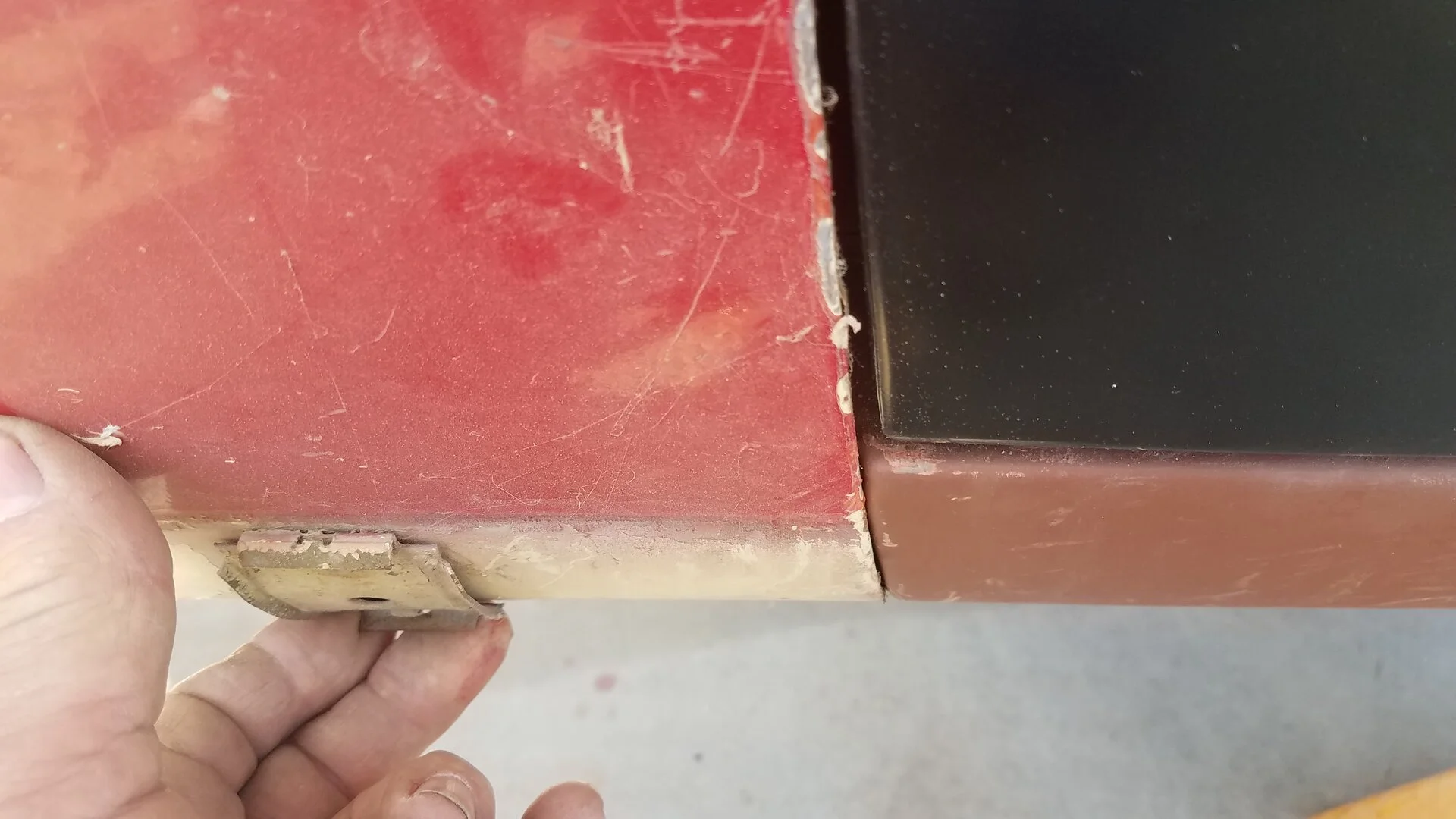

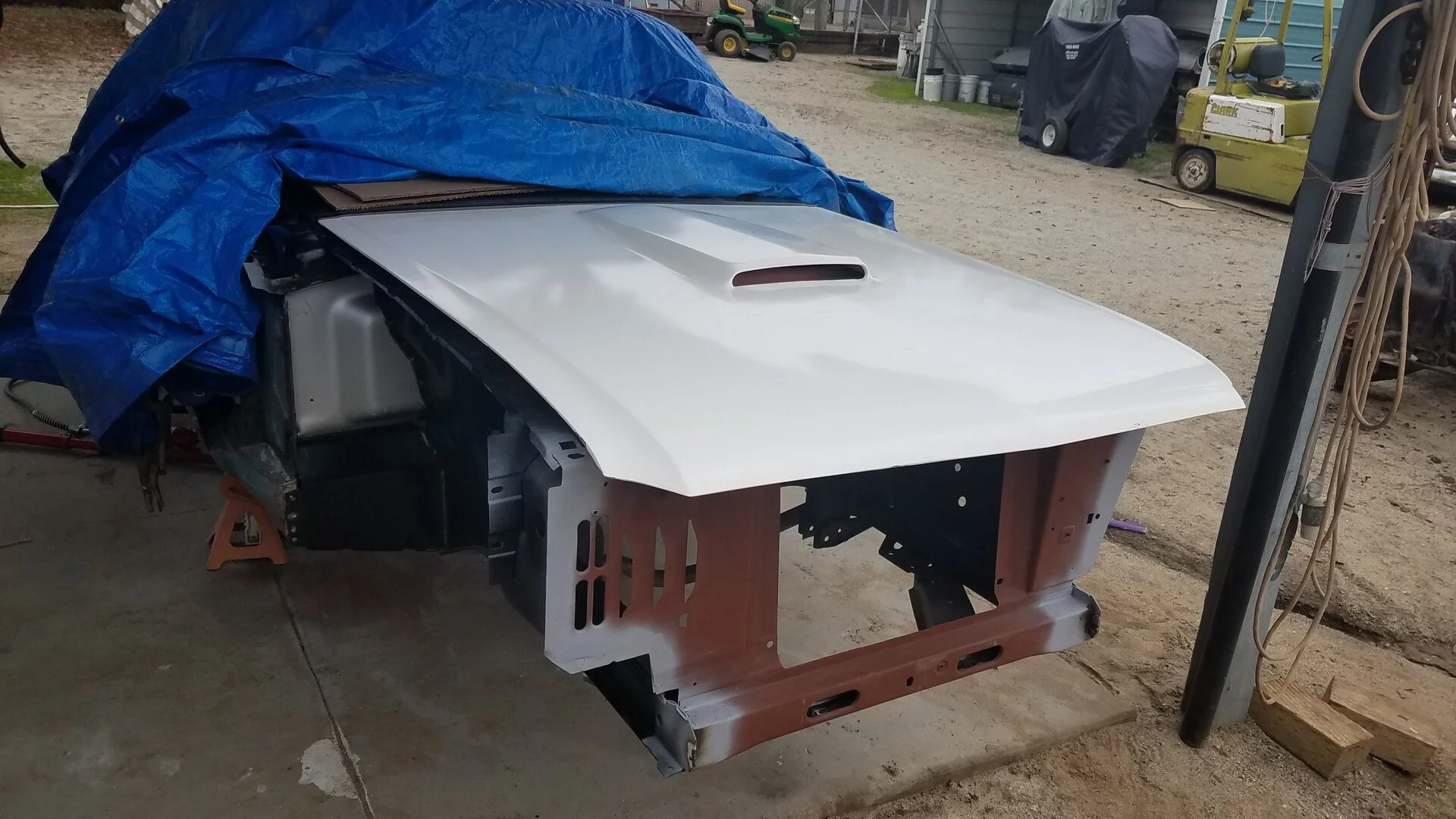

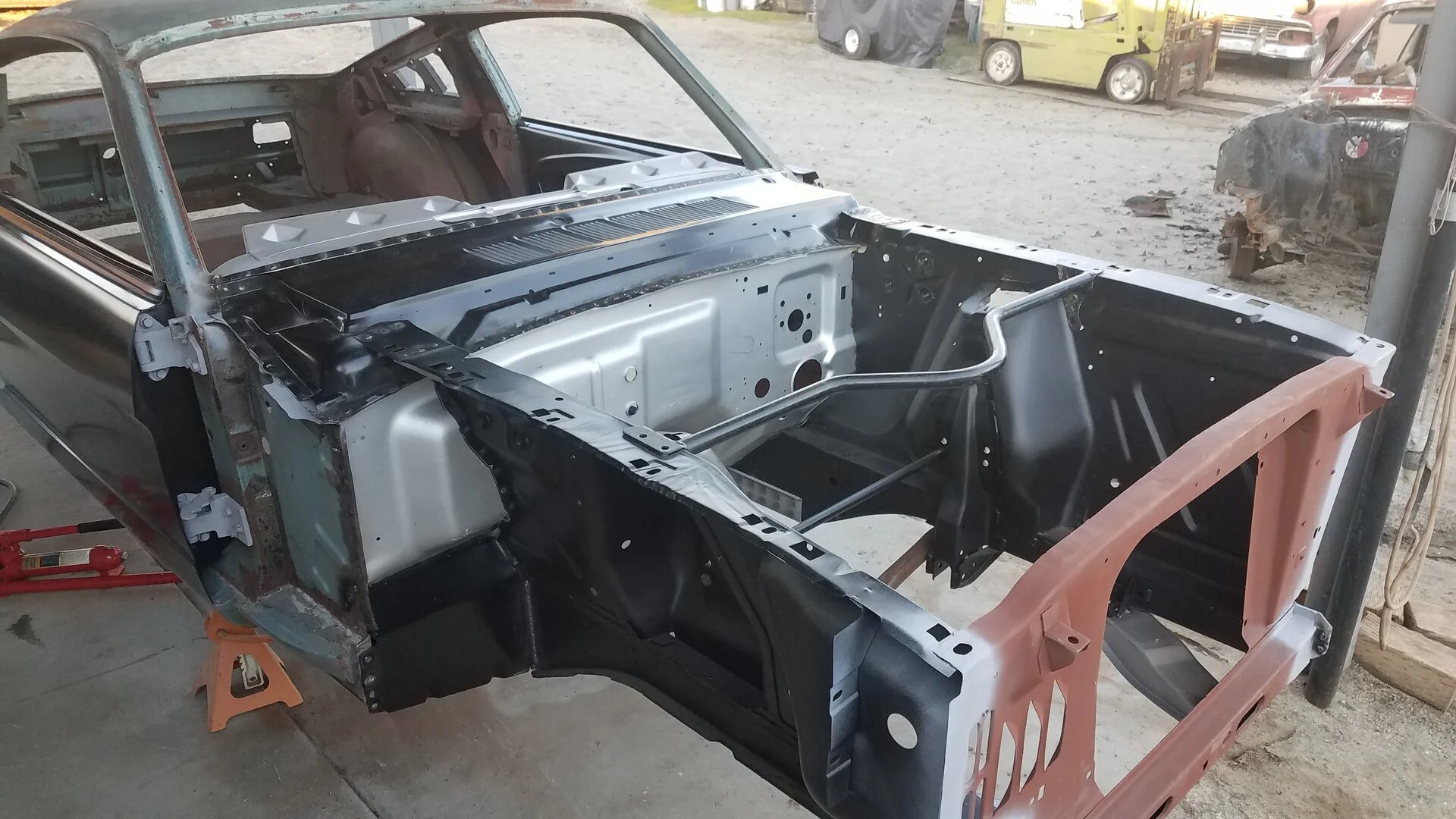

Beautiful ! It all lines up ! The top gap between the fender and driver door is good ,one point on the door will have to be ground down ,the passenger side fits just as well but i have to do a bit of work on the lip of the fender up against the cowl to make it pull up . Now for all the welding !
