a/c delete question (vac line)

[Deece]

I pulled most of my A/C off when the motor came out and am wondering if I can pull the vac line that goes into the firewall. I believe it controls the dampers on the A/C but am concerned if it also controls the heat. Anybody have any info on this? Its the small hard line that goes in near the glovebox, I believe it tees off the Tab/Tad selanoids.



[Deece]

Anyone?



[jrichker]

The vacuum lines also work the heat, vent and A/C (HVAC)

Diagram courtesy of Tmoss & Stang&2birds

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

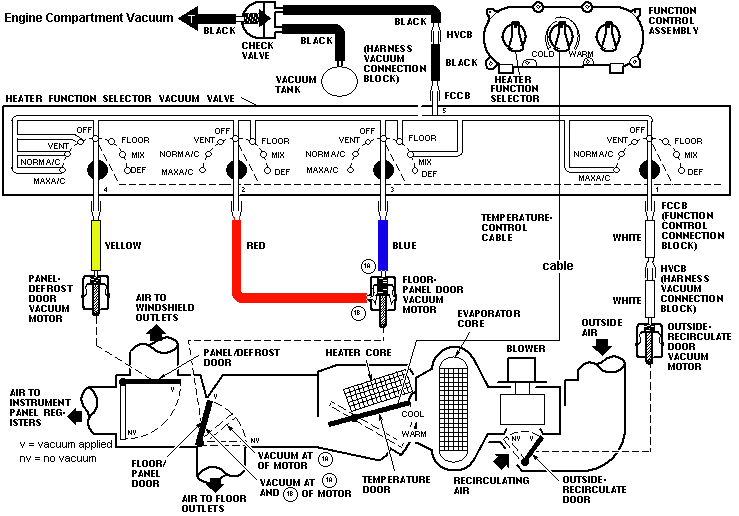

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif



[Deece]

Thanks thats what I was looking for, I saved almost all of the diagrams Too.
