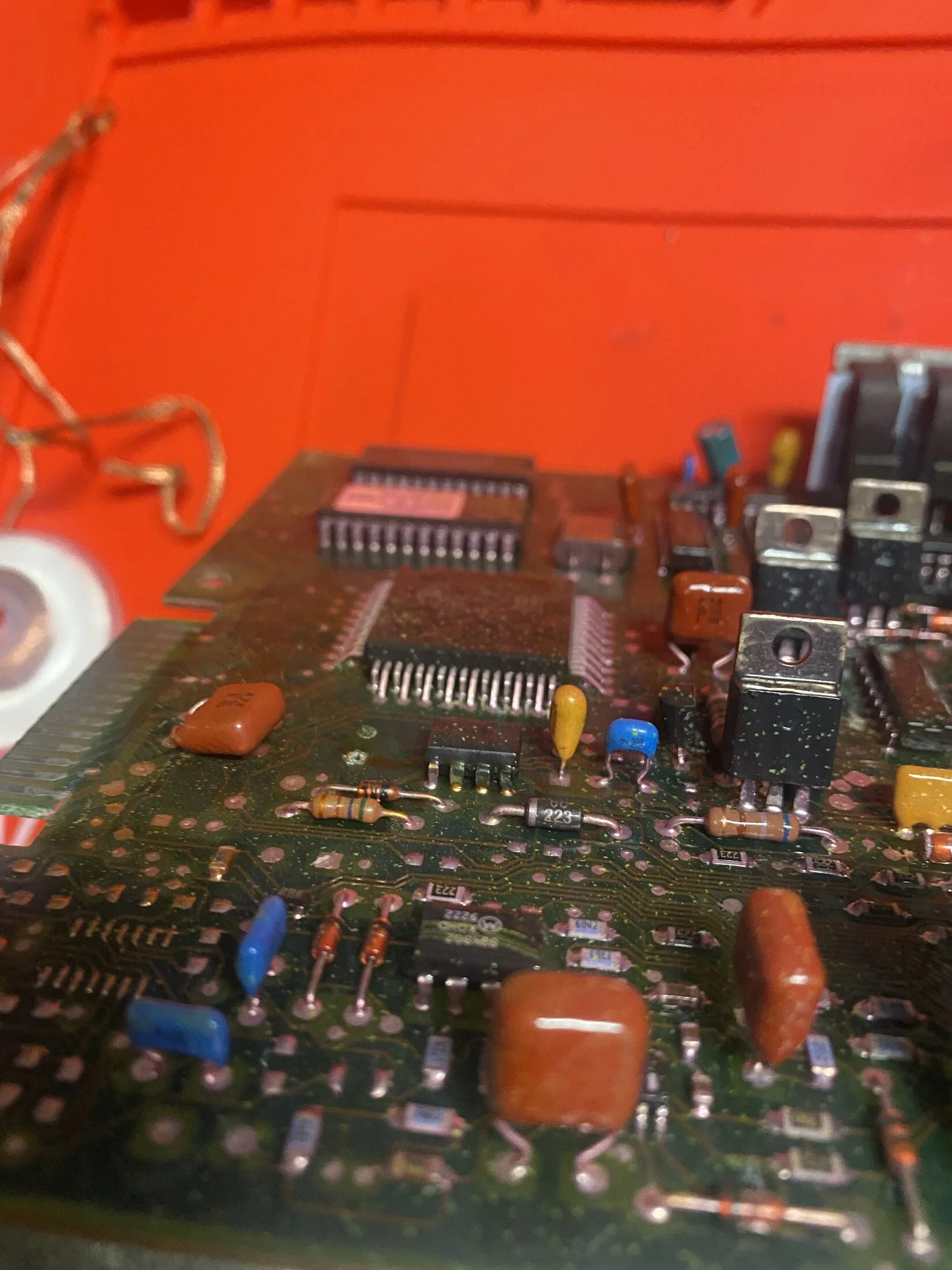

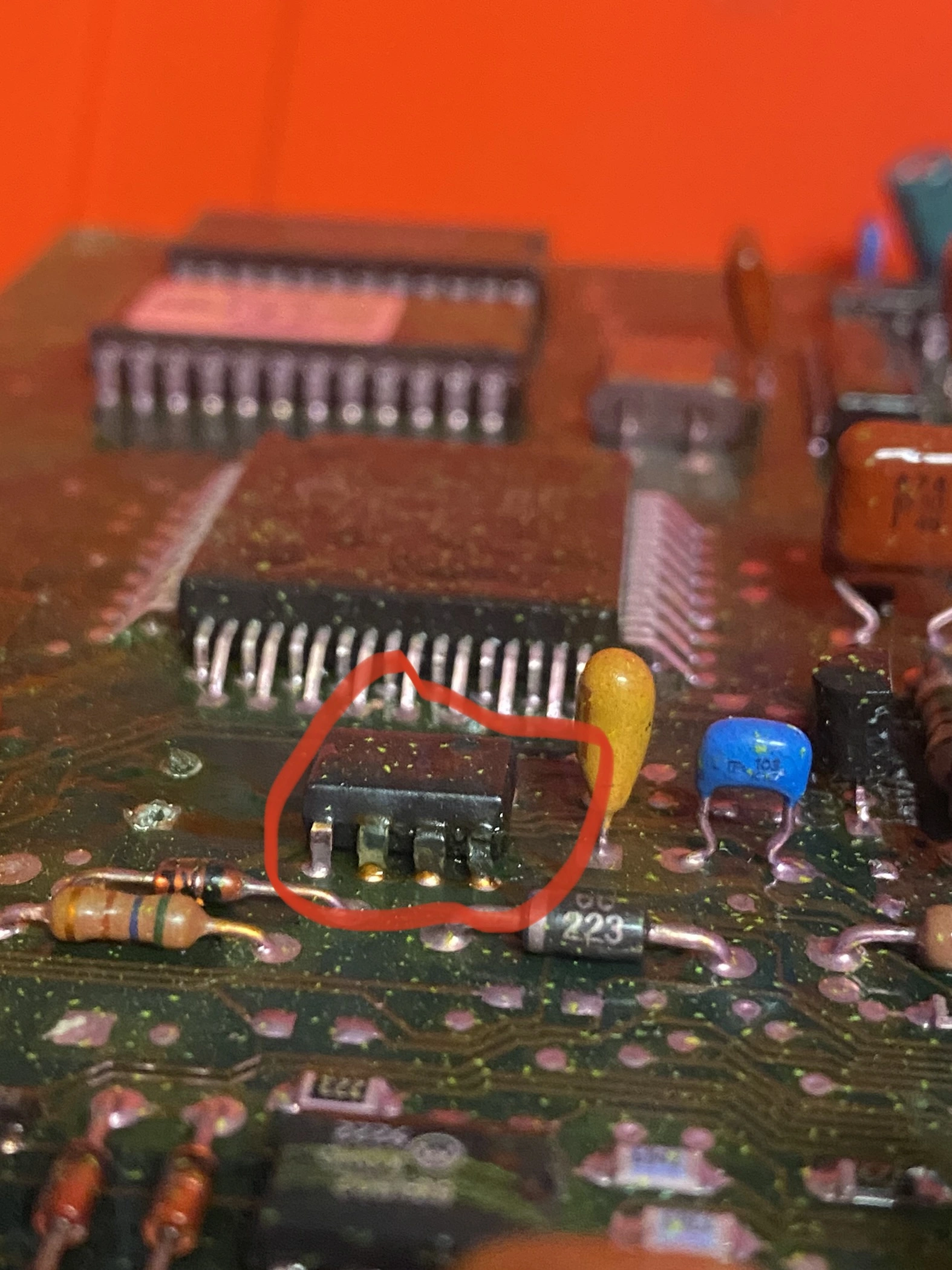

Was replacing capacitors and noticed a blown out leg on this 8 pin chip. Anyone know where I can get the correct replacement? I looked online and found 8 pin chips but not sure if I need a specific one with certain specs.



Attachments

• 33BC7BFE-17EC-4716-8751-DEABF8FFBFF3.webp

  275.4 KB · Views: 217
• 1AB32699-B18D-40CF-9BAD-63B536F62941.webp

  481.2 KB · Views: 202

Mustang5L5

That is…until I whipped out my Bissell

Mod Dude

Feb 18, 2001

43,268

17,955

224

Massachusetts

Jan 17, 2023

#2

• Jan 17, 2023

• #2

Looks like Texas Instruments 8-pin IC 190S06

I’ll have to look up the specs later on to see if there are modern equivalents



Last edited: Jul 10, 2024

Reactions: Shakerhood

rednotch

I'd like to remain having one chocolate starfish

Founding Member

Aug 14, 2000

1,402

630

143

south jersey

Jul 10, 2024

#3

• Jul 10, 2024

• #3

Anyone find a source or info on these, can't find them anywhere. 190S02 is common in truck ecu's but not sure if specs are compatible, though can still find stock of those



Mustang5L5

That is…until I whipped out my Bissell

Mod Dude

Feb 18, 2001

43,268

17,955

224

Massachusetts

Jul 10, 2024

#4

• Jul 10, 2024

• #4

It appears it's a custom TI part number, which means would have to find a spec sheet somehow and it's possible there is no commercially available replacement.

190S06 TI DIP8 IC from an A9P Mustang - Amplifiers forum - Amplifiers - TI E2E support forums

Good morning, Could you help me find a replacement part for a legacy 190S06 DIP8 Integrated Circuit from Texas Instruments? I haven't been able to find the

e2e.ti.com

I sent an inquiry a while back to TI but haven't heard anything back. I'll ping them again



rednotch

I'd like to remain having one chocolate starfish

Founding Member

Aug 14, 2000

1,402

630

143

south jersey

Jul 10, 2024

#5

• Jul 10, 2024

• #5

From what I can find its voltage regulator. 06 is TI sourced. 02 is Motorola. You can find the 190S06 but some dodgy ass non us sites. Motorola much easier to find just can't find data sheet. Guessing 6v max output voltage regulator for fords 5v reference signal so might work. Have to find a cheap burned up one to try.

Seeing more of these fail being posted online.



Noobz347

Stangnet Facilities Maint Tech... Er... Janitor

Admin Dude

Jan 4, 1985

43,212

21,393

234

Box behind Walmart

Jul 10, 2024

#6

• Jul 10, 2024

• #6

Ford Mustang 5.0 A9L A9P C3W A3M X3Z ECU Repair Service

Ford Mustang 5.0 A9L A9P C3W A3M X3Z ECUEngine Computer Repair ServicePlease fill out the R&R form here once you've placed your order.A Trusted Product with LIFETIME WARRANTY QUICK TURN AROUND TIMEDomestic and International Shipping available! Our Team is Available Monday - Friday 9am to 5pm...

www.theecuexchange.com



Reactions: Mindseye007 and General karthief

rednotch

I'd like to remain having one chocolate starfish

Founding Member

Aug 14, 2000

1,402

630

143

south jersey

Jul 10, 2024

#7

• Jul 10, 2024

• #7

A9l from another thread with the Motorola chip.... But looks like someone was dicking around in that one, time to scroll.

Electrical - Ecu not sure a9l crank no start

Still getting crank no start took ecu to altex guy told me it had a hole in the circuit board,funny thing is I don’t remember putting that hole in there and no one has worked on my car and my car was running so do any of you’ll know if “other” then the hole do you think any of these other...

stangnet.com



Reactions: General karthief

Mustang5L5

That is…until I whipped out my Bissell

Mod Dude

Feb 18, 2001

43,268

17,955

224

Massachusetts

Jul 10, 2024

#8

• Jul 10, 2024

• #8

Looks like ford shopped multiple vendors. Some are Motorola, and some are Texas Instruments (post #2)

Let me see if Motorola has any info.



2000xp8

SN Certified Technician

Aug 8, 2003

8,039

1,625

194

NJ

Jul 10, 2024

#9

• Jul 10, 2024

• #9

Noobz347 said:

Ford Mustang 5.0 A9L A9P C3W A3M X3Z ECU Repair Service

Ford Mustang 5.0 A9L A9P C3W A3M X3Z ECUEngine Computer Repair ServicePlease fill out the R&R form here once you've placed your order.A Trusted Product with LIFETIME WARRANTY QUICK TURN AROUND TIMEDomestic and International Shipping available! Our Team is Available Monday - Friday 9am to 5pm...

www.theecuexchange.com

Click to expand...

First let me say, that's a pretty fair cost for the repair.
But even if the computer passes the tests they should know what the common failure points are and just fix them.
I deal with a lot of circuit boards for other hobbies and pretty much all of them can get some preventive maintenance.
At a minimum the caps should be replaced. But i'm sure they know other issues they can stop before they happen.
If i were to send one there, just bill me the whole $150 and do the caps.



Noobz347

Stangnet Facilities Maint Tech... Er... Janitor

Admin Dude

Jan 4, 1985

43,212

21,393

234

Box behind Walmart

Jul 10, 2024

#10

• Jul 10, 2024

• #10

2000xp8 said:

First let me say, that's a pretty fair cost for the repair.
But even if the computer passes the tests they should know what the common failure points are and just fix them.
I deal with a lot of circuit boards for other hobbies and pretty much all of them can get some preventive maintenance.
At a minimum the caps should be replaced. But i'm sure they know other issues they can stop before they happen.
If i were to send one there, just bill me the whole $150 and do the caps.

Click to expand...

Somewhere around here, there is a feedback thread for this service. I couldn't find it.

If anybody see it, post a link here.

IIRC, it had pictures. Everything was shiny new looking.



rednotch

I'd like to remain having one chocolate starfish

Founding Member

Aug 14, 2000

1,402

630

143

south jersey

Jul 10, 2024

#11

• Jul 10, 2024

• #11

Mustang5L5 said:

Looks like ford shopped multiple vendors. Some are Motorola, and some are Texas Instruments (post #2)

Let me see if Motorola has any info.

Click to expand...

Click to expand...

Looked at the pics in that post a little closer, Its a reman. with a board swap not from a mustang, I know what its from but with flippers asking dumb money and hoarding ecu's rather not list what cars have them in a thread. I've seen that board used on few reman a9l/ a9p parts numbers before from both cardone and bse.

Here's one from bse with there em073 a9l part number. Look by the heat sinks, notice the extra components by the cap.



Attachments

• IMG_0681.webp

  32.8 KB · Views: 134

Last edited: Jul 11, 2024
