Alarm Wiring Help Needed

[JKnight79]

Anyone have any experience wiring up aftermarket alarms? I've got a 95 GT and I am installing a Viper 3305v alarm. I need some help with finding the wire to tie into the starter kill, door locks and truck release. I have power locks but no keyless entry. Any help is appreciated!



[jrichker]

Best bet is a Mustang EVTM (Electrical & Vacuum Troubleshooting Manual) for $21 + shipping. It will be worth every penny; it will save you hours of frustration and sweat.

See http://www.helminc.com/helm/product...m=result&Style=helm&Sku=FCS1212195&itemtype=N



[RaggedGT]

What he said ^^
Most aggravating mod I've ever messed with was adding a remote start/alarm to mine-then I decided I wanted to add the window Up/Down function after two days of wiring the alarm/remote start lol.. I wish I could be more help but using good wiring diagrams will make it easier.. Use butt connectors and quick splice connectors,heat shrink any splices,do one wire at a time and take your time

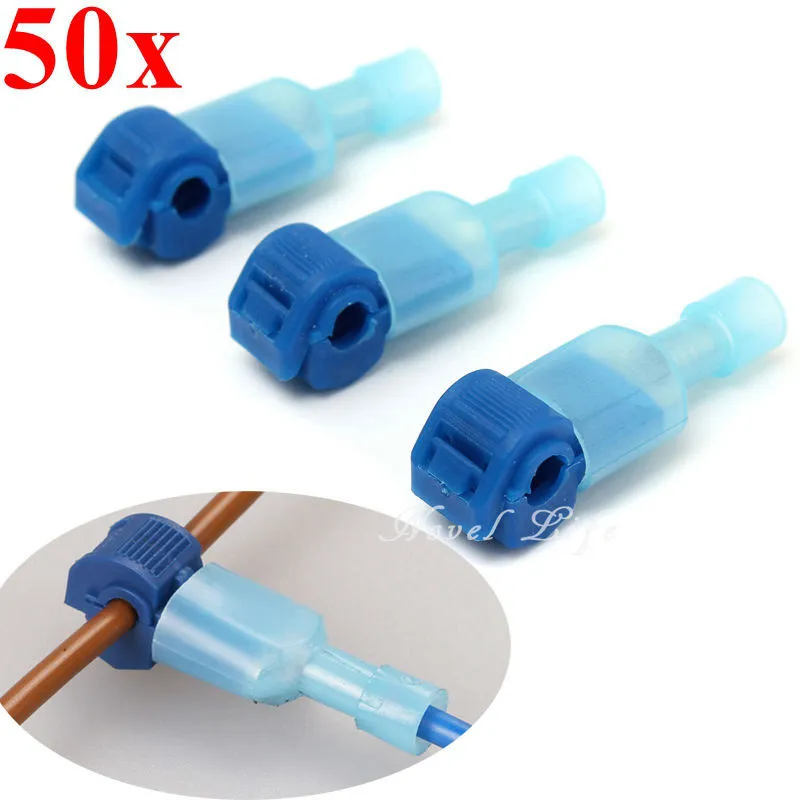

These are Awesome for tapping wires

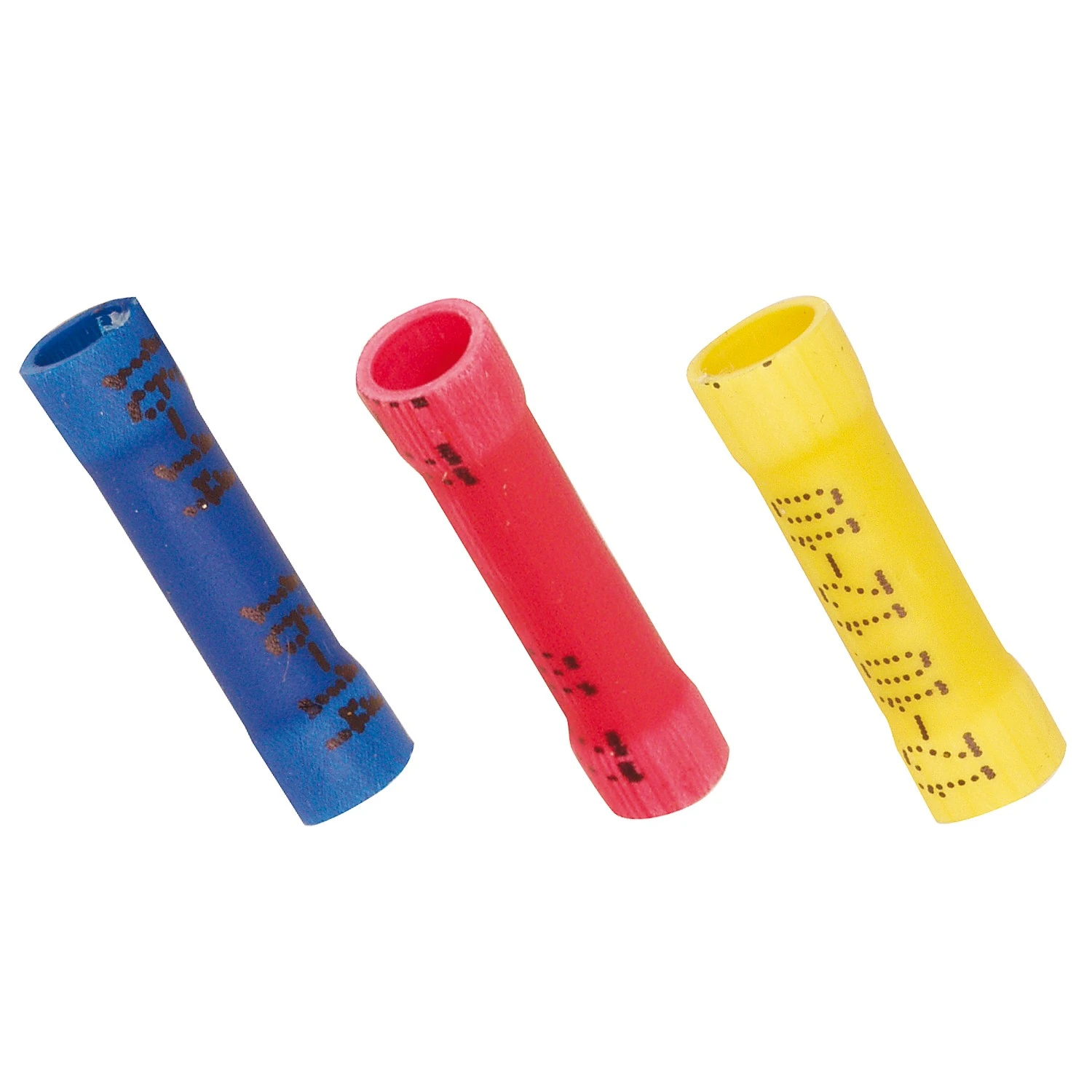

Butt Connectors

These are also good



[JKnight79]

What he said ^^
Most aggravating mod I've ever messed with was adding a remote start/alarm to mine-then I decided I wanted to add the window Up/Down function after two days of wiring the alarm/remote start lol.. I wish I could be more help but using good wiring diagrams will make it easier.. Use butt connectors and quick splice connectors,heat shrink any splices,do one wire at a time and take your time

These are Awesome for tapping wires

Butt Connectors

These are also good

Did you have to add relays for the window roll down?



[JKnight79]

Best bet is a Mustang EVTM (Electrical & Vacuum Troubleshooting Manual) for $21 + shipping. It will be worth every penny; it will save you hours of frustration and sweat.

See http://www.helminc.com/helm/product2.asp?Make=FRD&Model=MUST&Year=1995&Category=&class_2=FRD&mk=Ford&yr=1995&md=Mustang&dt=&module=&from=result&Style=helm&Sku=FCS1212195&itemtype=N

Thanks bro I need one of these anyway.



[RaggedGT]

Did you have to add relays for the window roll down?

Yes, the Remote start/alarm kit I used had the provisions for it.
