Battery Wire Location?

Max22

Member
Jul 1, 2015
119
3
18

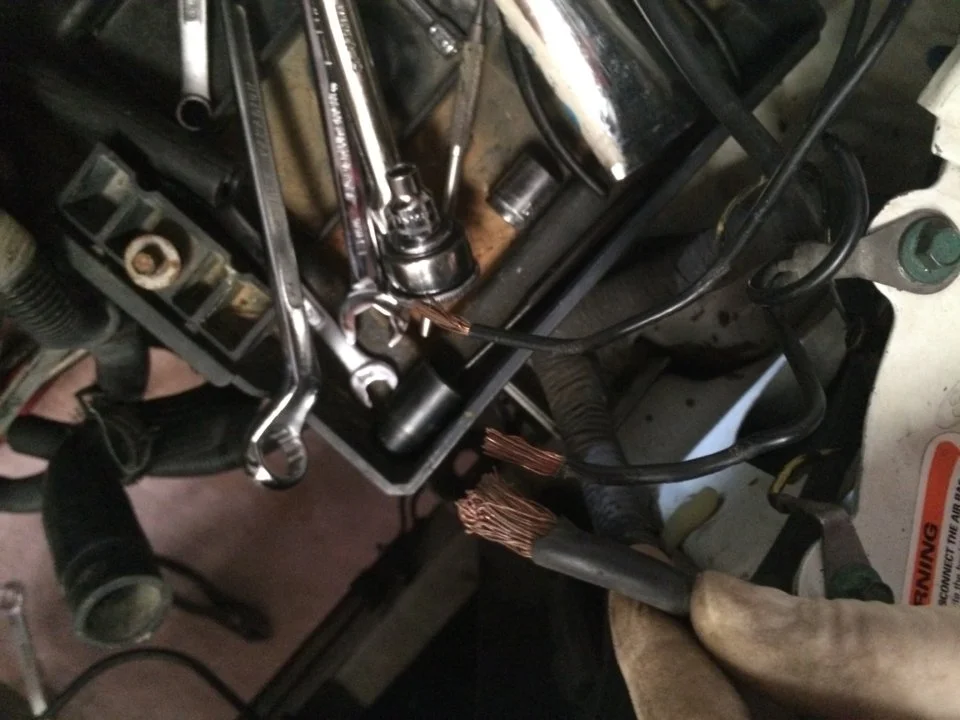

I'm putting my 96 Gt back together after a long project and I think I have the battery wires figured out but thought I'd double check on the negative side. Do all three of these wires go together on the negative terminal? I was trying to find a photo to double check with but couldn't find one with all three of those wires going on one terminal. They're all bent as if they were that way originally so it would make sense but I never just go with "it makes sense" when it comes to wiring.
