Belt tensioner setup 1992 fox body

Swhitney

Member
Feb 11, 2019
9
1
13
Oregon City
I have been running a ghetto belt tension setup for some time now. I finally got a wild hair to fix the problem, but need some advice with part numbers to fix the problem.

1992 Mustang 5.0 with no power steering, AC, or smog pump. The correct belt tensioner broke a long time ago and I have no idea which one was the correct one for this setup. I threw the stock one on with some convincing which is functional, but there is no give in the belt and has caused extra wear on the alternator bearing.

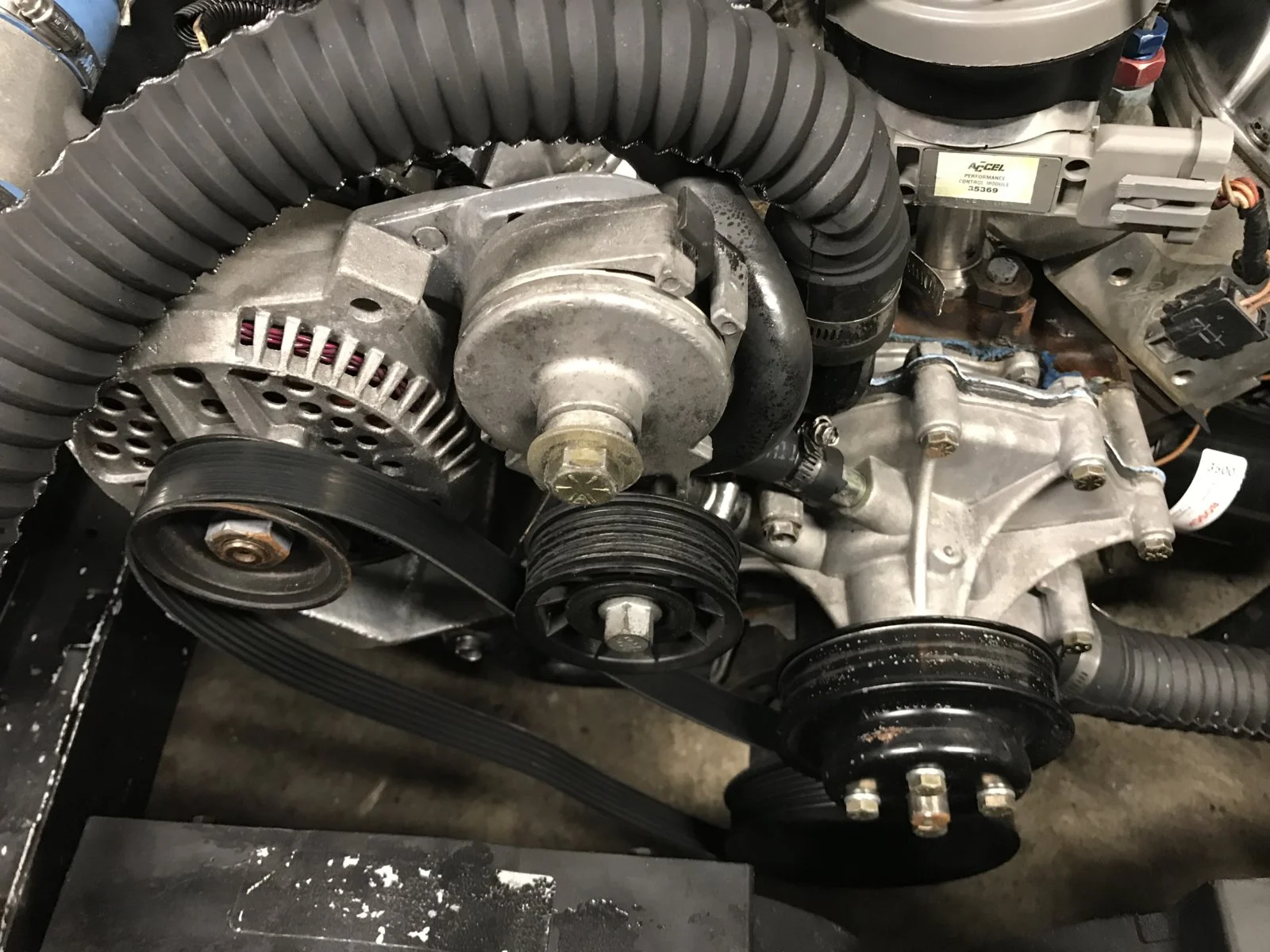

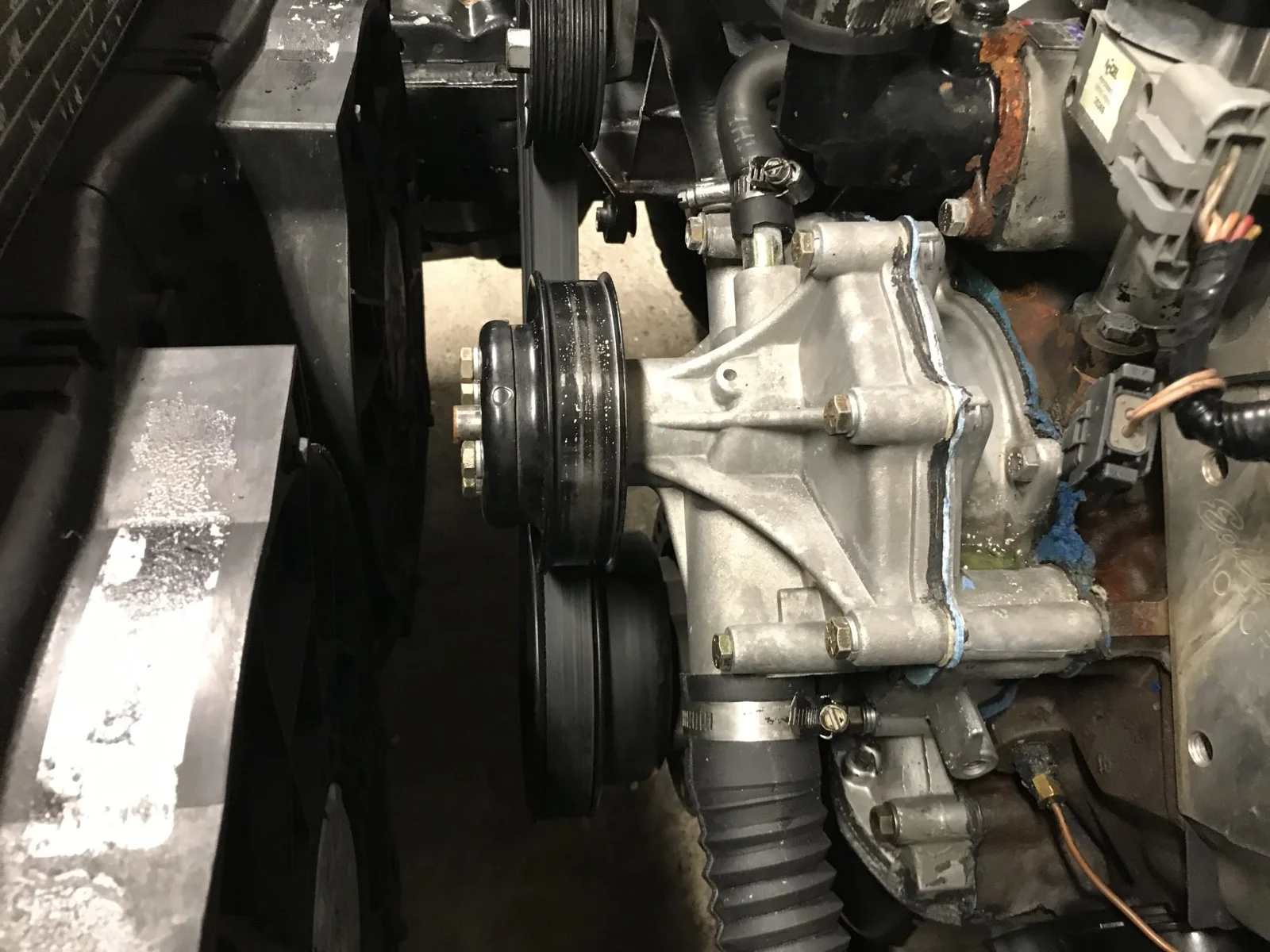

See attached photos for reference.


Attachments

  • Sponsors(?)


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
16,388
5,227
193
polk county florida
Those hoses are cheap 'one size fits a bunch of stuff' and don't last for crap, they look cheezy too, but then you're planning on replacing them when you fix the coolant leak. Right?


Swhitney

Member
Feb 11, 2019
9
1
13
Oregon City
That is the stock belt tensioner but because the car is missing a bunch of accessory’s it required a different routing style.
I plan on replacing the a few things on the front of the engine and cleaning her up.

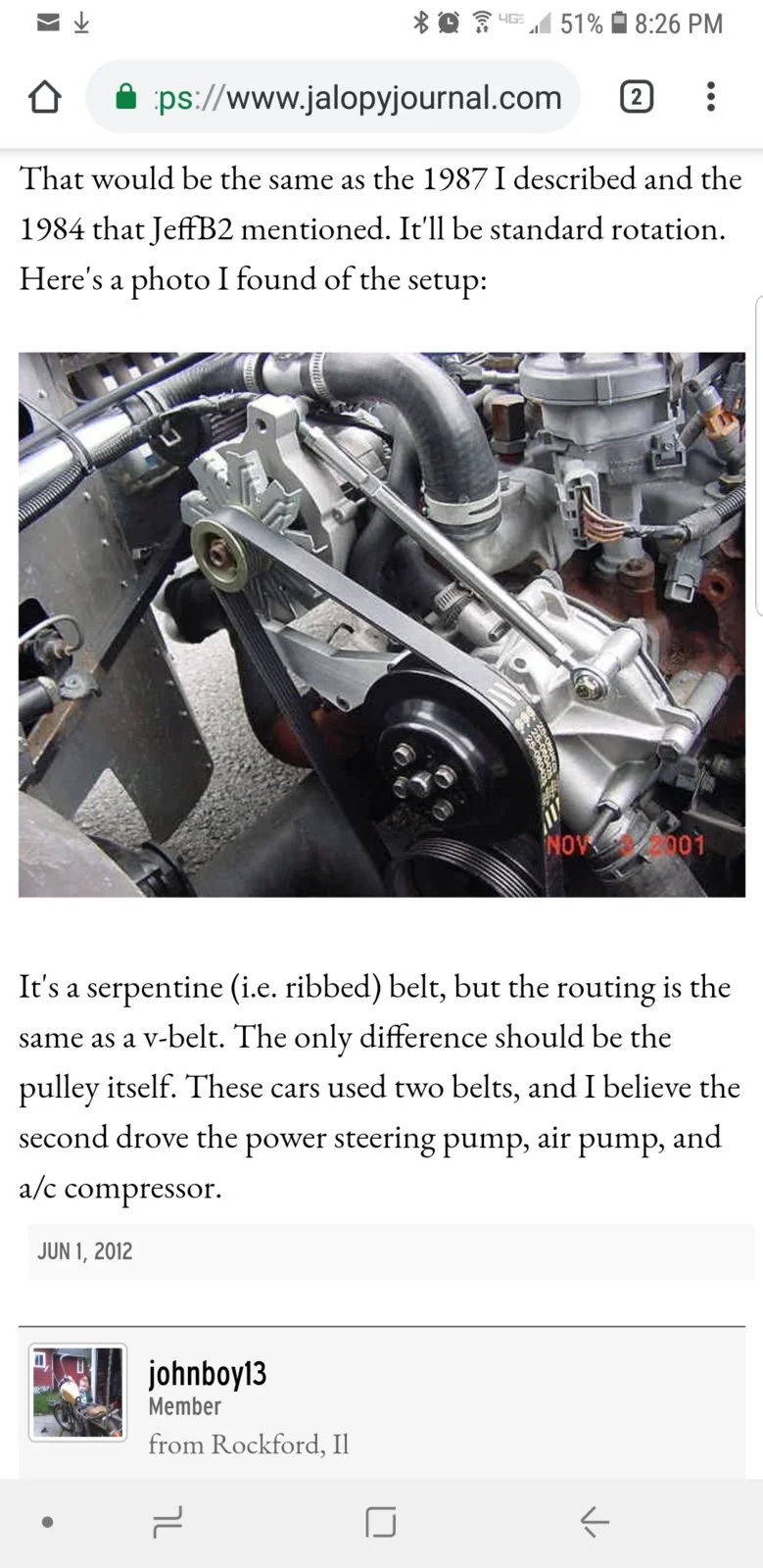

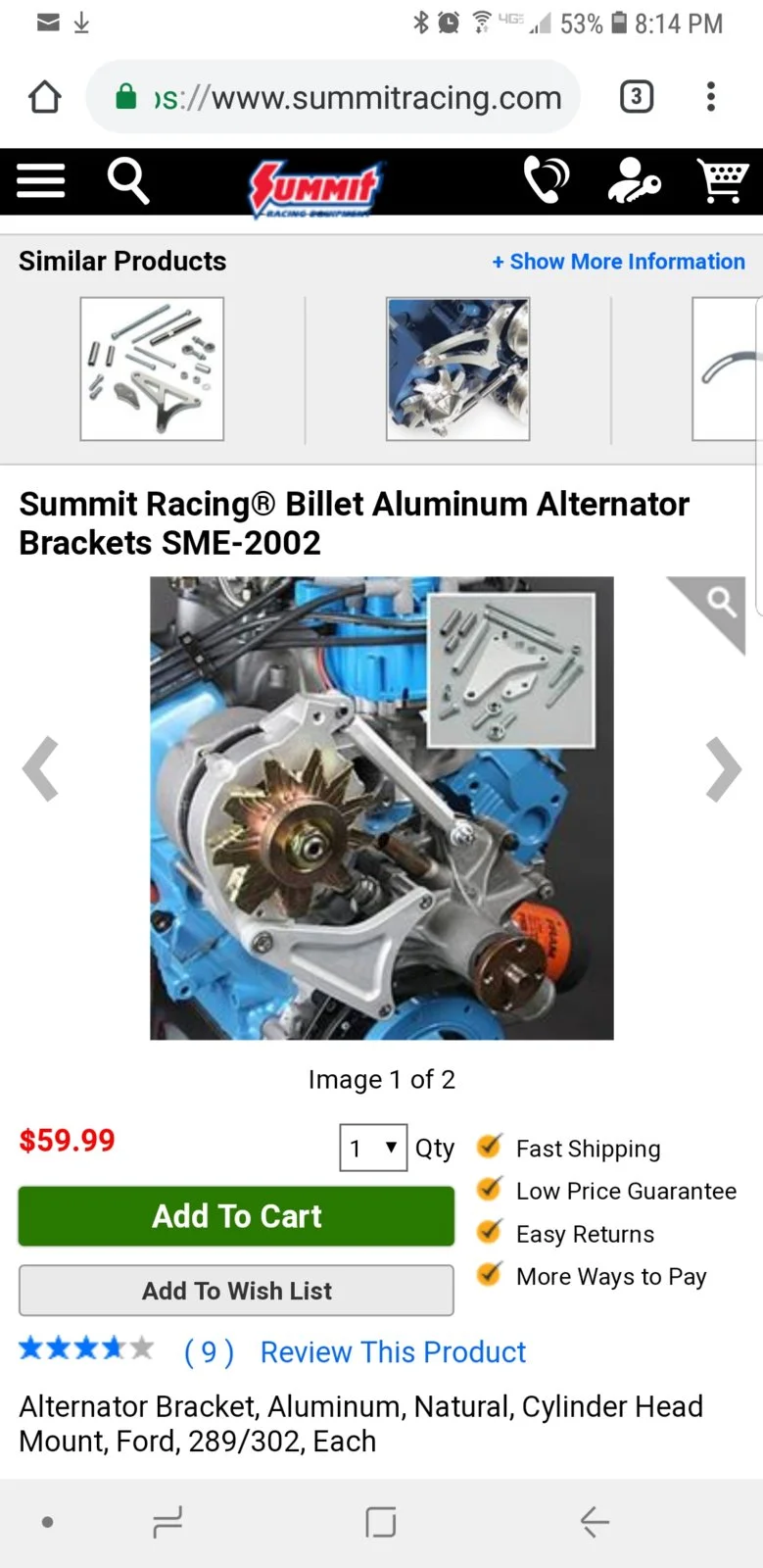

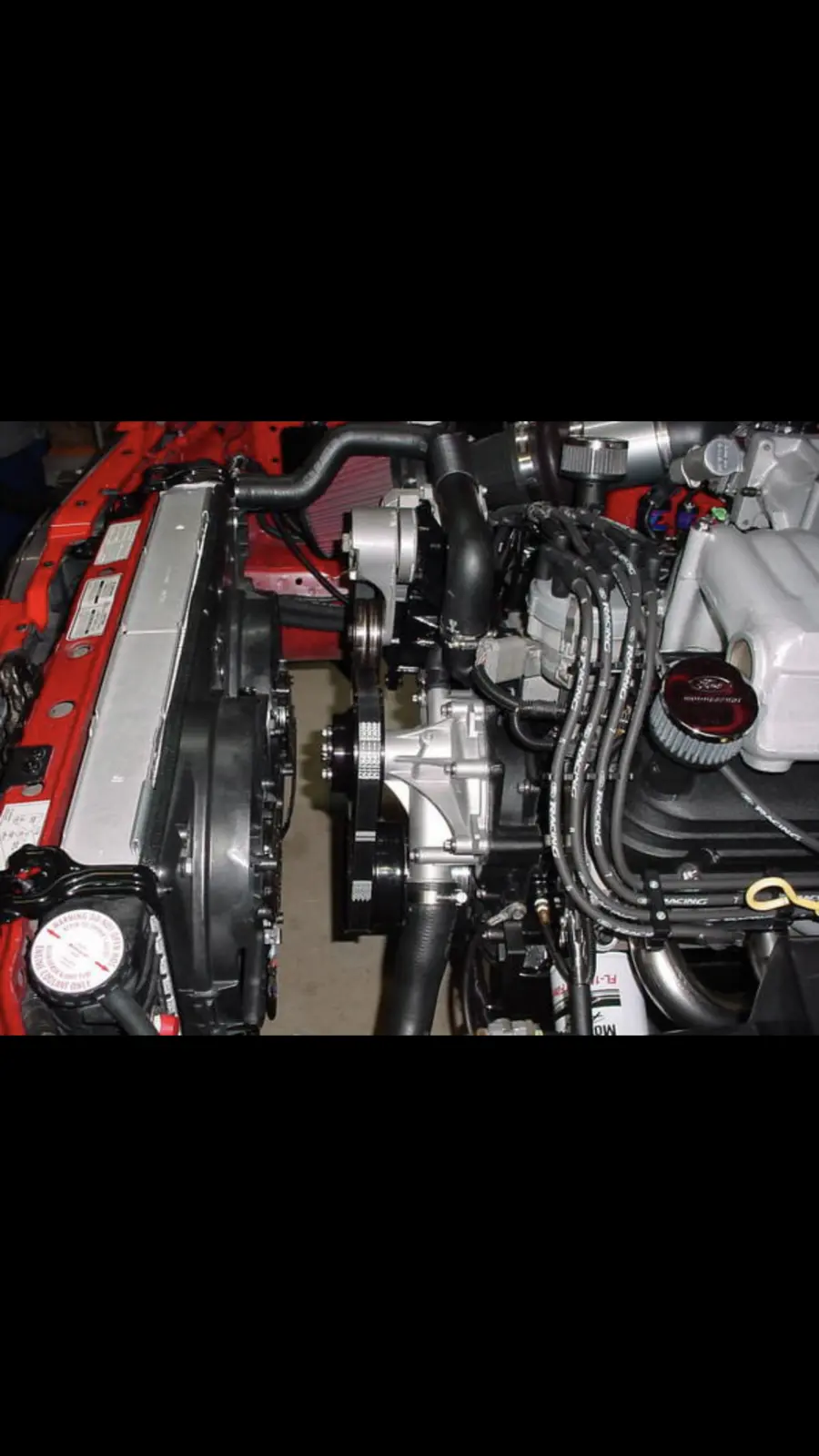

Refer to the attached picture of an idea.


Attachments

FastDriver

My dad had a bra
SN Certified Technician
Sep 5, 2001
4,541
1,245
214
Seaside, CA
Use a stretch belt. Note, this is not the correct size, it's just an example: LINK It stretches under load to maintain proper tension. Therefore, you don't have to worry about the tensioner doing its job.


Now, if you want to ditch the tensioner and go with an alternator bracket with adjustment rod, then I'm not sure how you'd do so without a non-reverse direction water pump. Without anything on the opposite side of the waterpump from the alternator, you don't need it to reverse rotate.


90sickfox

I didn't really have an issue with the stink...
SN Certified Technician
Mar 2, 2015
5,229
4,309
203
42
That last picture would need a different water pump and pulley from the original. In that picture the water pump would spin backwards. The water pump would also need a grooved pulley.

You need to do some jy hunting to find a 6 ribbed water pump pulley and order a standard rotation water pump. This may also require you to change the timing cover also. The gasket is usually just a circle hole so may not need the timing cover. After that all your need is this...



You want a 1984 lincoln town car 5.0 water pump...according to this....



...and a 6 rib alternator pulley.

The interwebs are great......sometimes.


General karthief

wonder how much it would cost to ship you a pair
Mod Dude
Aug 25, 2016
16,388
5,227
193
polk county florida
Looks like that water pump has been changed, I'd verify what you have or just buy the pump you need, not that expensive and you'll know what you have.


fredfifty

5 Year Member
Nov 23, 2011
320
60
59
SF Bay Area
isn't the tensioner pulley smooth, not ribbed? because wouldn't that affect the routing? (smooth to smooth, ribbed to ribbed)
