Fox GT seat difference

90LXFOX

Member
Mar 11, 2022
29
3
18
United States
I am looking to purchase the tmi seat cushions and not sure the difference between the 87-89 and the 90-93 seats . I bought a 1990 lx and it has gt seats in it but not sure which year they are from . Can someone guide me in the differences in the two year sets ?

Thanks

  • Sponsors (?)

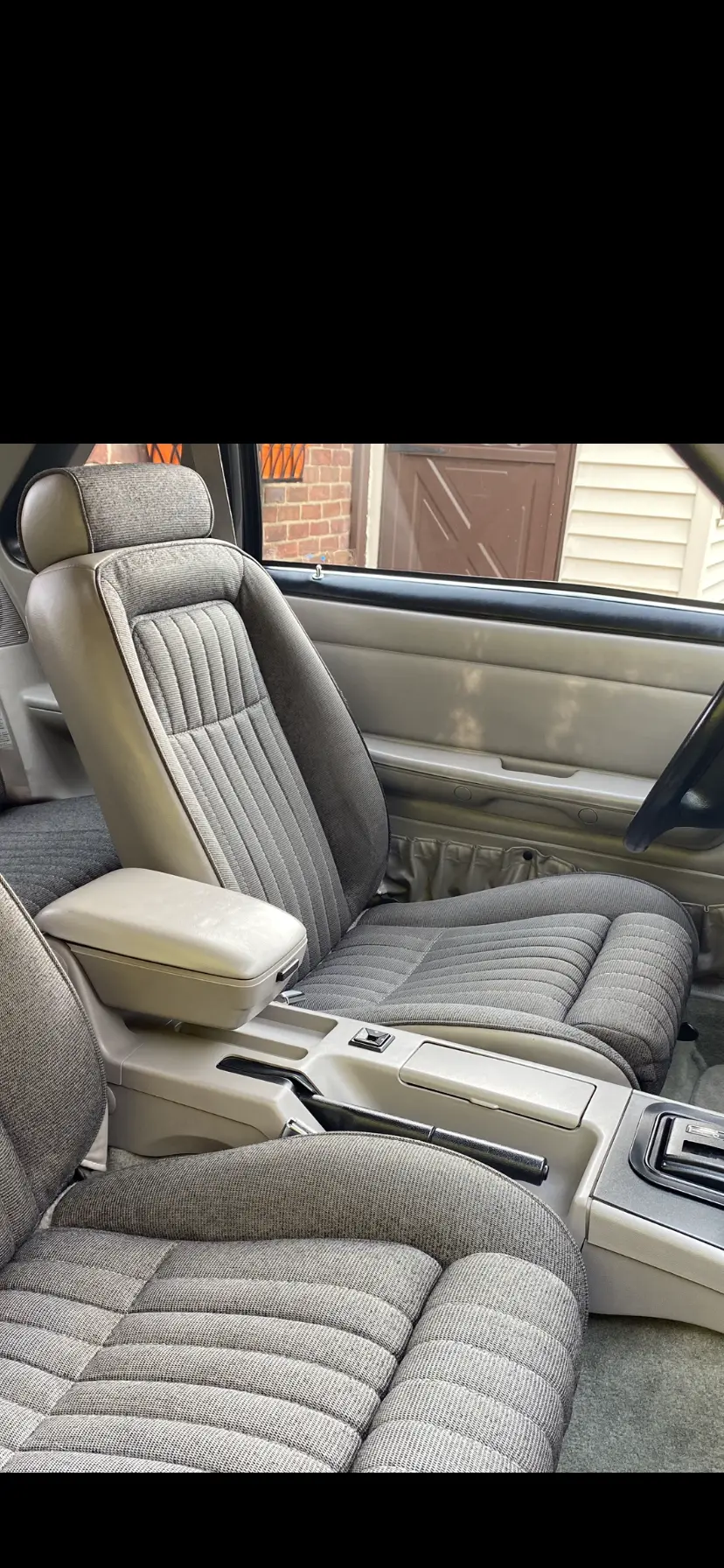

This is a 1991 5.0 LX seat.....
It has the small headrest

They aren’t really “GT” seats, as they came in most v8 LXs as well. The only LX 5.0s to not get them were the 87-88 hatch and the 87-90 notch.

87-89 seats feature a “tall back” foam and larger headrests

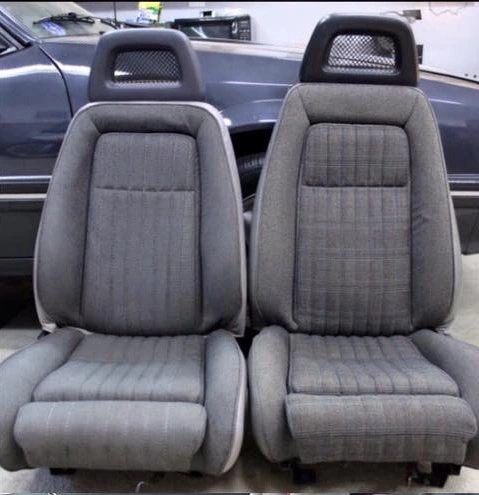

87–89 on right, 90-91 on left. Ignore the headrests as both have the 83-86 halo headrests on them. The seat frames are the same, it’s the foam that’s taller.



All 87-91 sport seats feature the pull out leg extension. Seen above.

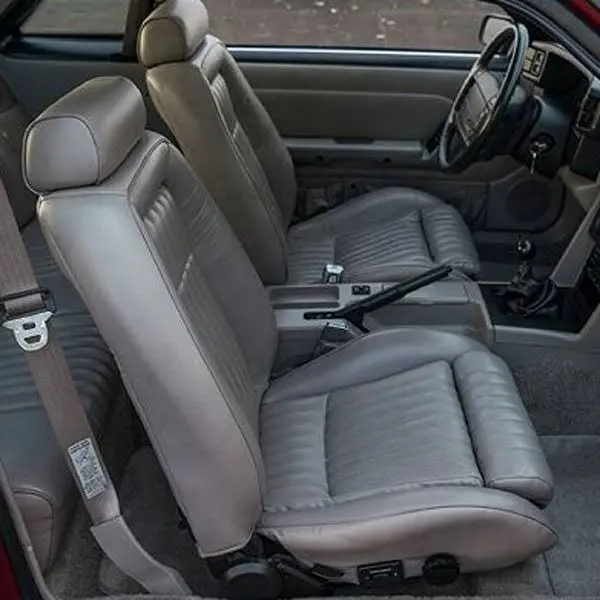

90-91 seats feature small headrests and the pull out extension like this

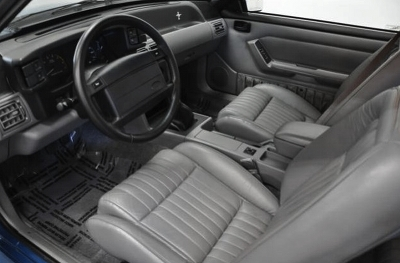

92-93 seats are the same as 90-91 except no pull out thigh extension.
