I just swapped out the heater core in my 89. I unbolted the dash, console, steering column, etc. but none of the wiring. Now testi9ng the heat with the dash still off, the heater controls don't work. No blower motor, A/C, or nothing. I did a quick scan of the area and i saw no wiring disconnected. Anywhere I should look first? Is there something of the dash not being on that is causing the blower motor not to run?



S

savegoodautonfg

New Member

May 11, 2005

1,085

0

0

Oct 9, 2007

#2

• Oct 9, 2007

• #2

Check for a yellow vacuum line right above the pedals in drivers side.



jrichker

StangNet's favorite TOOL

In Remembrance. Thank you for your contributions

Mar 10, 2000

27,512

2,813

234

Dublin GA

Oct 9, 2007

#3

• Oct 9, 2007

• #3

Diagram courtesy of Tmoss & Stang&2birds


See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel pump, alternator, ignition & A/C wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Computer, actuator & sensor wiring
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Fuse panel layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

Vacuum routing
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg



Attachments

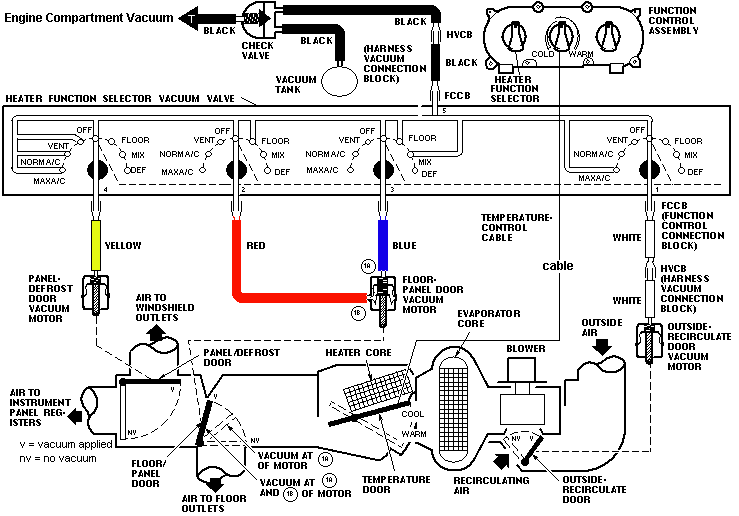

• Mustang_AC_heat_vacuum_controls.gif

  17.8 KB · Views: 189

mrmustangman357

Member

Feb 11, 2007

763

3

18

Oct 9, 2007

#4

• Oct 9, 2007

• #4

I guess with the dash disconnected, a ground wire was not completed. with the dash hooked up. it works fine. yay heat!



mrmustangman357

Member

Feb 11, 2007

763

3

18

Oct 12, 2007

#5

• Oct 12, 2007

• #5

new problem. just discovered it. regardless of what selection I make on the control panel (floor, mix, etc), it always comes out the defrost. Any ideas?



mrmustangman357

Member

Feb 11, 2007

763

3

18

Oct 12, 2007

#6

• Oct 12, 2007

• #6

should I be looking at a vacuum line, or something else? thanks for the above diagram too



9

93green_gt

New Member

Oct 10, 2007

20

0

1

Oct 12, 2007

#7

• Oct 12, 2007

• #7

I have same problem on my 93gt



mrmustangman357

Member

Feb 11, 2007

763

3

18

Oct 13, 2007

#8

• Oct 13, 2007

• #8

I think that diagram is wrong. the yellow vac line that does to the defrost window has no channel in the defrost section? I think that may be wrong, among other things.



mrmustangman357

Member

Feb 11, 2007

763

3

18

Nov 5, 2007

#9

• Nov 5, 2007

• #9

the black line going into the firewall that feeds the whole assembly was clipped. replaced the line and problem solved



SuperStang83

Founding Member

Mar 21, 2001

1,693

0

49

Boyertown, Pa

Nov 5, 2007

#10

• Nov 5, 2007

• #10

It could be the line under the steering column. It might have come undone and you need to get up there and plug it back in. There may be a bracket in the way that you can remove to get some room up there. The bracket only has two torx screws.
