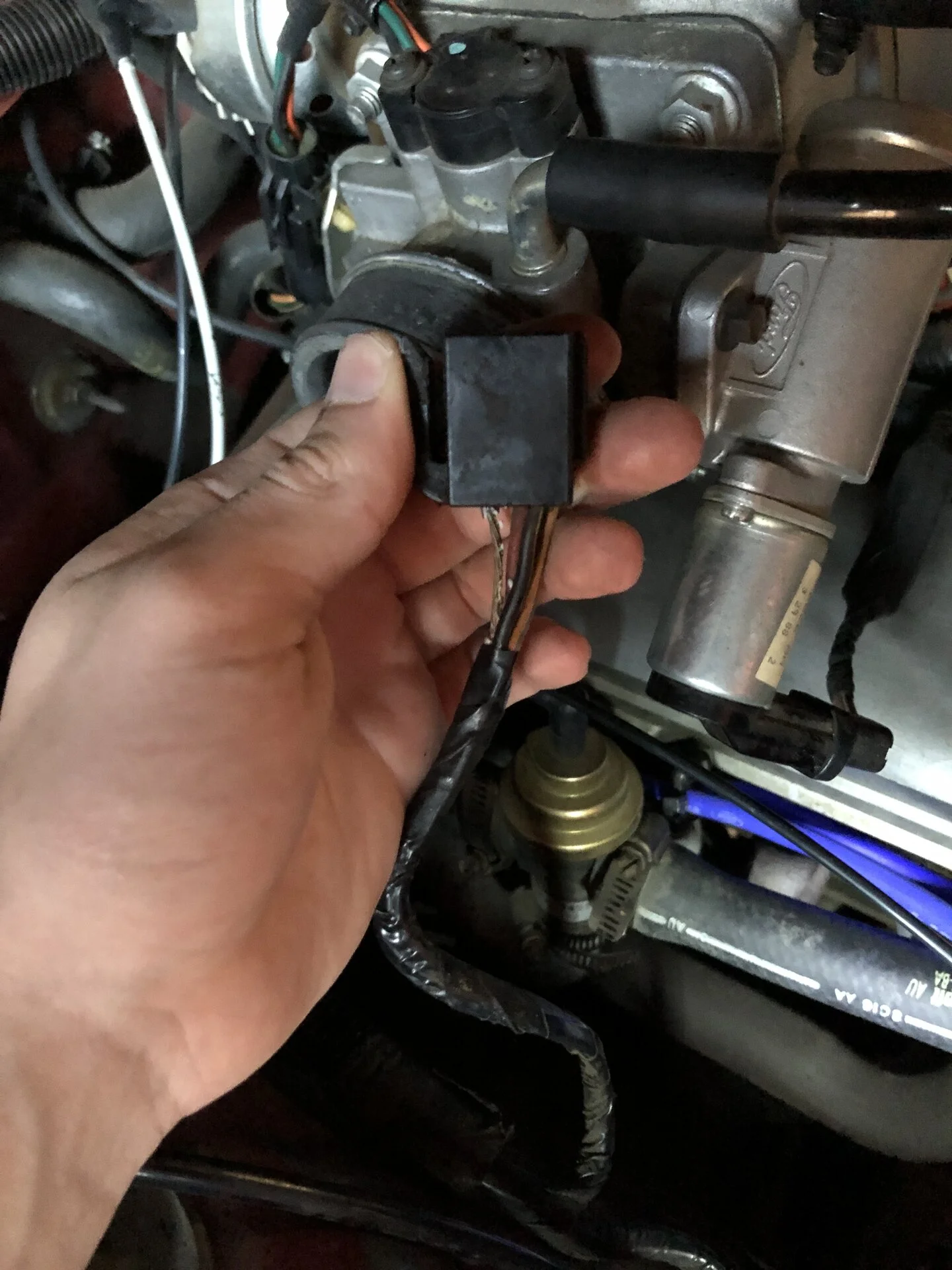

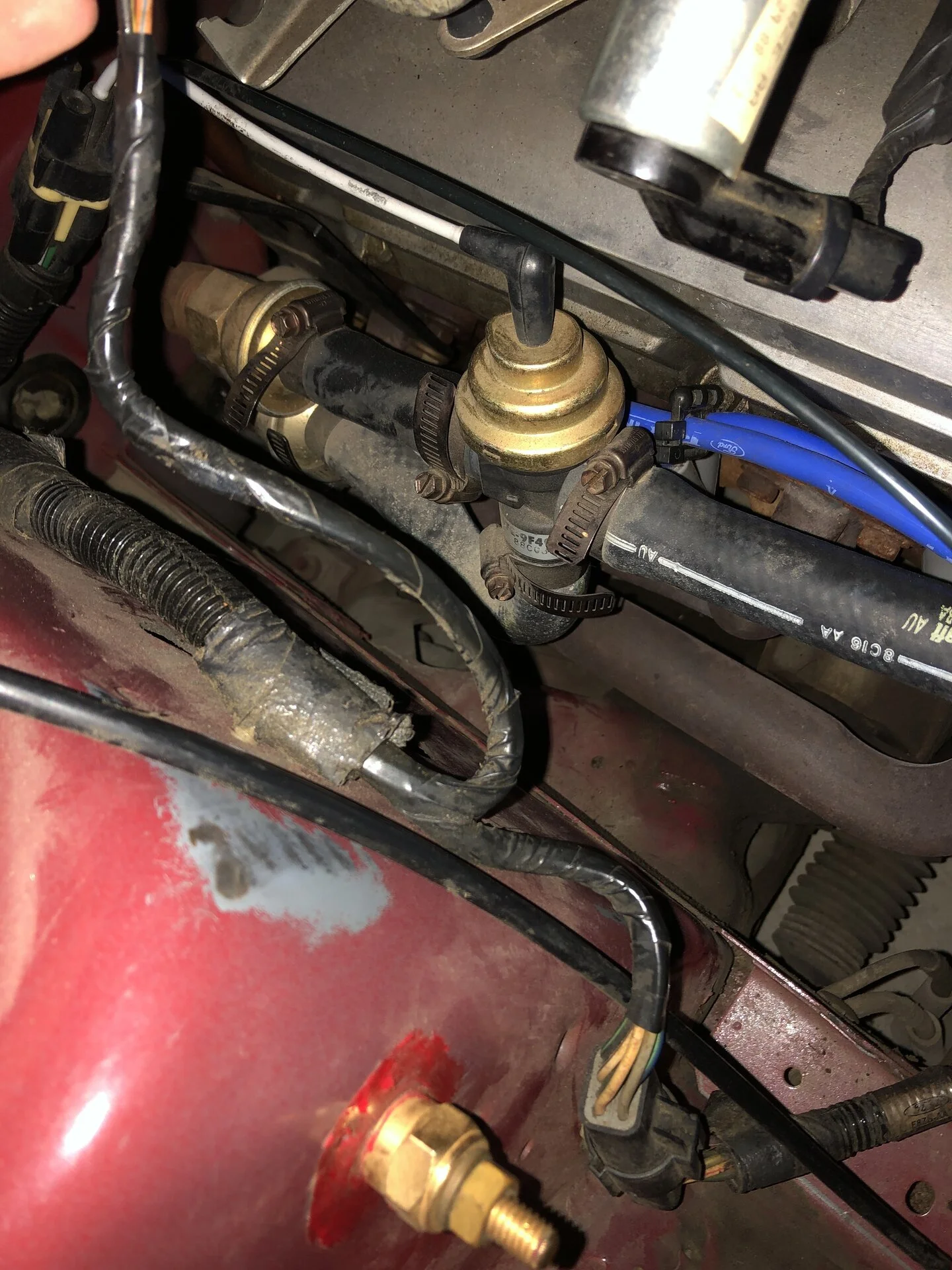

Help with identifying wires in engine bay

  • Sponsors(?)


jrichker

StangNet's favorite TOOL
SN Certified Technician
Mar 10, 2000
27,434
2,866
234
74
Dublin GA
lowendmac.com
Please post the wire colors with the solid color and stripe color along with the model year of your car.
They help identify the circuit and its function. Do not depend on a photograph to do the job, since the camera and then the device the photo is viewed on can alter the color presentation. Clean the wires with some solvent before trying to identify them.

The wiring color codes are a clue to the wire function. A list of the colors is helpful along with the pin to color assignment. The connector shells always have a letter or number on the shell for each pin.
Example:
connector pin A= blue/white
connector pin B = red/green

Ford Factory wiring diagrams have a wire color to function table in the first few pages. The table is generic and is for all Ford products, not just Mustangs. For that reason, you need to think about what sort of options and equipment are in your car.
For example: If the table says wire color is for a power seat, you are looking at the wrong wire color/item type. Fox body Mustangs didn't come with power seats, so you know that isn't what you want.

Ford changed the color for some wires in 91, so that's why the year model is important.

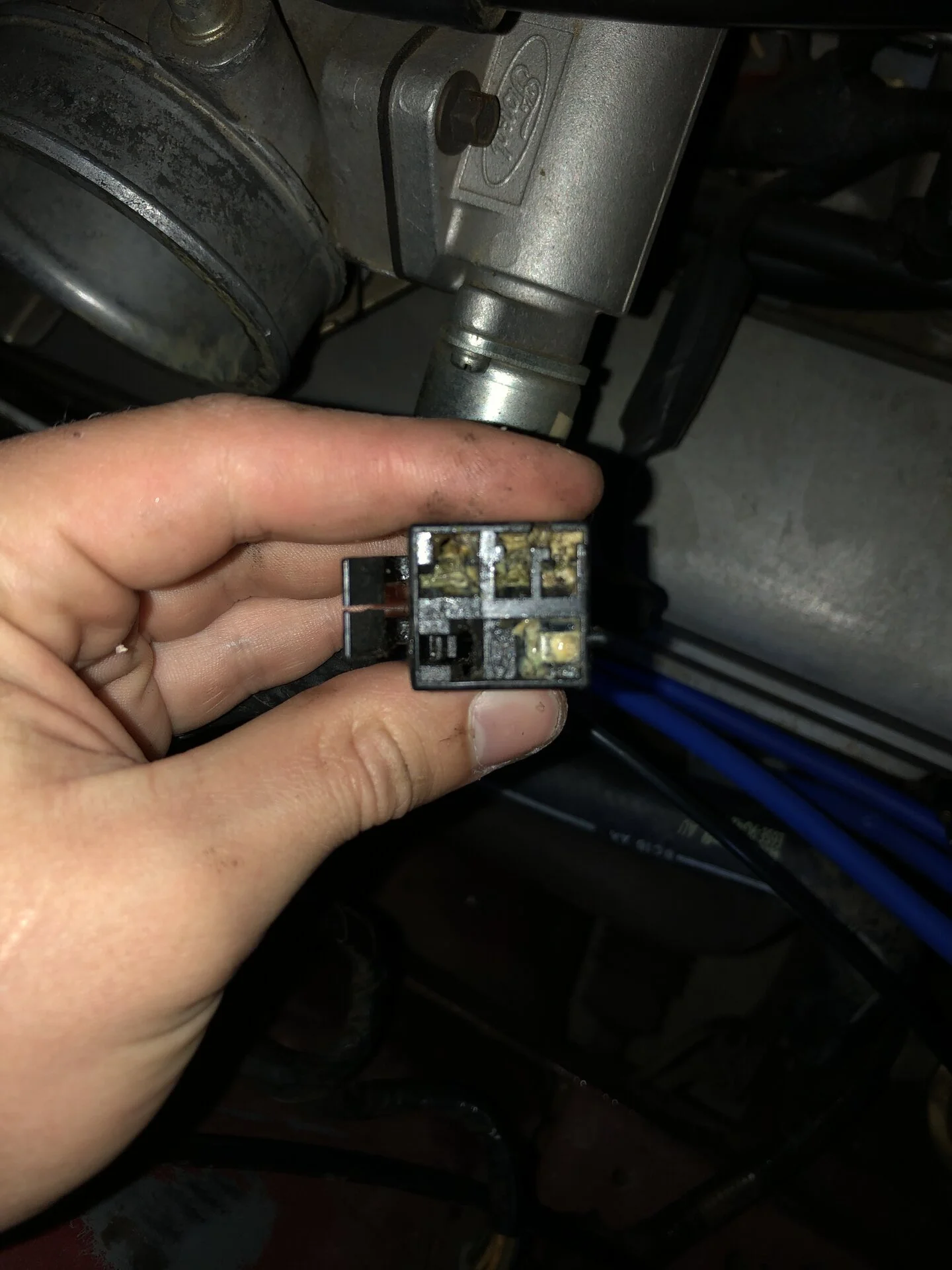

Also show an extra picture of the mating face side of the connector so that we can see the connector shape and how many pins are in the connector. That helps identify the circuit function since most of the connector shapes are unique to the circuit they serve.
