Just did my PI intake swap!!! PIX

big o car 4.6

Founding Member

Jan 3, 2002

377

0

0

dallas

Aug 10, 2004

#1

• Aug 10, 2004

• #1

Well, I just got done with the swap and I must say it was not as bad as I would have thought. Everything went together just fine with no leaks. The only real pointer I have to give is to make sure to use a great deal of RTV around the ports facing into the valley of the block. Still the only real issue I ran into was getting the stock coolant tube unbolted from the back of the head. Because it has two bolts that run right between the firewall and the back of the driver’s side head that just made it hell to get out. But after everything is said and done, I am really happy I made the swap, and would highly recommend it. There is a huge SOTP difference in the power ranging from about 2,500 - 5,500 RPMs; witch really helps out because that’s where the stock intake just seemed to run out of breath. Here is a list of all the parts I used in the swap.....

*PI intake manifold: Picked it up from www.Stangstore.com
*NPI intake manifold gasket: XW7Z-9439-AA
*Thermostat housing o-ring: F1VY-8507-A
*Heater/coolant tube: XR3Z-18B402-AA
*Water pump nipple: F75Z-8555-AA
*Water pump o-ring: F1VY-8255-A
*Thermostat housing bolts: N811011-S309
I also went ahead and put all new spark plugs and coolant hoses on at the same time.



streetstang03

unModerator

Dec 27, 2003

0

1

0

the dark side of the moon/home of the 1999, 2003,

Aug 10, 2004

#2

• Aug 10, 2004

• #2

wheres the pics???



big o car 4.6

Founding Member

Jan 3, 2002

377

0

0

dallas

Aug 10, 2004

#3

• Aug 10, 2004

• #3

the two intakes



Attachments

• two intakes.webp

  47.9 KB · Views: 294

C

CottonBurnerz

Banned

May 10, 2003

1,554

0

0

Drink and Drive = Teh Lose

Aug 10, 2004

#4

• Aug 10, 2004

• #4

lol you read my mind streetstang 03



C

CottonBurnerz

Banned

May 10, 2003

1,554

0

0

Drink and Drive = Teh Lose

Aug 10, 2004

#5

• Aug 10, 2004

• #5

nice mang.. any more pics?



big o car 4.6

Founding Member

Jan 3, 2002

377

0

0

dallas

Aug 10, 2004

#6

• Aug 10, 2004

• #6

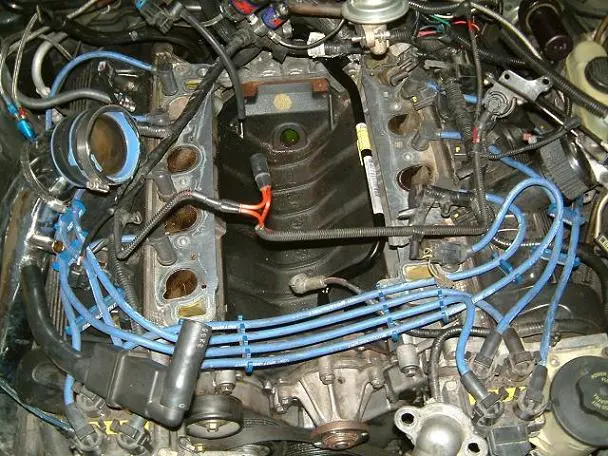

Port shot



Attachments

• Ports.webp

  47.3 KB · Views: 277

big o car 4.6

Founding Member

Jan 3, 2002

377

0

0

dallas

Aug 10, 2004

#7

• Aug 10, 2004

• #7

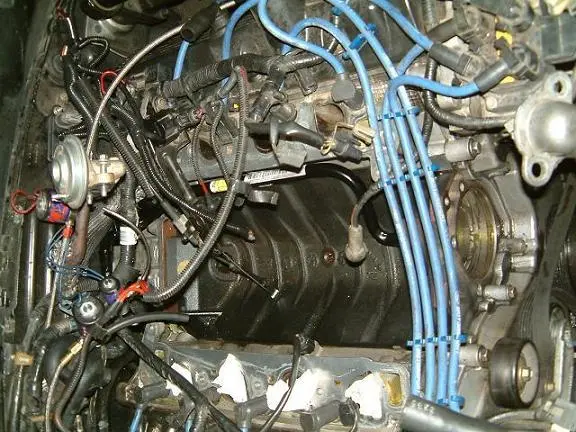

A Shot with the intake off the car



Attachments

• block.webp

  54.8 KB · Views: 283

big o car 4.6

Founding Member

Jan 3, 2002

377

0

0

dallas

Aug 10, 2004

#8

• Aug 10, 2004

• #8

one more of the same



Attachments

• block 2.webp

  66.5 KB · Views: 245
• crossover.webp

  54.2 KB · Views: 204

big o car 4.6

Founding Member

Jan 3, 2002

377

0

0

dallas

Aug 10, 2004

#9

• Aug 10, 2004

• #9

Last one



Attachments

• last.webp

  59.9 KB · Views: 238

kboy262

Active Member

Apr 20, 2003

437

0

26

Atlanta-Kennesaw

Aug 10, 2004

#10

• Aug 10, 2004

• #10

So I take it you switched out the crossover.



big o car 4.6

Founding Member

Jan 3, 2002

377

0

0

dallas

Aug 11, 2004

#11

• Aug 11, 2004

• #11

kboy262 said:

So I take it you switched out the crossover.

Click to expand...

Yeah just about, everything else was "plug-and-play"



B

BluThnder99

New Member

Aug 29, 2003

201

0

0

St. Louis

Aug 11, 2004

#12

• Aug 11, 2004

• #12

did you feel any SOTP feeling after the install cause my buddy has a 97 vert and its dog slow and he doesn't have the money to do the heads and the cams so i was think he should just do the PI intake swap for some more horses and to get him out of the 15.5 et zone what do you guys think.



big o car 4.6

Founding Member

Jan 3, 2002

377

0

0

dallas

Aug 12, 2004

#13

• Aug 12, 2004

• #13

BluThnder99 said:

did you feel any SOTP feeling after the install cause my buddy has a 97 vert and its dog slow and he doesn't have the money to do the heads and the cams so i was think he should just do the PI intake swap for some more horses and to get him out of the 15.5 et zone what do you guys think.

Click to expand...

I think it passed the SOTP test.



GDawg

Founding Member

Mar 22, 2002

1,469

19

68

Nevada

Aug 12, 2004

#14

• Aug 12, 2004

• #14

Was there any issues with swapping the crossovers? I have a NPI intake with the aluminum crossover and would rather swap it than tap the other one on the PI.



85MustGT

Founding Member

Nov 8, 2001

95

0

16

Occupied San Diego

Aug 12, 2004

#15

• Aug 12, 2004

• #15

How much did all the accessories cost?



85MustGT

Founding Member

Nov 8, 2001

95

0

16

Occupied San Diego

Aug 12, 2004

#16

• Aug 12, 2004

• #16

How does the port size/shape of the new intakes match with the head? Bigger smaller or different shape?



Rio97GT

Founding Member

Mar 31, 2002

420

0

0

Southern LA

Aug 12, 2004

#17

• Aug 12, 2004

• #17

GDawg said:

Was there any issues with swapping the crossovers? I have a NPI intake with the aluminum crossover and would rather swap it than tap the other one on the PI.

Click to expand...

This was exactly what I did when I did my headswap. I had the aluminum crossover from the cracked intake recall. I just unbolted it from the non-pi intake and it bolted right up to the pi intake. I didnt have to touch any of the sensors or worry about tapping the new one, since they just swapped over.



big o car 4.6

Founding Member

Jan 3, 2002

377

0

0

dallas

Aug 12, 2004

#18

• Aug 12, 2004

• #18

Rio97GT said:

This was exactly what I did when I did my headswap. I had the aluminum crossover from the cracked intake recall. I just unbolted it from the non-pi intake and it bolted right up to the pi intake. I didnt have to touch any of the sensors or worry about tapping the new one, since they just swapped over.

Click to expand...

yeah, if you can that is the best way to do it.



big o car 4.6

Founding Member

Jan 3, 2002

377

0

0

dallas

Aug 12, 2004

#19

• Aug 12, 2004

• #19

85MustGT said:

How much did all the accessories cost?

Click to expand...

The intake was like $200 and all the parts I pick up from ford (a lot of them you don't need) came to about another $100. Although you could probably do the whole swap for about $250 safely.
