Need a belt and pully diagram!

[FIXED 92]

I just got a 92 GT. My belt broke becouse the pump under the alternater seazed up. Is this my power steering pump and does anyone know where I can get a diagram for all the pulleys and how the belt goes back on there!!



[BK_CAULEY]

http://www.stangnet.com/mustang-forums/7647599-post6.html



[anthony hill]

it should be your smog pump your p/s is under your a/c. and if you dont want to buy a new one i have a idler pulley for one plus i have my old smog pump p/m me if your interested.



[lancec2c30]

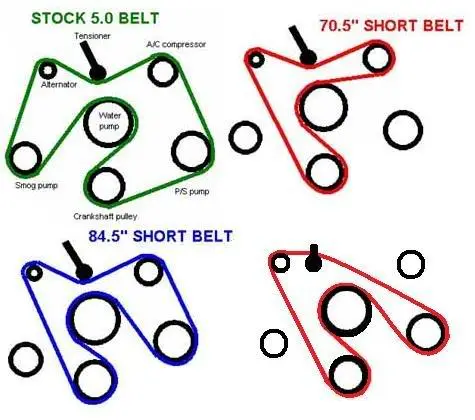

Do you have an off road mid-pipe? If so, just pull the smog pump off and buy the 84.5" short belt.
