I have a 1983 mustang GLX convertible that I took my 83 3.8 l V6 out of it and I put a 1970s 302 in it carbureted I need a wiring diagram to hook up my control module throughout my engine compartment does anybody have any ideas how I can do that without taking the stock 83 wiring system out of it
Need help with my 83 mustang with 70s motor
- Thread starter Dtrain34
- Start date
I just don't understand the wires that I use out of my dirt spark ignition module I hook the four wires that go to my distributor to the module and where does the red and white wire go on the module
Ahh...... Get one of these manuals off of Ebay... Better than the FSM most of the time for Info..
manicmechanic007
5 Year Member
A Rotunda Breakerless ignition tester has the schematic
They sell these cheap on Ebay at times

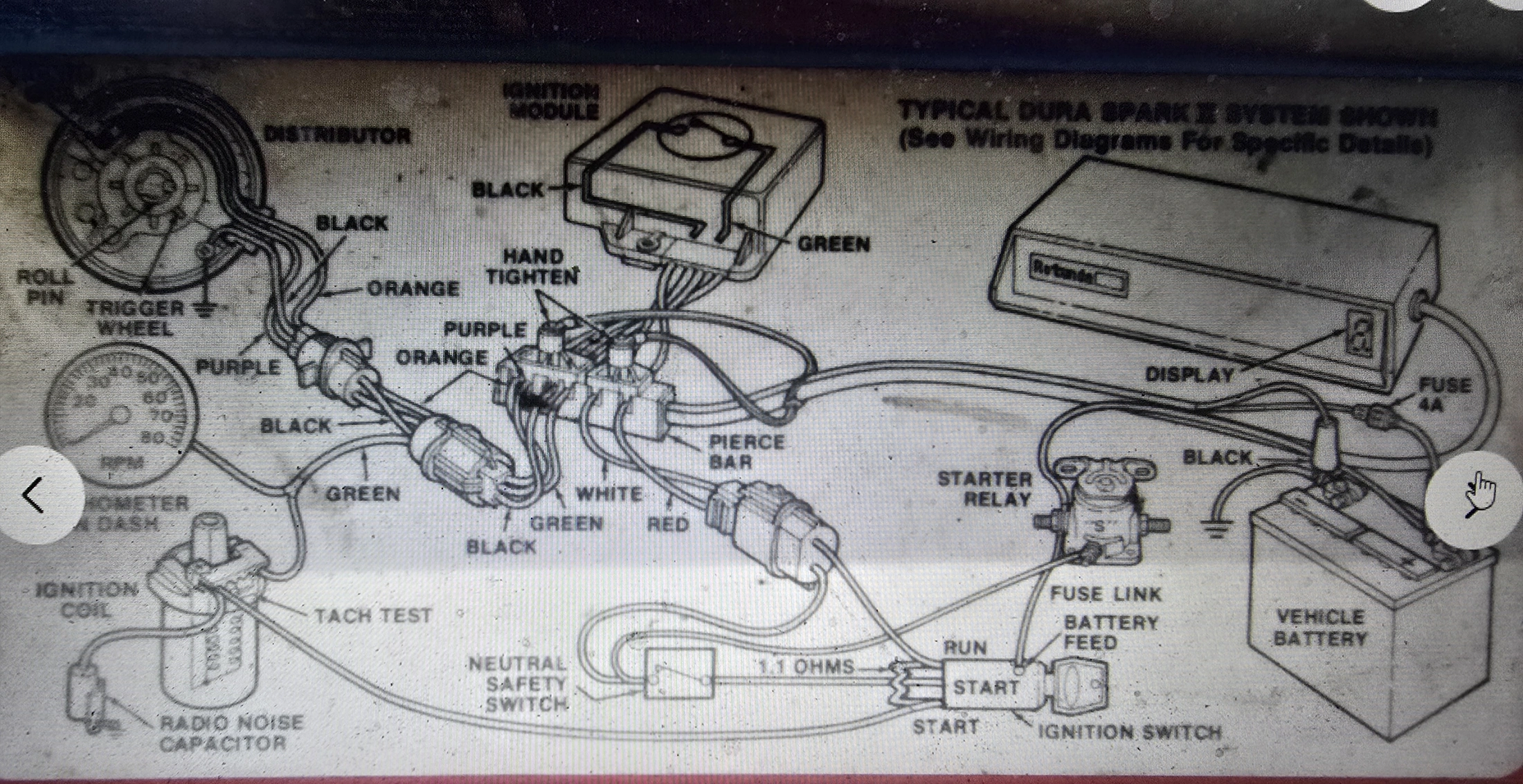

They have a diagram too, no actual schematic like an EVTM but here you go

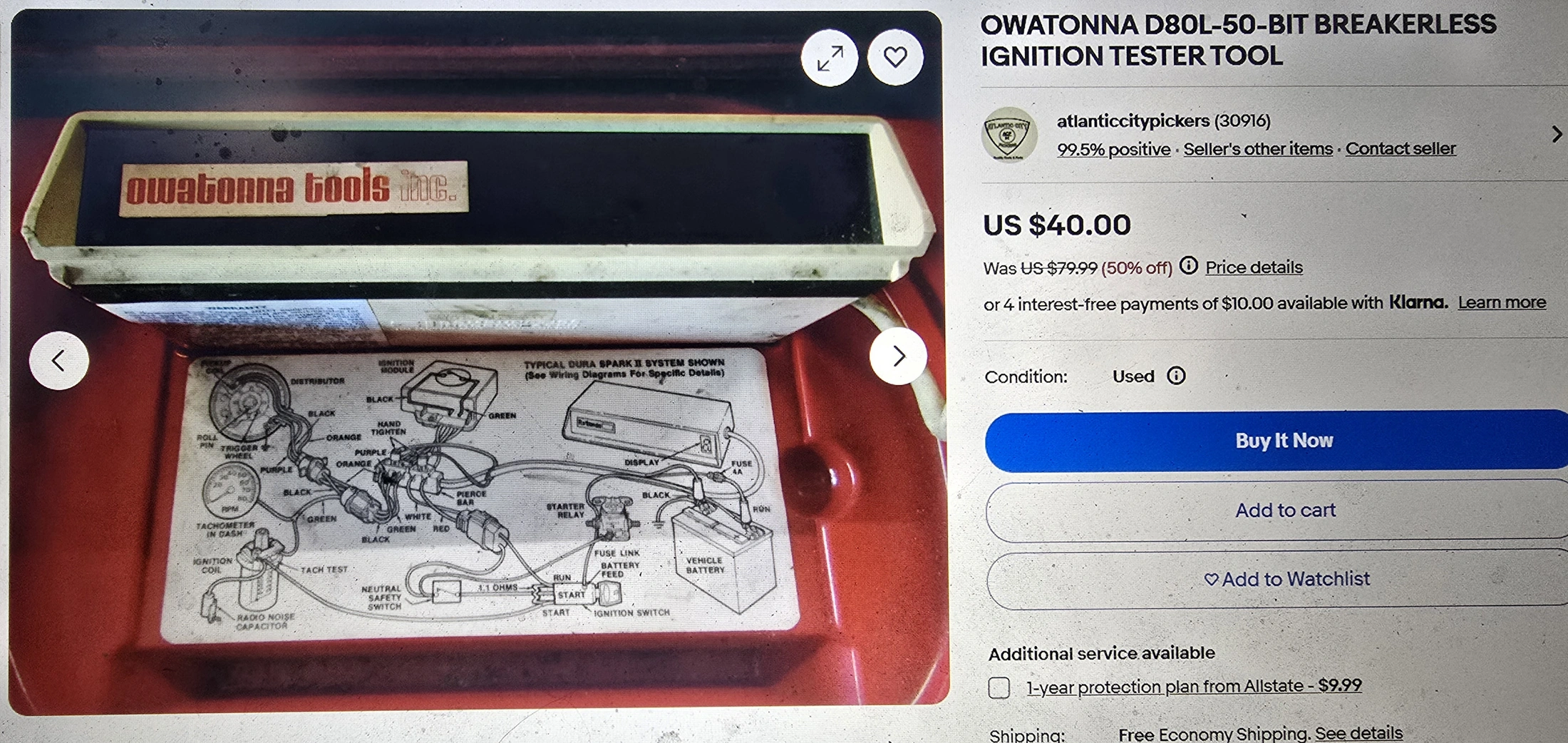

Might be hard to read as this is a photo of a photo on Ebay
I have one of these testers and a bunch of EVTM's but finding this on Ebay was the easiest way to post a diagram
They sell these cheap on Ebay at times
They have a diagram too, no actual schematic like an EVTM but here you go
Might be hard to read as this is a photo of a photo on Ebay
I have one of these testers and a bunch of EVTM's but finding this on Ebay was the easiest way to post a diagram
manicmechanic007
5 Year Member
manicmechanic007
5 Year Member
Like a HEI
It only takes one wire to run a Duraspark
I use a Duraspark on my 69 Boss 302
One red wire to power up and away you go
Not sure what I did with the white wire
I may have that one hooked up too
I was NOT looking at this diagram when I hooked mine up 40 years ago
Good luck, have fun
It only takes one wire to run a Duraspark
I use a Duraspark on my 69 Boss 302
One red wire to power up and away you go
Not sure what I did with the white wire
I may have that one hooked up too
I was NOT looking at this diagram when I hooked mine up 40 years ago
Good luck, have fun
