Rack to steering question

50notch90

Member
Jun 3, 2006
10
8
13
Greenville IN

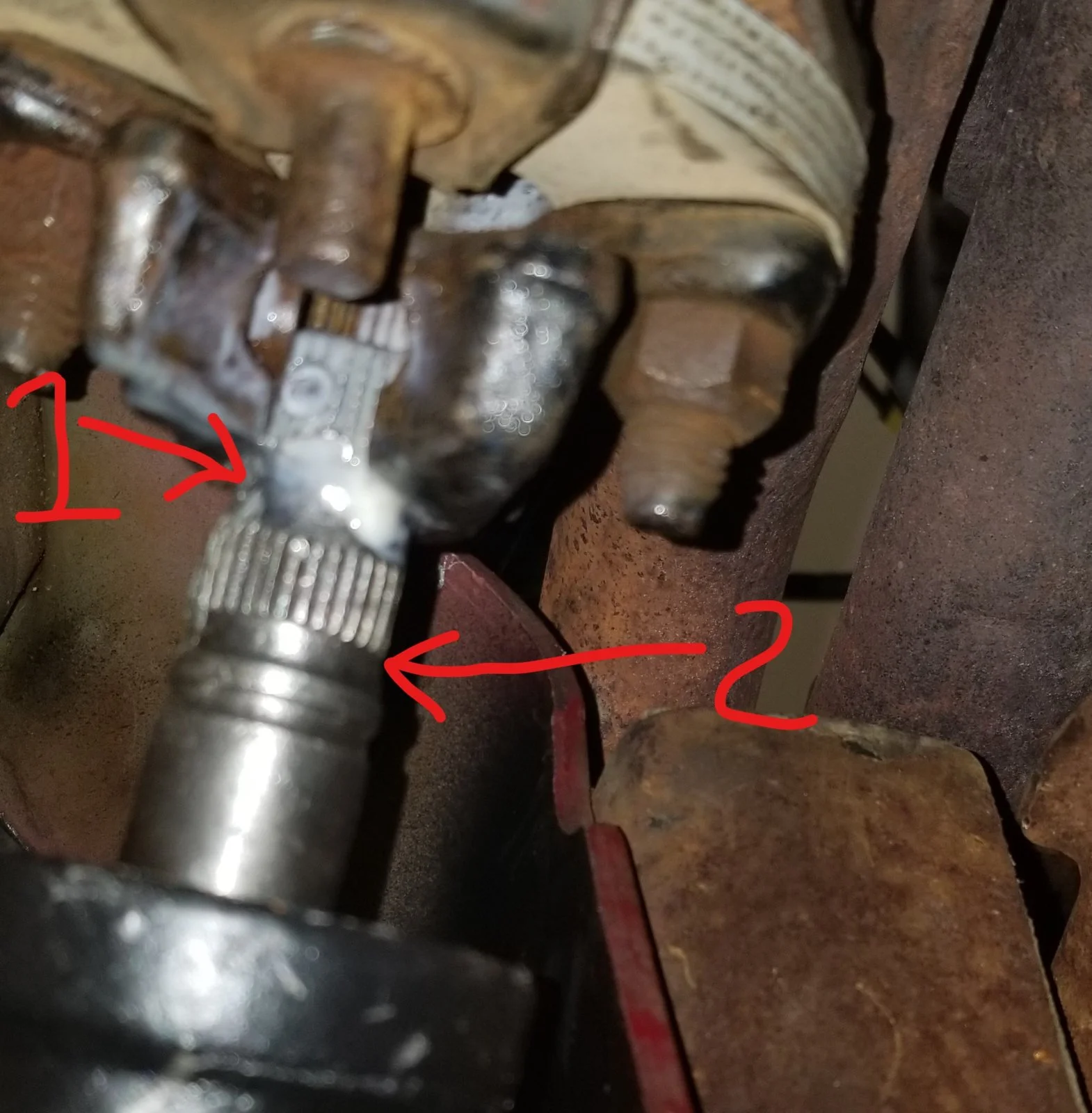

This is likely a dumb question, sorry. Normally I take photos of everything I take apart but not this time. I'm installing a new steering rack and I'm not sure exactly where to line it up for the pinch bolt. Currently, I can get it lined up to number 1 in the photo easily. However, number 2 could possibly be where it needs to be?

I was thinking 2 and since I can't quite get it to line up with number 2 that's probably my answer since it's the hardest option.

I tried google and searching the forum but decided I'm going to have to ask. Does the pinch bolt line up with 1 or 2 in the photo? Thanks


  • Sponsors(?)


50notch90

Member
Jun 3, 2006
10
8
13
Greenville IN
Okay, so I finally found someone's progress thread that showed a pic of the rag joint that was at the angle I needed. It looks like number 1 is where I need it. That makes my life easier. I'm hoping the bleeding isn't a nightmare like some other posts I've read.
