I was installing new valve covers so i needed to remove the intake.. Anyways i got everything bolted all up and now my brake pedal is really hard to push. So that big vac line comming off the booster, what does it connect to?
Replaced intake now no brakes!!
- Thread starter jstang209
- Start date
rd
Founding Member
The vacuum line to the power booster should connect to a large vacuum tap at the rear of the intake. If you did not plug the vacuum source, your engine should be running miserably with a hugh vacuum leak.
do u mean, the vaccume line comming off the booster goes up to the vac tree right above it then to the manifold. Or it goes directly from the manifold to the booster?
See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/

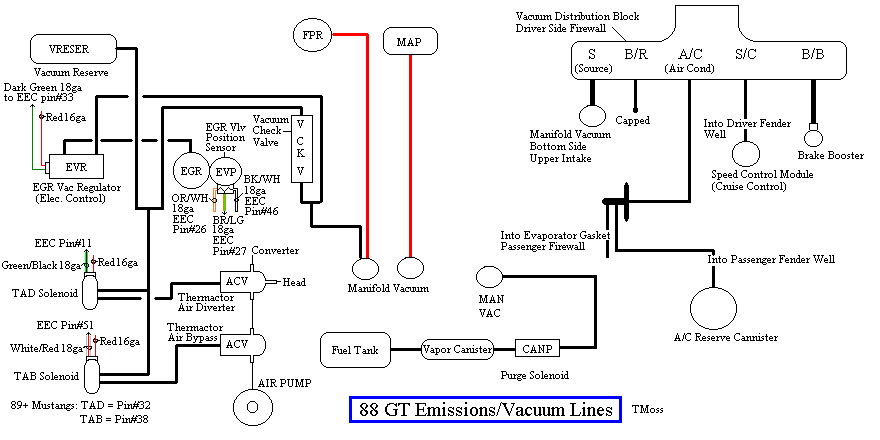

Diagram courtesy of Tmoss & Stang&2birds
http://www.veryuseful.com/mustang/tech/engine/images/88Stang5.0Vacuum.gif
Just ignore the red line to the MAP sensor since your car is Mass Air.
Diagram courtesy of Tmoss & Stang&2birds
http://www.veryuseful.com/mustang/tech/engine/images/88Stang5.0Vacuum.gif
Just ignore the red line to the MAP sensor since your car is Mass Air.
Attachments
rd
Founding Member
Sorry, I have all 79-82 carbed cars, except the efi 89 LX 2.3. I did not know the brake booster line went to a vacuum tree. All of the carbed ones have a line direct from the manifold to the brake booster.
Should not be hard to fix this one.
Should not be hard to fix this one.
