Me and my friend (has a 94 v6 stang) are in the middle of swapping out his front and back seats from a 2001 ( there the black and gray leather ones) we got the passenger side in and the back seat in but we have a problem with the drivers seat, his stock seat was a power seat and it used a 2 wire plug and the seat from the 2001 has a 4 wire plug. Is there an adaptor or something we can buy or how would we wire it up so it will work?



streetstang03

unModerator

Dec 27, 2003

0

1

0

the dark side of the moon/home of the 1999, 2003,

Jan 14, 2006

#2

• Jan 14, 2006

• #2

i remember seeing this somewhere else....im looking for it...



I

ike34

Member

Jan 16, 2004

156

12

19

Waterloo, IA

Jan 15, 2006

#3

• Jan 15, 2006

• #3

Does anybody where I can find wiring diagrams that I could use to help us?



J

jimfitzgerald

New Member

Apr 11, 2001

6,672

0

0

Jan 15, 2006

#4

• Jan 15, 2006

• #4

I don't know, but you could probably figure it out with a little trial and error. You probably have a 12 volt and ground wire coming in. I assume there are two motors, each with a power and ground wire. Just get some electrical connectors and connect the three ground wires together and connect the three power wires together and see if that doesn't work for you.



F

fellamansteve

New Member

May 24, 2004

108

0

0

Seattle

Jan 15, 2006

#5

• Jan 15, 2006

• #5

I just did a similar thing for a 95 GT and 2001 seats yesterday. There is a 4-pin connector in the old seats that fits the connector in the new seats, but it is already hooked up to a moter in the the old seat. What I did was to cut off the four-pin connector I needed from the old seat and the two-pin connector that hooks up to the floor in the car and make an adapter wire with these two pieces. On the four-pin connector, there are two grounds and two powers, so just make sure you have all the black wires together. This worked great.

Also, I want to point out that I had a Haynes manual and it had nothing about the power seat wiring diagram. The local Ford dealer also did not have a part number for the part you are looking for.



J

jimfitzgerald

New Member

Apr 11, 2001

6,672

0

0

Jan 15, 2006

#6

• Jan 15, 2006

• #6

It might be easier to go to Radio Shack and get some kind of male/female wire connectors. You just need something that can easily be plugged and unplugged.



Dan_Soprano

15 Year Member

May 7, 2003

7,410

53

129

Jacksonville, FL

Jan 15, 2006

#7

• Jan 15, 2006

• #7

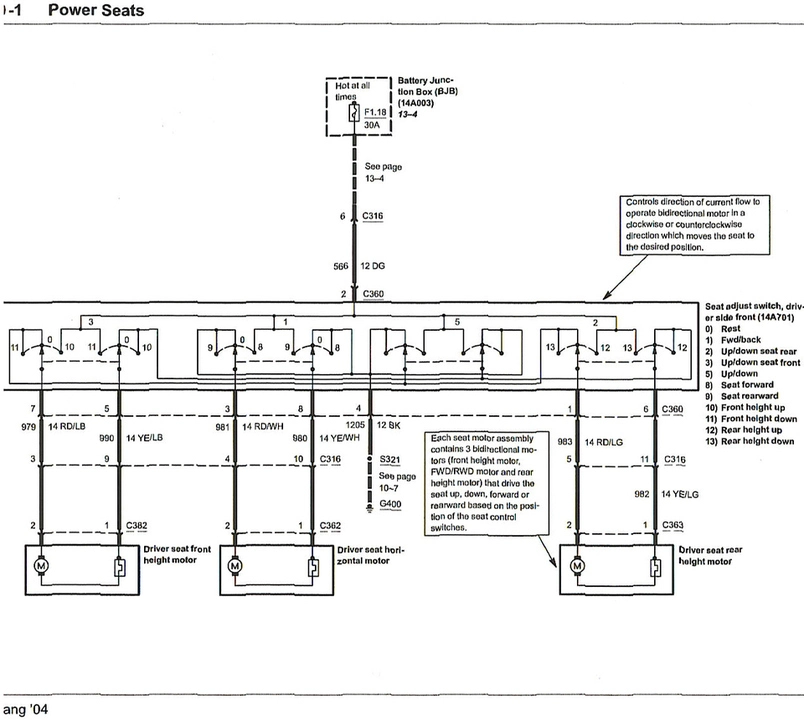

Here's a diagram from the 04 Service manual. Hope this helps.



Attachments

• seatdiagram4xr.webp

  98.4 KB · Views: 95

I

ike34

Member

Jan 16, 2004

156

12

19

Waterloo, IA

Jan 15, 2006

#8

• Jan 15, 2006

• #8

The plug coming from the floor has a all black wire (the power) and a black wire with a white stripe (the ground right). The 2001 seat plug has 1 black wire and 3 green wire going to it I think. So black goes to black and green goes to black with white stripe? Just making sure. Thanks alot.



F

fellamansteve

New Member

May 24, 2004

108

0

0

Seattle

Jan 15, 2006

#9

• Jan 15, 2006

• #9

That's the way I did it: Black to Black, Black w/ White Stripe to Green.



I

ike34

Member

Jan 16, 2004

156

12

19

Waterloo, IA

Jan 15, 2006

#10

• Jan 15, 2006

• #10

Sorry it is 2 green 1 black and one 1 gray blue wire so is the gray blue a power wire like the black one?
And sorry for all of the questions.



F

fellamansteve

New Member

May 24, 2004

108

0

0

Seattle

Jan 15, 2006

#11

• Jan 15, 2006

• #11

Not sure, the one I was working with had two black, but I would assume your assumption is correct.
