Underdash Fusebox diagram

[Guero]

Ive been searching for it and all I found was the air bag code reader and the underhood fuse box diagram. I know therers one out there i remember working with it... Any of you guys have it??



[1TRIKGT]

its in your owners manual if you still have it... if not then I can list the fuses for you when I get home from work.



[94GTMOOSE]

if you don't have a owner manual i will scan mine for ya buddy



[1TallMF]

Here you go buddy

What are you working on anyways?



[Guero]

Thanks!! I wanna fix my Cruise control. It use to work and all of a sudden it doesn't. No popped fuses or anything. Any ideas?



[Guero]

http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif


I found this one but seems different from yours



[HISSIN50]

http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif


I found this one but seems different from yours

Guero, you accidentally pulled up a fox fuse box. Here's what you meant to find:

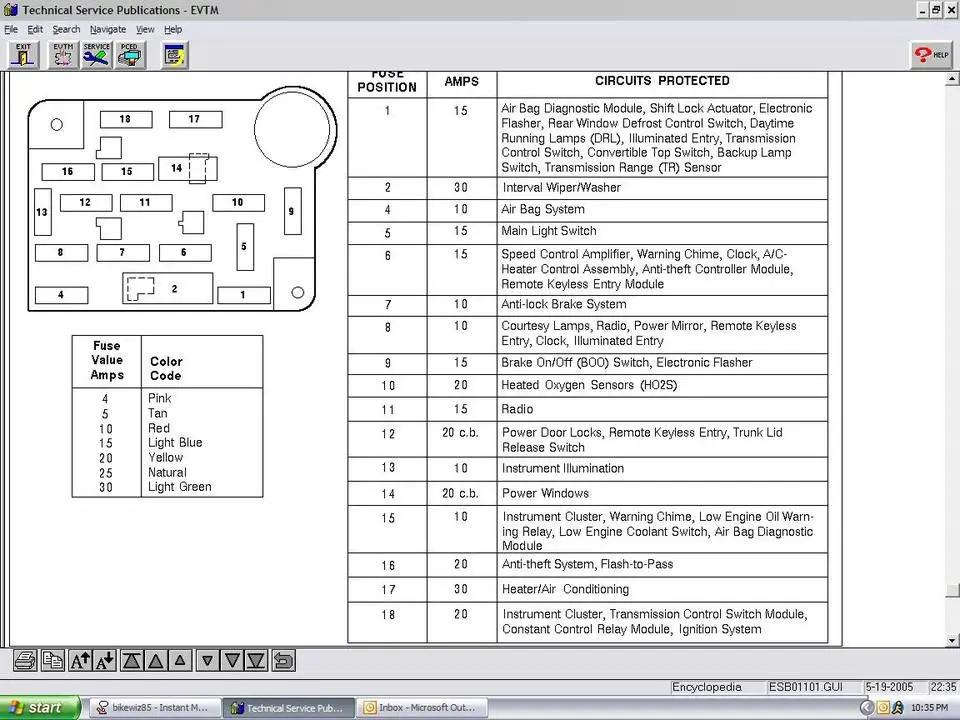

94-95 fusebox
