Wiring Diagrams???

[mo_dingo]

Anyone have a complete wiring diagram for the mustang? There are tons of pages in the haynes manual, but I can't find one consolidated diagram with the fuse block as one.

I searched here and corral, so I don't think it's here.
Scott



[95strokerPSU]

I don't know if what you need is in here, but here's a lot of diagrams....http://www.veryuseful.com/mustang/tech/engine/



[mo_dingo]

Well that is a start. I was hoping to get it on 2 or 3 pages. But I guess it's too intricate to have that. At least you can see everything that is on a couple of fuses.

I was hoping to see everything laid out on one fuse block. Maybe I will just have to make one. That would make tracing shorts/open much easier.

That will do for now. Much better that looking at my black/white haynes manual.
Scott



[DavidNC]

I use the autozone wiring diagrams for my 95 GT. Have been very accurate.

http://www.autozone.com/servlet/UiB..._us/0900823d/80/1d/db/3c/0900823d801ddb3c.jsp



[wytstang]

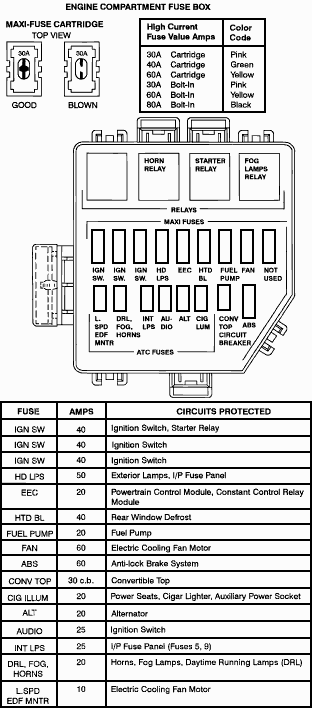

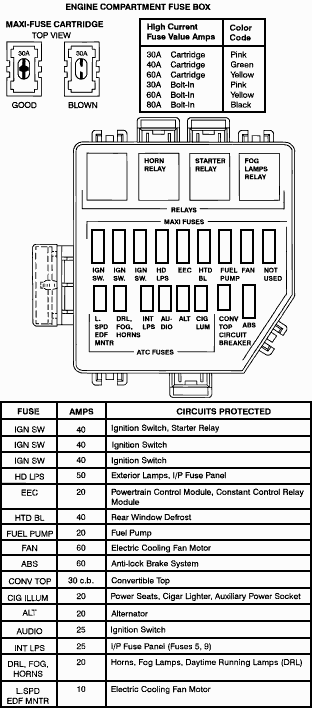

This is all I have
