Electrical 1993 Cobra Test Connector

Hey Folks,

I know there are a ton of great diagrams here, and trust me they have gotten me 95% of the way to swapping my 1993 Cobra engine into my 1966 mustang. I'm so close to finally being done.

The problem I have: When I got the Motor/Trans/Harness/ECC from the donor car, someone had cut off the Self Test Connector. The wires are still in the loom, and I need to run codes on my car now. I can find the pin out w/ wire colors for the 1991. I am aware that there are "significant" (at least in my mind enough to question any diagram not specific to 1993) changes in the wiring from 1991- 1993. And it's Clearly different here as well because all diagrams I can find reference a BK/W wire for signal ground and the only ones I have on that side of the loom run past the connector and down to the o2 sensors. So.....

1. Does anyone have a 1993 specific Pinout of the Test connect with wire colors?
2. Anyone with a 1993 5.0 can send me some pics with closeups of wire/colors to pins on the connector?

  • Sponsors (?)


foxbody-mustang-diagnostic-connector-jpg.586766


Foxbody Diagnostic connector close up view[/b]

foxbody-diagnostic-connetor-closeup-view-jpg.586765


89 through 95 cars have a working Check Engine light. Watch it instead of using a test lamp.


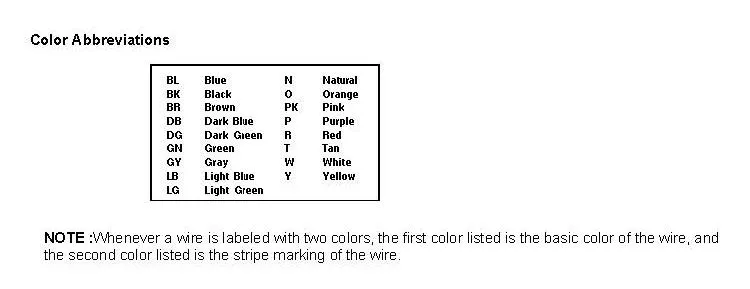

attachments\57945

Thanks jrichker,

I think this is a perfect illustration of the differences between the 93 and 91 and before. Above it shows EEC pin 46 as a BK/W wire, however the Pin 46 on my EEC is GRY/RED. When I follow it through from both the 91 and 93 diagrams, it does appear to be the same SIG RTN wire, however its clearly not Black/White at the Test Connector. Which leads me to question the other three. Also a few other connections that I may have taken for granted in early build stages :doh:

And BTW I've been staring at your diagram for a few days now so I REALLY appreciate your response. :nice:

Still need the 1993 specific pinout with these wires colors though.

Try these...

The following are diagrams courtesy of Tmoss & Stang&2birds

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs



Complete computer, actuator & sensor wiring diagram for 88-90 Mass Air Mustangs



See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring; http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.



TFI module wiring for 94-95 Mustang GT
http://www.veryuseful.com/mustang/tech/engine/images/Mustang-94-95-IgnitionControlModule.gif

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 88-90 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

O2 sensor wiring harness
http://www.veryuseful.com/mustang/tech/engine/images/mustangO2Harness.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pin out
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

Mustang 5.0 Lights and Radio schematic, by TMoss:
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxLights-Radio_diag.gif

87-92 power window wiring
http://www.veryuseful.com/mustang/tech/engine/images/mustang87-92 PowerWindowWiring.gif

93 power window wiring
http://www.veryuseful.com/mustang/tech/engine/images/mustang93PowerWindows.gif

T5 Cutaway showing T5 internal parts
http://www.veryuseful.com/mustang/tech/engine/images/5_Speed_Cutaway_Illustrated.jpg

Visual comparison of the Ford Fuel Injectors, picture by TMoss:
http://www.veryuseful.com/mustang/tech/engine/images/Ford_Injector_Guide.jpg

Convertible top motor wiring http://www.veryuseful.com/mustang/tech/engine/images/mustang88VertTopMotorCkt.gif

Engine mounted fuel injector harness
http://www.veryuseful.com/mustang/tech/engine/images/mustangEngineHarness.gif

Location of the TPS, IAB, and the 10-pin connectors on a 5.0, picture by TMoss:
http://www.veryuseful.com/mustang/tech/engine/images/TPS_IAB_Pic.jpg

Starter circuit
http://forums.stangnet.com/attachment.php?attachmentid=21328&d=1080916057

Alternator diagram for 94-95 Mustangs.
http://www.veryuseful.com/mustang/tech/engine/images/Mustang-94-95-Alt.gif

Ok, so here's what I can glean from all of this:

According to :
Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

Pin 46 on the EEC is actually Grey/Red at the Test Connector on 1993 and to me appears to be the same SIG RTN.
Pin 22 to the Fuel pump Relay is Light Blue/Orange on the 1993. And shows it going to Data link Connector.
Pin 17 on the EEC is actually Pink/Light Green at the Test Connector on 1993. And shows it going to the Data Link Connector

According to:
Complete computer, actuator & sensor wiring diagram for 88-90 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

And your Diagram.

Pin 46 is Black White on 91 and before.
Pin 22 is Tan/Light Green on 91 and before..
Pin 17 is Tan on 91 and before.


So For 1993 Test Connector that to me means:


Pin 17.PNG

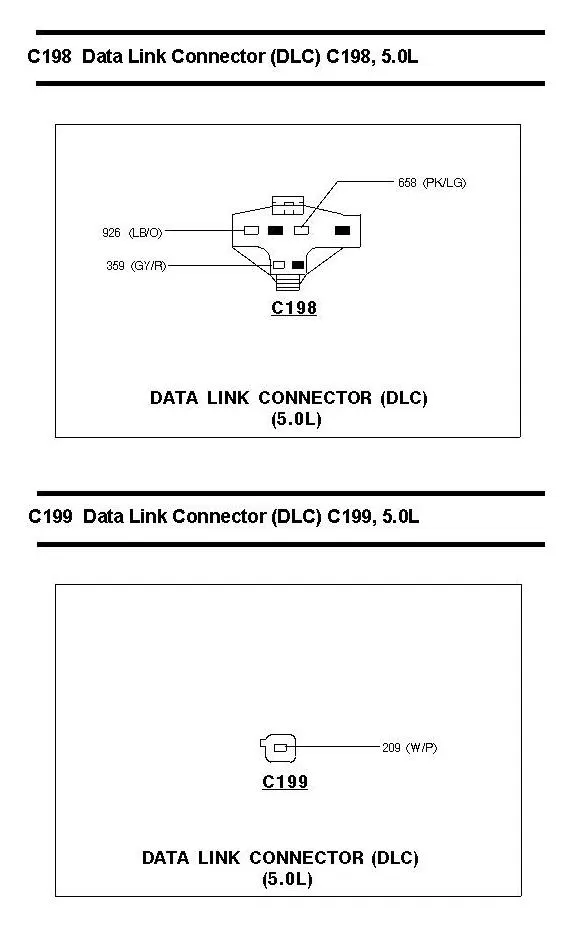

And @Saleen0679 ----- Thank you I can now stop!!!!

This is exactly what I was looking for.

I knew something was fishy....
