Engine 89 5.0 pushrods rubbing on guide plates

plout99

Member
Sep 4, 2021
15
8
13
42
Ohio

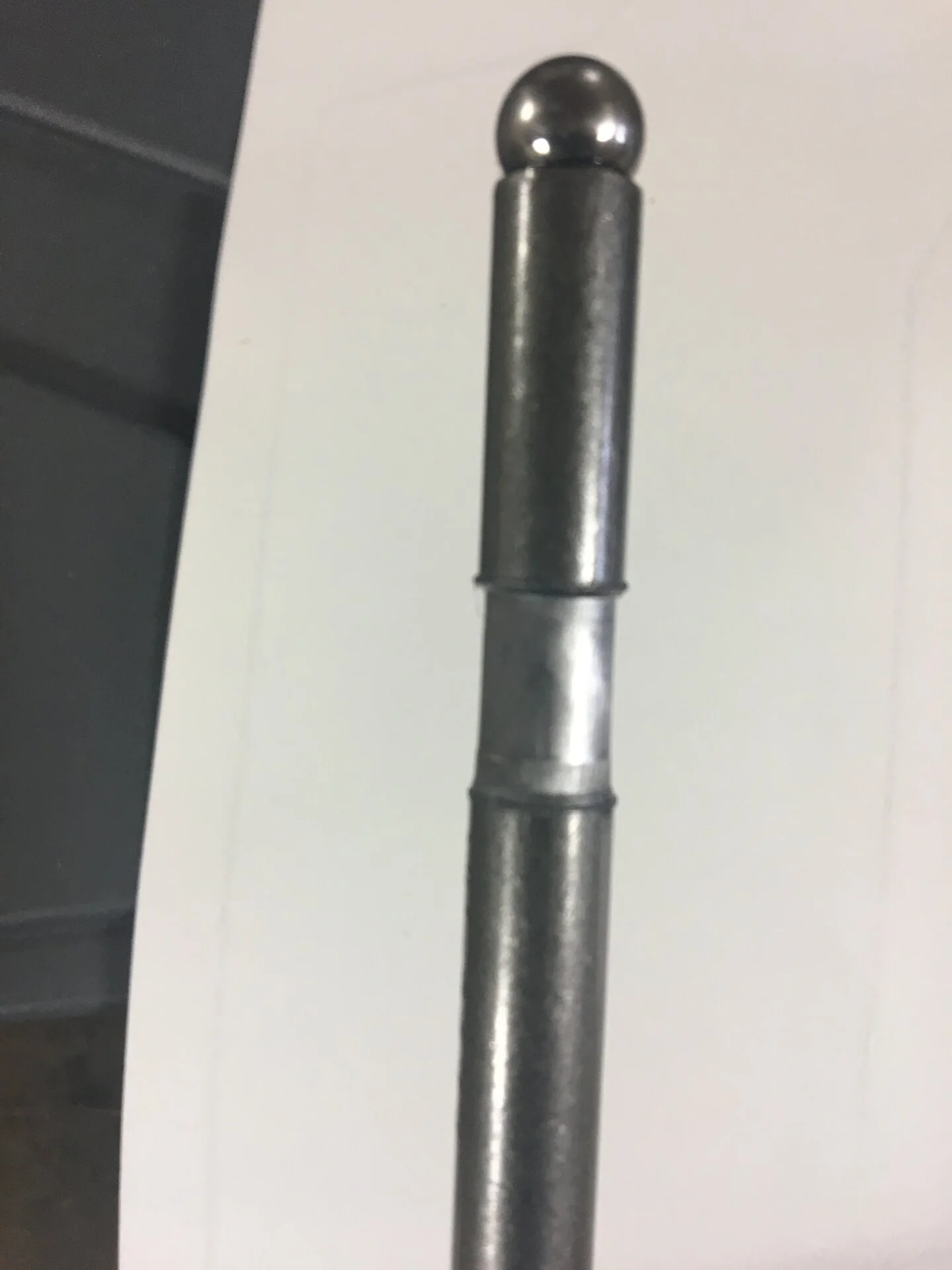

I am looking for some suggestions for why the pushrods would be rubbing. The engine is supposed to be a stroked 5.0 it has aluminum heads with stud mounted 1.6 rockers on it with guide plates, hydraulic lifters with the e303 Ford cam. This is according to the guy that my wife’s uncle bought the car from several years ago. There is wear on about half of the rods on both banks of the engine and on exhaust and intake sides. I have done valve train work before but it’s always been on pedestal rockers and with oem parts. I would think the builder would have used hardened rods but maybe not? I used my caliper on the rod in the picture and it’s 6.195 and some others are 6.200. I have bought a pushrod length checker just need to watch a few videos since I have never used one before. The only numbers on the rod are pr1473.

  • Sponsors(?)


manicmechanic007

Active Member
Sep 26, 2017
785
203
53
62
That sure looks like real heavy wear
How old is that pushrod?
I am surprised the end is still round
I think you have interference somewhere
Possibly they did not mill enough off the pedestals when the machine shop drilled and tapped for screw in studs?
That will cause excessive wear and bent pushrods
Inspect the bottom of each rocker arm for witness marks of interference against the screw in stud


Monkeybutt2000

Advanced Member
Aug 11, 2019
667
438
73
50
Lafayette,IN
Wow,never seen that before. Are they 1 piece or 2 piece guideplates? At any rate,there are some very good videos on Youtube they go over setting up guideplates.


plout99

Member
Sep 4, 2021
15
8
13
42
Ohio

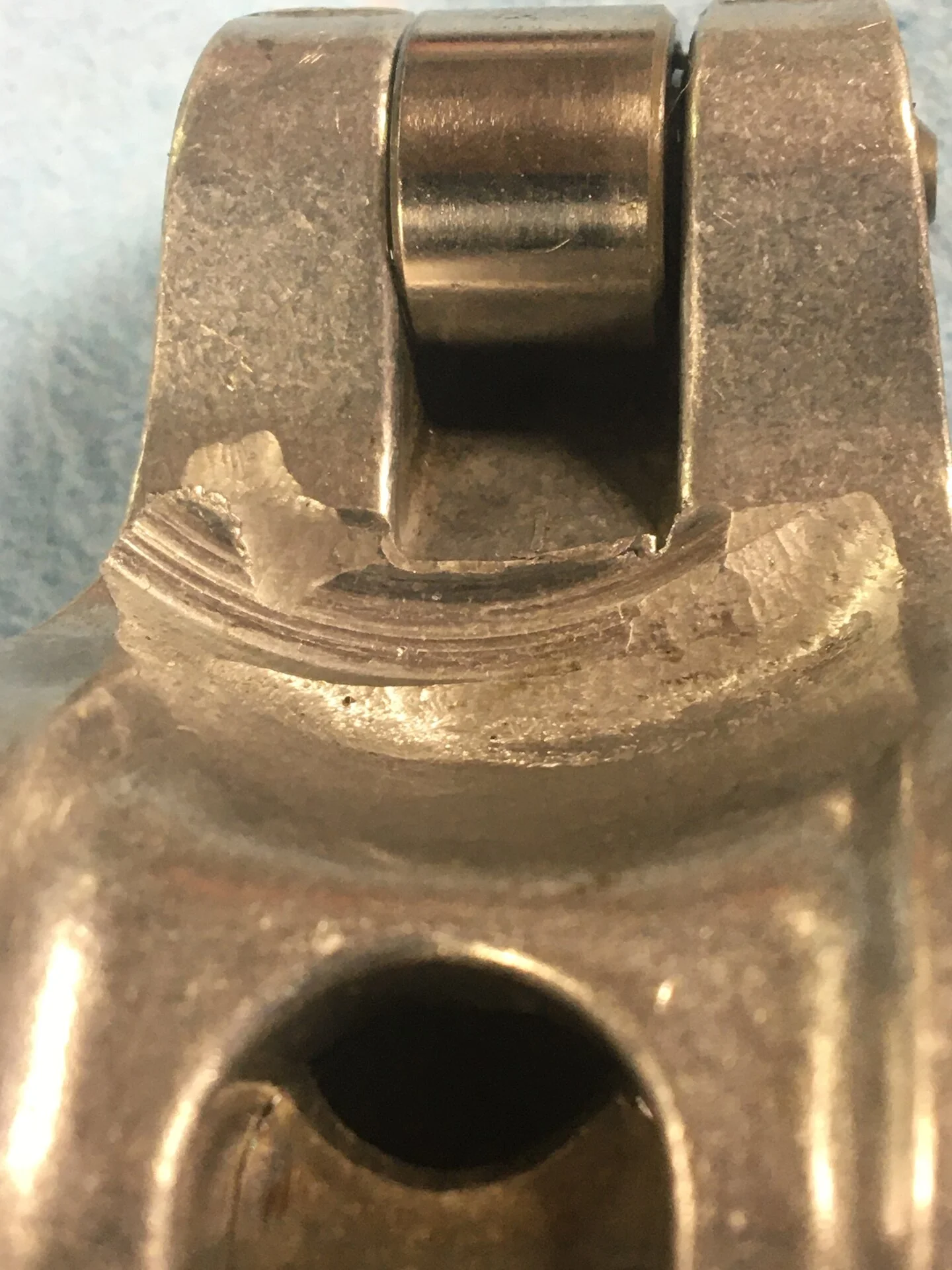

I pulled all the rockers pushrods and guide plates and there are no witness marks on the rockers where the studs would rub. All the pushrods show some to significant wear. There are marks where it looks like the rockers are rubbing the valve spring cap on all of the rockers. Picture of number 5 exhaust rocker.



The engine has at least 1200 miles the car was bought in Florida and driven back to Ohio mileage beyond that is unknown. The guide plates are one piece. I’m guessing here but wouldn’t a pushrod that’s to short allow the rocker to rub against the valve spring cap since it wouldn’t be setting level/parallel enough in relation to the valve spring?


plout99

Member
Sep 4, 2021
15
8
13
42
Ohio
Not sure who made them, they are aluminum so there not oem. From pictures I have looked at the aluminum Ford heads have the Ford logo stamped in the head under the valve cover. Are Ford trick flow and Edelbrock the only aluminum head manufacturers for the 5.0?


Monkeybutt2000

Advanced Member
Aug 11, 2019
667
438
73
50
Lafayette,IN
Not sure who made them, they are aluminum so there not oem. From pictures I have looked at the aluminum Ford heads have the Ford logo stamped in the head under the valve cover. Are Ford trick flow and Edelbrock the only aluminum head manufacturers for the 5.0?
No,there's several more.


plout99

Member
Sep 4, 2021
15
8
13
42
Ohio
Is Trick Flow the only manufacturer that have the valves and rocker studs at a slight angle? Looking at some pictures I am leaning towards them being from Trick Flow.


Monkeybutt2000

Advanced Member
Aug 11, 2019
667
438
73
50
Lafayette,IN
Is Trick Flow the only manufacturer that have the valves and rocker studs at a slight angle? Looking at some pictures I am leaning towards them being from Trick Flow.
I believe so,they require quite a bit longer pushrod ( around 6.700) than most others. My AFR's I was able to reuse stock length rockers. Did you note where the rocker tip was on the valve?


plout99

Member
Sep 4, 2021
15
8
13
42
Ohio
So I made a hydraulic lifter into a solid lifter and got a pushrod length checker. I am getting a good narrow line in the middle 1/3rd of the valve tip. My concern is the length is about 6.325 average longer than the stock rods in the head now but everything I read tells me with trickflow heads I should need a pushrod around 6.700 in length. I do not know if the block was decked or the heads milled. If they were could that be enough to account for needing shorter pushrods?


Monkeybutt2000

Advanced Member
Aug 11, 2019
667
438
73
50
Lafayette,IN
So I made a hydraulic lifter into a solid lifter and got a pushrod length checker. I am getting a good narrow line in the middle 1/3rd of the valve tip. My concern is the length is about 6.325 average longer than the stock rods in the head now but everything I read tells me with trickflow heads I should need a pushrod around 6.700 in length. I do not know if the block was decked or the heads milled. If they were could that be enough to account for needing shorter pushrods?
That's approx. 3/8 of an inch,no way.


plout99

Member
Sep 4, 2021
15
8
13
42
Ohio

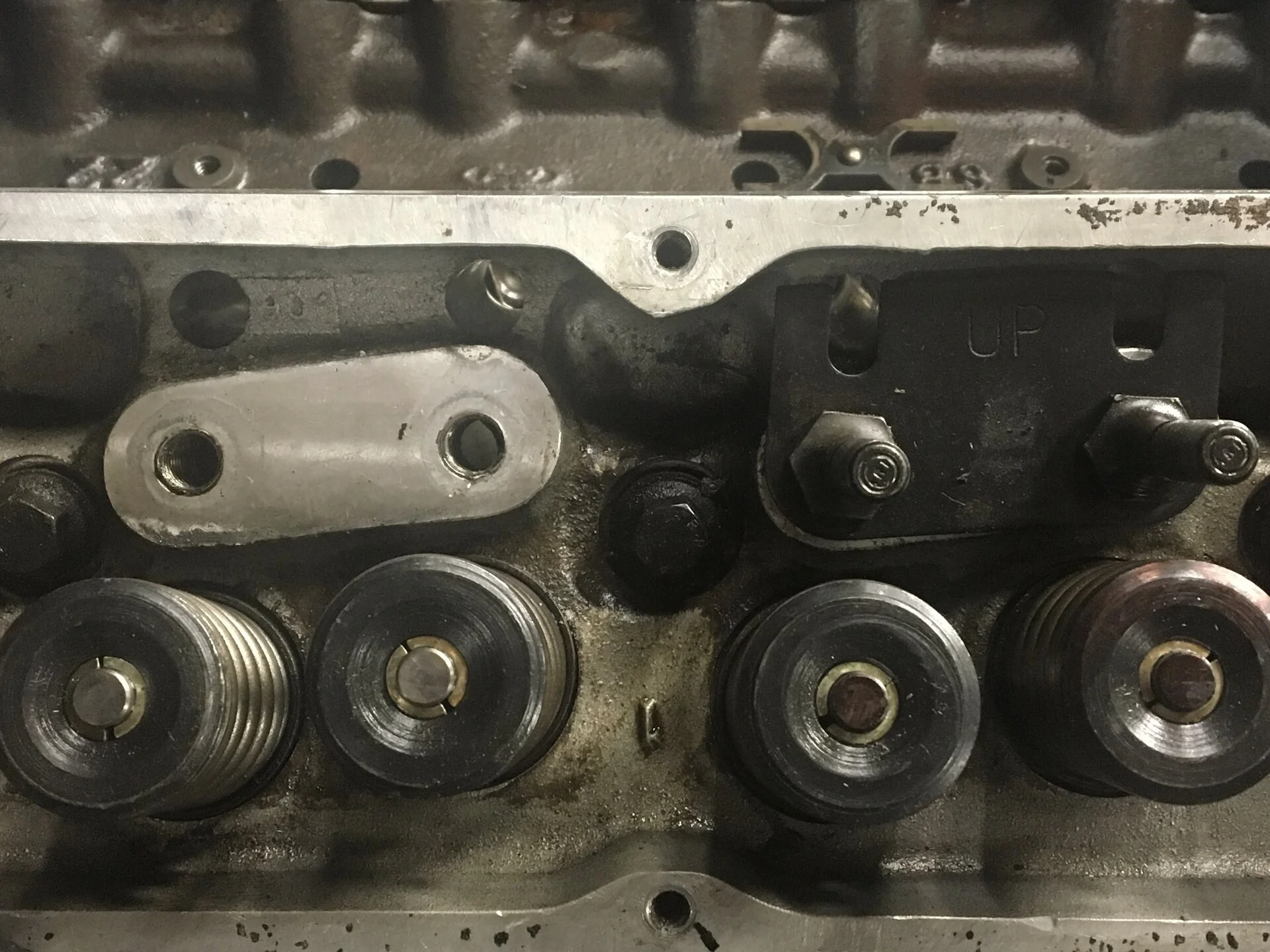

Here is a top view of the cylinder head. With everything being angled I am guessing they are TF heads. So far I can’t find any markings to identify them. The pushrod numbers would make more sense if they aren’t TF heads.


plout99

Member
Sep 4, 2021
15
8
13
42
Ohio
So I used the mid lift method from the Straub video to check for pushrod length and ended up with 6.698 average so I ordered the 6:650 trick flow pushrod. This length makes more sense than 6.325 I had previously just hoping this does not create any other issues I an unawares of. I am thinking about piston to valve clearance possibl.

  • Like
Reactions: 1 users

manicmechanic007

Active Member
Sep 26, 2017
785
203
53
62
I agree go longer not shorter and 6.7 is what I would try
Really ought to check rocker arm geometry and determine the length needed that way
It may be more than 6.7 with the guide plates, screw in studs and roller rockers
The piston to valve clearance will not change with different pushrod lengths
The rocker arm geometry will as will the clearance with the stud
Go a tad longer and get the roller rocker away from the stud
Like to see you use good tapered ones if you have to pay big money for them and do not go with the adjustable ones


plout99

Member
Sep 4, 2021
15
8
13
42
Ohio
So the 6.698 is a typo the average was 6.648 so I went to 6.650 and the trick flow push rods ended up ranging from 6.655 to 6.7005. I did expect more consistency in the length of the new pushrod. Anyhow I rotated the engine with everything installed and using my borescope everything appears to clear and the geometry looks good, as close to 90 degrees as I can tell at mid lift. I know 6.7 is what trick flow suggests however I do not know if the block was decked or the heads milled since I didn’t build the engine and that should shorten the length if they were.


manicmechanic007

Active Member
Sep 26, 2017
785
203
53
62
All you can do is try it
It should work
You did not need much additional clearance anyway
As long as the new pushrods are longer they should give you the clearance you need


plout99

Member
Sep 4, 2021
15
8
13
42
Ohio
Hopefully it will be fired up this weekend. Finally got the wonderful bbk fuel rails to stop puking gas everywhere. I pulled the thermostat housing off since I had the lower intake off and found no thermostat . Easy fix I just don’t understand why you would run without a thermostat. Hopefully the previous owner wasn’t trying to correct a overheating problem. The car was free and it’s rust free so throwing some dollars at it if needed is fine.

  • Like
Reactions: 1 user
