breakout box?

[Euphoric306]

im doing circuit checks on air management... whats the ECU breakout box?



[Daggar]

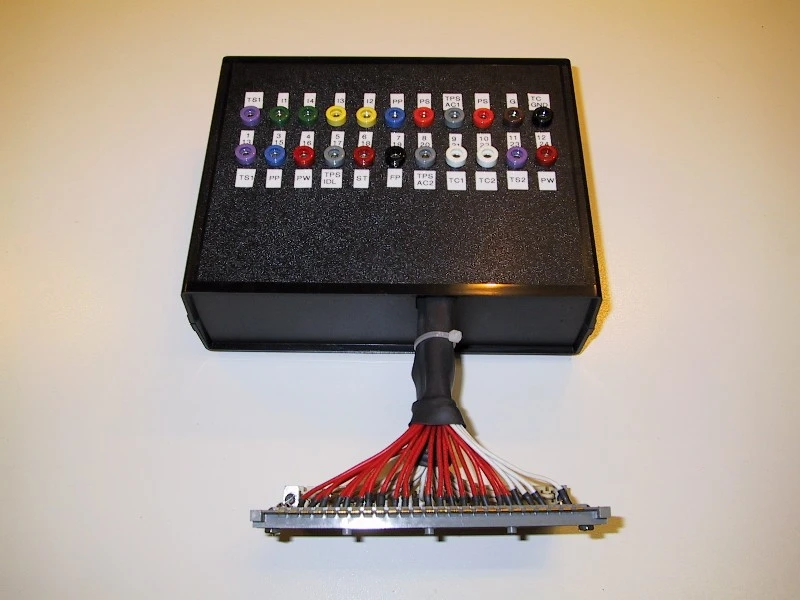

There is no breakout box permanently installed in our cars. The closest thing to it would be EEC connector itself. A breakout box is a connectors that would install between the harness and the EEC that effectively "taps" all the connections going to the EEC. Those "taps" run out to a box that is designed to allow you to take either milti-meter readings or logic probe readings from. The picture below will give you an idea of what a breakout box might look like for our EEC. I have not seen one that was specifically designed for our computers but I also have never looked for one either.



[Daggar]

A brief search turned up this:

http://www.cartools.com/Merchant2/merchant.mvc?Screen=PROD&Product_Code=adtsOTC3225&Category_Code=TS

It's a breakout box specifically for the EEC-IV.



[Jeff7477]

799 for that? what a waste



[Daggar]

799 for that? what a waste

LOL... probably why I don't have one. With a little ingenuity, I bet that you could make one for about $40.
