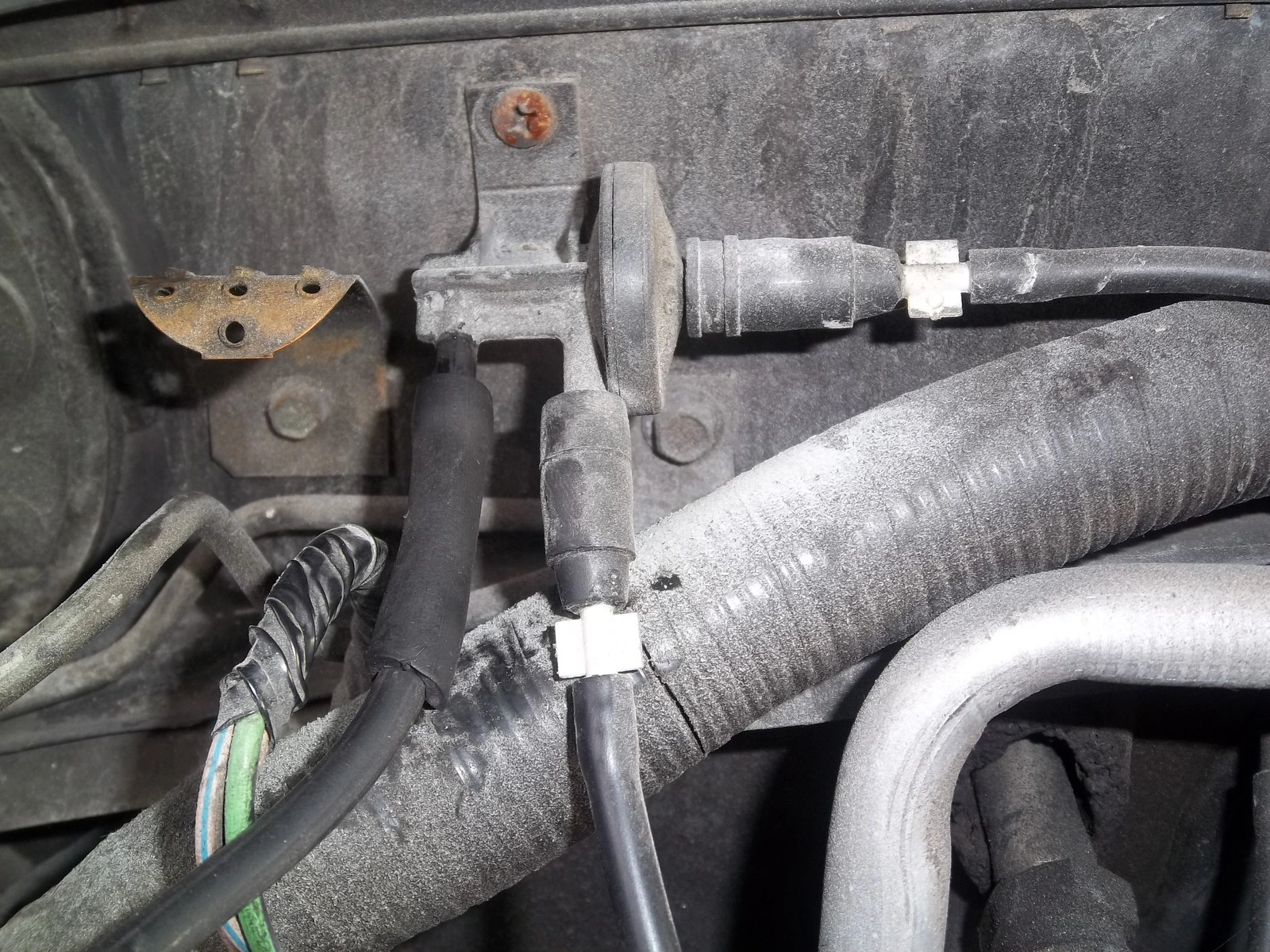

Can anyone please help me identify this part?

[89foxbodycali]

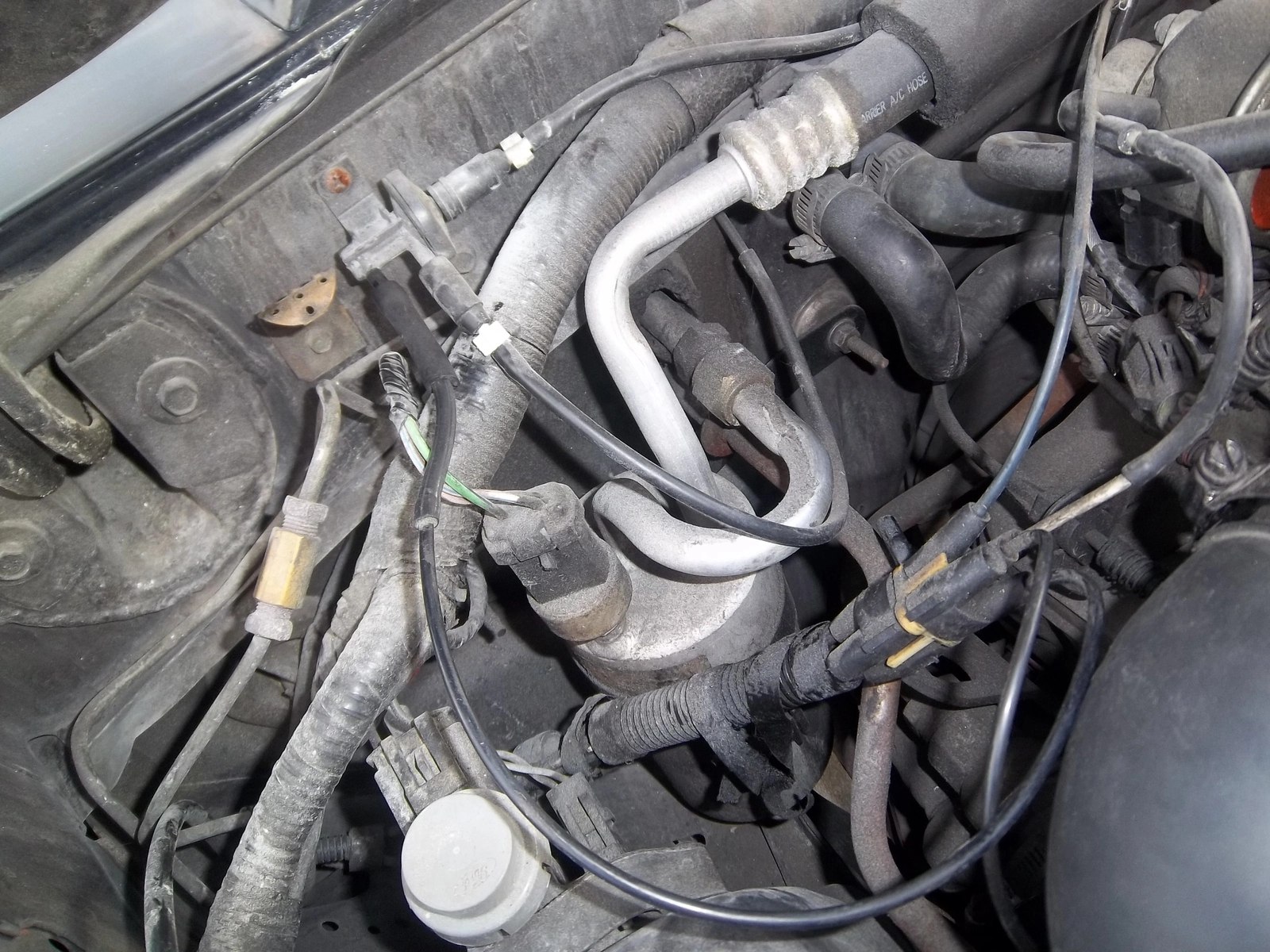

Please help me identify this part and help in the locations of the lines going to it.



[89foxbodycali]

Did some more searching and the line in question is from the vaccum canister to this tree. I have the line for the bypass valve hooked up to the tree that should have a line from the vaccum canister. The new question now is where is this vaccum canister? In the fender well? Im in the compartment right now. Wish me luck!



[ID89GT]

That is the vacuum check valve or whatever. It is used for the HVAC controls inside the cab. And yes the vacuum canister is in the passenger side fender.



[89foxbodycali]

Well i got good news and bad news. Good news is i found the line for the canister. Bad news is it's not connected to anything. Guess i have to remove the inner fender well to access the canister to make a repair? What will i be looking for in there? I take it there is a ball canister and a valve or something? Any help would be appreciated.



[ID89GT]

http://i.ebayimg.com/t/87-93-FORD-M...==/$(KGrHqF,!psE-z2GnUKJBP3QuCjO1!~~60_35.JPG

That is what it looks like, I hope it shows up for you haha.



[jcgafford]

Well i got good news and bad news. Good news is i found the line for the canister. Bad news is it's not connected to anything. Guess i have to remove the inner fender well to access the canister to make a repair? What will i be looking for in there? I take it there is a ball canister and a valve or something? Any help would be appreciated.

hold off on taking the fender off. i will go out tomorrow in the light and take pics of all these hoses so you can see the routing better.



[jrichker]

Diagram courtesy of Tmoss & Stang&2birds

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

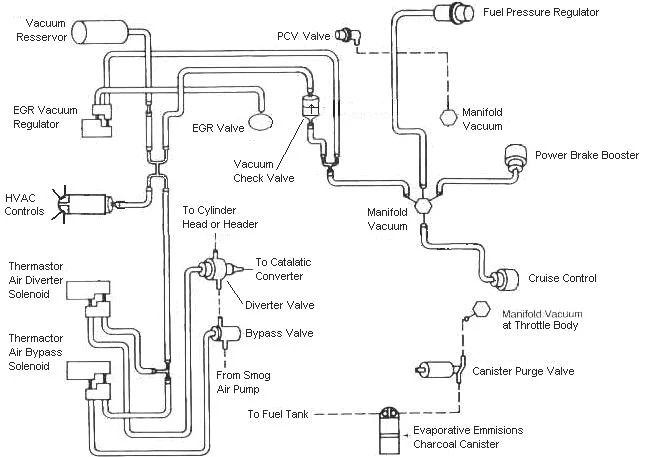

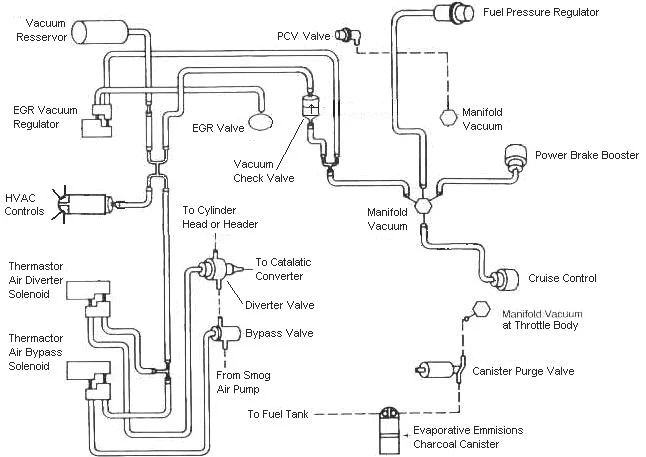

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pin out
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

87-92 power window wiring
http://www.veryuseful.com/mustang/tech/engine/images/mustang87-92 PowerWindowWiring.gif

93 power window wiring
http://www.veryuseful.com/mustang/tech/engine/images/mustang93PowerWindows.gif



[89foxbodycali]

http://i.ebayimg.com/t/87-93-FORD-MUSTANG-LARGE-VACUUM-CANISTER-RESERVOIR-BALL-88-89-90-91-92-OEM-/00/s/NTQwWDcyMA==/$(KGrHqF,!psE-z2GnUKJBP3QuCjO1!~~60_35.JPG

That is what it looks like, I hope it shows up for you haha.

where is that part on my car? 89 lx 5.0 automatic, i just pulled the inner fender well off and there is nothing there, where is this thing hiding?



[Boydster]

where is that part on my car? 89 lx 5.0 automatic, i just pulled the inner fender well off and there is nothing there, where is this thing hiding?

Should be there... RH fender, just above and behind the front tire. If not, well, thats a good reason someone disconnected it.
