Electrical Cruise control
- Thread starter brent89GT
- Start date
-
Sponsors (?)
I never had an aod. I can't imagine they have a clutch cut off switch though. I'd imagine that since the VSS runs off of the speedo cable, that's probably the same, though. I can show you pictures of my stuff from a T5 if that's relevant. Hopefully somebody's smarter than me can answer specifically the differences.
EEC has to know when the clutch is pushed in to disengage the cruise or the motor would rev to the moon. Both AOD and T5 cars have a vacuum switch on the brake pedal which disengages the cruise control and we have all used this. This switch is adjustable so if your cruise has quit this is one of the things to check along with the fuse for the cruise module.
When you switch from an AOD to a T5 there is a switch on the clutch pedal that has room for (2) two wire plugs. I believe this was addressed in your other post but one is part of the starter interrupt circuit and the other is part of the neutral sense circuit for the EEC. There is another switch on the quadrant side of the clutch and that switch is part of the cruise control interrupt circuit.
Good discussion on the different switches here:
stangnet.com
Again, there is a neutral gear switch on the top plate of most V8 T5's. The wiring for this will not be present in 91-93 4 cylinder cars as I stated in your other post so that should be added as the EEC for a V8 car is looking for it so you can get a hanging idle if it is not wired in.
When you switch from an AOD to a T5 there is a switch on the clutch pedal that has room for (2) two wire plugs. I believe this was addressed in your other post but one is part of the starter interrupt circuit and the other is part of the neutral sense circuit for the EEC. There is another switch on the quadrant side of the clutch and that switch is part of the cruise control interrupt circuit.
Good discussion on the different switches here:
Clutch Pedal Switch
Theres two switches on the clutch mechanism under the dash. One is the starter safety switch. On the other side there's another. What is that one for? Here's a pic
stangnet.com
Again, there is a neutral gear switch on the top plate of most V8 T5's. The wiring for this will not be present in 91-93 4 cylinder cars as I stated in your other post so that should be added as the EEC for a V8 car is looking for it so you can get a hanging idle if it is not wired in.
@AeroCoupe On the neutral gear switch, I'd read some old Jrichker stuff that led me to believe that the only time this is relevant is when doing some kind of EEC test functions and that it otherwise doesn't have an impact during operation. Did I misunderstand?
FWIW, that switch is not connected on my '03 Cobra T56. I have only plugged in the reverse lockout & the VSS signal wires, which I had to do a lot of signal converting for. That's all covered in my thread on Black Jack, of which I think you're already aware. To the point, I have not noticed any hanging idle issues or other ill effects from the neutral switch to this point.
FWIW, that switch is not connected on my '03 Cobra T56. I have only plugged in the reverse lockout & the VSS signal wires, which I had to do a lot of signal converting for. That's all covered in my thread on Black Jack, of which I think you're already aware. To the point, I have not noticed any hanging idle issues or other ill effects from the neutral switch to this point.
Since the car was swapped from aod to t5 I guess what I'm asking is.... what needs to be done or added for the cruise to work. Guy that built it says one plug needs to be added/ hooked up and it should work. I don't know. I can work on a lot of car stuff. But stuff like this/ electrical isn't my cliche. Pics could be helpful if you didn't mind.
Thank you
manicmechanic007
5 Year Member
Right, if an AOD the harness gets a plug where the clutch switch would be
So the T5 needs the clutch dump switch
There is a lot to diagnosis for the speed control

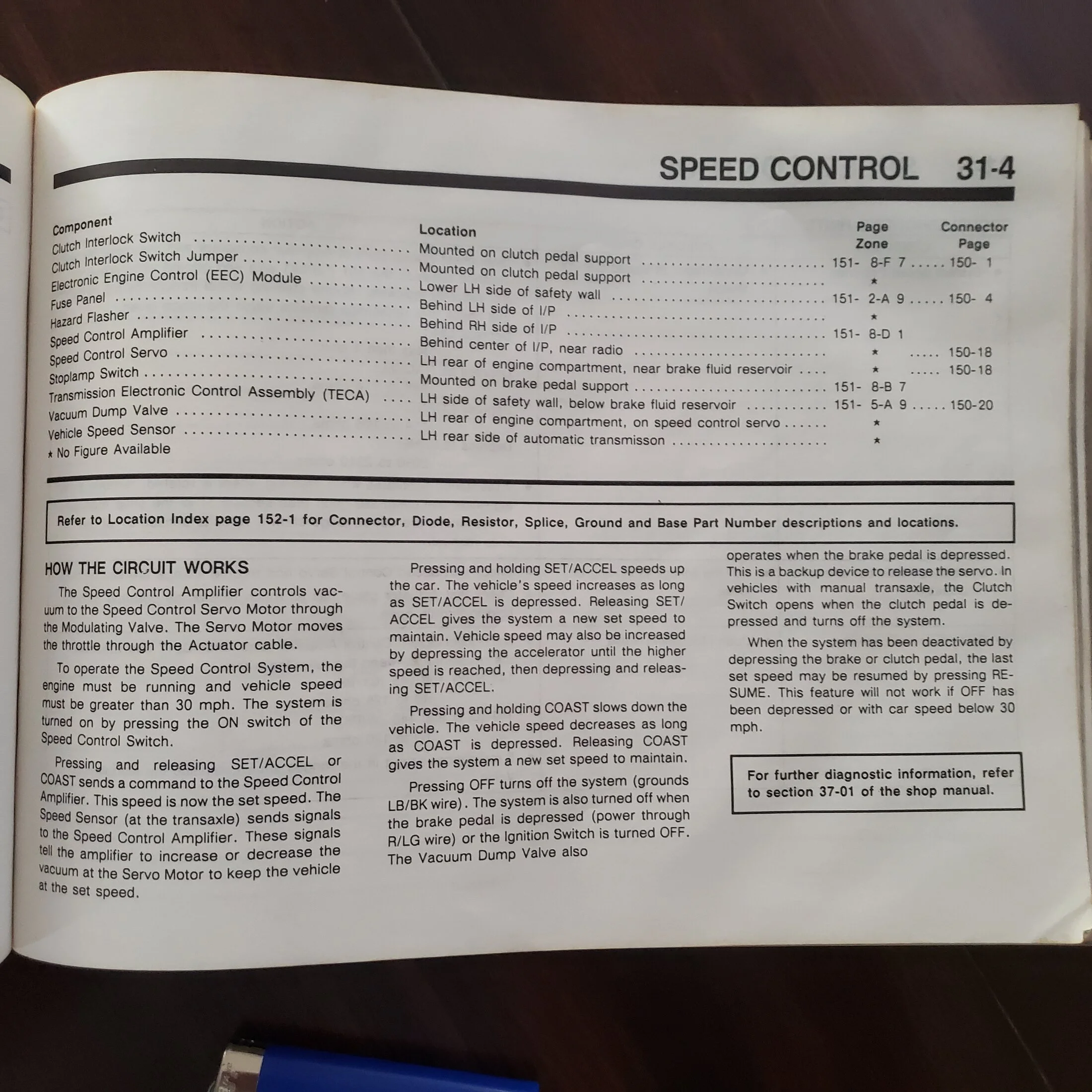

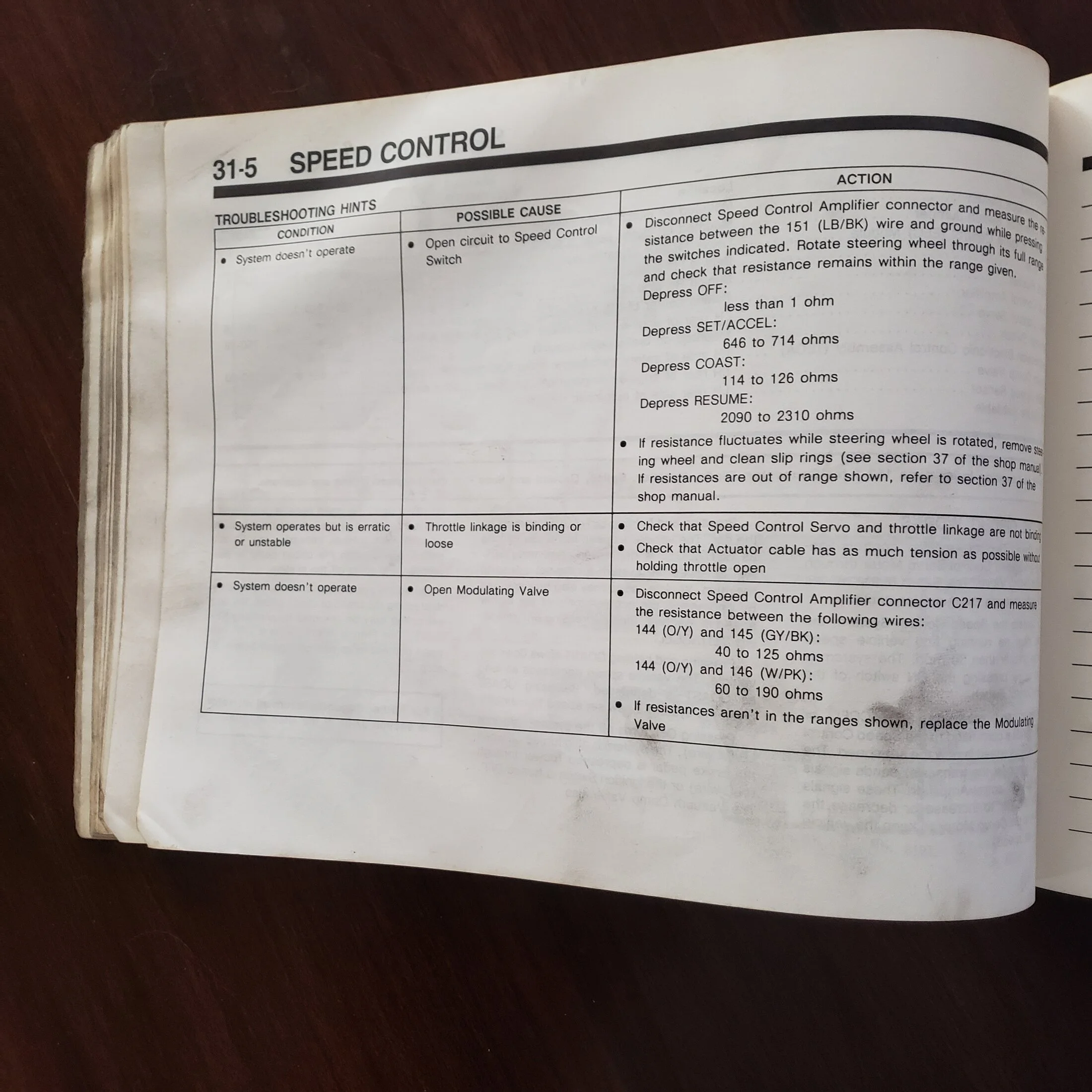

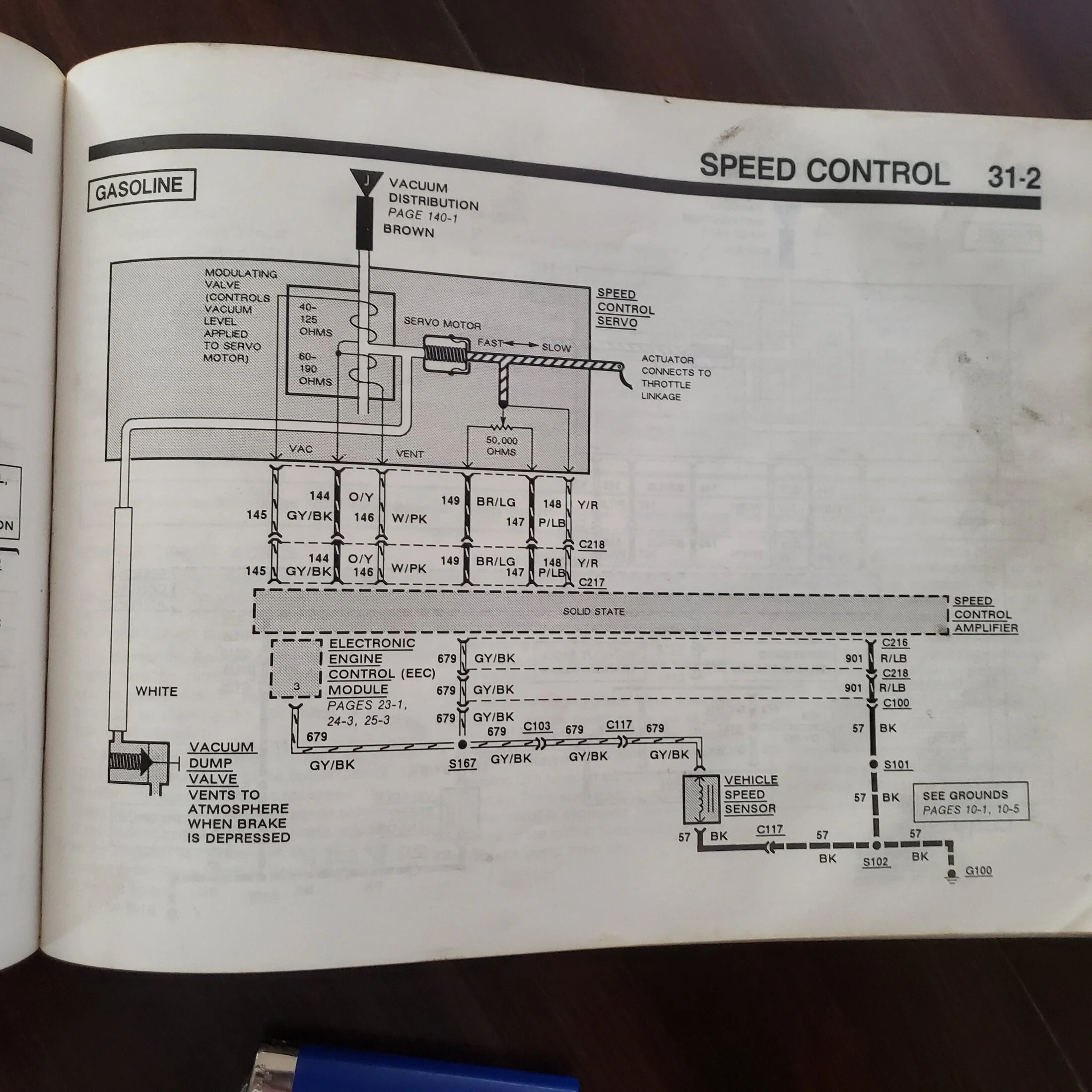

Here are some diagrams from a1990 truck EVTM
The locations will be wrong, but the schematic will be basically the same
So the T5 needs the clutch dump switch
There is a lot to diagnosis for the speed control
Here are some diagrams from a1990 truck EVTM
The locations will be wrong, but the schematic will be basically the same
manicmechanic007
5 Year Member
The only change that has to be made when going from AOD to 5-spd is the cruise cancel switch on the right hand side of the pedal box. When you swap to the 5-spd pedals, make sure this switch is attached otherwise it’s a PItA to do after the fact.
Photo of that switch here on right side
On the AOD cars you’ll find the plug clipped to the vertical support brace under the dash. Red wire with green stripe. There is a jumper in place.
Remove jumper, connect to above clutch switch.
Done.
That’s the only change. All the other circuits remain the same. Cruise is not incorporated into the two plugs (NGS, starter circuit) on the left hand side of the pedal box. You’ll need to connect those to the clutch switch anyway as part of the 5-spd swap regardless
Photo of that switch here on right side
On the AOD cars you’ll find the plug clipped to the vertical support brace under the dash. Red wire with green stripe. There is a jumper in place.
Remove jumper, connect to above clutch switch.
Done.
That’s the only change. All the other circuits remain the same. Cruise is not incorporated into the two plugs (NGS, starter circuit) on the left hand side of the pedal box. You’ll need to connect those to the clutch switch anyway as part of the 5-spd swap regardless
The only change that has to be made when going from AOD to 5-spd is the cruise cancel switch on the right hand side of the pedal box. When you swap to the 5-spd pedals, make sure this switch is attached otherwise it’s a PItA to do after the fact.
Photo of that switch here on right side
On the AOD cars you’ll find the plug clipped to the vertical support brace under the dash. Red wire with green stripe. There is a jumper in place.
Remove jumper, connect to above clutch switch.
Done.
That’s the only change. All the other circuits remain the same. Cruise is not incorporated into the two plugs (NGS, starter circuit) on the left hand side of the pedal box. You’ll need to connect those to the clutch switch anyway as part of the 5-spd swap regardless
Thank you for the info. It is greatly appreciated. Do you know the name of that part or a part number. All i can find for a clut h switch is this.. Def not the part in your pic.The only change that has to be made when going from AOD to 5-spd is the cruise cancel switch on the right hand side of the pedal box. When you swap to the 5-spd pedals, make sure this switch is attached otherwise it’s a PItA to do after the fact.
Photo of that switch here on right side
On the AOD cars you’ll find the plug clipped to the vertical support brace under the dash. Red wire with green stripe. There is a jumper in place.
Remove jumper, connect to above clutch switch.
Done.
That’s the only change. All the other circuits remain the same. Cruise is not incorporated into the two plugs (NGS, starter circuit) on the left hand side of the pedal box. You’ll need to connect those to the clutch switch anyway as part of the 5-spd swap regardless
Last edited:
Switch Assy, Speed Control Release, Incl Wiring And Bracket, W/ Id Codes *E1db-9f645-Ac*, *E9zb-9f645-Ba*, Prior Part Number E1dz-9a837-A, F4zz-9a837-A - #M-9A837-3 - National Parts Depot
Buy part #M-9A837-3 Switch Assy, Speed Control Release, Incl Wiring And Bracket, W/ Id Codes *E1db-9f645-Ac*, *E9zb-9f645-Ba*, Prior Part Number E1dz-9a837-A, F4zz-9a837-A for your classic vehicle from National Parts Depot. Free shipping on orders over $300, fast delivery & everyday low pricing...
www.npdlink.com
You are the man!!! You've been a great help to me! ! Hell all of you have!! Can I get your name? Thank you all!!!Switch Assy, Speed Control Release, Incl Wiring And Bracket, W/ Id Codes *E1db-9f645-Ac*, *E9zb-9f645-Ba*, Prior Part Number E1dz-9a837-A, F4zz-9a837-A - #M-9A837-3 - National Parts Depot
Buy part #M-9A837-3 Switch Assy, Speed Control Release, Incl Wiring And Bracket, W/ Id Codes *E1db-9f645-Ac*, *E9zb-9f645-Ba*, Prior Part Number E1dz-9a837-A, F4zz-9a837-A for your classic vehicle from National Parts Depot. Free shipping on orders over $300, fast delivery & everyday low pricing...
Stay tuned I'm sure I have more questions coming!!
Do you have any pics of this switch installed on right side of pedal box? What does it connect too? Brake pedal? Is this the switch that cuts cruise off when brake is pressed? Sorry for all the questions but I just don't know anything about this. I'm guessing it's gonna be a PItA cause pedal assembly is already in car when bought...
All the wiring diagrams and some pics are in here
stangnet.com
Foxbody Mustang Cruise Control information, location, wiring diagrams
Done a little research into this and figured what I learned should be put into a thread and added to the tech sticky. As you can imagine, nobody really gives much thought to cruise control on these cars, so many searched threads had dead ends. So many this will help someone out down the road...
stangnet.com

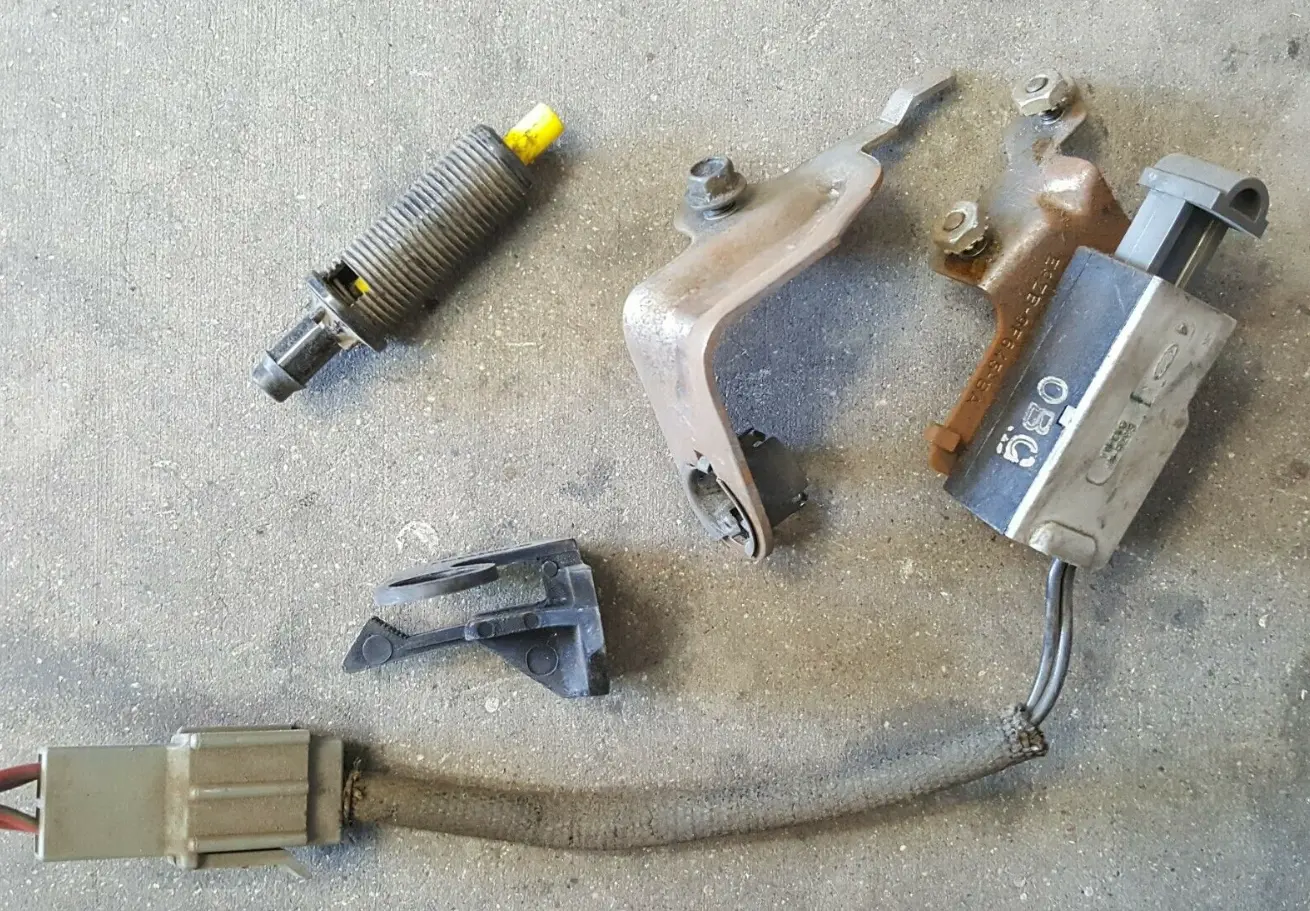

Check out this auction. It has the parts attached.
1979 1993 Mustang Cobra T5 Manual Pedal Assembly | eBay
Find many great new & used options and get the best deals for 1979 1993 Mustang Cobra T5 Manual Pedal Assembly at the best online prices at eBay! Free shipping for many products!
www.ebay.com
Cruise cutoff goes on pass side of pedal box. In front of the brake pedal is the vacuum dump valve, and there is a little clip that attaches to the brake pedal to depress it.
Those parts can be tricky to find.
