engine temp running slightly warmer than usual heater blowing cold

90lxwhite

I'm kind of a She-Man
5 Year Member
Aug 25, 2011
3,311
374
134
Between the Red and Rio
Hey fellas my eng temp is running a lil on the warm side but the heater blows cold air. I checked to see if I had air in the system, when car reached operating temp the coolant around the radiator neck bubbled some but never "burped" over. When I would give it some gas like 3-4k rpm the fluid would drop and then raise back up. What do yall think is causing the heater to blow cold, heater core, thermostat stuck open?

Check out the heater controls first: make sure the heater door arm is moving. It is cable operated, and the cable may have come off one end or the other.

Diagram courtesy of Tmoss & Stang&2birds


See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring Mustang FAQ - Wiring & Engine Info Everyone should bookmark this site.

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

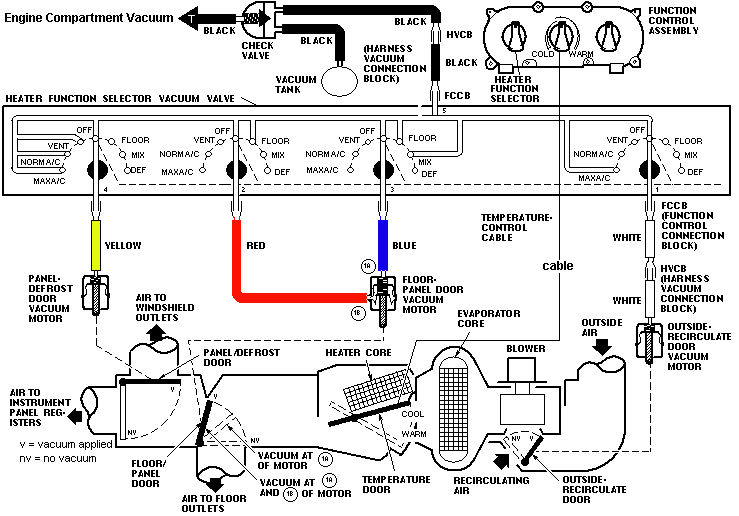

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pinout
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif


Attachments

  • Mustang_AC_heat_vacuum_controls.gif
    17.8 KB · Views: 142
