Fuel Fuel Prime Runs But No Fuel Pressure.

GeeTee83

New Member
Oct 7, 2015
8
1
1
I have an 88 5.0 GT I have had since new, it has been sitting for a few years but was starting with no problems when moved. Car will not start but will start on either. The fuel prime runs the cycle on key-on and fuel pump will run if I ground the green wire on the relay or the slot in the lower right of the eec test port. I have power on both wires on the crash switch in the rear panel when switch is on. I get fuel at the schrader valve in the fuel line when I force the pump to run. Is there any fuel pressure shut-off in the system that wont let the pump turn on?

  • Sponsors (?)


No there is not. What this usually means is that the pump is bypassing internally. There are pressure seals within the pump that are designed to blow out in an over pressure situation. Sometimes they blow for no reason.

I tell people who are buying new pumps to stick exclusively to Walbro (rebranded pumps count) and to always purchase the high pressure version of whichever volume pump you've decided is correct.

No there is not. What this usually means is that the pump is bypassing internally. There are pressure seals within the pump that are designed to blow out in an over pressure situation. Sometimes they blow for no reason.

I tell people who are buying new pumps to stick exclusively to Walbro (rebranded pumps count) and to always purchase the high pressure version of whichever volume pump you've decided is correct.

What regulates when the pump runs and does not?

Your ignition switch and a relay under your driver's seat.

I just had to double check which forum I'm in because it's different depending on year: LOL

Your fuel system is a return style fuel system. When the ignition switch goes to "On" the pump primes. This is controlled by the ECU and the relay under your seat.

When the motor is running, the pump runs full time. Fuel that is not used is returned to the fuel tank by the fuel pressure regulator mounted on the passenger side fuel rail.

I had this issue. Pump would prime and car would either not start or would die in a few minutes after pump warmed up. Walbro is the only brand to use. Forget airtex. They are garbage.

Your ignition switch and a relay under your driver's seat.

I just had to double check which forum I'm in because it's different depending on year: LOL

Your fuel system is a return style fuel system. When the ignition switch goes to "On" the pump primes. This is controlled by the ECU and the relay under your seat.

When the motor is running, the pump runs full time. Fuel that is not used is returned to the fuel tank by the fuel pressure regulator mounted on the passenger side fuel rail.

So if I am not getting fuel pressure when pump primes then pump is junk since I can't hear pump running because of starter when cranking?

So if I am not getting fuel pressure when pump primes then pump is junk since I can't hear pump running because of starter when cranking?

The answer to your question is, "Usually".

The other possibility (although more rare) is that the fuel regulator is stuck open (all your fuel is being sent back to the tank). You can check this by removing the vacuum line going to the regulator and look/smell to see if there's gas in there. The regulator would require replacement.

I had someone run the key while I held the schrader valve open and at prime and while cranking over the pump is pumping fuel but I have not hooked up a pressure gage to it yet , would low pressure keep it from starting ? I did not think the pump was running other than to prime but does run when cranking but may be lacking pressure.

Thanks everyone, I will get a gage and check pressure and check the regulator. I am thinking this will tell the tale.

Most auto parts stores will rent or loan a fuel pressure test gauge.

Want to build you own permanently mounted under hood fuel pressure gauge? Here's how....

Fuel pressure gauge adapter fittings:
http://www.holley.com/products.asp?product=17945NOS AN 4 to 1/16” pipe
http://www.holley.com/products.asp?product=16785NOS 1/16” male pipe to 1/8” female pipe

Or
See Accessories - Adapters, Fitting & Hose

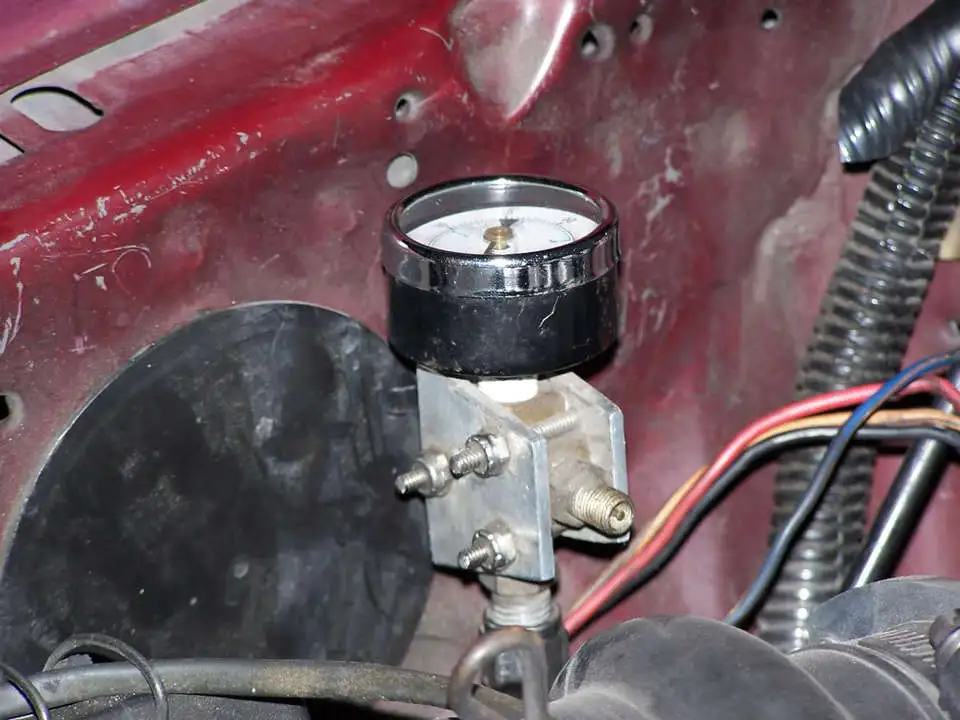

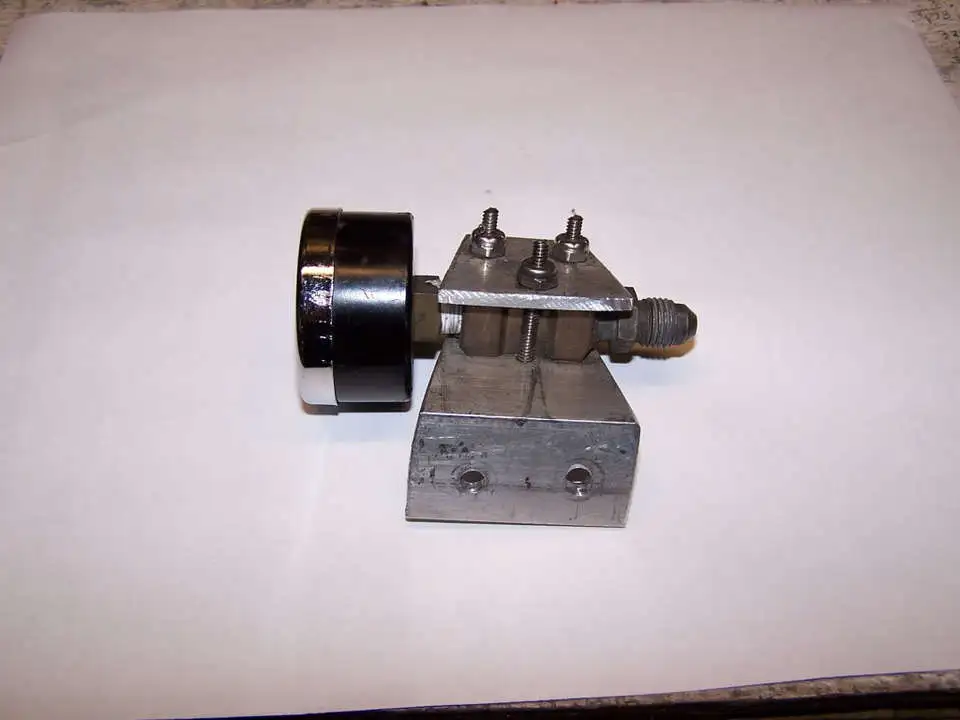

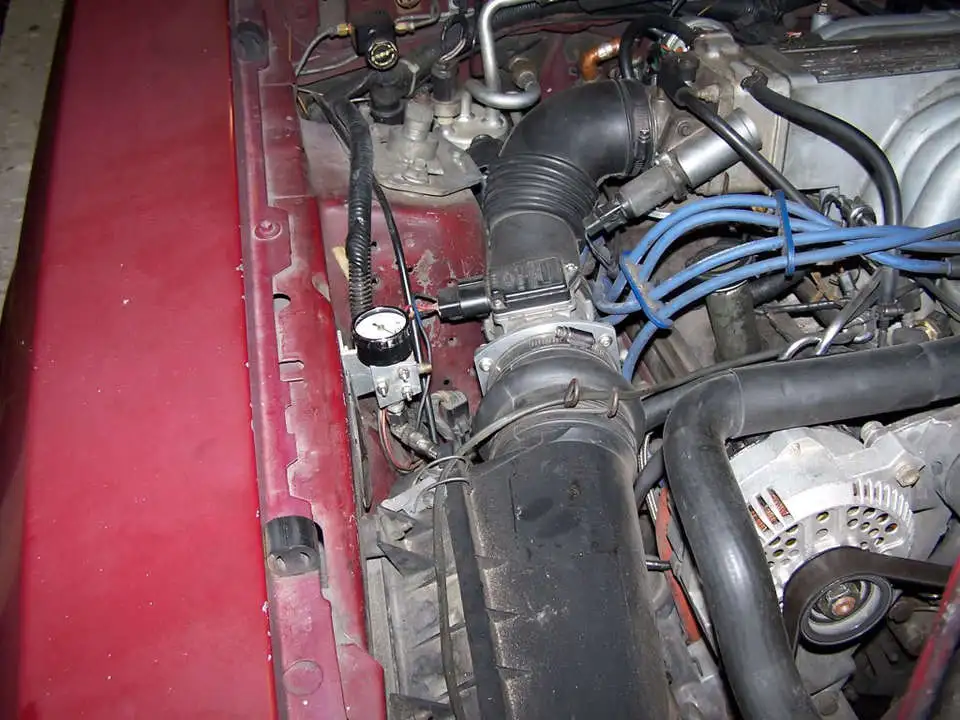

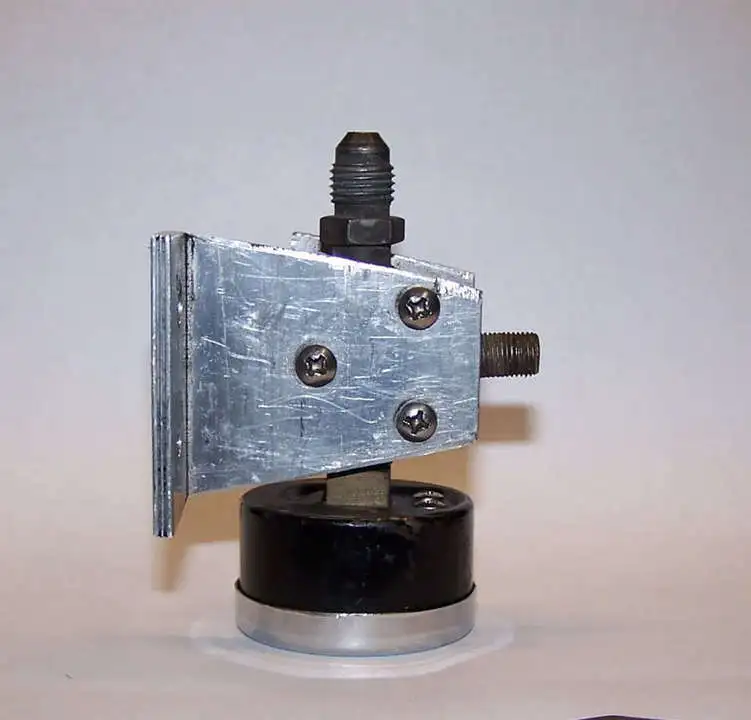

I made my own pressure gauge and holder. I bought the NOS or Autometer adapter that you screw into the place on the fuel line where the schrader valve goes. You have to remove the Schrader valve, but save it, since you will reuse it. I ran a piece of SS (stainless steel) braided hose to a 1/8” pipe brass tee fitting that I mounted on the fender well by the MAF. I made a mount bracket out of aluminum angle I got from Home depot and bolted it to the fender well. Then I mounted the brass tee to it with some machine screws and a plate. I sandwiched the brass tee between the aluminum angle and a flat piece of aluminum that I trimmed off the extra aluminum angle. Three screws laid out in a triangle pattern go through both pieces of aluminum to clamp the tee in place. Put the Schrader valve in the spare port of the brass tee. I used a cheap industrial gauge from MSC Direct (MSC Industrial Supply Co. | Find Power Tools, Hand Tools, Machine Tools & More P/N 56468499). It works great and was cheaper than (less than $8) anything Summit had.

If you look through the MSC Direct catalog, you can find any type of gauge you want, including liquid filled. You only need a liquid filled gauge if you mount it directly on the engine. The liquid filling dampens out the vibrations.

You can buy the Autometer Stainless Steel braided hose for like $60. Or a local shop that makes hydraulic hose assemblies can make it for you at a cheaper price. Ordinary low pressure hydraulic hose can be used in place of the Stainless Steel braided hose, the Stainless Steel braided hose just looks nice. I got mine for $4 at a place that sells industrial and military surplus parts of all kinds. The Stainless Steel braided hose goes for about $4+ a foot and the fittings are probably about $6-$10 each. You can make your own and save some $$$, the shops may have a setup or labor charge to fabricate the hose assembly.


[



Safety device to prevent major fuel loss in the event of a failure of the hose, fittings or gauge...
attachment.php

I have an 88 5.0 GT I have had since new, it has been sitting for a few years but was starting with no problems when moved. Car will not start but will start on either. The fuel prime runs the cycle on key-on and fuel pump will run if I ground the green wire on the relay or the slot in the lower right of the eec test port. I have power on both wires on the crash switch in the rear panel when switch is on. I get fuel at the schrader valve in the fuel line when I force the pump to run. Is there any fuel pressure shut-off in the system that wont let the pump turn on?
With it sitting for a few years I'd suspect that the gas is bad, fuel pump filter could be clogged and needs replaced, pump itself could be malfunctioning like previously stated above. Also the FPR (fuel pressure reg) inner diaphragm could have deteriorated. You typically will get gas coming out of the vacuum line from the FPR when this happens. Also replace your fuel filter too.

Fuel Pump Troubleshooting for 87-90 Mustangs

Revised 11-Mar-2014 to add new fuel pump wiring diagram.

Clue – listen for the fuel pump to prime when you first turn the ignition switch on. It should run for 1-3 seconds and shut off. To trick the fuel pump into running, find the ECC test connector and jump the connector in the upper LH corner to ground.





Turn the ignition switch on when you do this test.
attachment.php


If the fuse links are OK, you will have power to the pump. Check fuel pressure – remove the cap from the Schrader valve behind the alternator and depress the core. Fuel should squirt out, catch it in a rag. A tire pressure gauge can also be used if you have one - look for 37-40 PSI. Beware of fire hazard when you do this.

No fuel pressure, possible failed items in order of their probability:
A.) Tripped inertia switch – press reset button on the inertia switch. The hatch cars hide it under the plastic trim covering the driver's side taillight. Use the voltmeter or test light to make sure you have power to both sides of the switch

B.) Fuel pump power relay – located under the driver’s seat in most Mustangs built before 92. See the diagram to help identify the fuel pump relay wiring colors. Be sure to closely check the condition of the relay, wiring & socket for corrosion and damage.
C.) Clogged fuel filter
D.) Failed fuel pump
E.) Blown fuse link in wiring harness.
F.) Fuel pressure regulator failed. Remove vacuum line from regulator and inspect
for fuel escaping while pump is running.

87-90-5-0-mustang-fuel-pump-wiring-gif.88241


The electrical circuit for the fuel pump has two paths, a control path and a power
path.

Control Path
The control path consists of the inertia switch, the computer, and the fuel pump relay coil. It turns the fuel pump relay on or off under computer control. The switched power (red wire) from the ECC relay goes to the inertia switch (red/black wire) then from the inertia switch to the relay coil and then from the relay coil to the computer (tan/ Lt green wire). The computer provides the ground path to complete the circuit. This ground causes the relay coil to energize and close the contacts for the power path. Keep in mind that you can have voltage to all the right places, but the computer must provide a ground. If there is no ground, the relay will not close the power contacts.


[b[Power Path[/b]
The power path picks up from a fuse link near the starter relay. Fuse links are like fuses, except they are pieces of wire and are made right into the wiring harness. The feed wire from the fuse link (orange/ light blue wire) goes to the fuel pump relay contacts. When the contacts close because the relay energizes, the power flows through the contacts to the fuel pump (light pink/black wire). Notice that pin 19 on the computer is the monitor to make sure the pump has power. The fuel pump has a black wire that supplies the ground to complete the circuit.

Remember that the computer does not source any power to actuators, relays or injectors, but provides the ground necessary to complete the circuit. That means one side of the circuit will always be hot, and the other side will go to ground or below 1 volt as the computer switches on that circuit.

attachment.php


Now that you have the theory of how it works, it’s time to go digging.

All voltage reading are made with one voltmeter lead connected to the metal car body unless otherwise specified

Check for 12 volts at the red wire on the inertia switch. No 12 volts at the inertia switch, the ignition switch is turned off or faulty or there is no power to the EEC (computer) power relay. To be sure look for good 12 volts on the red wire on any fuel injector.
Good 12 volts means the EEC relay is working. No 12 volts and the ECC wiring is at fault.
Look for 12 volts on the red/green wire on the ignition coil: no 12 volts and the ignition switch is faulty, or the fuse link in the ignition power wire has blown. No 12 volts here and the ECC relay won’t close and provide power to the inertia switch. Check the Red/black wire on the inertia switch, it should have 12 volts. No 12 volts there, either the inertia switch is open or has no power to it. Check both sides of the inertia switch: there should be power on the Red wire and Red/Black wire. Power on the Red wire and not on the Red/Black wire means the inertia switch is open. Push the button on the side of it to reset it, and then recheck. Good 12 volts on one side and not on the other means the inertia switch has failed.

Look for 12 volts at the Orange/Lt. Blue wire (power source for fuel pump relay). No voltage or low voltage, bad fuse link, bad wiring, bad ignition switch or ignition switch wiring or connections. There is a mystery connector somewhere under the driver’s side kick panel, between the fuel pump relay and the fuse link.

Turn on the key and jumper the fuel pump test connector to ground as previously described. Look for 12 volts at the Light Pink/Black wire (relay controlled power for the fuel pump). No voltage there means that the relay has failed, or there is a broken wire in the relay control circuit.

Pump wiring: Anytime the ignition switch is in the Run position and the test point is jumpered to ground, there should be at least 12 volts present on the black/pink wire. With power off, check the pump ground: you should see less than 1 ohm between the black wire and chassis ground.

attachment.php


The yellow wire is the fuel tank sender to the fuel quantity gage. The two black wires are grounds. One ground is for the fuel tank sender and the other is the fuel pump. The ground for the fuel pump may be larger gauge wire that the fuel tank sender ground wire.

Make sure that the power is off the circuit before making any resistance checks. If the circuit is powered up, your resistance measurements will be inaccurate.

You should see less than 1 Ohm between the black wire(s) and ground. To get some idea of what a good reading is, short the two meter leads together and observe the reading. It should only be slightly higher when you measure the black wire to ground resistance.

The Tan/Lt Green wire provides a ground path for the relay power. With the test connector jumpered to ground, there should be less than .75 volts. Use a test lamp with one side connected to battery power and the other side to the Tan/Lt Green wire. The test light should glow brightly. No glow and you have a broken wire or bad connection between the test connector and the relay. To test the wiring from the computer, remove the passenger side kick panel and disconnect the computer connector. It has a 10 MM bolt that holds it in place. With the test lamp connected to power, jumper pin 22 to ground and the test lamp should glow. No glow and the wiring between the computer and the fuel pump relay is bad.

Computer: If you got this far and everything else checked out good, the computer is suspect. Remove the test jumper from the ECC test connector located under the hood. Probe computer pin 22 with a safety pin and ground it to chassis. Make sure the computer and everything else is connected. Turn the ignition switch to the Run position and observe the fuel pressure. The pump should run at full pressure.
If it doesn't, the wiring between pin 22 on the computer and the fuel pump relay is bad.
If it does run at full pressure, the computer may have failed.

Keep in mind that the computer only runs the fuel pump for about 2-3 seconds when you turn the key to the Run position. This can sometimes fool you into thinking the computer has died. Connect one lead of the test light to power and the other lead to computer pin 22 with a safety pin. With the ignition switch Off, jumper the computer into self test mode like you are going to dump the codes. Turn the ignition switch to the Run position. The light will flicker when the computer does the self test routine. A flickering light is a good computer. No flickering light is a bad computer.
Remove the test jumper from the ECC test connector located under the hood.

Fuel pump runs continuously: The fuel pump relay contacts are stuck together or the Tan/Lt Green wire has shorted to ground. In extreme ghetto cases, the pump relay may have been bypassed. Remove the fuel pump relay from its socket. Then disconnect the computer and use an ohmmeter to check out the resistance between the Tan/Lt Green wire and ground. You should see more than 10 K Ohms (10,000 ohms) or an infinite open circuit. Be sure that the test connector isn’t jumpered to ground.
If the wiring checks out good, then the computer is the likely culprit.

Prior to replacing the computer, check the computer power ground. The computer has its own dedicated power ground that comes off the ground pigtail on the battery ground wire. Due to it's proximity to the battery, it may become corroded by acid fumes from the battery. It is a black cylinder about 2 1/2" long by 1" diameter with a black/lt green wire. You'll find it up next to the starter solenoid where the wire goes into the wiring harness

If all of the checks have worked OK to this point, then the computer is bad. The computers are very reliable and not prone to failure unless there has been significant electrical trauma to the car. Things like lightning strikes and putting the battery in backwards or connecting jumper cables backwards are about the only thing that kills the computer.

See the following website for some help from Tmoss (diagram designer) &
Stang&2Birds (website host)

http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

http://www.veryuseful.com/mustang/tech/engine/images/88-91eecPinout.gif
