Help, Lights And Wipers

tomcamaro97

Active Member
Jun 17, 2015
43
27
28
Im working out a couple of small issues, and a new one cropped up.

my instrament lights arent working.. i replaced my heater core.. reinstalled everything and replaced a few bulbs and everything was working well. also installed a new stereo. Now all the sudden they arent working.. not just my dash but also the heater controlls etc.. if i adjust my dimmer nothing happens, but i can adjust the dimmer all the way up and the dome light goes on as it should.. i checked my fuse, looks fine. im gonna check the "lumination" wire on the stereo as i found other threads where that was the problem, but for them it was popping fuses as well, and i dont think i even wired it up. i guess ill start checking wires.. but shy of that im thinking its gotta be the dimmer switch ? any other thoughts?

Also my wipers arent working. i havent tested the relay/motor/ or fuse itself yet, my question is , how do you test the "fuse" as it doesnt look like a normal fuse, looks more like a relay.... if its got continuety its good?

thanks gents..

  • Sponsors (?)


Check you ignition switch. I had a similar issue and my ignition switch was bad. Very cheap part and an easy fix.

They are known to split over time and make all the connections within the assembly.

  • Like
Reactions: 1 user
my ignition switch?? how would that effect either of these? my dimmer and headlight switch are in the dash, dont think they have anything in the column.

wipers, maybe if the arm /ignition are some how intertwined, but that would seem really weird to me, but ive never taken apart a ford column, so maybe? thanks for the tip, ill take a look there.

Recall on Ford Ignition switches:

Revised 7-June-2014 to add Torx bit picture and source. Also added replacement ignition switch wiring pigtail picture, part numbers and sources.

Some of the symptoms of ignition switch problems are things that don’t work or are intermittent like radio, turn signals, wipers or heater.

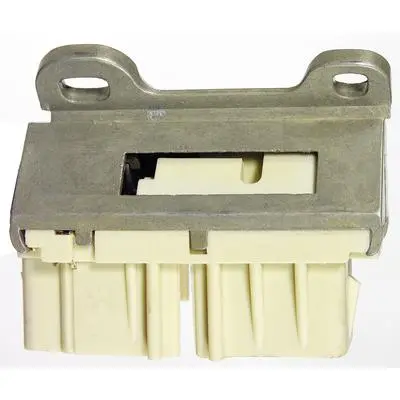

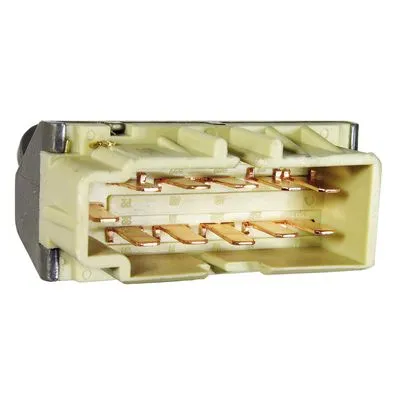

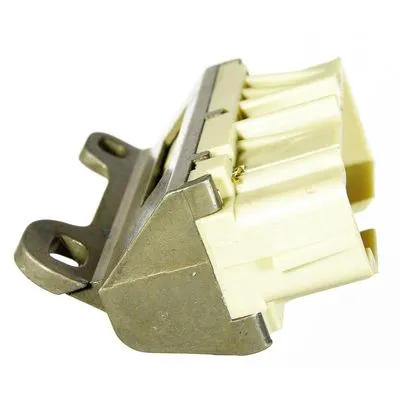

There was a FREE recall on Ford ignition switches. They overheat and sometimes catch fire. That burns up the steering column and sometimes the car interior. Since this is very old information, you may not be able to get the switch replaced for free anymore. The auto parts stores sell the switches for $13-$15.







While you are working on the switch, check the wiring and connector closely. A replacement connector with new wiring pigtails is available from most auto parts stores

AutoZone and Advanced Auto Parts have the same Part Number: 434 - may have to order, not always in stock

Advanced Auto Parts alternate part number: PT5534



Saleen0679 was nice enough to dig this up for us awhile back: Replace a 1979-1993 Ignition Switch Assembly

Torx bit set from Advance Auto Parts



Autocraft torx bit set – have small hole in tip for tamper proof screws.
Part No. AC571/W1386 Cost approx. $12 +tax

Diagrams courtesy of Tmoss & Stang&2birds

Ignition switch wiring


Fuel, alternator, A/C and ignition wiring


See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring http://www.veryuseful.com/mustang/tech/engine/ Everyone should bookmark this site.

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

O2 sensor wiring harness
http://www.veryuseful.com/mustang/tech/engine/images/mustangO2Harness.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pin out
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif

87-92 power window wiring
http://www.veryuseful.com/mustang/tech/engine/images/mustang87-92 PowerWindowWiring.gif

93 power window wiring
http://www.veryuseful.com/mustang/tech/engine/images/mustang93PowerWindows.gif

Visual comparison of the Ford Fuel Injectors, picture by TMoss:
http://www.veryuseful.com/mustang/tech/engine/images/Ford_Injector_Guide.jpg

  • Like
Reactions: 1 user
What he said^^^, that's how lol

The ignition switch is a series of contacts that will tell items to turn on as the key is in the ACC or run position . if not all the contacts are making good connection not everything will work. Like I said I had a similar issue and $14 and less than a half hour of my time it's now fixed.


my ignition switch?? how would that effect either of these? my dimmer and headlight switch are in the dash, dont think they have anything in the column. .
