I have a T-5 that was supposed to be for an 89 mustang but was given a T-5 that had a different bearing retainer on it. I got these numbers off the tag on the tranny.

F4ZR 7003-DA REP-BF G1053
1352-246 59937

Can someone tell me where this tranny is from?
Also, I have a slip yolk that is fatter than the one on my 89 T-5, what year did Ford make the slip yolk fatter?



jrichker

StangNet's favorite TOOL

In Remembrance. Thank you for your contributions

Mar 10, 2000

27,512

2,813

234

Dublin GA

Jun 18, 2005

#2

• Jun 18, 2005

• #2

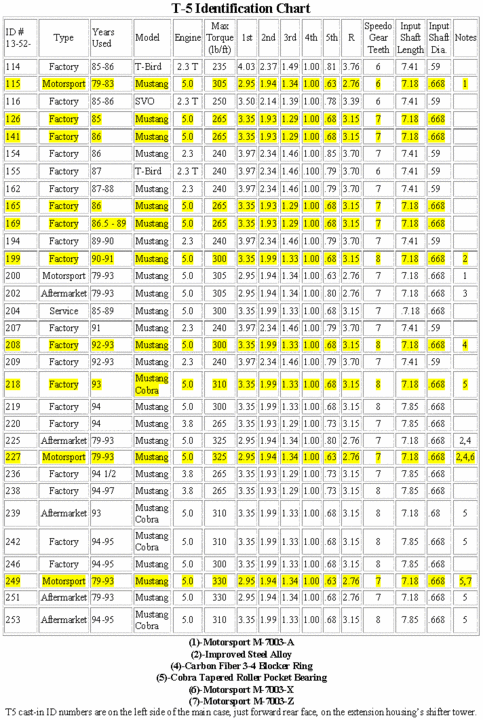

Chart courtsey of Tmoss & Stang&2birds...



According to the chart, it is a T5 from a 94-95 Mustang. Compare the input shaft lenght to a 249 model (79-93 year) and note the difference.

See http://www.veryuseful.com/mustang/tech/engine/ for more useful stuff



Attachments

• T5Identifier.gif

  125.3 KB · Views: 3,496

Mustang5L5

That is…until I whipped out my Bissell

Mod Dude

Feb 18, 2001

43,265

17,952

224

Massachusetts

Jun 18, 2005

#3

• Jun 18, 2005

• #3

Yup, a 94-95 tranny.

You can still use it in your fox, but you'll need to swap the input shaft and bearing retainer from a Fox T-5 over to it.



M

Mark89coupe

Member

Apr 5, 2005

206

0

16

Jun 18, 2005

#4

• Jun 18, 2005

• #4

Thanks
