heya i cant find any info on these injectors, maybe you can help!

[Foxfan88]

i got some injectors in a deal a while back. the guy told me they are 36# injectors.
they are greyish green color. like an army green sort of.
they have a ford oval logo on them and on one side there is a marking -9f593- there is also an R and a 470 on this side. on the other side there is FIZE-B4C and a 1 and D on this side, there is also PA in a little oval also.

heres some pics
View attachment 377891
View attachment 377892
View attachment 377893

maybe you guys could help me i couldnt find anything on them thanks!



[bill302]

look in here....click on link

http://www.injectorsonline.com/indivprod.php?c=1



[vristang]

fixy your linky



EDIT:
They look to be standard high impedance 17lb units...
(I am kinda guessing on the specs, beer is hard on the memory...)



jason



[6SpeedLX]

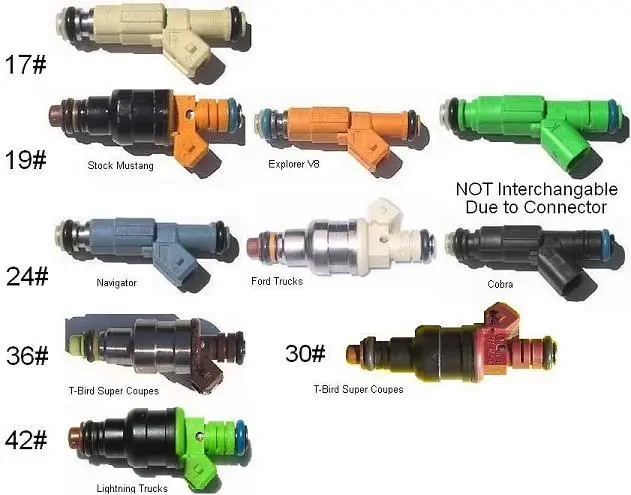

here this should help



[Foxfan88]

couldnt find them in the link and it wasnt in the small chart above me



[Mustang5L5]

Here's what i found via google on the PN


14# F1ZE-B4C Gray 1.9 - 3.8L
19# FOTE-D1A Yellow/Orange 4.6L SOHC
24# F2LE-B2A Lt. Blue 4.6L DOHC
25.3# F3DE-A2B Blue/Green 3.0L Flex Fuel
30# F1SE-E1A Red 3.8L SC

Flow PSI Resist Mfg. Part Color Application

1.76 (14) ?? 2.25 Bosch E3EE-BA Blue 1983 1.6L
1.76 (14) ?? 2.35 ND E4EE-AA Blue 1984 1.6L
1.76 (14) 30 16.20 ND E59E-AB Gray 1985-6 2.3L Truck, 5.0L SEFI
1.76 (14) 33 14.50 Bosch E67C-AB Gray 1986 2.9L, 3.0L
1.76 (14) 33 14.50 Bosch E67E-BB Gray 1986 5.0L SEFI
2.45 (19) 40 2.25 Bosch E6EE-AB White 1985-6 1.9L
2.45 (19) 32 16.20 ND E6TE-AB Gold 1986 5.0L HO SEFI
2.45 (19) 33 16.20 DKK E5TE-AB Gold 1985-6 5.0L Truck
2.45 (19) 33 14.50 Bosch E5TE-BB Gold 1986 5.0L Truck
3.00 (23) ?? 2.40 Bosch E4EX-AA Black 1984-5 1.6L Turbo
3.86 (30) 35-45 2.40 Bosch E3ZE-BA Green 1983 2.3L Turbo
3.86 (30) 35-45 2.35 DKK E4ZE-AA Green 1984 2.3L Turbo
4.41 (35) 35-45 2.35 DKK E5ZE-AB Gold 1985-6 2.3L Turbo
4.54 (37) 40 2.25 Bosch E3VE-A1A Green 1984-6 3.8L CFI
4.54 (37) 40 2.0 ND E3VE-A2A Green 1984-6 3.8L CFI
5.81 (46) 33 2.40 Bosch EOSE-A1A Blue 1980-3 5.0L CFI
5.81 (46) 33 2.00 ND EOSE-A2A Blue 1983-4 5.0L CFI
5.81 (46) 33 2.25 Bosch EOSE-A1A Blue 1984 5.0L CFI
6.60 (52) 32 2.25 Bosch E4ZE-CA Gray 1984-5 5.0L HO CFI
7.00 (56) 16 1.40 Bosch E43E-AC Blue 1985-6 2.3L HSC
8.00 (64) 16 1.40 Bosch E53E-AB Green 1985-6 2.3L HO HSC, 2.5L HSC

Flow is lb./hr. for gasoline (I don't know how the flex fuel was measured).
All have impedance of 11-18 Ohms. The basic part number is 9F593, so a
complete part number would be F1ZE-9F593-B4C.


The above was taken from
http://yarchive.net/car/injectors.html



Then there is this. It says that injector is from a 1991-1996 1.9L Ford Escort....14#

http://www.carburetion.com/pdfs/injectors_port.pdf
