How To Align Rear Lsd Side Gears Without Disassembly

Alpine615

Member
May 2, 2017
6
2
13

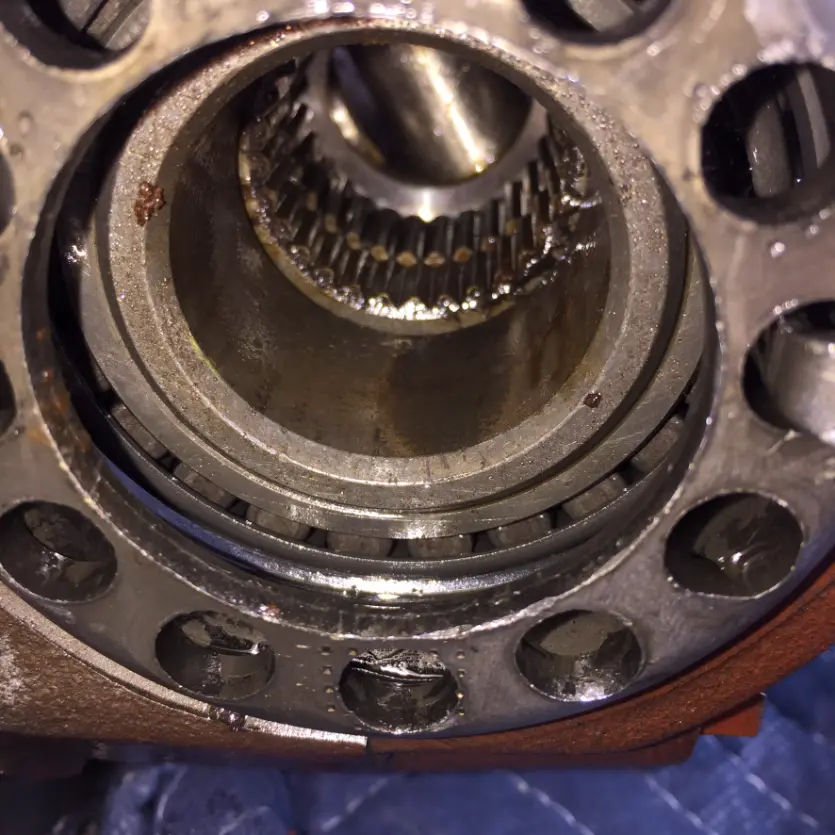

Hello. I have an 8" rear with Trac Lok that I'm putting in my 1980 Pinto. I recently took the axles out to be redrilled to a 5 x 4.5 bolt pattern. I have no idea how, but the teeth on the D/S side gear and the clutch hub became misaligned (see photos), which is preventing me from reinstalling the axle fully. There is only one toothed part on the passenger side, and that axle went in with no issues.

I feel that I am missing something painfully obvious. Maybe that's because I don't fully understand how an LSD works, but how can I turn one toothed part (either the side gear or the hub), without the whole assembly turning on me? With the P/S axle, wheel, and tire installed and chocked, I tried inserting the D/S axle as far as it would go and turning, but the damn thing doesn't want to budge that way. I really do not want to disassemble the diff if I can help it.

Thanks in advance from this noob...


Attachments

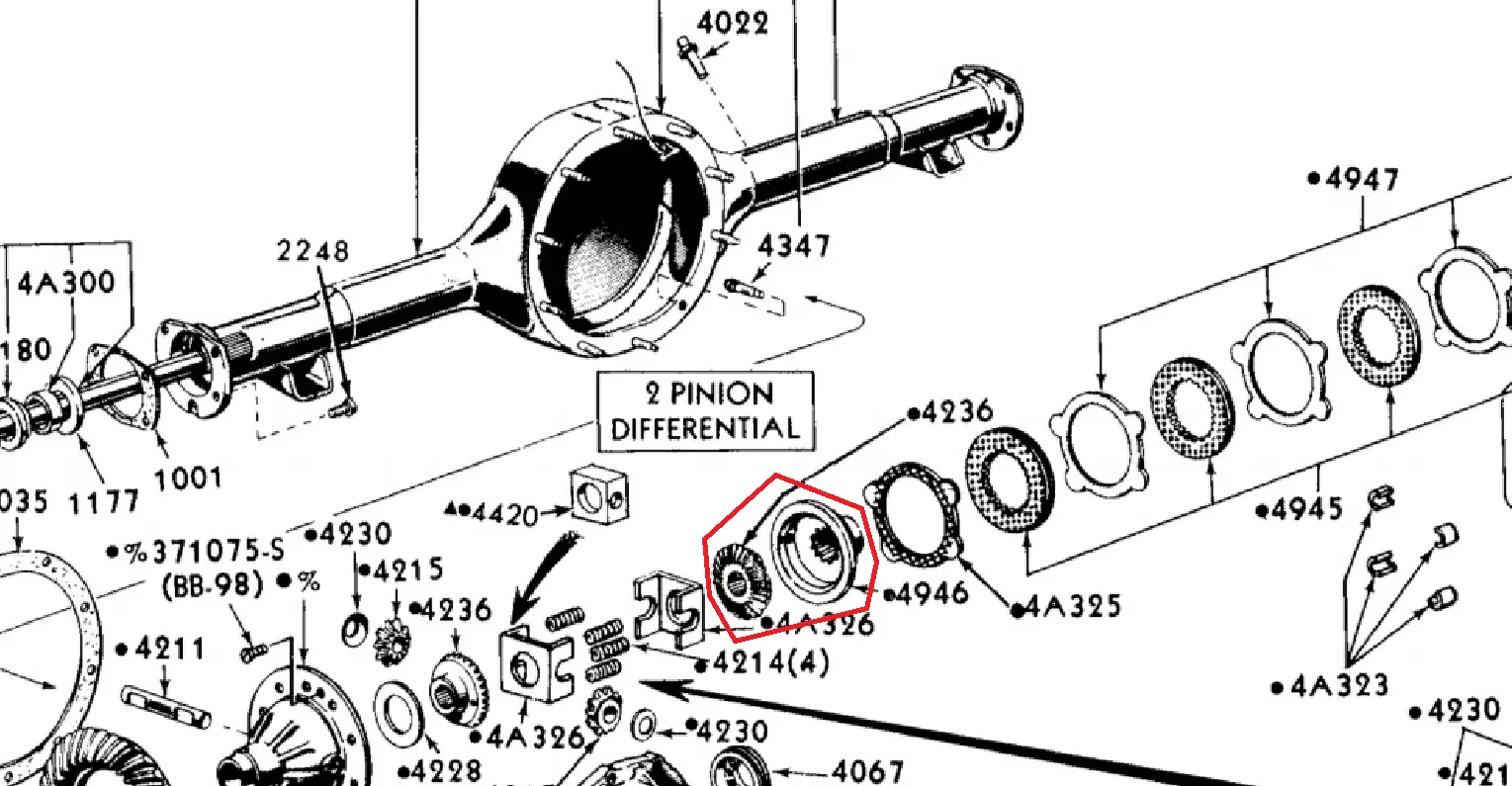

  • FMP Catalog.png

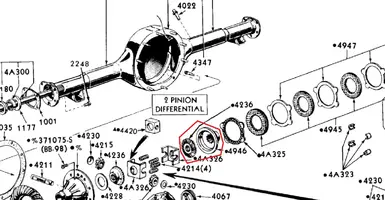

    FMP Catalog.png
    433.6 KB · Views: 215
  • sidegears.png
    1.2 MB · Views: 236
  • Sponsors (?)


Put your axles back in and push the side that will go all the way in back in place , put the wheel on and set the side that is in on the ground .put the axle in on the side that will not engauge all the way and put the tire on ,now rock the tire back and forth and push on at the same time,while it is off the ground untill it slides in ,you may have to turn it pretty hard but it will align the teeth

  • Like
Reactions: 1 user

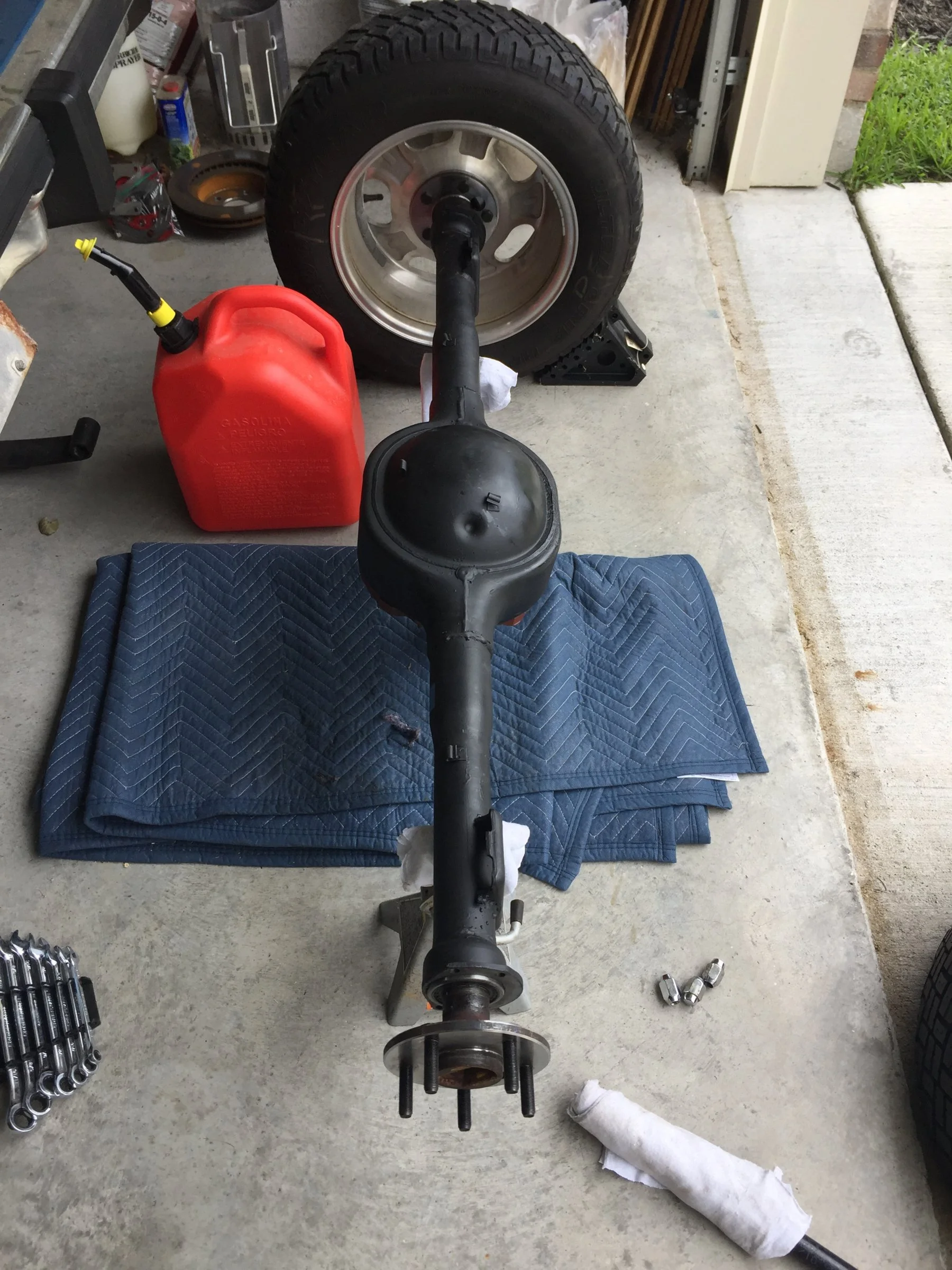

Thank you, horse sence! I was on the right path, but your reply gave me the motivation to keep turning that axle, and I was able to get it to seat properly in the diff/housing. The tire was giving me too much leverage (read: it was spinning the passenger tire, even though it was chocked,) so I removed it, put on some heavy gloves, and turned the axle flange by hand. Here's a picture of the final result:
