I am having some carb woes can someone help?

[leos67]

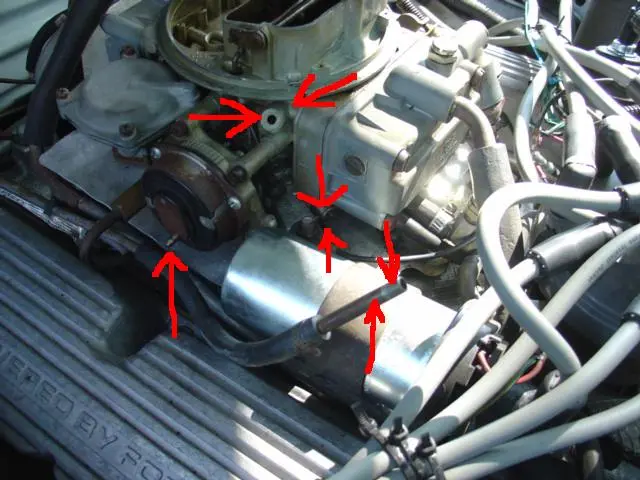

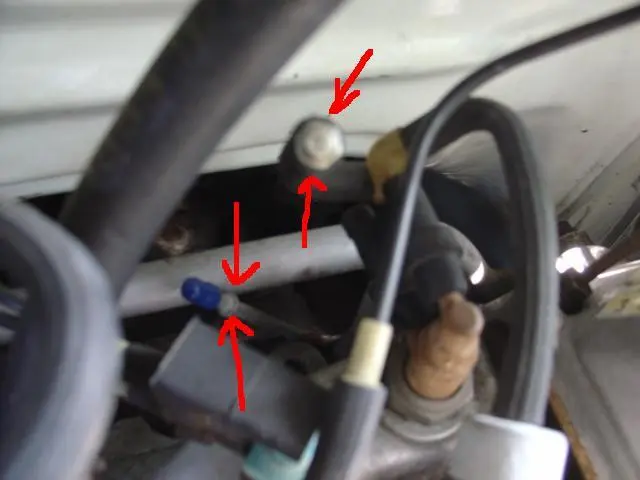

hey guys i have a 1983 GT 5.0 H.O 5/speed car and there are certain things that i can't figure put what goes where? so i have included some pictures to assist you guys in decideing what is what and where does it go connected? what color is the factory wire supposed to be that goes connected to the choke? everything that i have pointed what arrows i dont know what it is and would like to find out what they are?? i live in california if that would make a difference.
thanks



[PuterAmI]

That vacuum line with the metal tube goes in the hole at the top.
Look for a black/white wire coming from the alternator. That is a 6V supply for the 4180 carb.

On the vacuum lines, one of those is to the heat riser.



[leos67]

That vacuum line with the metal tube goes in the hole at the top.

the hole is smaller and it won't fit inside is there supposed to be another connection? is there anyway you can take a picture of your car and the way it is set up? thanks alot. oh if there is no black and white wire what can i do to fix the connection for the choke?



[leos67]

to the top



[Dark Knight]

the hole at the bottom of the carb is where the idle mixture adjustment is, takes an allen wrench.

the metal tubes does go in the hole, but someone may have stuck the wrong size tube in the line..

try http://www.foureyedpride.com/phpBB2/index.php
I posted the vacum line schematic there awhile back..should be under the hood, or I can get another pic of mine..



[PuterAmI]

Um, yeah, I could take a picture of my setup.
It won't help you at all, though.
There's nothing stock left to my 84.

The bl/wh wire should come off the alternator. Look at the back of it and see if someone cut it off. The issue is that the choke on the 4180 only takes 6V to heat up where "regular" Holleys take 12V.



[Dark Knight]

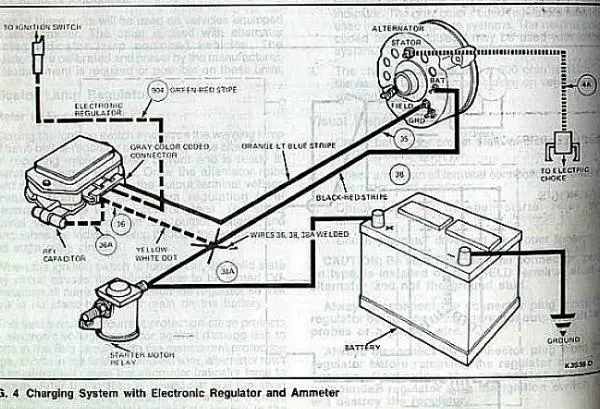

this help?
