Installing typhoon intake...having problems...vacume lines???

[IMPORTSMOKER]

So I am in knee deep in my typhoon install and when putting the upper on...it looks nothing like the stock upper as to where the vacume and coolant lines go...i bought the intake used so i have no instructions...can someone help??? ohhh, and i "searched" so everyone can be happy



[Blk91stang]

I just installed my typhoon intake on my car. Yes there are no vacuum lines connected underneath the intake anymore like the stock one. I used the supplied fittings for the holes in the back. 1) Connects the main vacuum line for the tree on your firewall 2) Connects the vacuum for the charcoal canister (plugged it off because the line wouldnt reach) 3&4) Tee'd off for the EGR and Fuel Pressure line. Make sure the holes near the throttle body on each side of the intake are plugged which are used for nitrous i think.. Hope I helped. If you have a problem just holler at me..



[IMPORTSMOKER]

I just installed my typhoon intake on my car. Yes there are no vacuum lines connected underneath the intake anymore like the stock one. I used the supplied fittings for the holes in the back. 1) Connects the main vacuum line for the tree on your firewall 2) Connects the vacuum for the charcoal canister (plugged it off because the line wouldnt reach) 3&4) Tee'd off for the EGR and Fuel Pressure line. Make sure the holes near the throttle body on each side of the intake are plugged which are used for nitrous i think.. Hope I helped. If you have a problem just holler at me..

thanks...this is helpfull but a little more info would really help....a diagram of the original directions would be a godsend...but i think i can figure it out....but do i need to reuse any of the stock intake fittings??? ie. the pvc fitting??and others......



[DMAN302]

One on the bottom goes to PCV, one on the firewall side by the TB goes to the fuel regulator, one by the tb on the front goes to the canister located on the front passenger side of car, ones on the back go to the vac tree on the firewall, and the other goes to the map if your speed density or you can plug all the rest including the one to the map if mass air. Thats it.



[bmo37]

So I am in knee deep in my typhoon install and when putting the upper on...it looks nothing like the stock upper as to where the vacume and coolant lines go...i bought the intake used so i have no instructions...can someone help??? ohhh, and i "searched" so everyone can be happy

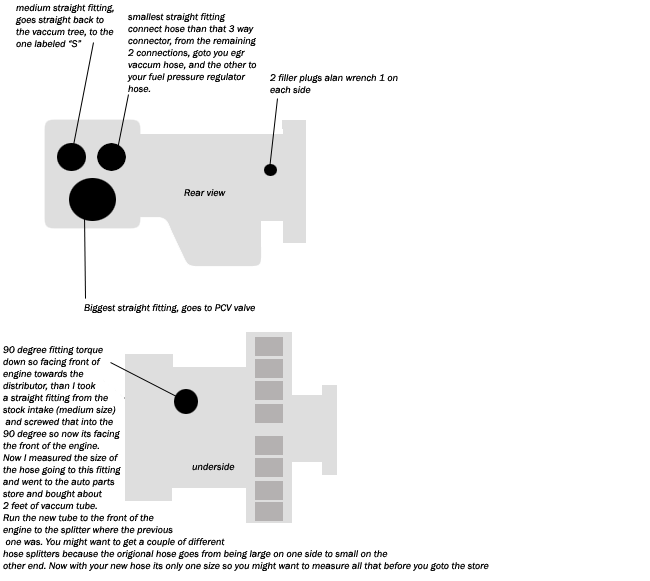

here's one i did. actually there's no right or wrong way as long as you connect everything someone and nothing is left open or not connected
