Installing upper and lower intake

[ballajb64]

Ok I have a 1991 5.0 block that I had built up, But I am left to install the upper intake. I have the upper intake and I have the tree looking thing that goes under it. Now i am comfused with what I connect to what. The lower intake is on the block and I know there is a whole in the back of the intake, what goes there? I will not be running a egr, i have the egr delete plate and did the smog pump delete on the motor, so can anyone help me with pics so I can see what goes where and how to run the hoses.



Thanks



[cenok is family]

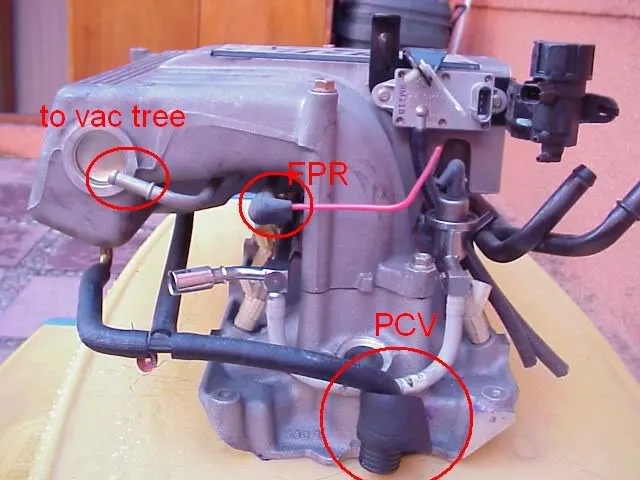

this is an explorer intake, but pretty much the same exact thing as far as how the vac lines hook up. the PCV valve goes in that hole on the lower intake.

not pictured, the other small vac port on the vac tree on the underside of the intake goes to the egr vacuum solenoid. since youre not running egr, just cap it off.



[ballajb64]

ok, so i dont have to put the tree piece into the intake? or how should i cap it off?



[ballajb64]

n also what is fpr? and as far as the hoses i can get those from kragens or something?



[Makdaddymac]

wait a second, this is scaring me. my vac setup is 100% different, i only have one hose going to the pvc valve and the others i got going to my tree. basically anything that had a vacum before the intake install had a vacuum after i finished? does it matter or could i be not getting proper vacuum with my setup(aka. my hunting idle)



[jrichker]

Diagram courtesy of Tmoss & Stang&2birds

See the following website for some help from Tmoss (diagram designer) & Stang&2Birds (website host) for help on 88-95 wiring Mustang FAQ - Engine Information Everyone should bookmark this site.

Ignition switch wiring
http://www.veryuseful.com/mustang/tech/engine/images/IgnitionSwitchWiring.gif

Fuel, alternator, A/C and ignition wiring
http://www.veryuseful.com/mustang/tech/engine/images/fuel-alt-links-ign-ac.gif

Complete computer, actuator & sensor wiring diagram for 88-91 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/88-91_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for 91-93 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/91-93_5.0_EEC_Wiring_Diagram.gif

Complete computer, actuator & sensor wiring diagram for94-95 Mass Air Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/94-95_5.0_EEC_Wiring_Diagram.gif

Vacuum diagram 89-93 Mustangs
http://www.veryuseful.com/mustang/tech/engine/images/mustangFoxFordVacuumDiagram.jpg

HVAC vacuum diagram
http://www.veryuseful.com/mustang/tech/engine/images/Mustang_AC_heat_vacuum_controls.gif

TFI module differences & pinout
http://www.veryuseful.com/mustang/tech/engine/images/TFI_5.0_comparison.gif

Fuse box layout
http://www.veryuseful.com/mustang/tech/engine/images/MustangFuseBox.gif



[stykthyn]

vacuum is vacuum, as long as all the lines are run, it really doesnt matter where they go.

that is a handy diagram though.....



[cenok is family]

yeah you need the vacuum tree. fpr is fuel pressure regulator
