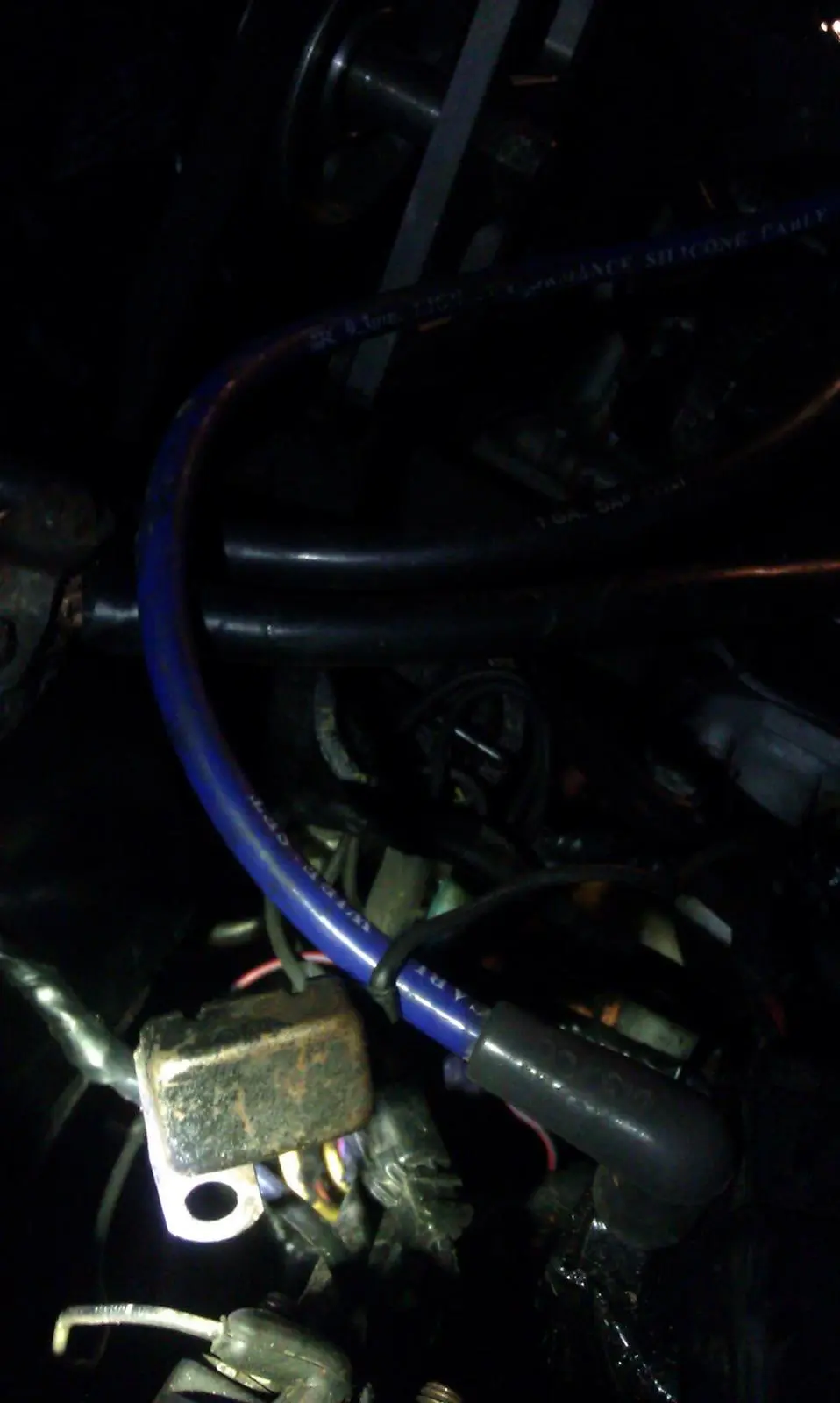

8 86gtriceeater Member Aug 4, 2006 316 0 17 Whitewater, WI Aug 6, 2011 #1 Aug 6, 2011 #1 Can you tell me what this is? I just swapped all my harnesses and I cant figure out what this is...Is it a ground block? Any idea what wire goes to the other side? It reached the starter solonoid but its a black wire with a white stripe...86 gt 5.0 Attachments ground block2.webp 6.4 KB · Views: 169 ground block3.webp 2.8 KB · Views: 198
Can you tell me what this is? I just swapped all my harnesses and I cant figure out what this is...Is it a ground block? Any idea what wire goes to the other side? It reached the starter solonoid but its a black wire with a white stripe...86 gt 5.0
BlownFiveLiter have car, will race....wait, it doesn't run 15 Year Member Nov 29, 1999 3,133 18 108 Chicagoland Aug 6, 2011 #2 Aug 6, 2011 #2 Could you post some larger pics? Those are tiny.

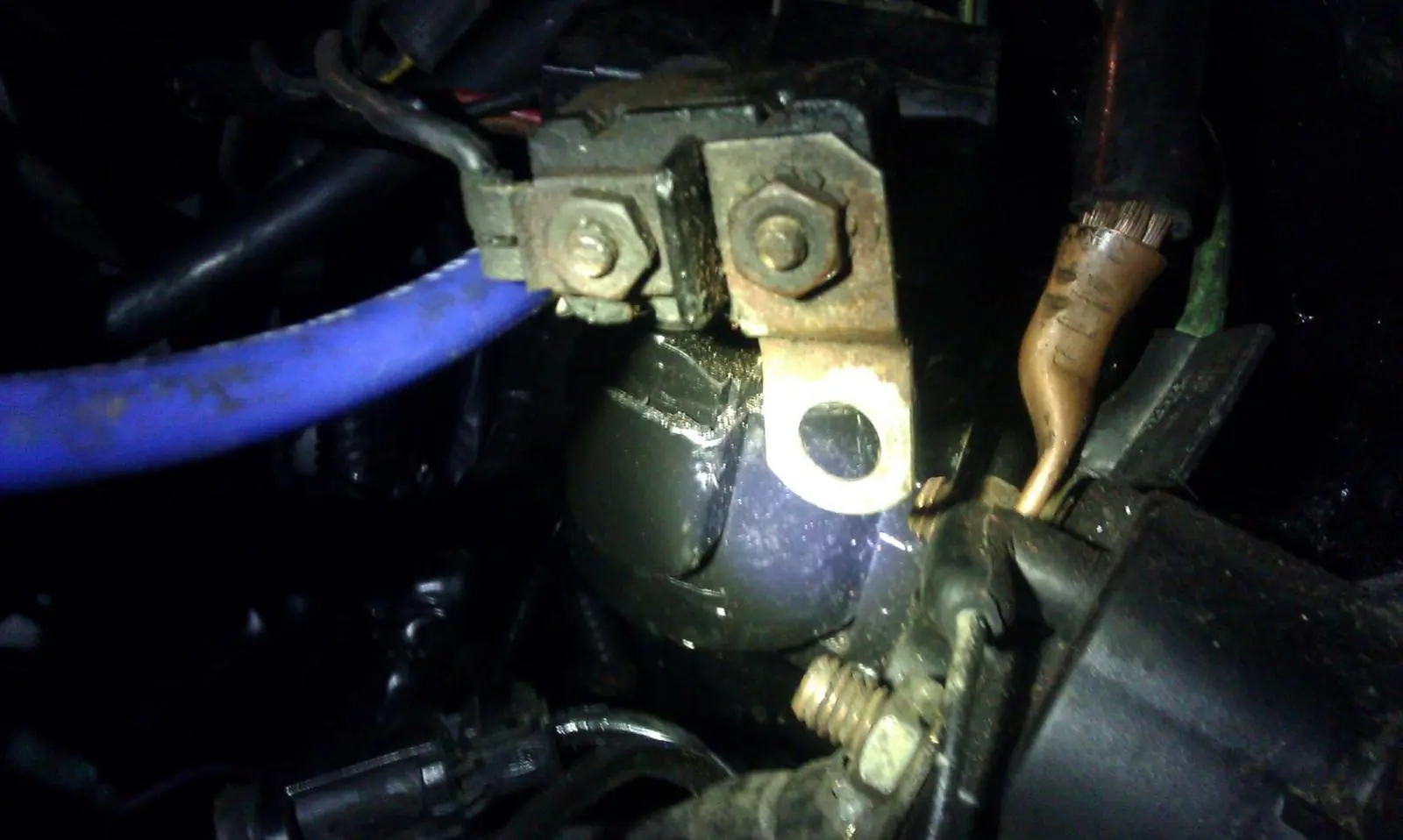

8 86gtriceeater Member Aug 4, 2006 316 0 17 Whitewater, WI Aug 6, 2011 #3 Aug 6, 2011 #3 Bigger Pics Hope this helps... Attachments solbig2.webp 35.3 KB · Views: 139 solbig3.webp 55.5 KB · Views: 120
S SleepingStang New Member Jun 26, 2008 27 0 0 Aug 6, 2011 #4 Aug 6, 2011 #4 It goes to the starter solenoid where you have the large gauge wire with the copper lug.
S SnowBoarda42 New Member Apr 3, 2004 12 0 0 Aug 6, 2011 #5 Aug 6, 2011 #5 It goes to whatever lug you have your battery directly connected to. The only thing that should be hooked on the starter side is the wire that runs to the starter bendix.
It goes to whatever lug you have your battery directly connected to. The only thing that should be hooked on the starter side is the wire that runs to the starter bendix.
8 86gtriceeater Member Aug 4, 2006 316 0 17 Whitewater, WI Aug 6, 2011 #6 Aug 6, 2011 #6 What does it do??? Should something be attached to the other side? I have all my fuse links connected already...
What does it do??? Should something be attached to the other side? I have all my fuse links connected already...

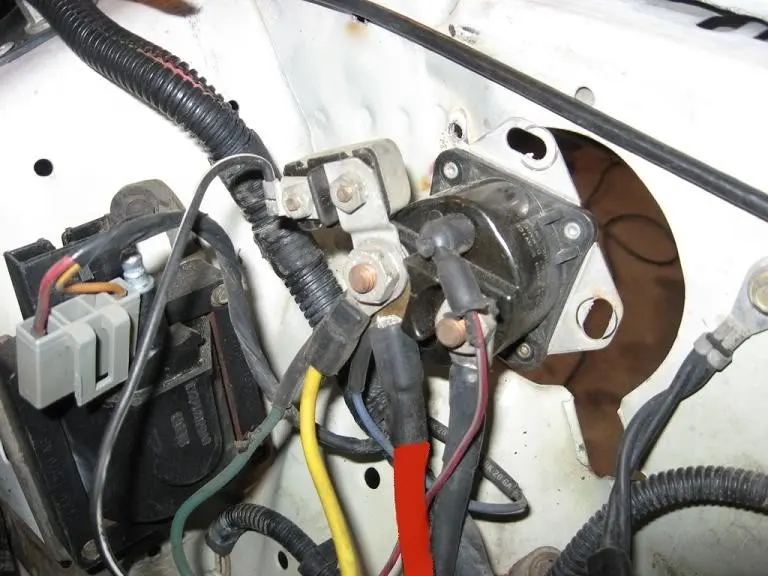

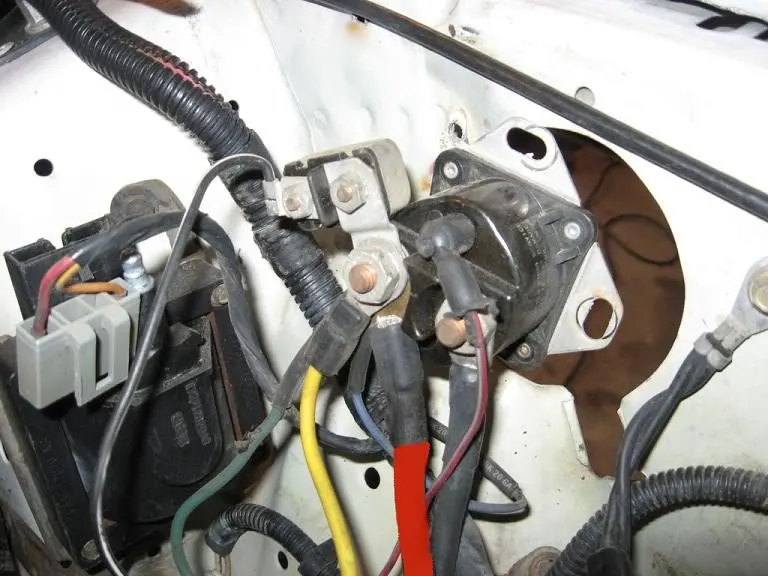

4G-KDMP 10 Year Member Jul 23, 2005 935 19 39 CA Aug 7, 2011 #7 Aug 7, 2011 #7 It's the circuit breaker for your power window and door locks and should be attached to the solenoid like this. Attachments Sol1.webp 45 KB · Views: 102
It's the circuit breaker for your power window and door locks and should be attached to the solenoid like this.
jrichker StangNet's favorite TOOL In Remembrance. Thank you for your contributions Mar 10, 2000 27,512 2,813 234 Dublin GA Aug 7, 2011 #8 Aug 7, 2011 #8 Starter solenoid wiring for 86-91 Mustang
