Long tube install WTF...PITA

[Yobi1Kanobi]

How the hell do you get these flopping things in

WTF....I cant believe this.....I can't get either side in and I took off my steering shaft and I took off my Alternator bracket on the other side and I still cant get them in I dont want to scratch them anymore I already got a couple scratch on the ceramic....

If there is anybody in my area that can help I am willing to pay



[SQUEEZE&STROKE]

Undo the motor mounts. Jack the motor up.

......

Or shoulda bought Bassani's...where each primary comes loose from the collector and header flange. Makes them a breeze to install...



[Stanger007]

Done this a few times - driver's side goes in good from below, passenger side from top or below.

Get the motor up high, a long prybar can do wonders. Put some tape on them to keep them from getting scratched on the kmember/bellhousing.

Wes



[Yobi1Kanobi]

Damn are you kidding me?????lift the motor???? NOOOOOOO WAYYYYYY unbelivable......


Tape is a good idea tho i was using towels but di get a couple scrathes on them



[95Mustang302]

i can't believe your having problems, I slipped the passenger side through the top, took the valve cover off and it slipped right down in, and the drivers side went up through the bottom with the shaft out of the car. You have to put the drivers side header parallel with the bottom of the engine and then sort of fold it up into the engine bay and it should slip right in...



[Stanger007]

Drop you a board and a floor jack under the bellhousing or oil pan and undo the motor mounts, it'll give you all the room ya need. Doing longtubes on an AODE/4R70W is a PITA - bellhousing is large.

Wes



[SQUEEZE&STROKE]

Drop you a board and a floor jack under the bellhousing or oil pan and undo the motor mounts, it'll give you all the room ya need. Doing longtubes on an AODE/4R70W is a PITA - bellhousing is large.

Wes

+1 or a C4 with a JW bell...that fugger is huge!



[Yobi1Kanobi]

OK......I'm gonna breath buy a new 6 pack and try again..



[tstang21]

i helped installed hooker headers like those on my uncle's 93 5.0 and it wasnt difficult even though it took time. i say if your not confident installing them, just take it to a local shop and make sure everything is done correctly. its not worth breaking an expensive part and getting injured.


oh BTW nice headers



[Bosko5.0]

Drop you a board and a floor jack under the bellhousing or oil pan and undo the motor mounts, it'll give you all the room ya need. Doing longtubes on an AODE/4R70W is a PITA - bellhousing is large.

Wes

Very true

I used a engine lift when I put mine in. after a while you won't care foe the ceramic.



[Yobi1Kanobi]

well the thing is that lifting my engine wont really give me too much. Becuase of my TKO and my motor is set back an inch so its not gonna go very far. but im gonna give it another go at it today.



[ProKiller]

good luck man. i'll be doing this shortly as well.



[Bosko5.0]

did you get em in.

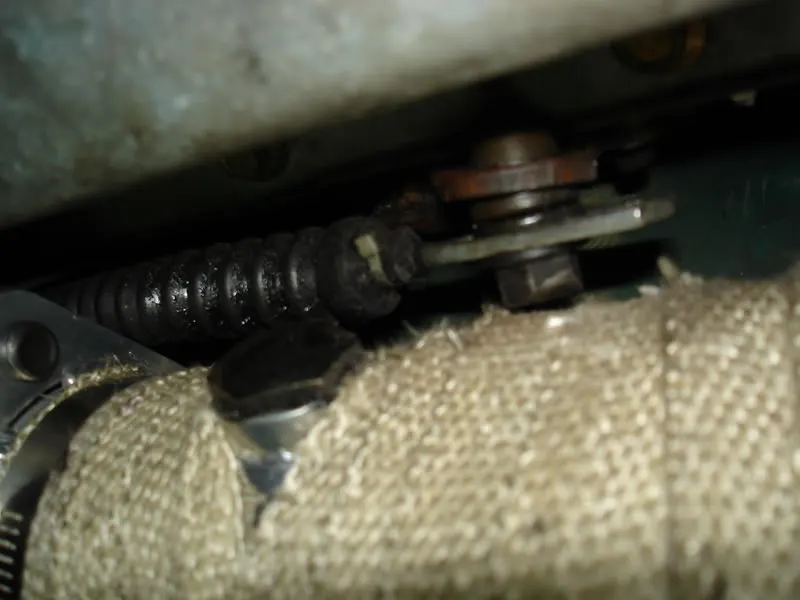

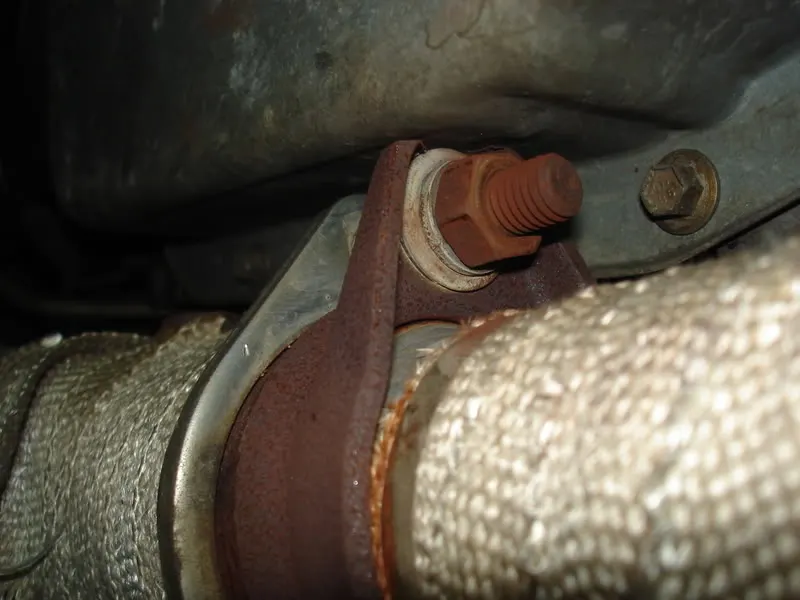

heres a pic to show you how much a pita Lt's + auto =



[Yobi1Kanobi]

Nope I am trying to find some help....I need an extra pair on hands....This has been this cars story so it wouldn't surprise me.



[Stanger007]

If you have the motor up (even a little), having someone with a long prybar or pipe to nudge it over in the direction you need will do the trick.

Wes



[Yobi1Kanobi]

Thanks for the tip. When you lift the motor is about an inch or do i have to clear the motor mounts?



[Stanger007]

I get them up as high as I can before it bottoms out on the firewall. Lift it slowly and watch for clearance/snags as you go up.

Watch fingers etc when moving it around.

Wes



[94GTLaserRC]

I cant believe you didnt put these on when the motor was out!

If all else fails..you can buy my Shorty headers

RC



[str8stang036]

Have you tried from bottom up? Maybe if you get the car high enough it may work. Also, you may want to try removing the steering shaft for more clearance.



[94GTLaserRC]

Have you tried from bottom up? Maybe if you get the car high enough it may work. Also, you may want to try removing the steering shaft for more clearance.

and I took off my steering shaft and I took off

Too much Beer!
